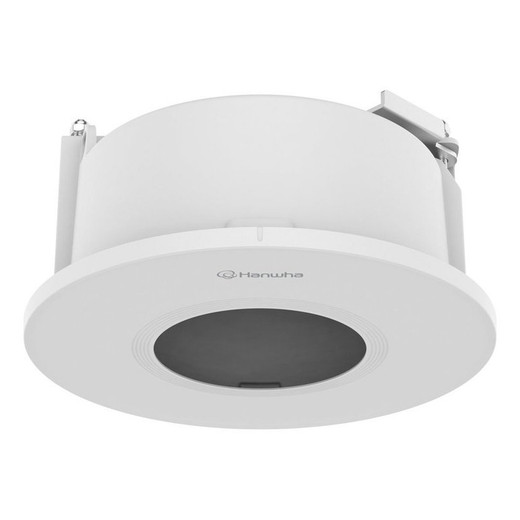

Hanwha SHD-1100FPW Plenum In-Ceiling Mount
Overview
The SHD-1100FPW is a plenum-rated, flush-mount bracket engineered for secure ceiling installation of Hanwha dome cameras in suspended ceiling environments. If you're integrating 5MP Hanwha domes (QND-C8013R or QND-C8023R) into office, retail, or educational spaces with drop ceilings, this mount handles the compliance and mechanical load without complication.
Key Features
- Plenum-rated construction: Materials meet fire-safety codes for plenum spaces—meaning the housing won't off-gas toxic fumes if exposed to heat. This eliminates code violations and insurance complications in climate-controlled commercial buildings where plenum compliance is mandatory.
- Polycarbonate and aluminum build: Polycarbonate resists impact and yellowing; aluminum delivers structural rigidity. Combined weight of 676.4 g means installation crews can position and secure the mount without a second person to hold it steady during fastening.
- RAL 9003 white finish: Blends into standard white drop ceilings, avoiding the visual clutter of silver or black mounts in office and retail deployments where aesthetics matter to end users.
- Accommodates 10–70 mm ceiling tile thickness: Covers the full range of standard commercial suspended ceilings. Tiles thinner than 10 mm or thicker than 70 mm require alternative mounting solutions; verify your ceiling tile gauge before ordering to avoid a mismatch.
- 1.5 kg load capacity per mount; 3 kg maximum ceiling board load: The SHD-1100FPW anchors to the tile grid using TR20 screws. A single 5MP dome (QND-C8013R or C8023R) weighs well under this limit, providing safety margin for minor vibration or installation tolerance variations.
- Dual conduit holes (M20 1/2" and M25 3/4"): Two separate ports allow you to route Ethernet and power cables in independent paths, reducing EMI and simplifying cable management in congested plenum spaces where cable routing discipline is critical to system performance.
- Flush-mount design: Sits flush with the tile plane, maintaining the clean aesthetic of drop ceilings while keeping the dome protected from accidental contact or tampering.
Integration & Compatibility
The SHD-1100FPW is designed exclusively for Hanwha's QND-C8013R and QND-C8023R 5MP indoor IR domes. If you're deploying a different Hanwha dome model, verify mount compatibility with the camera spec sheet before ordering—mounting holes and thread patterns vary across product lines. The bracket itself is passive (no electronics), so it integrates with any network video recorder or VMS that supports the QND-C8013R or C8023R.
Deployment Considerations
Plenum mounting requires upfront planning. Before installation, confirm that your drop ceiling grid is rated for the combined load of the mount, camera, and cable strain. If the ceiling tile grid shows corrosion, damage, or undersizing, reinforce it or relocate the mount to a structurally sound span. The 10–70 mm tile thickness specification is strict—measure your ceiling tiles before ordering to ensure fit. In high-vibration environments (data centers, HVAC rooms adjacent to mechanical equipment), the 1.5 kg per-mount load limit may be marginal; consider deploying additional horizontal bracing or wall-mounted alternatives if camera shake becomes visible during playback review.
When to Choose a Different Mount
If your ceiling tiles fall outside the 10–70 mm range, or if you need to mount cameras on concrete soffits, exterior walls, or non-drop-ceiling surfaces, consult Hanwha's broader mounting accessory line for alternative solutions. If you're deploying non-Hanwha cameras, this bracket won't be compatible—verify the mounting interface before purchase.
Frequently Asked Questions
Q: Is the SHD-1100FPW plenum-rated for all jurisdictions?
A: Yes. The bracket meets plenum fire-safety material requirements (low smoke, low toxicity) recognized in IBC, NFPA, and equivalent building codes. Always verify local building code adoption with your authority having jurisdiction before installation.
Q: Can I use the SHD-1100FPW with cameras other than the QND-C8013R and QND-C8023R?
A: No. The mount is specifically engineered for those two 5MP dome models. Mounting hole patterns and thread interfaces differ across Hanwha's camera lines. Using this bracket with incompatible cameras risks misalignment, poor support, or load-rating violations.
Q: What is the maximum weight capacity per mount?
A: 1.5 kg per mount. The ceiling board itself has a maximum supported load of 3 kg total. A QND-C8013R or QND-C8023R dome weighs well under 1.5 kg, leaving safety margin for cables and minor tolerance drift.
Q: Can I use both the M20 and M25 conduit ports simultaneously?
A: Yes. The dual ports are designed to allow separate Ethernet and power cable routing. This reduces EMI and simplifies cable management in plenum spaces where tight bundle density can degrade signal integrity.
Q: What fasteners are included for ceiling tile grid attachment?
A: TR20 screws are used to anchor the bracket to the tile grid. Confirm that your ceiling grid is compatible with this fastener type and that it is structurally sound before installation.
Q: Does the SHD-1100FPW require any electronics or configuration?
A: No. The bracket is a passive mechanical mount with no electronics, firmware, or network configuration required. It is compatible with any NVR or VMS that supports the QND-C8013R or QND-C8023R camera.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The SHD-1100FPW is a straightforward but critical component for any 5MP Hanwha dome deployment in drop-ceiling environments. The plenum-rated material specification is not optional in commercial interiors—skip it and you're looking at code violations and insurance exposure. The real value here is that Hanwha engineered this bracket specifically for the QND-C8013R and QND-C8023R, so mounting hole alignment and load rating are guaranteed to work without field improvisation.
Technical Highlights:
- Plenum rating (low-smoke, low-toxicity polycarbonate/aluminum): Eliminates fire code friction in climate-controlled commercial spaces. Most commercial buildings require this—it's not a nice-to-have.
- 1.5 kg per-mount load capacity with 3 kg ceiling board maximum: A QND-C8013R or C8023R dome is roughly 0.5–0.7 kg, so you have ample safety margin. This matters because it means you won't need structural reinforcement for standard drywall/tile ceilings.
- 10–70 mm tile thickness range: Covers the vast majority of commercial drop ceilings. Measure before ordering—tiles outside this range (common in retrofit projects with older ceilings) require alternative brackets.
- Dual M20/M25 conduit ports: The ability to route Ethernet and power separately is genuinely useful in crowded plenum spaces where cable bundle density can introduce EMI. This is not a checkbox feature—it's practical cable discipline.
Deployment Considerations:
- Verify that your drop-ceiling grid is in good structural condition before mounting. Corroded or damaged grid means no install—plan reinforcement or relocate to a stronger span.
- The 1.5 kg limit is per mount. If you're stacking multiple cameras or adding external cable strain on a single mount, you'll exceed the rating. Distribute load across multiple anchor points.
- In high-vibration environments (HVAC rooms, data centers), consider wall-mounting as an alternative. Ceiling vibration can show up as jitter in playback, especially on longer recording timelines.
For any office, retail, or education environment rolling out Hanwha 5MP dome coverage in standard suspended ceilings, the SHD-1100FPW is the correct choice. It handles code compliance, matches the dome's weight, and keeps the visual footprint clean. Pair it with a PoE-enabled NVR and properly sized switch for a turnkey ceiling-mounted surveillance system.
