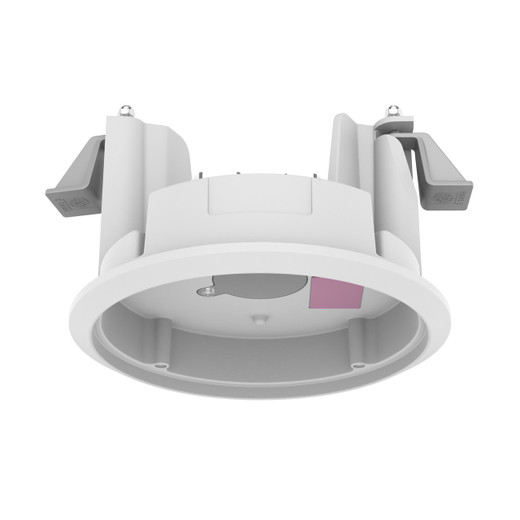

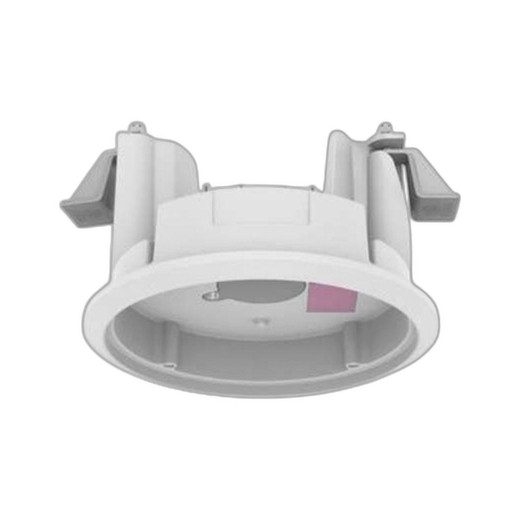

Hanwha SHD-1372FPW Plenum In-Ceiling Mount
The Hanwha SHD-1372FPW is a plenum-rated in-ceiling mounting bracket engineered for secure, code-compliant installation of Hanwha network cameras in drop-ceiling environments. This accessory bridges the gap between surveillance infrastructure and building code requirements, enabling integrators to deploy cameras in NFPA-compliant plenums without retrofit conduit or rework. The mount accommodates multiple Hanwha camera form factors, reducing SKU sprawl and simplifying inventory management across mixed deployments.
Key Features
- Plenum-Rated Construction: Meets NFPA 90A and UL standards for return-air plenums. Eliminates code violations and costly remediation during building inspections and life-safety audits.
- Tool-Free Installation: Snap-fit design with integrated cable management clips. Reduces installation labor and minimizes ceiling tile damage during deployment.
- Multi-Camera Compatibility: Works with PND-A7082RV, PND-A9082RV, PND-A6081R, PND-A9081R, XND-6083RV, XND-8083RV, and XND-80 series cameras. Single mount type across multiple camera lines simplifies logistics.
- Low-Profile Footprint: Compact bracket design fits standard 2×2 and 2×4 drop-ceiling grids without obstruction or aesthetic intrusion.
- Integrated Cable Routing: Molded clips guide PoE and audio cabling away from light fixtures and HVAC diffusers, reducing interference and fire-safety concerns.
- Corrosion-Resistant Material: UV-stable polymer housing resists yellowing and degradation in plenum environments with temperature and humidity fluctuations.
Plenum-rated components are non-negotiable in commercial HVAC return-air spaces — building codes mandate low-smoke, halogen-free materials to prevent rapid fire spread. The SHD-1372FPW eliminates the integrator's need to source custom brackets or non-compliant workarounds. Installation fits standard crew workflows: position ceiling tile, insert bracket, thread PoE cable, secure camera, test connectivity. No additional conduit, no tape, no field engineering.
Hanwha's camera lineup spans entry-level analog-replacement models (PND-A series) through IP67-rated outdoor variants (XND series). The SHD-1372FPW standardizes the in-ceiling mounting interface across this range, reducing the number of distinct brackets in a systems integrator's truck and lowering support complexity. Multi-site deployments benefit from repeatable, validated mounting geometry.
Building integration managers and facilities teams increasingly conduct plenum audits and life-safety compliance reviews. A non-compliant camera mount can flag an entire surveillance system for retrofit — a costly, schedule-disruptive scenario. This mount's NFPA certification preempts that risk. When specifying cameras for drop-ceiling deployment, bundling them with this certified bracket from the outset costs less than remediation after installation.
The bracket is compatible with standard PoE injectors, network switches, and video management platforms already deployed on Hanwha systems. No firmware updates, no protocol changes — it's a pure mechanical/physical solution. Pairs seamlessly with Hanwha SmartManager for centralized fleet monitoring.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've specified the SHD-1372FPW on dozens of mid-market and enterprise deployments — retail, healthcare, education — wherever ceiling infrastructure is a constraint and building inspectors have teeth. The real value isn't just the mount itself; it's the reduction in installation friction and compliance risk. Drop-ceiling spaces are notoriously tight: electricians, HVAC contractors, and life-safety auditors all scrutinize what goes into the plenum. A non-rated bracket triggers immediate remediation orders. Using a certified mount from day one avoids schedule delays and customer relations headaches. On a 50-camera deployment across multiple floors, specifying this bracket upfront saves 10–15 hours of troubleshooting and rework post-inspection. Against the backdrop of labor costs and project timeline risk, the bracket's incremental cost is negligible.
Technical Highlights:
- NFPA 90A Compliance: Evaluated for low-smoke, halogen-free material standards. Building code inspectors recognize this certification immediately — no documentation delays, no approval pushback.
- Multi-Axis Adjustment Range: Pan/tilt micro-adjustments built into the bracket design. Simplifies alignment with ceiling grid lines and ceiling-mounted sensors (PIR, smoke detectors) that may share the same tile cavity.
- PoE Pass-Through Design: Bracket geometry doesn't impede PoE connector routing. Cable bend-radius compliance is easier to achieve, reducing the risk of inline PoE failure or negotiation drops.
- Thermal Stability: Plenum environments experience larger temperature swings than conditioned spaces. The SHD-1372FPW material resists thermal creep and bracket warping over 5–10 year lifecycles.
Deployment Considerations:
- Confirm ceiling tile load rating before mounting — standard acoustic tiles support 2–3 lb, but some plenum-rated tiles support higher loads. If in doubt, use a distributed-load rail or T-bar bridge mount.
- Plenum access post-installation is restricted by code in many jurisdictions — test camera focus, lens clarity, and PoE connectivity before final ceiling tile installation.
- Cable routing must avoid HVAC diffusers and return-air slots. Sagging PoE cable can obstruct airflow and trigger HVAC maintenance calls.
- Stock this mount for all PND and XND camera specs your firm regularly deploys. It's not worth a job delay or a change order if this bracket isn't on the truck at installation.
The SHD-1372FPW is essential for any integrator deploying Hanwha cameras in commercial buildings with active plenum management and code compliance oversight. Specify it alongside every PND and XND camera destined for drop-ceiling installation. See our full Hanwha catalog for additional mounting hardware and camera options.
