Hanwha SHD-2500FPW Plenum Flush Mount White
Overview

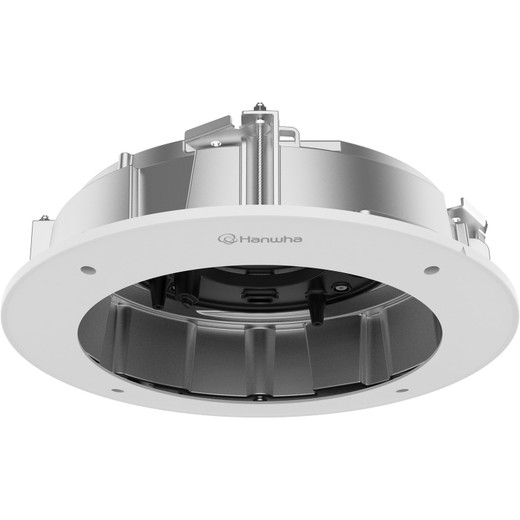

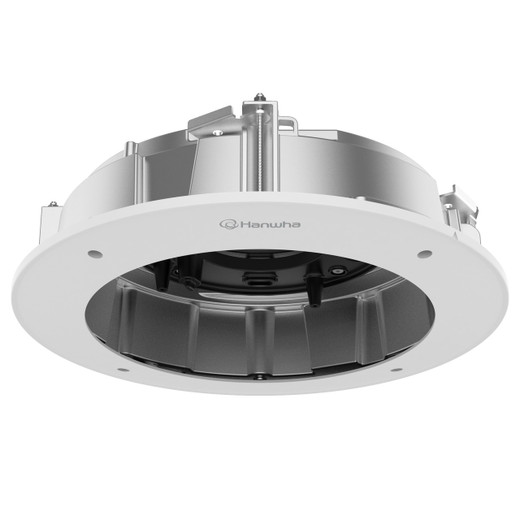

The SHD-2500FPW is a purpose-built plenum flush-mount bracket for discrete camera placement in suspended ceiling environments. This accessory integrates Hanwha IP cameras into drop-ceiling installations without visible mounting hardware, preserving interior aesthetics while maintaining full security coverage. Aluminum construction with a white polycarbonate trim ring delivers durability and a finished appearance suitable for corporate offices, retail spaces, and institutional facilities where concealed camera placement is a requirement.
Key Features
- Flush-mount plenum design: Positions the camera body above the ceiling tile, keeping the dome or turret housing hidden from view — essential in facilities where security equipment must blend into the environment.
- Aluminum body with polycarbonate rim: The aluminum frame provides structural rigidity, while the white (RAL9003) polycarbonate trim ring offers a clean, professional finish that integrates into modern ceiling installations.
- Ceiling tile support 10–70mm (0.4–2.8 inches): Accommodates standard suspended ceiling tiles across the full range of common thicknesses — no need to source special-depth tiles or modify existing infrastructure.
- TR20 mount screw attachment: Provides a secure, tamper-resistant connection point. The threaded design ensures the bracket remains fixed under the load of the camera body and does not shift over time.
- Compact footprint: Outer diameter ø352mm with a ø326mm ceiling cutout. The narrow profile minimizes the visual footprint if viewed from above and simplifies retrofit into existing tile grids.
- 5kg (11.02 lb) device load capacity: Sufficient for most mid-range IP cameras in the Hanwha catalog. Ceiling board itself supports 11.6kg (25.60 lb), so the limiting factor is the mount itself — important if you plan to upgrade to a heavier turret or box camera later.
- Lightweight assembly at 2,450g (5.40 lb): Reduces installation labor and ceiling fastener stress. One technician can position and secure the bracket without additional support.
Compatibility & Integration
This mount is designed specifically for two Hanwha camera models: the PNM-C16083RVQ and PNM-C32083RVQ. Before ordering, confirm your target camera model against this list — using the SHD-2500FPW with unsupported models may result in fitment issues or inadequate load support. If your camera model is not listed, consult the manufacturer's compatibility chart or contact pre-sales technical support to identify the correct bracket variant.
When planning a network video recorder deployment, plenum-mounted cameras feed into the same NVR or managed PoE switch as wall-mounted units. Ensure your network infrastructure has sufficient PoE power budget and CAT6 cabling to service all mounted cameras, including those above the ceiling.
Installation Context
This accessory is mounted to the suspended ceiling structure — not to drywall or structural framing. Verify that your ceiling system can support the combined load of the bracket (2.45 kg) plus the camera (up to 5 kg). In environments with older or lightweight tile grids, you may need additional support clips or cross-bracing to prevent sagging. Always follow local building codes and the suspended ceiling manufacturer's load ratings.
Frequently Asked Questions
Q: Can I use the SHD-2500FPW with cameras other than the PNM-C16083RVQ and PNM-C32083RVQ?
A: The SHD-2500FPW is engineered specifically for those two models. Using it with other cameras risks improper fitment, inadequate load support, or optical misalignment. Always verify compatibility with the camera's documentation or the manufacturer before purchasing.
Q: What's the maximum weight my ceiling can support with this mount?
A: The mount itself has a device capacity of 5kg (11.02 lb). The ceiling board can tolerate 11.6kg (25.60 lb) total load, but your suspended ceiling system's actual capacity depends on its design, material, and fastening method. Consult your ceiling manufacturer's load chart and follow their guidance before installation.
Q: How much clearance do I need above the ceiling tile?
A: The mount assembly is 107.4mm (4.23 inches) tall, so you need at least that much plenum space above the tile to accommodate the camera body and any cabling. Measure your plenum depth before installation to ensure the camera lens doesn't protrude back into the tile cavity.
Q: Is the SHD-2500FPW weatherproof?
A: No. This is an indoor accessory designed for dry, climate-controlled plenum spaces. Do not use it in outdoor, damp, or uncontrolled environments. The aluminum and polycarbonate materials are not sealed against moisture or temperature extremes.
Q: Can I adjust the camera angle after installation?
A: Angle adjustment depends on the camera model. Once the SHD-2500FPW is mounted, the camera body sits in the bracket. Most Hanwha IP cameras allow pan/tilt adjustment via the web interface or mobile app — no physical repositioning required. Verify your camera's software capabilities before assuming you need mechanical adjustment.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The SHD-2500FPW solves a real problem: you want full camera coverage in an open-plan office or retail space, but visible hardware kills the aesthetic. This plenum mount is straightforward engineering — aluminum backbone, polycarbonate trim, and a 5kg load capacity that covers the middle 60% of the Hanwha camera lineup. The critical constraint is ceiling tile thickness: 10–70mm (0.4–2.8 inches). If your facility has non-standard tiles or minimal plenum clearance above them, you'll hit installation friction fast.
Technical Highlights:
- Device load capacity: 5kg (11.02 lb): Sufficient for turrets and compact domes in the PNM-C16083RVQ and PNM-C32083RVQ range. If you later upgrade to a heavy-duty box camera or larger turret, you'll outgrow this bracket — plan for that now.
- Plenum depth: 107.4mm (4.23 inches): This is tight. If your plenum space is less than 120mm, the camera body and cabling may not fit comfortably. Measure before you commit; a miscalculation means reinstalling the entire ceiling section.
- Ceiling hole: ø326mm: A standard hole saw can cut this in most tile materials. Acoustic tile cuts cleanly; vinyl-faced tiles may crack if the hole saw binds. Brief the crew on tile type before arriving on-site.
Deployment Considerations:
- Load rating is per-bracket, not cumulative across the ceiling grid. If you're mounting a dozen SHD-2500FPW units across a 2,000 sq ft space, verify the ceiling's global load capacity and fastening pattern — concentrated camera deployment can stress a lightweight tile system.
- The TR20 screw attachment is not field-replaceable. If the screw is damaged during installation or overtightened, you'll need a replacement bracket. Use hand tools, not power drivers, to avoid stripping the thread.
- Plenum space is often shared with HVAC, electrical conduit, and sprinkler lines. Coordinate with building systems before cutting ceiling tiles. A camera mount positioned directly under a return duct will accumulate dust and reduce image quality over time.
Best fit: institutional and corporate deployments where 24/7 surveillance must integrate seamlessly into professional interiors — hospitals, banking, hospitality back-of-house, and corporate security operations. This mount buys you concealment without sacrificing coverage. If your space has minimal plenum depth or non-standard ceiling materials, scout the installation location first.
