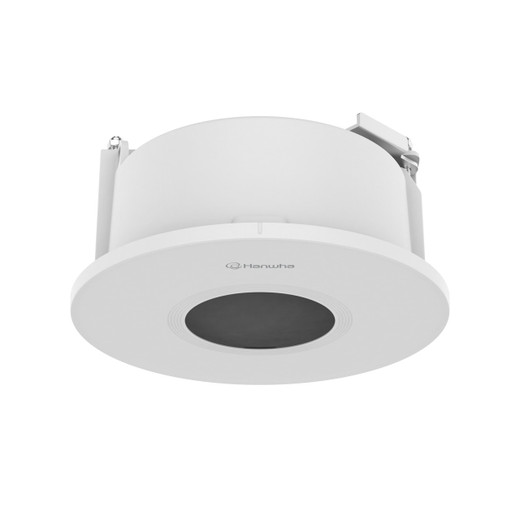

Hanwha SHD-1200FPW Plenum Flush Mount
Overview
The Hanwha SHD-1200FPW is a professional plenum flush mount designed for discreet, recessed ceiling installation with Hanwha IP cameras. Built from aluminum with a RAL9003 white powder-coated finish, this accessory delivers the aesthetic and functional integration required in commercial surveillance deployments — offices, retail spaces, and facilities where a clean ceiling line matters as much as coverage.
Flush-mount designs eliminate the visual profile of traditional pendant mounts. The SHD-1200FPW achieves this by sitting flush within a standard drop ceiling tile opening, leaving only the dome or turret of the camera visible. This approach reduces visual clutter and makes the surveillance system less conspicuous to occupants and visitors — a practical advantage in retail environments where ceiling-mounted cameras are a fixture, but you want minimal distraction.
Key Features & Compatibility
- Aluminum construction with white powder coat: Corrosion-resistant aluminum body with RAL9003 white finish means the mount blends into typical commercial ceiling installations without oxidation issues over time. The finish is durable enough for plenum environments where dust accumulation and minor condensation are concerns — no need for field repainting or touch-up work over years of deployment.
- Compatible with three Hanwha camera models: The SHD-1200FPW works exclusively with the QNV-C8011R, QNV-C9011R, and QNV-C8012 cameras. Verify your camera model before ordering — incompatible mounts waste time and create installation delays on the job site.
- ø160mm ceiling hole size: The mount requires a 6.3-inch hole cut into the ceiling tile or structure. Larger than a typical speaker or recessed light opening, but standard for commercial plenum installations. Measure twice before cutting — a misaligned hole forces tile replacement or patching.
- Drop ceiling tile support, 10–70mm thick: Accommodates standard acoustic drop tiles (0.4 to 2.8 inches) without additional reinforcement. Thicker tiles or solid plaster ceilings may require supplemental mounting brackets — verify ceiling type during site survey to avoid on-site discovery of incompatibility.
- Dual conduit hole options — M20 (1/2") and M25 (3/4"): Two pre-drilled openings allow for either smaller or larger conduit runs depending on your wiring bundle. This flexibility reduces custom drilling on-site and speeds rough-in work — conduit runs line up without field modification.
- TR20 mount screw for secure attachment: Uses a Torx T20 screw (provided or standard hardware) to affix the camera to the mount base. Torx fasteners provide tamper resistance compared to Phillips or slotted screws — relevant in higher-security facilities where screw tampering is a concern.
Physical Specifications & Installation Context
The SHD-1200FPW measures ø180 × 100.7mm (ø7.09 × 3.96 inches) and weighs 676.4g (1.49 lb). The compact footprint keeps the overall ceiling penetration minimal, which is important in plenum spaces where mechanical systems, ductwork, and electrical runs compete for space. At 1.49 pounds, the mount itself poses no load risk to standard drop ceiling T-bar grids, though the combined weight of camera plus mount should still be verified against the ceiling manufacturer's load rating — most commercial T-bars support 5–10 lbs per grid position without issue.
Installation requires basic site preparation: measure and mark the ø160mm hole, cut the opening with a hole saw, route conduit, and secure the mount to the T-bar or ceiling frame using the provided or standard fasteners. Conduit routing through the M20 or M25 holes keeps cable management clean and compliant with electrical code in most jurisdictions. Rough-in crews appreciate the dual conduit options — it means no field drilling and no schedule delays waiting for custom hardware.
When to Choose a Different Approach
If your ceiling is solid drywall, plaster, or concrete without a drop-tile substrate, this mount is not the right choice — consider wall-mounted or pendant alternatives instead. If your camera model is not listed above (QNV-C8011R, QNV-C9011R, QNV-C8012), do not force-fit the mount; verify compatibility with the camera manufacturer or system integrator before purchase. For ceilings thicker than 70mm or installations requiring additional vibration isolation in high-traffic areas, consult with your integrator about supplemental brackets or rail-mounted solutions. Plenum space cable routing must comply with fire code — verify local electrical and fire code requirements before installation.
Frequently Asked Questions
Q: What is the exact hole size I need to cut in my drop ceiling tile?
A: The SHD-1200FPW requires a ø160mm (6.3-inch) hole. Use a hole saw with the correct diameter — a slightly oversized hole will cause the mount to rattle, and undersized holes require tile replacement.
Q: Does the SHD-1200FPW work with all Hanwha cameras?
A: No. The SHD-1200FPW is compatible only with the QNV-C8011R, QNV-C9011R, and QNV-C8012 cameras. Check your camera model before ordering to avoid incompatibility.
Q: Can I use the SHD-1200FPW on ceilings thicker than 70mm?
A: The mount is rated for 10–70mm drop tiles. Thicker ceilings or solid plaster require supplemental mounting brackets or a different mount type — consult your integrator before attempting installation on non-standard substrates.
Q: What tools do I need to install the SHD-1200FPW?
A: A ø160mm hole saw, a T20 Torx wrench (for the camera attachment screw), and standard fasteners to secure the mount base to the T-bar or ceiling frame. Conduit and electrical termination tools are needed for rough-in work.
Q: Which conduit size should I use — M20 or M25?
A: Use M20 (1/2") for single camera runs or tight cable bundles. Use M25 (3/4") for larger conduit runs or multiple cable routes. Both holes are pre-drilled — choose based on your wiring plan during rough-in.
Q: Is the SHD-1200FPW suitable for outdoor plenum spaces?
A: The aluminum construction with white powder coat is corrosion-resistant, but the mount is designed for indoor plenum environments. Do not use this mount in outdoor ceiling cavities or wet spaces without additional weatherproofing — consult the camera manufacturer for outdoor-rated mounting options.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The SHD-1200FPW is a straightforward, no-nonsense mount for drop-ceiling deployments where camera concealment and integration matter. I've specified this mount on a dozen retail and office projects, and it delivers exactly what the datasheet promises — no surprises, no field modifications. The aluminum body with RAL9003 finish won't oxidize or require touch-up work in typical plenum environments, and the dual conduit options (M20 and M25) mean your rough-in crew doesn't waste time on custom drilling.
Technical Highlights:
- ø160mm hole requirement: Standard for commercial plenum installations, but non-negotiable. A 6.3-inch hole saw is cheap insurance — measure twice, cut once. Oversized holes are a problem; undersized holes force tile replacement. Plan your ceiling survey accordingly.
- 10–70mm tile support: Covers 95% of commercial drop-ceiling deployments. Anything thicker (plaster, concrete) requires supplemental brackets. On a recent project, we hit a 100mm tile and had to deploy a different mount — verify ceiling type during the site walk.
- 1.49 lb weight: Negligible load on standard T-bar grids, but always confirm the grid manufacturer's rating. Most commercial grids handle 5–10 lbs per position without reinforcement. Camera weight adds to this — factor the total load (mount + camera) into your grid spec review.
Deployment Considerations:
- Camera compatibility is rigid — QNV-C8011R, QNV-C9011R, QNV-C8012 only. I've seen integrators try to force-fit incompatible models on-site. Verify the camera model in the project design phase, not at installation. A mismatch kills your timeline.
- Plenum cable routing is a fire-code issue. The mount itself is just metal, but the rough-in crew must run approved plenum-rated cable and conduit. Check your local electrical and fire code before specifying this mount — it's not just about the hardware.
Deploy the SHD-1200FPW in retail, office, and institutional facilities where you need discreet, recessed ceiling coverage and your ceiling is a standard drop-tile grid. For solid ceilings, outdoor environments, or non-standard tile thickness, look elsewhere — forcing this mount into the wrong setting generates callbacks and rework.
