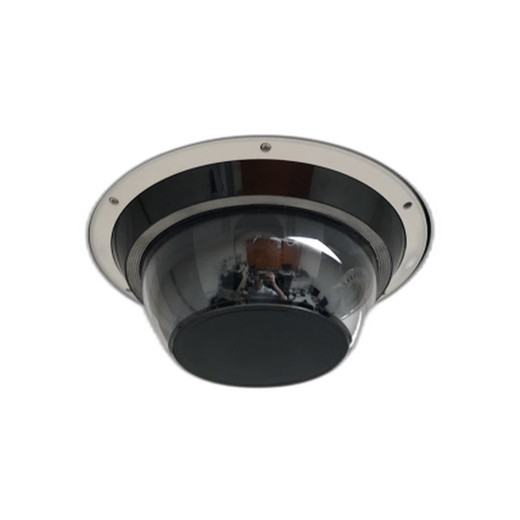

Hanwha SHD-315F 2x2 Drop Ceiling Tile Flush Mount

Hanwha SHD-315F 2x2 Drop Ceiling Tile Flush Mount

The Hanwha SHD-315F is a purpose-built flush mount accessory for integrating compact Hanwha surveillance cameras into standard 2x2 drop ceiling grids. If you need discreet overhead camera placement without visible brackets, protruding hardware, or ceiling penetrations that break interior aesthetics, this mount handles the job with minimal fuss. It positions supported cameras flush with the ceiling plane — no protrusions, no sightline interference, no distraction in customer-facing spaces.

Key Features

• 2x2 Drop Ceiling Compatibility: Engineered to fit standard commercial ceiling grid systems used in offices, retail, and hospitality environments. No need to drill into structural elements or work around grid limitations.
• Flush-Mounted Profile: Cameras sit level with the ceiling plane itself, eliminating brackets or arms that extend downward. This matters in spaces where clean lines and minimal visual intrusion are non-negotiable — think executive suites, conference rooms, or retail showrooms where a visible security camera can undermine the brand environment.
• Secure, Stable Mounting Architecture: Designed to distribute camera weight and vibration across the ceiling grid, preventing sag, drift, or optical misalignment over time. Holds the camera body and optics steady so video stays sharp through thermal expansion, HVAC vibration, and building movement.
• Optimized for Specific Hanwha Models: Compatible with PNM-9084RQZ and PNM-9085RQZ cameras. This tight integration ensures proper optical alignment — lenses won't point off-axis, and cable routing doesn't force awkward bends that degrade IR or connector reliability.
• Professional Appearance: Blends into the ceiling, particularly valuable in lobbies, retail checkout areas, banking facilities, or any space where visible cameras can trigger customer discomfort or perception of over-surveillance. The discrete profile maintains the professional aesthetic while delivering full coverage.
• Minimal Installation Footprint: No drilling, cutting, or structural modification to the grid itself. Clips or fastens directly to grid members. Installation is straightforward and non-invasive — important if your facility lease limits permanent alterations or you need to relocate or remove the mount later.

Integration and Compatibility

The SHD-315F is purpose-engineered for Hanwha IP cameras, specifically the PNM-9084RQZ and PNM-9085RQZ models. Before ordering, confirm your camera model number on the camera itself or in your procurement records. If you have a different Hanwha camera or a third-party model, this mount will not provide the same optical alignment or structural fit. Check compatibility with your camera model before finalizing the purchase.

For deployment in multi-camera commercial environments, pair the SHD-315F with a network switch and video management system (VMS) that supports ONVIF for easier device discovery and management across your infrastructure.

Deployment Scenarios

Ideal for corporate offices with open ceilings where visible security infrastructure clashes with interior design standards; retail locations where discrete surveillance reduces customer friction; conference rooms and meeting spaces where cameras must be present but unobtrusive; banking facilities requiring loss prevention without a fortress-like appearance; and hospitality settings where guest comfort depends on minimal visible security hardware.

Frequently Asked Questions

Q: Will the SHD-315F work with my Hanwha camera model?

A: The SHD-315F is engineered specifically for PNM-9084RQZ and PNM-9085RQZ cameras. It is not compatible with other Hanwha or third-party models. Verify your camera model before ordering.

Q: Can I mount this on drywall or a solid ceiling?

A: No. The SHD-315F is designed for standard 2x2 drop ceiling grids only. It cannot be adapted for solid ceilings, drywall, or suspended systems with different grid sizes.

Q: What if my drop ceiling grid is damaged or non-standard?

A: If your grid is warped, misaligned, or uses non-standard dimensions, the flush mount may not seat properly, leading to optical misalignment or instability. Inspect your ceiling grid for damage before installation. Consider repairing or replacing damaged sections first.

Q: How much weight does the SHD-315F add to the ceiling?

A: The mount itself is lightweight and designed to distribute the camera weight across the grid without causing sagging. However, ensure your ceiling grid and suspension system are rated to support the combined weight of the mount and camera. Standard commercial drop ceiling systems typically handle this without issue, but confirm with your facilities team if you have concerns.

Q: Does installation require power or cabling changes?

A: The mount itself requires no power. However, your camera will need network and power provisioning — typically via PoE (Power over Ethernet) running through your ceiling grid to a wall-mounted data outlet or switch. Plan your cable routing before installing the mount to avoid fishing cables after the fact.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The SHD-315F (often searched as SHD 315F) is a straightforward accessory — it solves one problem very well: dropping a compact Hanwha camera into a standard 2x2 ceiling grid without visible hardware or modifications to the grid itself. The engineering is sound, and the optical alignment for the supported PNM-9084RQZ and PNM-9085RQZ models is reliable in practice.

Deployment Considerations:

• Ceiling Grid Condition is Critical: The mount's stability depends entirely on the integrity of your drop ceiling grid. If you have sagging tiles, bent runners, or non-standard grid widths, the flush mount won't seat properly. Pre-inspect your ceiling before committing. A warped grid leads to tilted optics and poor video quality.
• Camera Model Specificity: This mount works only with PNM-9084RQZ and PNM-9085RQZ. If you swap camera models later or retrofit existing cameras, the SHD-315F becomes incompatible. Don't assume it's a universal 2x2 mount — it's model-locked.
• Cable Routing Matters: Plan your PoE and network runs before installation. Ceiling plenums get tight with HVAC ducts, fire suppression, and conduit. Running cables after the mount is installed invites pinched wires and future troubleshooting headaches.

Position this mount in corporate offices, retail environments, and hospitality settings where the appearance of surveillance infrastructure directly impacts customer perception and comfort. It's a clean solution for loss prevention in spaces where visible cameras carry a stigma.
