IP Camera Accessories | Mounts, Enclosures, Lenses, IR & Power

Deployment Considerations

Environmental protection and weather resistance
Mounting stability and load support
Power and voltage compatibility
Cable management and termination quality
Compliance with local safety standards

Sub categories

Showing Results for Accessories

Compare

Out of stock
Geovision

SKU: GV-800

Geovision GV-800 GV-800 D-Type 8-Channel Card

8-channel D-Type capture card for Geovision IP surveillance systems
- 8-channel digital video capture with H.264 compression
- PCI/PCI-E x1 interface with audio input support
- VGA resolution (640x480) for multi-camera integration
Special Order · Ships in 2-3 weeks

$448.99 $439.99 Save $9.00

Add to Cart
The item has been added
Compare

Out of stock
Geovision

SKU: GV-800-55

Geovision GV-800 GV-800 Express 8-Card Expansion Module

8-card D-type expansion module for GV-800 Express DVR systems
- Extends channel capacity and recording channels on existing GV-800 Express infrastructure
- D-type connector configuration supports standard DVR expansion installation procedures
- H.264 compression with VGA resolution for mid-scale surveillance deployments
Special Order · Ships in 2-3 weeks

$448.99 $439.99 Save $9.00

Add to Cart
The item has been added
Compare

Out of stock
Geovision

SKU: GV-900

Geovision GV-900 8-Channel DVI PCI Express Card

8-channel DVI capture card for PC-based surveillance systems
- 8 MP resolution across all channels with H.265 compression
- PCI Express interface card with DVI input and PoE support
- Compatible with Windows 10/11 and Server 2016/2019/2022
Special Order · Ships in 2-3 weeks

$522.99 $512.99 Save $10.00

Add to Cart
The item has been added
Compare

Out of stock
Geovision

SKU: GV-AI

Geovision GV-AI GV_AI Deep Learning Speed Card

Hailo-based deep learning card for real-time edge AI analytics in Geovision NVRs
- Real-time object detection & classification with on-device processing, zero cloud dependency
- Multi-camera analytics support with reduced bandwidth consumption for surveillance deployments
- Mounts directly into compatible Geovision NVR/server platforms as accessory card
Special Order · Ships in 2-3 weeks

$559.99 $548.99 Save $11.00

Add to Cart
The item has been added
Compare

Out of stock
Geovision

SKU: GV-BATBOX

Geovision GV-BATBOX Battery Box

UPS battery enclosure for Geovision DVR, NVR, and IP camera systems
- User-configurable battery capacity—install your own cells for custom runtime
- Indoor mounting in control rooms, server closets, and equipment racks
- Enclosure only; ships without batteries for flexible system integration
Special Order · Ships in 2-3 weeks

$73.99

Add to Cart
The item has been added
Compare

Out of stock
Geovision

SKU: GV-CB550F3

Geovision GV-CB550F3 Junction Box

Junction box for Geovision IP cameras with IP66 cable protection
- Consolidates connectors and protects terminations at camera point
- IP66 rating handles indoor and standard mounting environments
- Compact 6" × 3" × 3" form factor for tight installation spaces
Special Order · Ships in 2-3 weeks

$24.99 $23.99 Save $1.00

Add to Cart
The item has been added
Compare

Out of stock
Geovision

SKU: GV-CENTERV2

Geovision GV-CENTERV2 CENTER V2 1 Port Dongle

1-port expansion dongle for CENTER V2 NVR systems with H.265
- Adds single IP camera input to existing CENTER V2 installations
- Works with ONVIF-compliant cameras, supports H.265 compression
- PoE powered (802.3af), no system redesign required
Special Order · Ships in 2-3 weeks

$311.99 $305.99 Save $6.00

Add to Cart
The item has been added
Compare

Out of stock
Geovision

SKU: GV-COM-400

Geovision GV-COM Accessory

Terminal block cable accessory for Geovision multi-camera systems
- Terminal block connectors for camera-to-recorder interconnection in distributed installations
- Compatible across Geovision surveillance ecosystem for system expansion projects
- Compact form factor (5" × 0.5" × 2") for indoor and mixed-environment deployments
Special Order · Ships in 2-3 weeks

$35.99 $34.99 Save $1.00

Add to Cart
The item has been added
Compare

Out of stock
Geovision

SKU: GV-COM

Geovision GV-COM Media Converter

Copper-to-fiber media converter for Geovision NVR systems at 12 Mbps
- Converts copper and fiber network segments for mixed-media deployments
- External desktop unit supports rack or shelf mount in control rooms
- Compatible with Geovision camera systems and NVR platforms
Special Order · Ships in 2-3 weeks

$36.99 $35.99 Save $1.00

Add to Cart
The item has been added
Compare

Out of stock
Geovision

SKU: GV-DATA

Geovision GV-DATA Gv-data Capture V3 Pos Software

POS transaction sync module for Geovision NVR/DVR with H.265
- Synchronized video and POS data capture on 64-bit Windows platforms
- Unified audit trail for retail loss prevention and transaction verification
- Integrates with Geovision surveillance systems via software module
Special Order · Ships in 2-3 weeks

$150.99

Add to Cart
The item has been added
Compare

Out of stock
Geovision

SKU: GV-DATA-55

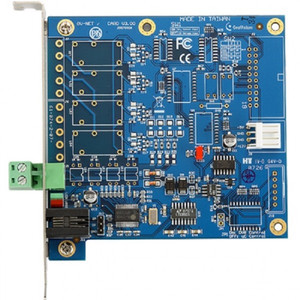

Geovision GV-DATA Gv-data Capture V3E

POS data capture with built-in Ethernet for V3E video sync
- Integrated Ethernet eliminates external adapters in retail environments
- POSINT cable compatible for standard POS hardware integration
- RS-232 communication at up to 115,200 bps for transaction logging
Special Order · Ships in 2-3 weeks

$248.99

Add to Cart
The item has been added
Compare

Out of stock
Geovision

SKU: GV-DVI

Geovision GV-DVI 8CH Video+Audio Cable

8-channel video+audio cable with D-type connectors for Geovision DVR/NVR
- 8 channels of simultaneous analog video and audio transmission in one cable
- D-type connectors ensure shielded, reliable connections for professional installations
- Compatible with Geovision DVR/NVR systems and legacy camera arrays
Special Order · Ships in 2-3 weeks

$6.99

Add to Cart
The item has been added
Compare

Out of stock
Geovision

SKU: GV-DVI-E52

Geovision GV-DVI DVI Audio/Video Interface Card

4-channel DVI expansion card for Geovision DVR/NVR systems
- 4 channels DVI video input with 4-channel audio I/O per card
- H.265 compression reduces storage requirements across channels
- Integrates with compatible Geovision recording platforms directly
Special Order · Ships in 2-3 weeks

$12.99

Add to Cart
The item has been added
Compare

Out of stock
Geovision

SKU: GV-ENPOS

Geovision GV-ENPOS Data Capture POS Module

Sync POS transactions with video for retail loss prevention and audits
- Captures POS transaction data alongside video with synchronized event logging
- Integrates with Geovision V3E platform and compatible NVR systems
- Correlates retail incidents across POS and camera systems for investigation
Special Order · Ships in 2-3 weeks

$224.99

Add to Cart
The item has been added
Compare

Out of stock
Geovision

SKU: GV-ERM-82

Geovision GV-ERM 251-erm-064

Expansion module for Geovision NVRs—add channels and storage capacity
- Increases channel density on compatible Geovision NVR platforms
- Rack-mount form factor integrates with existing surveillance systems
- Works with ONVIF-compatible camera networks for flexible deployment
Special Order · Ships in 2-3 weeks

$99.99 $97.99 Save $2.00

Add to Cart
The item has been added
Compare

Out of stock
Geovision

SKU: GV-ERM

Geovision GV-ERM GV-ERM Software 64-Channel Edge Recording

64-channel edge recording software for multi-site distributed surveillance
- Records locally at edge devices to cut WAN bandwidth while maintaining central management
- 64 simultaneous video streams across geographically dispersed locations
- ONVIF-compliant integration works with standard IP cameras from any manufacturer
Special Order · Ships in 2-3 weeks

$97.99

Add to Cart
The item has been added

What to Look For When Buying

The six decisions that matter most before you spec.

Match Bracket to Camera + Surface

A dome camera mounted on a textured wall needs a wall-mount adapter with a gasket; mounted on a pole it needs a pole-mount arm; mounted on an eave it may need a pendant. Third-party brackets exist but brand-specific brackets include proper camera cable routing and weather gasketing. Buying a $40 generic bracket to save on a $80 Axis bracket usually costs more in installation time.

Enclosure NEMA Rating

NEMA 3R = light rain; NEMA 4 = splash + driving rain; NEMA 4X = above + corrosion resistance (coastal, industrial); NEMA 6 = temporary submersion. For weather-exposed camera enclosures, NEMA 4X is the commercial standard. For mission-critical outdoor gear, pair NEMA 4X enclosure + IP67 camera + IK10 vandal rating.

C/CS-Mount Lens Selection

Box cameras use interchangeable C-mount (17.526mm flange) or CS-mount (12.5mm flange). Lens focal length + sensor size determines field of view: a 4mm lens on a 1/3" sensor gives ~60° horizontal FOV. Our DORI guide covers lens selection by scene distance. F-stop matters for low-light; P-iris for auto-exposure.

IR Illuminator Wavelength

850nm IR is more efficient but produces a faint visible red glow (deterrent or accidental giveaway, depending on use case). 940nm is truly covert but requires ~2x the power for the same effective range, and many cameras have lower sensitivity at 940nm. Match illuminator wavelength to camera IR-cut filter spec, or image washout results.

Power Supply Sizing & Distance

12VDC cameras at 100ft from a power supply drop significant voltage over 18-gauge wire — a camera rated for 12V may see 10.5V at the camera end under load, triggering brownout resets. For long runs, use a higher-voltage power supply (24VAC or 48VDC) and step down at the camera. UL-listed surveillance power supplies (Altronix) publish voltage-drop tables.

Cable Jacket Rating

Indoor Cat6 is rated CM (communications); plenum-rated CMP is required for above-drop-ceiling runs per NFPA 70. Outdoor/direct-burial Ethernet is a different product (CMX, direct-burial gel-filled). Mixing jacket ratings causes code violations and fire inspector rejections. Always spec by run environment, not lowest-cost SKU.

Technology Stack

The specs and acronyms that actually affect outdoor performance.

NEMA vs IP Rating Systems

NEMA is the US enclosure standard (NEMA 1-13); IP is the international standard (IP00-IP68). Rough crosswalk: NEMA 4 ≈ IP66, NEMA 4X ≈ IP66 + corrosion, NEMA 6 ≈ IP67. Some spec sheets list both; when only one is given, the crosswalk is approximate. For coastal, industrial, and food-processing environments, specify NEMA 4X or IP66 + stainless steel.

C-Mount vs CS-Mount Lenses

C-mount: 17.526mm flange focal distance. CS-mount: 12.5mm flange. CS cameras accept both lens types (C lenses need a 5mm adapter ring); C cameras accept only C lenses. Most modern box cameras are CS-mount for lens flexibility. Lens thread is 1-inch × 32 TPI on both.

F-Stop / Iris

F-stop = focal length ÷ aperture diameter. Lower F-stop (wider aperture) means more light, better low-light performance, shallower depth of field. F1.4 is very low-light capable; F1.8 is common commercial spec. P-iris (precise iris) lenses auto-adjust aperture based on scene lighting — reduces over-exposure during day, improves low-light at night.

850nm vs 940nm IR

IR illuminators at 850nm are more energy-efficient and the sensitivity of most camera IR-cut filters peaks here — but 850nm produces a faint visible red glow from the LEDs. 940nm is invisible to human eye but requires ~2x the power or shorter effective range. Many covert-deployment cameras are re-tuned for 940nm sensitivity.

UL-Listed Power Supplies

Underwriters Laboratories listed power supplies meet safety standards for overcurrent, overvoltage, and enclosure isolation. UL 294 specifies additional requirements for access control; UL 603 for security burglary; UL 1310 for Class 2 power. Insurance and code requirements increasingly specify UL-listed supplies — particularly in commercial and institutional installations.

Plenum vs Riser vs PVC Cable

Plenum-rated (CMP) cable uses low-smoke FEP jacket for use above suspended ceilings where smoke spreads through return-air plenums. Riser (CMR) is for vertical shaft runs between floors. PVC (CM) is for open office runs only. Using CM in plenum spaces violates NFPA 70 — costly inspector rejection if caught.

Typical Deployment Scenarios

New Construction Retrofit

Cat6A plenum cable pulled to camera locations with proper service loops, 2-gang electrical boxes at each dome location with weatherproof backbox, Cat6A patch panel at the IDF, UL-listed power supplies for any 12V/24V camera, labeled and tested before cameras are mounted.

Coastal / Corrosive Environment

NEMA 4X stainless-steel enclosures for outdoor cameras, 316-grade stainless brackets, silicone dielectric grease on every connector, hot-dipped galvanized or powder-coated steel poles. Budget 15-25% more on accessories vs. standard outdoor — and plan for 3-5 year inspection cycles rather than 10.

Box-Camera LPR Application

Box camera with 50-150mm telephoto lens, dedicated 850nm IR illuminator at same height as camera, pole-mount bracket with junction box, UL power supply for camera + illuminator. LPR-specific enclosures with anti-reflective glass to avoid nighttime IR bloom. Typical deployment: dedicated lane camera, not general-purpose surveillance.

Parking Garage Retrofit

Existing analog coax cable replaced via NVT Phybridge or similar PoE-over-coax, vandal-resistant dome enclosures at ground level, low-profile bullet cameras on ceiling, LED-plus-IR-compatible illuminators to handle harsh fluorescent lighting. Enclosures rated for vehicle-exhaust environment.

Frequently Asked Questions

Do I need the OEM bracket for my camera, or will a generic bracket work?

For most commercial installations, specify the OEM bracket. Brand-specific brackets include proper cable routing, gasketed weather seals, and mounting-hole patterns matched to the camera — which matters more than the cost savings of a generic bracket. Generic brackets are acceptable for indoor standard-dome cameras on flat surfaces; for outdoor, vandal-rated, or pendant applications, use OEM.

What NEMA rating do I need for outdoor camera enclosures?

NEMA 4 for most weather-exposed deployments (driving rain, snow). NEMA 4X for coastal, industrial, or food-processing environments (adds corrosion resistance — typically stainless steel or fiberglass construction). NEMA 6 for temporary submersion or flood-prone areas. The IP-rating equivalent is IP66 for NEMA 4, IP66 + corrosion for NEMA 4X, IP67 for NEMA 6.

How do I choose the right lens focal length for a box camera?

Work backward from the scene. Identify the farthest point you need identification-grade coverage, use our DORI guide to calculate required pixels-per-foot at that distance, and match lens focal length + sensor size to deliver that PPF. A 4mm lens on a 1/3" sensor covers ~60° horizontal FOV; a 12mm lens on the same sensor covers ~20°. Wide FOV = shorter identification distance.

What's the difference between 850nm and 940nm IR illuminators?

850nm is more energy-efficient — you get more effective range per watt — but produces a faint visible red glow from the LEDs. 940nm is truly invisible to the human eye but requires about 2x the power for equivalent range, and many cameras have lower sensor sensitivity at 940nm. For deterrent visibility or cost-efficient long-range, 850nm; for covert applications, 940nm.

Can I power an IP camera with a generic 12V wall-wart?

Not for a commercial deployment. Generic wall-warts are unregulated, not UL-listed for security applications, and typically don't include surge protection. Use a UL-listed surveillance power supply (Altronix AL series, UL 294 or UL 603) with battery backup where required. PoE is preferred when possible — single cable, centralized power management, UPS-backed.

What cable jacket rating do I need for in-ceiling runs?

Plenum-rated (CMP) cable is required for any run through a return-air plenum space above suspended ceilings (most commercial buildings). Riser (CMR) for vertical shafts between floors. PVC (CM) for open office spaces only. Using non-plenum cable in a plenum space is a fire-code violation under NFPA 70 and will be rejected by inspectors. Budget plenum cable for any building where you're not 100% sure of the return-air path.
