Plan Your Deployment

Door count and expansion requirements
Reader type (card, keypad, biometric) and credential format
Fail-safe vs fail-secure hardware design
Power, cabling, and network connectivity planning
Multi-site governance and consistent standards

Sub categories

Showing Results for Access Control

Compare

Out of stock
DMP

SKU: 350P-92

DMP 350P-92 Mounting Plate

Standardized mounting plate for DMP control panels in TCP/IP networks
- Designed for DMP control panel and enclosure system integration
- Supports TCP/IP networked security deployments and distributed architectures
- Ensures proper hardware alignment and positioning during installation
Special Order · Ships in 2-3 weeks

$19.99

Add to Cart
The item has been added
Compare

Out of stock
DMP

SKU: 351

DMP 351 Universal Mounting Plate

Universal mounting plate for control panels and enclosures
- Fits standard control panel and enclosure frameworks for retrofit or new builds
- Wall-mount plate design supports organized component integration
- Compatible across multiple system configurations and panel models
Special Order · Ships in 2-3 weeks

$0.99

Add to Cart
The item has been added
Compare

Out of stock
DMP

SKU: 352M-G

DMP 352M-G Extra Large Enclosure with Mounting Plate

Extra large 14.5" × 32" metal enclosure with included mounting plate
- 4" depth with removable lid and 0.5" internal clearance on each side
- Metal construction supports rack or wall installation with pre-drilled plate
- Accommodates multiple components and cable routing for control panel builds
Special Order · Ships in 2-3 weeks

$707.00 $461.99 Save $245.01

Add to Cart
The item has been added
Compare

Out of stock
DMP

SKU: 352P-G

DMP 352P-G Extra Large Panel Enclosure

Extra large panel enclosure with 324 VA transformer for access control and building automation
- 14.5" W × 32" H × 4" D interior holds multiple devices and complex wiring layouts
- 324 VA 100VAC wire-in transformer included, ready for hardwired power connection
- 0.5" lid overhang on all sides accommodates door frames and surface-mount installations
Special Order · Ships in 2-3 weeks

$1,132.00 $583.99 Save $548.01

Add to Cart
The item has been added
Compare

Out of stock
DMP

SKU: 352PM-G

DMP 352PM-G Power Distribution Enclosure with Transformers

Extra-large steel enclosure with integrated transformers for security and telecom
- 14.5" W × 32" H × 4" D with removable lid for control panel integration
- Pre-installed 505-12 power supply and 100 VAC transformer included
- TCP/IP network ready for distributed security and building automation systems
Special Order · Ships in 2-3 weeks

$932.00 $608.99 Save $323.01

Add to Cart
The item has been added
Compare

Out of stock
DMP

SKU: 354-G

DMP 354-G Retrofit Plate

Panel-level retrofit plate for control system upgrades
- Standardized mounting interface for existing enclosure systems
- Designed for retrofit installations in control panel applications
- Wall-mount configuration for system component integration
Special Order · Ships in 2-3 weeks

$80.99

Add to Cart
The item has been added
Compare

Out of stock
DMP

SKU: 354A-G

DMP 354A-G Mounting Plate

Wall-mount control panel plate for DMP TCP/IP systems
- Retrofit-ready mounting for wall and cabinet enclosure installations
- Compatible with DMP TCP/IP control system frameworks
- Supports both initial setup and existing panel reconfiguration
Special Order · Ships in 2-3 weeks

$78.99

Add to Cart
The item has been added
Compare

Out of stock
DMP

SKU: 635-R

DMP 635-R Keypad Surface Mount Conduit Backbox

Surface mount conduit backbox for DMP keypad readers
- Designed for fire alarm and remote-annunciator circuit installations
- Surface mount style simplifies wall deployment with integrated cable routing
- 10.25" x 6.88" x 1.74" housing fits standard keypad reader configurations
Special Order · Ships in 2-3 weeks

$45.99

Add to Cart
The item has been added
Compare

Out of stock
DMP

SKU: 635F-R

DMP 635F-R Keypad Flush Mount Conduit Backbox

Flush mount conduit backbox for DMP keypad readers in TCP/IP systems
- Flush mount design integrates cleanly into wall installations with conduit prep
- Compatible with DMP keypad readers in fire alarm and access control deployments
- Dimensions 9.25" × 6.375" × 2.50" sized for standard wall-mounted reader mounting
Special Order · Ships in 2-3 weeks

$52.99

Add to Cart
The item has been added
Compare

Out of stock
DMP

SKU: 694-7800-W

DMP 694-7800-W Keypad Backplate

Replacement backplate for DMP PIN-entry keypad readers
- Direct-fit backplate for DMP keypad reader installations
- Supports PIN-credential door access control systems
- Compatible with standard door-mounted keypad deployments
Special Order · Ships in 2-3 weeks

$41.99

Add to Cart
The item has been added
Compare

Out of stock
DMP

SKU: 694-W

DMP 694-W Keypad Backplate

Door-frame backplate for NFC/13.56MHz keypad readers
- Mounts directly to door frames for NFC keypad reader installation
- Integrates with 13.56MHz credential systems in access control setups
- Supports commercial and institutional multi-reader deployments
Special Order · Ships in 2-3 weeks

$41.99

Add to Cart
The item has been added
Compare

Out of stock
DMP

SKU: 698

DMP 698 Keypad Wall Cover

Wall-mount keypad cover with durable polymer housing for access control
- Surface-mount design secures keypad readers to walls in institutional settings
- Durable polymer housing protects readers while maintaining professional appearance
- Compatible with DMP keypad reader systems for multi-door access deployments
Special Order · Ships in 2-3 weeks

$51.99

Add to Cart
The item has been added
Compare

Out of stock
DMP

SKU: 699

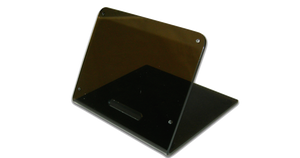

DMP 699 Keypad Deskstand

Desktop deskstand for DMP keypad readers in access control
- Stable desktop mount with rubber pads for credential presentation
- 4-foot cord with RJ11 jack connects to DMP keypad systems
- Includes mounting screws for secure installation in reception areas
Special Order · Ships in 2-3 weeks

$82.00 $43.99 Save $38.01

Add to Cart
The item has been added
Compare

Out of stock
DMP

SKU: 699-7800

DMP 699-7800 Keypad Deskstand Reader

PIN-based deskstand keypad reader for DMP access control systems
- Desktop-mounted PIN authentication integrates with DMP control panels
- Includes 4-foot RJ11 cord, mounting screws, and rubber pads for setup
- Designed for office and secure facility access without card or biometric needs
Special Order · Ships in 2-3 weeks

$91.00 $47.99 Save $43.01

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
DMP

SKU: 699-W

DMP 699-W Metal Keypad Deskstand

Metal deskstand for NFC and 13.56MHz keypad readers in offices
- Rigid metal frame with weighted base prevents wobble during credential reading
- Positions readers at ergonomic height to reduce user neck strain at entry points
- Compact tabletop footprint with 4-foot cord, ready to deploy on reception desks
In stock · Ships same business day

$76.00 $44.99 Save $31.01

Add to Cart
The item has been added
Compare

Out of stock
DMP

SKU: 708

DMP 708 Bus Extender Modules

15VDC bus extender for DMP multi-zone system expansion
- Extends connectivity across distributed security installations
- 15VDC operation rated for compatible DMP architectures
- Modular expansion support for multi-panel deployments
Special Order · Ships in 2-3 weeks

$557.00 $32.99 Save $524.01

Add to Cart
The item has been added

What to Look For When Buying

The six decisions that matter most before you spec.

Fail-Safe vs Fail-Secure

Fail-safe locks (power-to-lock) unlock on power loss — required for egress routes by most fire codes. Fail-secure (power-to-unlock) stays locked on power loss — used on office and storage doors where security trumps egress. Life-safety code interpretation varies by jurisdiction; consult your AHJ before specifying. See our fail-safe vs fail-secure guide.

OSDP vs Wiegand

Wiegand is the legacy reader-to-controller protocol (unencrypted, one-way, limited to 26-bit formats). OSDP (Open Supervised Device Protocol) is the modern replacement — bidirectional, encrypted, supervised, and future-proof for Seos/mobile credentials. New deployments should be OSDP; plan a Wiegand-to-OSDP migration path in legacy systems before adding mobile credential support.

Credential Technology

125 kHz proximity (HID Prox, EM) is the legacy standard — cheap, cloneable, no security. 13.56 MHz smart cards (iCLASS SE, MIFARE DESFire EV3, Seos) use AES encryption and are the commercial standard. Mobile credentials via NFC/BLE increasingly replace physical cards — but only on OSDP-capable readers. Specify multi-technology readers for migration flexibility.

Cloud vs On-Prem Management

Traditional server-based access platforms (Lenel, Genetec, C-Cure) require IT infrastructure and maintenance contracts. Cloud-native platforms (Brivo, Openpath/Avigilon Alta, Genea) eliminate servers but add per-door monthly fees. Mid-size deployments increasingly choose cloud; enterprise + critical infrastructure still favor on-prem. Hardware choice determines which platforms you can run.

Power Supply Sizing

Every lock + reader + controller has an inrush current and a holding current — and they differ. Maglocks hold at 300-500 mA but pull 800 mA on release. UL 294 power supplies rated for total simultaneous holding + 25% headroom, with battery backup sized to code-required runtime. Undersized power supplies are the #1 cause of access-control nuisance failures.

Code Compliance (Egress)

IBC, NFPA 101, and ADA all mandate unimpeded egress. A magnetically-locked door requires a fire-alarm tie-in, a bond-sensor, and a request-to-exit device — omit any and the door is a code violation. Delayed-egress maglocks require 15-second delay + sounder per NFPA. Always confirm lock spec with the AHJ before ordering.

Technology Stack

The specs and acronyms that actually affect outdoor performance.

OSDP v2 + Secure Channel

Open Supervised Device Protocol v2 with Secure Channel Protocol (SCP) delivers AES-128 encryption between reader and controller over RS-485. Replaces unencrypted Wiegand. Required for new federal deployments and FIPS 140-2 applications. All modern HID, ASSA ABLOY, and STid readers support OSDP + SCP.

Seos + iCLASS SE Credentials

HID Seos is the current-generation credential platform: AES-128 encrypted, multi-application, supports mobile wallets, backward-compatible with iCLASS SE. Seos credentials work on Seos readers + older iCLASS SE readers — iCLASS SE credentials do not work on legacy iCLASS (non-SE) readers. Plan migrations carefully.

FIPS 201 / PIV + PIV-I

Federal Identity Verification standard — the credential format used for federal employee and contractor badges. PIV-I (Interoperable) is the commercial variant for hospitals, utilities, and critical-infrastructure contractors. Specify PIV/PIV-I-capable readers (HID pivCLASS, multiCLASS SE) for any facility that hosts government visitors.

UL 294 Listing

Underwriters Laboratories listing for access control system units — power supplies, controllers, and locks. UL 294 6th edition covers security, durability, and overcurrent/overvoltage protection. Insurance and code requirements increasingly specify UL 294 listing. Altronix access-control power supplies are UL 294 listed across the catalog.

Wiegand Protocol

Legacy reader-to-controller protocol — one-way, unencrypted, variable bit-length format. Easily cloned with <$50 hardware. Still widespread because of low cost and universal compatibility. Acceptable for low-security interior doors; should be replaced with OSDP on any external or sensitive-area door.

Request-to-Exit (REX)

Motion- or push-button-activated device that signals the access controller to unlock the door from the secure side without generating an alarm. Required for maglock-equipped egress doors per code. PIR REX sensors must be properly aimed — nuisance alarms and held-door violations trace back to bad REX placement more than any other cause.

Typical Deployment Scenarios

Multi-Tenant Office Building

Lobby turnstiles with multi-tech readers, tenant suite doors with HID Signo + Seos, parking garage with long-range readers, elevator control for floor-by-floor access. Cloud platform (Brivo, Openpath) with mobile credentials replaces physical card issuance. Integration with SIP video intercoms for visitor management.

K-12 School Secure Vestibule

Front entry vestibule with fail-secure electric strike, interior Aiphone video intercom for visitor buzz-in, badge readers for staff, lockdown button integrated with mass notification. Back-of-house doors fail-safe per code. Full VMS integration for event overlay.

Hospital & Healthcare

Unit doors with HID multiCLASS SE + PIV-I compatibility, medication rooms with dual-authentication (card + biometric), ER ambulance bays with ruggedized readers, delayed-egress on behavioral health wards. Lenel or Genetec server-based platform with HIPAA-compliant audit logging. High-cycle-count electric strikes required.

Data Center & Critical Infrastructure

Biometric readers at server-room entries, mantrap doors with anti-tailgating sensors, cage-level access with OSDP + SCP, 7x24 audit logging. FIPS 201 / PIV-I credentials. Integration with IP cameras for tailgating review and infrastructure monitoring for physical-layer security.

Frequently Asked Questions

What's the difference between fail-safe and fail-secure locks?

Fail-safe locks (also called "power-to-lock") unlock on power loss — required for egress routes by most fire and life-safety codes. Fail-secure locks ("power-to-unlock") stay locked on power loss — typically used on office, storage, and supply doors where security trumps egress. Always confirm lock selection with the local AHJ; see our fail-safe vs fail-secure guide.

Is OSDP required for new access control installations?

Not legally required in most jurisdictions — but strongly recommended and effectively mandatory for federal deployments. OSDP with Secure Channel provides AES-128 encryption between reader and controller, bidirectional supervision, and future-proof support for mobile credentials. Legacy Wiegand is unencrypted and easily cloned. New deployments should be OSDP-capable from day one; legacy systems should plan a migration path.

Are HID card readers NDAA compliant?

Yes. HID Global is headquartered in Austin, TX, manufactures in multiple allied countries, and is fully NDAA Section 889 compliant. HID Signo, multiCLASS SE, iCLASS SE, and pivCLASS reader families are all eligible for federal, state government, and critical-infrastructure procurement. Credential cards are manufactured to the same compliance standard.

How do I size an access control power supply?

Add up holding current for all locks + reader standby current + controller standby current, then add 25% headroom for inrush and aging. Battery backup should provide code-required standby runtime (typically 4 hours for fire-alarm tie-ins; 15 min for access-only). Altronix UL 294 power supplies post clear spec sheets for total and per-output current — match to your actual load, don't guess.

Can mobile credentials replace physical access cards?

In most modern deployments, yes — but the reader has to support it. Readers need NFC and/or BLE (Bluetooth Low Energy) plus a partnership with the mobile credential platform (HID Mobile Access, Openpath, Kastle, etc.). Older proximity-only readers cannot read mobile credentials. Mobile adoption is usually mixed with physical cards during a multi-year transition — plan for both.

What's the difference between iCLASS SE and Seos credentials?

iCLASS SE was HID's previous-generation secure credential (AES-128, 2013-era). Seos is the current generation (2016+) — same AES-128 security, but multi-application, mobile-wallet capable, and future-proof. Seos credentials work on Seos-capable readers and on older iCLASS SE readers. iCLASS SE credentials do not work on legacy (pre-SE) iCLASS readers. See our HID Global catalog for current Seos SKUs.
