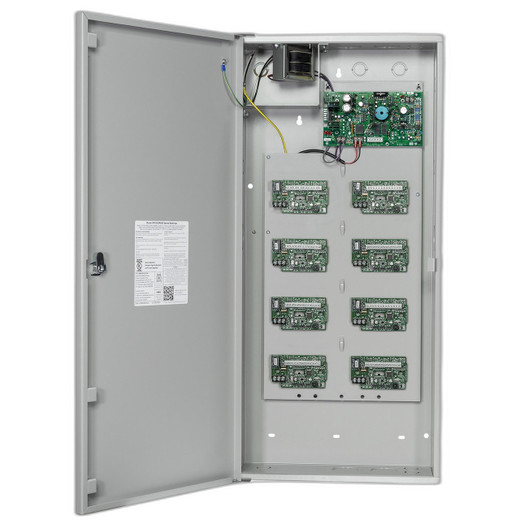

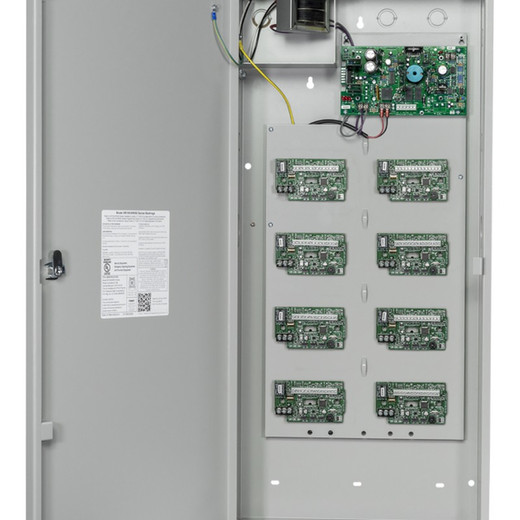

DMP 352PM-G Power Distribution Enclosure with Transformers

Overview

The DMP 352PM-G is an extra large power distribution enclosure engineered for professional control panel and system integration applications. This unit combines robust steel construction with integrated transformer capacity, delivering a reliable foundation for distributed power management in security, telecommunications, and building automation installations. The 352PM-G accommodates both traditional and modern network-connected system architectures through TCP/IP communication support.

Key Features

• Extra Large Form Factor: 14.5" width × 32" height × 4" depth provides substantial internal volume for component mounting and cable routing
• Integrated Transformer Support: Factory-equipped to accommodate power transformation requirements without external auxiliary enclosures
• Protective Lid Design: Removable lid extends 0.5" on each side for improved protection and cleaner panel aesthetics
• TCP/IP Communication Ready: Network-connected control systems can communicate directly with enclosure-mounted devices and controllers
• Control Panel Integration: Purpose-built dimensional and mounting specifications align with standard control panel installation practices
• Professional-Grade Construction: Steel enclosure rated for indoor and protected installation environments typical of security integrator deployments

Physical Specifications and Installation

The 352PM-G exterior dimensions measure 14.5 inches wide by 32 inches tall by 4 inches deep, establishing a tall, vertical profile suitable for wall-mounted or equipment rack integration. The hinged lid mechanism adds 0.5 inches of clearance on top and side edges when opened, facilitating component access and internal assembly. This dimensional footprint aligns with industry-standard control panel cavity preparations, eliminating custom fabrication requirements during retrofit or new installation projects.

Integration and Compatibility

The 352PM-G supports TCP/IP network communication, enabling integration with modern distributed control systems and remote monitoring architectures. Security integrators can deploy this enclosure in IP-networked access control systems, fire alarm distribution panels, or telecommunications equipment installations requiring centralized power conditioning. The enclosure accepts standard DIN rail mounting hardware and conventional terminal block wiring practices, reducing installer training requirements and accelerating deployment timelines.

Applications

The DMP 352PM-G suits access control system power distribution, fire alarm panel installations, building management system power conditioning, telecommunications distribution hub applications, and security system backbone power supplies. Organizations operating multi-building campuses or distributed facility networks leverage the 352PM-G's network communication capability to monitor power status and execute remote diagnostics without on-site power meter inspection.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

I've specified the DMP 352PM-G in several large-scale control panel builds where transformer distribution and network monitoring were customer requirements. The extra-large form factor and integrated transformer capacity eliminate the need for bulky auxiliary power conditioning modules, which streamlines panel layout and reduces installation labor.

Technical Highlights:

• Transformer Integration: Factory-equipped design handles power transformation internally, reducing external component count and simplifying wiring diagrams
• TCP/IP Connectivity: Network communication support enables remote status queries and centralized power management across distributed facility layouts
• Vertical Mounting Profile: 14.5" × 32" dimensions fit standard wall cavities and equipment racks without custom structural modifications

Deployment Considerations:

• Plan internal cable routing during panel design phase—the 4" depth limits side-by-side component stacking but accommodates vertical DIN rail arrangements
• Coordinate network connectivity with your IT team early to ensure TCP/IP infrastructure and VLAN assignments align with control system architecture
• The protective lid clearance design simplifies access during commissioning and future maintenance cycles without requiring full panel disassembly

The 352PM-G delivers solid engineering for mid- to large-scale control panel integration, particularly where transformer functionality and network visibility justify the investment. I recommend this unit for any project where you're managing multiple power domains or require remote diagnostics capability.
