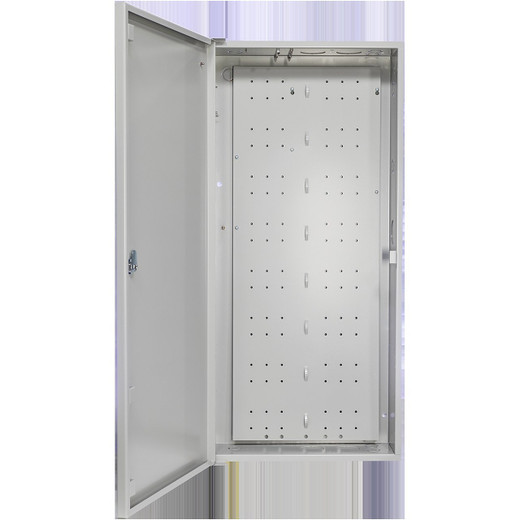

DMP 352M-G Extra Large Enclosure with Mounting Plate

Overview

The DMP 352M-G is an extra large enclosure with mounting plate built to house up to 16 access control modules in a single consolidated cabinet. For multi-door commercial installs where module count outgrows a standard enclosure, this cuts down on scattered small boxes and simplifies wire runs back to a single field panel location. Wire management tie-downs keep module wiring organized and accessible, which matters when you're back in this cabinet six months later tracing a fault across a dozen boards instead of one.

Compatibility

The three-hole mounting pattern accepts various DMP devices, giving you flexibility in how you populate the panel as an access control deployment grows past its original module count. Secure the enclosure door with a DMP model 307-S or 307-S-REED tamper switch — the 307-S-REED adds reed-switch tamper detection for installs where supervised tamper reporting is required by the monitoring station or local code.

Installation Notes

At 14.5" x 32" x 4", with the lid adding 0.5" of clearance on each side, confirm backboard or wall space before mounting — this is a large-format enclosure, not a drop-in replacement for a standard module box. Plan the mounting location around the three-hole pattern layout so module placement and wire runs are decided before the plate goes on the wall, not after.

Pair the 352M-G with a compatible DMP access control panel from the broader DMP catalog when scoping a new install, and check current control panels options if you're sizing the field panel that feeds this enclosure. If you're planning module layout and door count ahead of a multi-door rollout, a access control planning guide is worth reviewing before you finalize the enclosure size. For the tamper hardware referenced above, see enclosures and plates for the 307-S and 307-S-REED options.
