Q: How do I size an NVR for my cameras?

Start with aggregate bitrate, not channel count. Estimate per-camera bitrate (2 Mbps for 2MP H.265, 4-6 Mbps for 4K H.265 on busy scenes) and sum across all cameras. Ensure the NVR's total-bitrate rating exceeds your sum by at least 20%. Then size storage: total bitrate × seconds × retention days ÷ 8 = bytes. Our retention math guide walks through the complete formula.

Q: Are Hikvision NVRs NDAA compliant?

No. Hikvision and Dahua NVRs fall under the same NDAA Section 889 restrictions as their cameras — excluded from U.S. federal, state government, and critical-infrastructure procurement. NDAA-compliant NVR options include Axis Camera Station, Hanwha Wisenet, i-PRO, Digital Watchdog, and Bosch DIVAR.

Q: Do I need surveillance-grade hard drives?

Yes — standard desktop or NAS drives will fail prematurely under 24/7 write workload. Seagate SkyHawk and Western Digital Purple are purpose-engineered for surveillance workloads (180 TB/yr rating, multi-drive vibration tolerance, optimized firmware for streaming writes). The cost difference vs. desktop drives is marginal; the failure rate difference is catastrophic.

Q: What's the difference between an NVR and a VMS?

An NVR is a turnkey appliance — tested hardware + software combo, typically 8-64 channels, easy to deploy. A VMS (Video Management System) is server-based software that runs on standard x86 hardware and scales to thousands of channels, mixes any ONVIF cameras, and integrates with enterprise systems. Rule of thumb: NVR for single-site 64 channels, or enterprise integration. See our VMS platform guide.

Sub categories

Showing Results for Video & Storage

Compare

Out of stock
Vivotek

SKU: IE9111-O

Vivotek IE9111-O AI-Powered IP Camera Encoder

IP encoder with 2.1 TOPS AI acceleration for 4K H.264/H.265 video
- Decodes 4K video at 30 fps with H.264/H.265 compression for efficient streaming
- Qualcomm QCS605 NPU runs on-device AI inference for real-time analytics
- IP66-rated, PoE-powered (12W max), operates -25°C to 55°C in outdoor installations
Special Order · Ships in 2-3 weeks

$915.00 $654.99 Save $260.01

Add to Cart
The item has been added
Compare

Out of stock
Vivotek

SKU: ND9323P-2TB-4IB69

Vivotek ND9323P 8-Channel 2TB NVR with 4x 2MP IR Turret Cameras

8-channel 2TB NVR with 4x 2MP IR cameras, PoE+ powered, H.265
- H.265 codec reduces bandwidth and storage by up to 50% vs H.264
- 4x 2MP infrared turret cameras included; zero-light night vision
- PoE+ powers all cameras; no separate power supplies needed
Special Order · Ships in 2-3 weeks

$1,277.00 $913.99 Save $363.01

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Vivotek

SKU: ND9323P

Vivotek ND9323P 8-Channel 4K PoE NVR

8-channel 4K PoE NVR with integrated power—one cable per camera
- 4K @ 30 fps single-channel or 1080p @ 120 fps across 4 channels with hardware decode
- H.265 codec cuts storage and bandwidth by 40–60% vs. H.264 on 24/7 recording
- 802.3at PoE+ powers all 8 cameras directly—no external PSUs or separate 12V runs needed
In stock · Ships same business day

$422.00 $384.99 Save $37.01

Add to Cart
The item has been added
Compare

Out of stock
Vivotek

SKU: ND9323P-2TB-4FD69

Vivotek ND9323P 8-Channel NVR with 4x 2MP IR Dome Cameras

8-channel NVR with 4x 2MP IR cameras and 2TB storage, PoE+ powered
- 4x 2MP IR dome cameras with PoE+ for single-cable video and power
- H.265 compression with 4K @ 30fps decoding on 8-channel live view
- Continuous, scheduled, manual, and event-triggered recording modes
Special Order · Ships in 2-3 weeks

$1,277.00 $913.99 Save $363.01

Add to Cart
The item has been added
Compare

Out of stock
Vivotek

SKU: ND9323P RB

Vivotek ND9323P RB 8-Channel Embedded PoE NVR

8-channel embedded PoE NVR with integrated power, no external switch
- 8MP H.265 recording across all channels with RAID 0/1 storage options
- Built-in PoE+ (802.3at) eliminates external switch and simplifies installation
- Chrome web management interface with 4K video output for remote monitoring
Special Order · Ships in 2-3 weeks

$182.99

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Vivotek

SKU: ND9326P

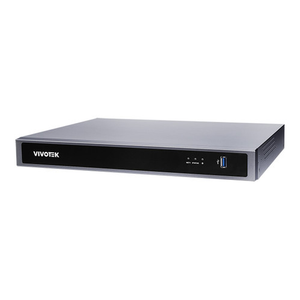

Vivotek ND9326P 16-Channel 4K PoE NVR

16-channel 4K PoE NVR with H.265 compression and integrated camera power
- 4K @ 120 fps per channel (3840×2160) with H.265 codec at 192 Mbps
- Integrated PoE+ powers 16 cameras; dual gigabit Ethernet for network stability
- Dual 3.5" HDD bays with RAID 0/1; hardware decode to 7680×2560 for playback
In stock · Ships same business day

$782.00 $476.99 Save $305.01

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Vivotek

SKU: ND9425P

Vivotek ND9425P 16-Channel 4K PoE NVR

16-channel 4K NVR with PoE+ power and H.265 codec support
- 4K @ 30 fps single channel or 1080p @ 120 fps across 4 channels
- H.265 hardware decoding reduces bitrate 40–60% vs. H.264
- Integrated PoE+ eliminates separate camera power supplies
In stock · Ships same business day

$560.00 $400.99 Save $159.01

Add to Cart
The item has been added
Compare

Out of stock
Vivotek

SKU: ND9426P

Vivotek ND9426P 16-Channel 4K PoE NVR

16-channel 4K PoE NVR with H.265 compression and dual HDD bays
- 192 Mbps throughput captures all 16 channels at 4K or mix resolutions
- PoE+ powers all 16 cameras on single cable for simplified deployment
- Dual 3.5" drives with RAID 0/1 support and hardware H.265 decoding
Special Order · Ships in 2-3 weeks

$928.00 $559.99 Save $368.01

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Vivotek

SKU: ND9442P

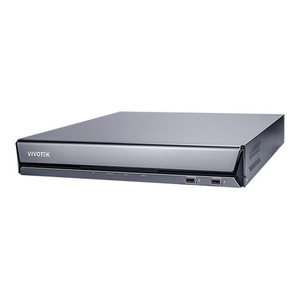

Vivotek ND9442P 16-Channel 4K PoE NVR

16-channel 4K PoE NVR with H.265 compression and dual gigabit ethernet
- Record 16 cameras at 4K simultaneously with PoE+ power delivery on single cables
- H.265 codec cuts storage in half versus H.264 for 24/7 recording across all channels
- Four 3.5" HDD bays with RAID 0/1/5 support and 192 Mbps throughput for reliability
In stock · Ships same business day

$1,588.00 $989.99 Save $598.01

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Vivotek

SKU: ND9542P

Vivotek ND9542P 32-Channel 4K PoE NVR

32-channel 4K PoE NVR with H.265 and Deep Search VCA
- Records all 32 channels at 4K (8MP) with 192 Mbps throughput
- H.265 compression cuts storage needs in half vs. H.264
- Deep Search indexes people, vehicles, and behaviors for fast lookup
In stock · Ships same business day

$1,866.00 $1,184.99 Save $681.01

Add to Cart
The item has been added
Compare

Out of stock
Vivotek

SKU: NR9581-V3

Vivotek NR9581-V3 32-Channel H.265 4K NVR

32-channel 4K NVR with H.265, dual 2.5G ethernet, RAID storage
- 512 Mbps recording across 32 channels with H.265 compression
- Up to 8 hot-swappable drives with RAID 0/1/5/6/10/50/60 configs
- Quad outputs including 4K HDMI and 8K DisplayPort with dual monitors
Special Order · Ships in 2-3 weeks

$12,182.00 $8,183.99 Save $3,998.01

Add to Cart
The item has been added
Compare

Out of stock
Vivotek

SKU: NR9682-V3

Vivotek NR9682-V3 64-Channel 16-Bay HD NVR

64-channel NVR with 16 hot-swap bays and H.265 for large deployments
- 512 Mbps throughput with H.265 and H.264 support; decodes up to 7680x2560
- 16 hot-swappable drive bays support RAID 0, 1, 5, 6, 10, 50, 60 configurations
- Dual 2.5 Gigabit LAN ports; HDMI 4K, DisplayPort 8K, DVI, VGA outputs
Special Order · Ships in 2-3 weeks

$15,528.00 $10,521.99 Save $5,006.01

Add to Cart
The item has been added
Compare

Out of stock
Vivotek

SKU: NV9321P

Vivotek NV9321P 8-Channel Mobile Network Video Recorder

8-channel mobile NVR with PoE power and M12 weatherproof connectors
- Records 8 IP cameras with 802.3af PoE per channel, no external power needed
- M12 weatherproof connectors rated for field deployments and vehicle mounting
- H.265 compression and NDAA compliance for government and defense operations
Special Order · Ships in 2-3 weeks

$5,448.00 $3,290.99 Save $2,157.01

Add to Cart
The item has been added
Compare

Out of stock
Vivotek

SKU: NV9421P

Vivotek NV9421P 16-Channel Mobile Network Video Recorder

16-channel mobile NVR with M12 connectors and NDAA compliance
- 16-channel simultaneous monitoring and recording in compact form factor
- M12 connectors with PoE (802.3af) for field durability and simplified wiring
- ONVIF-compatible with Vivotek and third-party IP cameras, NDAA-approved
Special Order · Ships in 2-3 weeks

$6,237.00 $3,792.99 Save $2,444.01

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Vivotek

SKU: WD64PURZ

Vivotek WD64PURZ 6TB High-Capacity Internal Surveillance Hard Drive

6TB surveillance drive with SATA 6 Gb/s for 24/7 NVR recording
- 6TB capacity rated for 180 TB/year continuous surveillance workload
- SATA 6 Gb/s interface in standard 3.5-inch form factor
- Compatible with Vivotek ND/NR series NVRs and DVRs
In stock · Ships same business day

$597.99

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Hikvision

SKU: DS-7732NI-M4

Hikvision DS-7732NI-M4 32-Channel 32MP Network Video Recorder

32-channel 32MP NVR with H.265+ compression for large-scale surveillance
- 32 MP per channel; Ultra HD mode supports 8 channels at 32 MP simultaneously
- H.265+/H.264+ dual-stream recording reduces storage by 40–60% vs. H.264
- 320 Mbps incoming, 400 Mbps outgoing bandwidth; 4 SATA + eSATA for 16TB drives
In stock · Ships same business day

$2,064.00 $972.99 Save $1,091.01

Add to Cart
The item has been added

What to Look For When Buying

The six decisions that matter most before you spec.

Channel Count vs Bitrate Ceiling

A "32-channel" NVR doesn't mean 32 4K cameras. Aggregate bitrate — typically 320 Mbps or 512 Mbps on commercial NVRs — is the real constraint. 32 cameras × 8 Mbps each = 256 Mbps, which leaves almost no headroom for peak motion scenes. Size by aggregate bitrate first, channel count second. See retention math.

RAID vs JBOD vs Single-Drive

Single-drive NVRs fail catastrophically on disk loss. RAID 5 survives one drive loss, RAID 6 survives two, RAID 10 combines mirror + stripe. For critical deployments, specify RAID 5 minimum — and size the array for rebuild-time bitrate, which can be 4x normal write load for 24+ hours. Use surveillance-grade drives only (Seagate SkyHawk, WD Purple) — consumer and NAS drives will fail under 24/7 write workload.

VMS vs Appliance NVR

Appliance NVRs (Axis Camera Station, Hanwha Wisenet NVR, Hikvision DS-96xxx) are purpose-built, tested-together hardware with bundled licensing. Server-based VMS (Milestone XProtect, Genetec Security Center, Avigilon ACC) scale to unlimited channels, mix any ONVIF camera, and integrate with enterprise systems. Choose appliance for <64-channel single-site; choose VMS for multi-site or enterprise integration.

NDAA Compliance for Recorders

NDAA restrictions apply to NVRs as well as cameras — Hikvision and Dahua NVRs are excluded from federal procurement. NDAA-compliant NVR options include Axis Camera Station, Hanwha Wisenet, i-PRO, Digital Watchdog, Bosch, and server-based VMS on standard x86 hardware.

Retention & Compression

30-day retention across 32 4K cameras can be ~100 TB at H.264 — or ~50 TB at H.265 — or ~30 TB with smart-compression variants. Cameras, codec, bitrate, and motion activity all compound. Our retention math guide covers the formulas; use conservative bitrate assumptions unless you've benchmarked your scenes.

Failover & High Availability

Mission-critical deployments use dual-recorder failover (Milestone XProtect Corporate, Genetec Archiver redundancy, Axis Camera Station Pro HA). Standalone appliance NVRs typically don't support true HA — their failover is limited to edge SD-card recording on the cameras themselves. If uptime matters, architect HA from day one, not as a retrofit.

Technology Stack

The specs and acronyms that actually affect outdoor performance.

ONVIF Profile G + T

Profile G standardizes recording and playback; Profile T adds advanced streaming including H.265 and analytics metadata. Certified conformance — not "ONVIF compatible" language — is what ensures playback, export, and metadata interoperability across NVRs and VMS. Check spec sheets.

H.265 / HEVC vs H.264 / AVC

H.265 cuts bitrate 40-50% at equivalent perceived quality. Storage savings compound over multi-month retention. Trade-off: H.265 decoding requires ~2x the CPU for live monitoring on mid-range VMS servers. Most new NVRs support H.265 recording and H.264 or H.265 decoding per-channel.

RAID Levels for Surveillance

RAID 5 (stripe + parity, single-drive tolerance) is the surveillance standard for 4-8 drive arrays. RAID 6 (stripe + double parity, two-drive tolerance) for 8+ drive arrays where rebuild time extends risk window. RAID 10 (mirror + stripe) for write-intensive video-analytics servers. Never RAID 0 for production.

Surveillance-Grade HDDs

Seagate SkyHawk and WD Purple are purpose-engineered for 24/7 write workloads at 180 TB/yr workload rating. Consumer desktop drives (Seagate Barracuda, WD Blue) and even NAS drives (WD Red) will fail prematurely under 16-camera continuous-record load. Budget SkyHawk/Purple pricing up-front — drive failures during warranty are operationally painful.

Edge + Cloud Hybrid Archive

Modern deployments often combine local edge recording (30-day primary retention) with cloud archive (90-day+ compliance retention). Axis Connected Services, Milestone XProtect Cloud, Genetec Stratocast, and Verkada Command implement edge-to-cloud tiering. Bandwidth, egress costs, and compliance scope all matter.

Failover Architecture

Milestone XProtect Corporate implements true recorder failover — a standby server takes over recording within seconds of primary failure. Genetec Archiver Redundancy works similarly. Appliance NVRs typically do not support true failover; SD-card failover on the camera itself fills the gap for brief outages but not for total recorder loss.

Typical Deployment Scenarios

32-Camera Retail Plaza

Single-site deployment: 32 IP cameras across six storefronts, mix of outdoor and indoor. 32-channel NVR with 16TB RAID-5 for 30-day retention at 2 Mbps H.265. Mobile app for store managers, export workflow for loss-prevention.

500-Camera Campus VMS

University campus with 500 IP cameras across 40 buildings, mix of brand/form-factor. Milestone XProtect Expert on dual redundant servers, 300TB NetApp storage, integrated with access control events and mass-notification. 60-day retention, 7-year forensic archive on tape.

Multi-Site Retail Chain

200 retail locations, 12 cameras per site, centralized VMS. Milestone XProtect Corporate or Genetec Federation model: per-site edge NVR with central management at HQ. Cloud archive for 90-day compliance retention. Analytics for people-counting, dwell-time, and shrinkage investigation.

Critical Infrastructure

Utility substation with 48 cameras including thermal, PTZ, and panoramic. Dual-redundant VMS servers with real-time replication, FIPS 140-2 encryption, CJIS-compliant audit logging. NDAA-compliant cameras and NVRs only — Axis, Hanwha, i-PRO. Integration with SCADA and perimeter intrusion.

Frequently Asked Questions

How do I size an NVR for my cameras?

Start with aggregate bitrate, not channel count. Estimate per-camera bitrate (2 Mbps for 2MP H.265, 4-6 Mbps for 4K H.265 on busy scenes) and sum across all cameras. Ensure the NVR's total-bitrate rating exceeds your sum by at least 20%. Then size storage: total bitrate × seconds × retention days ÷ 8 = bytes. Our retention math guide walks through the complete formula.

Are Hikvision NVRs NDAA compliant?

No. Hikvision and Dahua NVRs fall under the same NDAA Section 889 restrictions as their cameras — excluded from U.S. federal, state government, and critical-infrastructure procurement. NDAA-compliant NVR options include Axis Camera Station, Hanwha Wisenet, i-PRO, Digital Watchdog, and Bosch DIVAR.

Do I need surveillance-grade hard drives?

Yes — standard desktop or NAS drives will fail prematurely under 24/7 write workload. Seagate SkyHawk and Western Digital Purple are purpose-engineered for surveillance workloads (180 TB/yr rating, multi-drive vibration tolerance, optimized firmware for streaming writes). The cost difference vs. desktop drives is marginal; the failure rate difference is catastrophic.

What's the difference between an NVR and a VMS?

An NVR is a turnkey appliance — tested hardware + software combo, typically 8-64 channels, easy to deploy. A VMS (Video Management System) is server-based software that runs on standard x86 hardware and scales to thousands of channels, mixes any ONVIF cameras, and integrates with enterprise systems. Rule of thumb: NVR for single-site <64 channels; VMS for multi-site, >64 channels, or enterprise integration. See our VMS platform guide.

Can I mix camera brands on one NVR?

It depends. Appliance NVRs (Axis Camera Station, Hanwha Wisenet) typically support their own brand plus ONVIF cameras with limited analytics interop. Server-based VMS platforms (Milestone, Genetec, Exacq) routinely mix Axis, Hanwha, i-PRO, Hikvision, Bosch on one server — as long as all are ONVIF Profile S + G certified. Vendor-specific AI/analytics metadata may require the matching VMS.

What RAID level should I use for surveillance storage?

RAID 5 for 4-8 drive arrays (single-drive tolerance, ~80% storage efficiency). RAID 6 for 8+ drive arrays where rebuild time is long and second-drive failure during rebuild is a realistic risk. RAID 10 for analytics-heavy VMS servers that mix high write + read workloads. Never RAID 0 for production. Size all arrays for rebuild-time performance — 4x normal bitrate is typical during a rebuild.

Video & Storage

Plan Your Deployment

Sub categories

Showing Results for Video & Storage

Vivotek IE9111-O AI-Powered IP Camera Encoder

Vivotek ND9323P 8-Channel 2TB NVR with 4x 2MP IR Turret Cameras

Vivotek ND9323P 8-Channel 4K PoE NVR

Vivotek ND9323P 8-Channel NVR with 4x 2MP IR Dome Cameras

Vivotek ND9323P RB 8-Channel Embedded PoE NVR

Vivotek ND9326P 16-Channel 4K PoE NVR

Vivotek ND9425P 16-Channel 4K PoE NVR

Vivotek ND9426P 16-Channel 4K PoE NVR

Vivotek ND9442P 16-Channel 4K PoE NVR

Vivotek ND9542P 32-Channel 4K PoE NVR

Vivotek NR9581-V3 32-Channel H.265 4K NVR

Vivotek NR9682-V3 64-Channel 16-Bay HD NVR

Vivotek NV9321P 8-Channel Mobile Network Video Recorder

Vivotek NV9421P 16-Channel Mobile Network Video Recorder

Vivotek WD64PURZ 6TB High-Capacity Internal Surveillance Hard Drive

Hikvision DS-7732NI-M4 32-Channel 32MP Network Video Recorder

Browse by Product Family

What to Look For When Buying

Technology Stack

Typical Deployment Scenarios

Top Brands for Outdoor Deployments

Frequently Asked Questions

Related Categories

Engineering Reading
