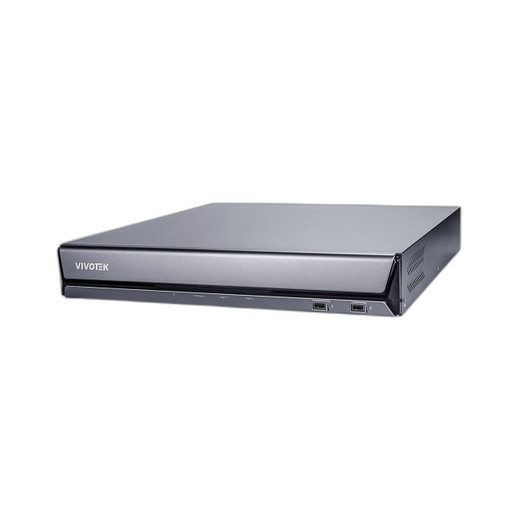

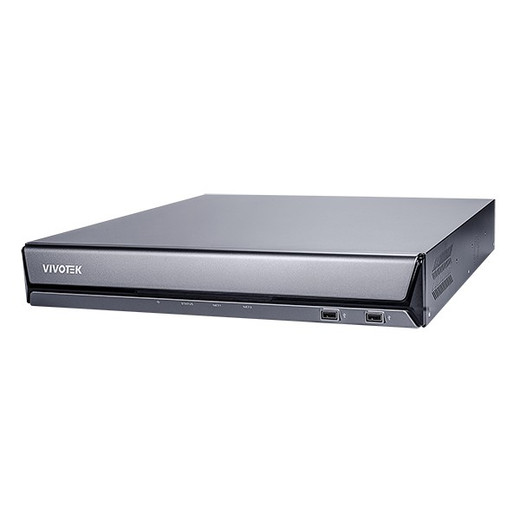

Vivotek ND9442P 16-Channel 4K PoE NVR

Vivotek ND9442P 16-Channel 4K PoE NVR

The Vivotek ND9442P is a professional-grade network video recorder designed for mid-to-large deployments requiring simultaneous 4K recording across 16 IP camera channels, advanced search capabilities, and storage efficiency. Built on embedded Linux, this unit combines H.265 compression, intelligent object detection (Deep Search), and flexible recording modes in a single appliance—eliminating the need to choose between image quality, archive size, and forensic capability.

Key Features

• 16-Channel 4K PoE Recording: Supports up to 16 IP cameras with Power over Ethernet delivery, consolidating both video and power on a single Cat6 cable. This reduces installation labor and electrical work compared to cameras requiring separate 12V supplies or power adapters.
• H.265 Compression: Cuts storage requirements roughly in half compared to H.264—a significant factor when recording 24/7 across 16 channels. At typical bitrates, this translates to doubling your retention window on the same disk hardware, or halving infrastructure cost for equivalent retention periods.
• Deep Search with Object Classification: Intelligent video search identifies and tags people and vehicles within recorded footage, enabling attribute-based filtering (gender, age, clothing color, vehicle type and color). Scene-based triggers—line crossing, intrusion detection, loitering alerts—allow security teams to locate forensically relevant events in hours instead of days of manual review.
• Flexible Recording Modes: Continuous, scheduled, manual, event-triggered, and activity-adaptive streaming with pre/post-event buffering give you fine-grained control over bandwidth and storage. Activity-adaptive mode reduces bitrate during low-motion periods (parking lots, hallways) and ramps up during activity—useful when bandwidth or storage budget is constrained.
• Hardware-Accelerated Decoding: Decodes 4K at 90 fps and 1080p at 360 fps, enabling rapid multi-stream playback and simultaneous live-view layouts without CPU bottlenecks. The ND9442P can display 10 configurable live-view layouts (1x1, 2x2, 3x3, 1P+3, 2P+3, 1M+5, 1P+6, 3V, 1M+12, 4x4) via HDMI and VGA—critical when operators need to monitor multiple zones without network latency.
• Internal RAID Storage: Four 3.5-inch HDD bays with RAID 0/1/5 support protect against single-disk failure and allow hot-swap replacement without service interruption. RAID 5 is the standard choice here—one drive can fail without data loss, and degraded-mode performance remains acceptable for ongoing recording.
• Dual Gigabit Ethernet: Two independent 1 Gbps connections deliver 224 Mbps total throughput, adequate for 16 streams at typical bitrates. Dual NICs also support network redundancy and failover configurations in mission-critical installations.
• Fisheye Dewarping: Local and web-based panoramic, orthogonal, and rectilinear dewarping support 360° fisheye and multi-sensor cameras, expanding the ND9442P's utility in retail, warehouse, and campus environments where wide-area coverage is required.
• 192 Mbps Maximum Throughput: Dual-stream support and activity-adaptive recording mean you can allocate higher bitrates to critical channels (entry points, parking) and lower bitrates to secondary zones, balancing image detail against storage consumption.

Integration & Compatibility

The ND9442P supports network video recorders from the Vivotek surveillance line, integrated via ONVIF Profile S, ensuring compatibility with cameras from multiple vendors. Dual-level user access (administrator and regular user) enforces role-based permissions. Audio I/O (3.5mm) handles G.711, G.726, and MPEG-2 AAC-LC formats for two-way communication or scene audio logging. Sixteen alarm inputs and eight alarm outputs allow integration with external sensors, door contacts, and relay devices—standard for warehouse, perimeter, and retail loss-prevention systems.

Trend Micro IoT Security, signed firmware, and comprehensive logging (system, recording, user, error) provide cybersecurity governance required by enterprise and regulated installations. VIVOCloud, iViewer, and VORTEX mobile applications enable secure remote monitoring on iOS and Android; Chrome browser support provides web-based access from any networked endpoint.

Storage & Expansion

The unit uses standard 3.5-inch SATA drives; configuration varies by site—a 4-bay RAID 5 setup with four 4TB drives yields ~12TB usable capacity. USB 3.0 external storage and schedule-based FTP backup support offsite archival. Video clip export via USB dongle simplifies chain-of-custody and evidence sharing.

Power & Physical Specifications

The ND9442P draws up to 300W and is powered via PoE+ (IEEE 802.3at+), with automatic restart on power recovery. This makes it suitable for deployments with uninterruptible power supplies (UPS) that back up both the NVR and downstream PoE+ switches.

When to Choose a Different Model

If you need more than 16 channels, consider higher-channel variants in the Vivotek NVR family. If your camera ecosystem is exclusively Hikvision or Dahua, evaluate native solutions from those vendors—while the ND9442P supports ONVIF, vendor-native implementations sometimes offer tighter integration and faster firmware updates. If your storage requirement exceeds 64TB, external NAS arrays become more cost-effective than internal 3.5-inch bays.

Frequently Asked Questions

Q: Does the ND9442P support mixed resolution streams (4K + 1080p on the same unit)?

A: Yes. The recorder can accept simultaneous 4K cameras on some channels and 1080p or 720p on others. H.265 compression is applied per-stream, so lower-resolution cameras consume proportionally less bandwidth and storage.

Q: What is the typical storage capacity for 16 channels at 4K, continuous recording?

A: A 4-drive RAID 5 configuration with four 4TB drives yields approximately 12TB usable capacity. At typical 4K bitrates (3–5 Mbps per stream with H.265), this supports roughly 8–12 days of continuous 16-channel recording. Exact retention depends on motion levels and scene complexity.

Q: Is the ND9442P compatible with Milestone XProtect VMS?

A: The ND9442P supports ONVIF Profile S, which enables basic integration with ONVIF-capable VMS platforms including Milestone. For full feature parity (analytics, presets, PTZ), verify ONVIF driver support in your VMS version.

Q: Can the ND9442P detect and classify vehicles by color and type in real time?

A: Yes. Deep Search II provides object classification (people vs. vehicles) and attribute matching (vehicle type, color, license plate region). This operates on recorded footage during search, not on live streams—enabling rapid forensic analysis without imposing real-time CPU overhead.

Q: Does the ND9442P include Trend Micro antivirus or just IoT security scanning?

A: The unit includes Trend Micro IoT Security, which provides vulnerability scanning and threat signatures specific to networked devices. This is not general-purpose endpoint antivirus; it's designed to protect the NVR and connected camera infrastructure.

Q: What happens if a drive fails in RAID 5 mode?

A: The recorder continues recording without interruption using the remaining three drives. Data is fully protected; you can hot-swap the failed drive without stopping the system. Performance may degrade slightly during rebuild, but recording does not pause.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The ND9442P is a practical fit for warehouse, retail loss-prevention, and campus deployments where 16 camera channels and forensic-grade video search justify the investment. The H.265 codec cuts your storage footprint significantly—expect roughly 50% less disk space compared to H.264 at the same bitrate—which matters when running 24/7 across 16 channels and aiming for 10+ days retention. Deep Search object detection and attribute filtering are standout features here; if you're logging vehicle ingress/egress or people counting across a large facility, the time savings during post-event investigation are substantial.

Technical Highlights:

• H.265 Compression & Dual-Stream Support: The recorder delivers 192 Mbps maximum throughput with simultaneous dual-stream encoding per camera—primary stream for storage (low bitrate, H.265) and secondary stream for live viewing or remote access (adjustable bitrate, H.264). This separation means you retain archive quality while keeping remote clients responsive even on constrained WAN links.
• Deep Search II with VCA: The video content analysis engine runs on recorded footage, identifying and tagging people, vehicles, and behavior triggers (line crossing, intrusion, loitering) without real-time CPU load. Attribute-based search (clothing color, vehicle type/color) slashes investigation time—you're searching metadata, not scanning hours of raw video.
• Four-Drive RAID 5 Storage: Standard SATA 3.5-inch drives in RAID 5 give you single-disk fault tolerance and hot-swap capability. Usable capacity on four 4TB drives is ~12TB; if you need 30+ TB, external NAS arrays become more economical than adding another ND9442P.
• Hardware-Accelerated Decode at 4K 90 fps: This means smooth, lag-free multi-stream playback and live-view switching. When switching between 10 different camera layouts in real time, hardware acceleration is the difference between smooth operator experience and noticeable stutter.

Deployment Considerations:

• The 300W power budget is the key limiting factor. If you're deploying the ND9442P alongside 16 cameras on two PoE+ switches, ensure your power distribution and UPS sizing account for the full load—switches plus NVR. A 2 kVA UPS is a reasonable baseline for this configuration.
• Deep Search operates on recorded footage only, not live streams. If you need real-time vehicle detection or people counting to trigger alerts, you'll need embedded analytics on the cameras themselves (via ACAP or vendor-specific plugins). The ND9442P excels at forensic search, not live alerting.
• The dual Gigabit Ethernet (224 Mbps total) is tight for 16 simultaneous 4K streams at high bitrates. At typical 4–6 Mbps per 4K stream (H.265), you're at roughly 64–96 Mbps aggregate—well within budget. But if you're mixing high-motion 4K (outdoor parking, retail floor) with 8–10 Mbps streams, monitor your network utilization and consider a 10 Gbps uplink or network segmentation.

The ND9442P is strongest in environments where you need to balance high-resolution archival, low storage footprint, and investigative capability—think warehouse receiving, retail loss-prevention, or campus multi-building surveillance. Avoid it if your camera base is vendor-locked (Hikvision or Dahua proprietary analytics) or if you need sub-100ms live-view latency for operator control (the ONVIF integration path adds latency compared to native solutions).
