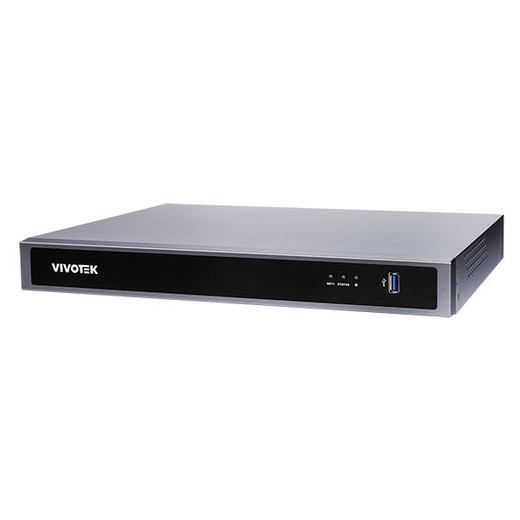

Vivotek ND9326P 8-Channel 4K PoE NVR

Vivotek ND9326P 8-Channel 4K PoE NVR

The Vivotek ND9326P is a professional-grade 8-Channel network video recorder engineered for enterprises deploying high-resolution surveillance across distributed camera networks. This model addresses a specific pain point: managing 4K camera streams without doubling your storage costs. Built on H.265 compression, the ND9326P cuts storage consumption roughly in half compared to H.264 at comparable quality — a material difference when recording 24/7 across dozens of cameras. The integrated PoE+ power architecture eliminates separate PSUs, simplifying cable runs and reducing switch infrastructure strain across large deployments.

Key Features

• 8-Channel 4K recording at 120 fps: Captures 3840×2160 resolution at full frame rate per channel, eliminating frame loss during fast-moving subject tracking — critical in high-security retail and transportation environments where real-time responsiveness matters.
• H.265 codec with 192 Mbps recording throughput: Delivers approximately 50% better storage efficiency than H.264 without perceptible quality loss. On a system recording 24/7, this translates to halving your HDD footprint or extending retention windows by 2x.
• Integrated PoE+ power distribution: Supplies power to 16 cameras directly from the NVR without external power supplies, reducing installation labor and eliminating redundant PSU failure points. Standard 802.3at PoE+ draws sufficient wattage for high-power cameras without overloading most enterprise gigabit switches.
• Dual internal 3.5-inch HDD bays with RAID 0 and RAID 1: RAID 1 mirroring provides automatic failover if one drive fails — no data loss, no manual recovery. RAID 0 maximizes raw capacity for non-critical surveillance or test deployments. Hardware watchdog and S.M.A.R.T. monitoring detect disk degradation before failure.
• Hardware video decoder up to 7680×2560 resolution: Supports playback of multiple 4K streams simultaneously without CPU bottleneck. Smooth scrubbing and multi-camera live view remain responsive even under heavy concurrent playback.
• 8-channel live view with flexible layouts: Switch between 1M+5 (main + 5 small windows), 1P+6 (picture-in-picture), and 3V (3-window vertical) configurations without interrupting recording. Dual HDMI and VGA outputs enable independent displays for operator stations and public monitoring.
• Configurable pre-record and post-record buffering (5–300 seconds): Captures video up to 5 minutes before an alarm trigger and continues recording after — ensures complete incident context is never trimmed from archives.
• Advanced event analytics and object search: VCA (Video Content Analysis) detects motion, tampering, and camera disconnection. Smart object search filters by people vs. vehicles and narrows results by gender, age, clothing color, or vehicle type, cutting forensic review time significantly on large incident databases.
• ONVIF Profile S compliance: Works with any ONVIF-compatible IP camera, avoiding vendor lock-in. Integrates with third-party network video recorders ecosystems and mixed-brand surveillance networks.
• Multi-user role-based access control: Administrator and regular user roles with granular logging of system, recording, user, and error events. Trend Micro IoT Security integration adds threat detection at the edge, blocking malware and intrusion attempts before they reach your archive.
• Cloud and mobile remote access: VIVOCloud, iViewer, and VORTEX mobile apps enable real-time monitoring and playback from iOS and Android — essential for multi-site operators and after-hours incident response.

Integration & Compatibility

The ND9326P integrates seamlessly with Vivotek IP cameras but is not locked to that ecosystem. ONVIF Profile S ensures broad camera compatibility. FTP schedule support enables automated video export and external backup without manual intervention. For large enterprises, hybrid cloud deployment via VIVOCloud provides centralized management of multiple recorders across branch offices or retail chains.

When to Choose a Different Model

If your deployment requires more than 8-Channel, consider a higher-channel-count variant in the Vivotek NVR family. If you need geographically distributed storage with minimal latency, explore edge recording on cameras themselves paired with a smaller central unit. If budget is the primary constraint and your cameras are lower than 4K, a previous-generation H.264 NVR may suffice — but the ND9326P's storage savings typically justify the upfront cost over a 3–5 year retention cycle.

Frequently Asked Questions

Q: Does the ND9326P support RAID 1 mirroring without additional hardware?

A: Yes. The dual internal 3.5-inch HDD bays support RAID 1 natively via the onboard RAID controller. Install two identical drives and configure RAID 1 in the web interface — no external RAID card required.

Q: Can I record all 8-Channel at 4K 120 fps simultaneously?

A: Yes, the ND9326P supports 8-Channel 4K recording at 120 fps per channel, contingent on network throughput and storage availability. Dual gigabit Ethernet ports (224 Mbps combined throughput) handle the bandwidth; verify your camera uplinks and switch fabric support the aggregate bitrate.

Q: What is the typical storage requirement for continuous 4K H.265 recording?

A: Storage depends on scene complexity and bitrate settings. H.265 at 8 Mbps per channel consumes approximately 3.6 TB per channel per month at continuous 24/7 recording. The ND9326P's RAID bays support drives up to typical enterprise 8 TB or 10 TB, enabling 6–8 months of single-channel 4K retention or shorter multi-channel windows. Use the manufacturer's retention calculator or contact your integrator for your specific scene profile.

Q: Does the ND9326P integrate with Milestone XProtect or other third-party VMS platforms?

A: The ND9326P complies with ONVIF Profile S, which enables integration with VMS platforms supporting ONVIF cameras and edge recorders (such as Milestone). Consult your VMS vendor for certified compatibility and any licensing implications for edge storage.

Q: Is the ND9326P NDAA Section 889 compliant?

A: No NDAA compliance statement is provided in the available technical documentation. If NDAA Section 889 compliance is mandatory, contact the manufacturer or your integrator for an explicit certification letter before committing to procurement.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The ND9326P is a mature, well-engineered enterprise-class NVR built specifically for organizations scaling 4K surveillance without proportional storage expansion. H.265 compression at 192 Mbps recording throughput delivers roughly 50% better storage density than H.264 — that translates to 6–8 months of 4K retention on standard dual-drive RAID 1 setups, a meaningful difference in compliance-heavy verticals (retail, hospitality, logistics) where 6–12 month retention mandates are common.

Technical Highlights:

• Hardware decoding up to 7680×2560: Eliminates CPU saturation during playback of multiple 4K streams. Forensic investigators can scrub through weeks of multi-camera incidents without UI lag or dropped frames.
• 8-Channel 120 fps @ 4K: Captures fast-moving subjects (crowds, vehicle convoys, package handling) without frame loss. Frame rate overhead is essential in high-security retail and logistics hubs.
• Dual HDMI + VGA outputs: Decouples operator display from archival storage — one operator can monitor live 8-channel layouts while a second workstation plays back concurrent events independently.
• RAID 1 + S.M.A.R.T. monitoring: Automatic disk mirroring prevents data loss from single-drive failure. Hardware watchdog triggers automatic restart on crash, eliminating prolonged downtime without on-site intervention.
• Pre/post-event buffering (5–300 seconds configurable): Captures context before and after alarm triggers. A motion alert at 10:30 AM includes video from 10:25–10:35 — often the difference between identifying a perpetrator and a blank incident log.

Deployment Considerations:

• Network infrastructure: 16 simultaneous 4K streams at 8–12 Mbps each demand 128–192 Mbps aggregate throughput. Dual gigabit Ethernet (224 Mbps) handles the load, but verify your upstream switch, camera feed network, and backup connectivity can sustain this without congestion or packet loss. Dedicated camera VLAN is recommended.
• Storage scaling: Dual 3.5-inch bays max out at roughly 16–20 TB total. For retention windows beyond 8–10 months at full 8-Channel 4K, plan for external NAS backup or tiered archive (FTP scheduled export). Storage will be your constraint, not processing capacity.
• Cloud and mobile access: VIVOCloud, iViewer, and VORTEX provide remote playback, but bandwidth-constrained remote offices should configure mobile bitrate limits to avoid saturating WAN links. VORTEX on cellular is useful for after-hours incident triage, not continuous live monitoring.
• Gotcha — PoE+ power budget: The NVR supplies PoE+ to 16 cameras. If your cameras draw peak 25–30W each (high-powered PTZ or illumination), you'll exceed the ND9326P's aggregate PoE budget. High-power cameras require external PoE injectors or direct 12VDC supplies.

The ND9326P is purpose-built for mid-to-large retail chains, corporate multi-floor facilities, and logistics hubs transitioning from 1080p to 4K without rearchitecting storage. If your retention mandate is sub-30 days and you're willing to compress aggressively, the storage economics are strong. If you need 12+ months of full 4K retention, budget for external archive infrastructure or step down to lower resolution on less critical zones.
