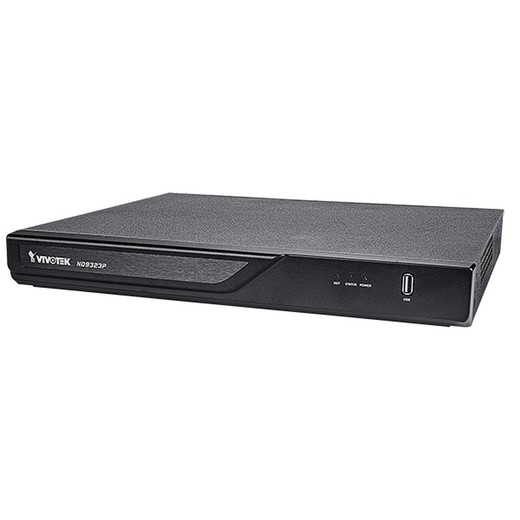

Vivotek ND9323P 8-Channel 4K PoE NVR

Vivotek ND9323P 8-Channel 4K PoE NVR

The Vivotek ND9323P is a compact network video recorder engineered for facilities deploying eight IP cameras with 4K capability and requiring streamlined power and network infrastructure. Built on embedded Linux, this NVR decodes and displays video at 3840x2160 resolution (30 fps on a single channel), and its integrated PoE+ connectivity eliminates separate camera power supplies — meaning one network line carries both power and video from each camera back to the recorder. For IT architects and integrators, this translates to simpler cabling runs, fewer power distribution points, and lower installation overhead on medium-scale projects.

Key Features

• 4K Video Decoding with Hardware Acceleration: Handles up to 3840x2160 at 30 fps on one channel, or 1920x1080 at 120 fps across four channels simultaneously. Real benefit: no CPU throttling when decoding multiple streams — the dedicated hardware means responsive live view and fast playback scrubbing even under load.
• H.265 Codec Efficiency: Reduces storage and bandwidth consumption by roughly 40–60% compared to H.264, depending on scene complexity and frame rate. On a 24/7 eight-camera deployment, this cuts your hard drive budget noticeably and lowers WAN congestion if you're streaming off-site.
• Integrated PoE+ Power Architecture: All eight channels accept powered network drops via 802.3at (up to 30W per port). No external camera PSUs, no separate 12V runs — each camera connects via a single Cat5e/6 line. Particularly valuable in retrofit or space-constrained sites (retail ceilings, hospitality corridors).
• Dual 3.5-inch HDD Bays with RAID 0/1: Mirror your storage across two drives for redundancy, or stripe them for higher throughput if you're recording at peak bitrate. RAID 1 protects against single-drive failure without triggering a complete data loss.
• 64 Mbps Throughput Ceiling: This is your real-world recording budget. Eight 4K cameras at 8 Mbps each will saturate the system; plan for H.265 compression and lower bitrate settings if you need eight simultaneous 4K streams. For typical deployments mixing resolutions and using smart event triggers, this headroom is adequate.
• Multi-Codec Support (H.265, H.264, MJPEG): Accommodates mixed-brand camera deployments without forcing codec re-encoding. If you inherit a site with legacy H.264 cameras and want to add new H.265 models, the ND9323P ingests both without conversion overhead.
• Advanced Event Management: Motion detection, tampering alerts, smart VCA events (crowd detection, people counting), and PIR trigger integration automate alarm responses and reduce false positives through selective recording.
• Fisheye Dewarping (Local and Web): Supports up to eight fisheye cameras with real-time dewarping for live view and playback — useful for wide-area retail or warehouse floor coverage where straight lenses can't achieve the desired field of view.
• PTZ Camera Control: Full direction, iris, preset, and patrol commands integrate remote camera management directly from the NVR interface or mobile apps (iOS/Android via iViewer).
• Dual Display Output (HDMI + VGA): Supports independent video outputs for control room walls or dual-monitor setups. Render live view on one monitor, playback on another, without USB/IP overhead.
• Cloud Access and Mobile Remote Monitoring: VIVOCloud service and iViewer apps (iOS/Android) enable real-time live view and event playback from anywhere. Two-way audio via G.711/G.726 codecs supports remote intercom scenarios (retail call-up, warehouse dispatch).
• Cybersecurity Hardening: Trend Micro IoT Security integration and cybersecurity management features reduce risk in connected environments where the NVR sits on the corporate network.

Storage and Recording Flexibility

The ND9323P supports continuous, scheduled, manual, and event-triggered recording modes. Assign different recording policies to each channel — for instance, 24/7 on entry points, motion-only in back-of-house areas. USB 3.0 ports enable fast external backup and video clip export for investigations. Schedule-based FTP backup automates off-site archival, critical for regulatory compliance in retail and hospitality environments.

Integration and Compatibility

Network connectivity includes Gigabit Ethernet with 88 Mbps aggregate throughput and IPv4/IPv6 support. ONVIF Profile S compliance ensures interoperability with third-party IP cameras from Axis, Hikvision, Dahua, and other major vendors. Four alarm inputs and one relay output integrate door sensors, PIR detectors, and external sirens. Audio input and output connectors support microphone feeds and speaker drops for two-way communication.

When to Choose a Different Model

If your deployment requires 16 channels or more, consider higher-capacity models in the Vivotek network video recorder family. For sites with heavy analytics workloads (crowd density, license plate recognition), specialized deep-learning NVRs may offer better performance. If you need on-device storage redundancy beyond RAID 1, some competitor platforms support three-drive configurations.

Deployment Context

The ND9323P excels in compact retail stores, small office buildings, hospitality properties, and warehouse operations where eight cameras provide sufficient coverage and simplicity of deployment matters. The PoE+ architecture and modest 64 Mbps throughput cap mean you should pair it with a managed PoE switch that offers power budgeting visibility — ensure your switch can supply 240W (30W × 8 channels, worst-case). For storage sizing, consult a video retention calculator to account for your H.265 bitrate, recording schedule, and compliance window.

Frequently Asked Questions

Q: Does the ND9323P support ONVIF compliance?

A: Yes. The unit implements ONVIF Profile S, enabling integration with standards-based third-party cameras and VMS platforms that support the profile. This ensures you are not locked into Vivotek camera hardware.

Q: Can I record at 4K resolution on all eight channels simultaneously?

A: No. The 64 Mbps throughput limit and hardware decode specification allow one channel at 4K 30 fps, or multiple channels at lower resolutions. Eight simultaneous 4K streams would require roughly 64+ Mbps per stream (uncompressed baseline). Plan for mixed-resolution recording or H.265 compression at reduced bitrates if you need high channel density.

Q: What is the maximum hard drive capacity the ND9323P supports?

A: The unit has two 3.5-inch bays. Current market standard 3.5-inch drives max out at 12–16 TB each, giving you up to 32 TB total (RAID 1) or 24 TB (RAID 0). Consult the datasheet or contact support for tested drive models to avoid compatibility issues.

Q: Does the ND9323P work with non-Vivotek IP cameras?

A: Yes, provided the cameras support ONVIF Profile S or output H.265/H.264/MJPEG video. This includes models from Axis, Hikvision, Dahua, Uniview, and others. Mixed-vendor deployments are supported, though testing the specific camera model beforehand is recommended.

Q: What happens if one of the two hard drives fails?

A: If you have configured RAID 1, the mirrored drive continues operating, and you can replace the failed drive without data loss. The NVR will alert you to the failure. If RAID 0 is configured, a single drive failure loses all recorded video on that span — RAID 1 is strongly recommended for production deployments.

Q: Is the ND9323P accessible remotely over the internet?

A: Yes, via VIVOCloud (Vivotek's cloud service) or direct IP access if your network permits port forwarding. iViewer mobile apps (iOS/Android) provide remote live view, playback, and two-way audio. Cybersecurity features including Trend Micro IoT Security help mitigate exposure on public networks.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The ND9323P lands in a practical middle ground for small-to-medium deployments. Its integrated PoE+ connectivity and H.265 codec support eliminate two major installation headaches — separate camera power and storage waste. If you're replacing an aging CCTV system or building out a new retail location, the combination of eight PoE+ channels and dual HDD RAID capability means fewer hardware SKUs to manage and lower cabling labor.

Technical Highlights:

• H.265 Codec + 64 Mbps Throughput: Expect 40–60% storage reduction versus H.264. In real deployments, this translates to either smaller drives (lower capex) or longer retention windows (24/7 for 60+ days on 2 TB per camera, depending on bitrate and scene complexity).
• Dual HDD RAID 1 Support: Two 3.5-inch bays with active mirroring protect against single-drive failure. Failure detection is automatic; swap the drive without stopping recording. For a 24/7 system, this is non-negotiable.
• 4K Decode Performance (1920×1080 @ 120 fps across four channels): Hardware acceleration ensures responsive playback even when searching timeline across multiple 1080p streams. No stuttering or CPU spikes; critical for fast incident investigations.
• ONVIF Profile S + Codec Flexibility: H.265, H.264, and MJPEG support means you can deploy heterogeneous camera models without re-encoding overhead. Mixed Vivotek and third-party devices work without gotchas.

Deployment Considerations:

• 64 Mbps Ceiling Is Real: Do not attempt eight simultaneous 4K 30fps streams; the ND9323P will cap or drop frames. Run mixed resolutions (four 4K channels + four 1080p channels) or apply H.265 compression with bitrate capping per channel. Plan your camera mix up front.
• PoE+ Budget Requires Planning: Eight cameras at 30W each demand 240W peak. Verify your upstream switch has adequate power budget and supports 802.3at properly. A 60W PoE switch cannot reliably feed this unit.
• Storage Contingency: Always configure RAID 1. RAID 0 offers capacity but zero redundancy — a single 8 TB drive failure wipes the entire video history. The cost difference between RAID 0 and RAID 1 is negligible; the operational risk is not.

Best fit: retail locations with 4–8 entry/exit points, small office buildings, hospitality properties, and warehouse loading docks where PoE simplifies installation and H.265 storage savings justify the slightly higher codec licensing. Not suitable for 16+ camera systems or sites with heavy on-device analytics demand; escalate to larger Vivotek NVR models for those cases.
