Model:

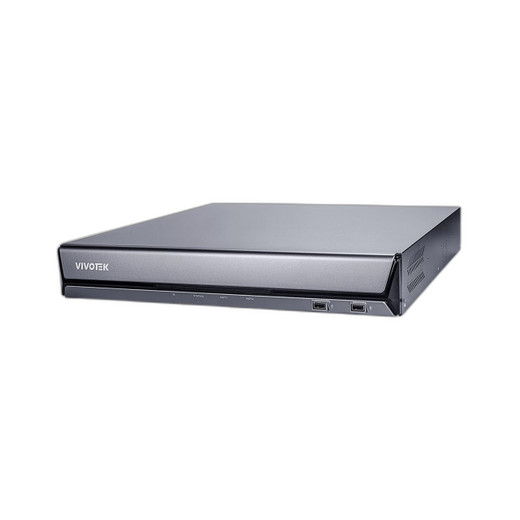

ND9542P
OS:
Embedded Linux
Watchdog:
Hardware + Software
Power Restoration:
System Restart Automatically after Power Recovery
LiveView Display:
32 Channels; Multi-Layout Display: 1x1, 2x2, 3x3, 1P+3,2P+3,1M+5, 1P+6, 3V,1M+12, 4x4, 1M+31
Video Output:
HDMI x1, VGA x1
Display Resolution:
3840x2160, 1920x1080, 1280x720
Fisheye Dewarp:
Local: 1O, 1R, 1P, 1O3R, 1O8R, 1P3R; Web: 1O, 1R, 1P
PTZ Operation:
Direction Control, Home, Iris, Preset, Patrol (Group)
Video Format:
H.265, H.264, MJPEG
Graphic Decoder:
Hardware decoding
Decoding Resolution:
Up to 7680x2560
Decoding Capability:
H.265/H.264: 3840x2160 @ 90 fps; 1920x1080 @ 360 fps
Audio Format:
G.711, G.726, MPEG-2 AAC-LC
Audio In/Out:
3.5 Phone Jack Audio Output x1; 3.5 Phone Jack Audio Input (Reserved) x1
Recording Time (sec:
Pre-Record: 5 (Max. 10); Post-Record: 20 (Max. 300)
Recording Stream:
Dual
Recording Throughput:
192 Mbps
Recording Mode:
Continuous, Schedule, Manual, Event, Activity Adaptive Streaming
Recording Setting:
Recycle (unit: Day)
Watermark:
Supported
HDD Devices:
Internal x4 (3.5"); *HDD purchased separately.
HDD Max. Capacity:
*Please refer to the recommended HDD list on the VIVOTEK website.
RAID:
RAID 0, 1, 5
Disk Management:
Create, Format and Remove Disk; HDD S.M.A.R.T.
External Storage:
USB Storage (USB 3.0)
Video Clip Export:
USB Dongle (FAT Format)
Schedule Backup:
FTP
Playback Display:
4 Channels; Multi-Layout Display: 1x1, 2x2, 1P+3, 3V
Playback Control:
Regular (play, pause, stop), rewind, next/previous frame, speed control, calendar, event, timeline, timeline scale, thumbnail (storyboard)
Video Search:
By calendar, date/time, and alarm
Thumbnail Explorer (Storyboard:
Listing the thumbnail of recorded video (Max. 2-CH)
Snapshot:
JPEG
Video Clip Export:
Supported
Ethernet:
10/100/1000Mbps Ethernet (RJ-45) x2
Network Throughput Input/Output Total:
224 Mbps
PoE:
802.3at/af compliant PoE ports x 16 (Total Max. 200 W); * DO NOT suggest connecting any non-PD device with this NVR PoE port in order to avoid potential risk.
PoE Management:
Supported
Protocols:
IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, SMTP, FTP, DHCP, NTP, DNS, DDNS
USB:
Front: 2 (USB 2.0); Back: 1 (USB 3.0)
Alarm In:
16
Alarm Out:
8
Audio In/ Out:
3.5 Phone Jack Audio Output x1; 3.5 Phone Jack Audio Input (Reserved) x1
RS485:
1 (Reserved)
Camera Integration:
ONVIF Profile S
Event:
Motion Detection, Smart VCA Event, Cyber Attack, PIR Detection, Tampering Detection, Camera DI/DO, Camera Disconnected, Disk Failure, Disk Full, NVR DI/DO, PoE error, Video loss
Event Action:
Record, Email (Text), Email (Snapshot), FTP, Buzzer, ePTZ Control (Go to Preset), NVR DO, Camera DO, APP Notification by cloud service
User Management:
User level: administrator, regular user
Log:
System, recording, user, error
Date & Time:
Time Zone, Manual, Automatic Sync NTP, Daylight Saving Time
Language:
Czech, English, French, German, Italian, Japanese, Korean, Portuguese, Polish, Russian, Spanish, Simplified Chinese, Traditional Chinese, Arabic
Object Search:
People, Vehicle
Scene Search:
Line crossing, Intrusion, Loitering
Attribute Search:
People: Gender, Age, Clothing Color, Accessories; Vehicles: Type, Color
VCA Counting Solution:
Supported
VCA Event Search:
Supported
Smart Search II:
Supported
Trend Micro IoT Security:
Supported
Cybersecurity Management:
Supported
Software AP:
Shepherd, VSS (VAST Security Station)
Mobile/Tablet App:
iViewer , VIVOCloud, VORTEX(Android & iOS)
Web Browser:
Chrome
Power Input:
100-240V AC, 50/60Hz
Power Consumption:
Max. 300 W
Dimensions:
432 (W) x 421 (D) x 66 (H) mm
Weight:
4.6 kg (without HDD)
Operating Temperature:
-10°C ~ 55°C (14°F ~ 131°F)
Humidity:
0 ~ 95%
Safety Certifications:
CE, LVD, FCC, VCCI, C-Tick, UL, CB, BSMI, BIS
