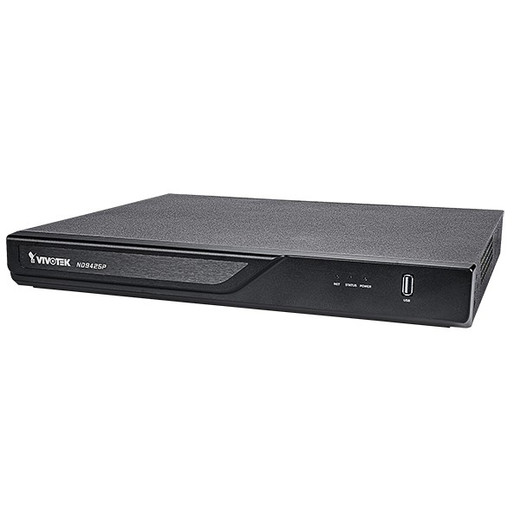

Vivotek ND9425P 16-Channel 4K PoE NVR

Vivotek ND9425P 16-Channel 4K PoE Network Video Recorder

The Vivotek ND9425P is a compact 16-channel network video recorder engineered for mid-to-large surveillance deployments where power simplicity and multi-stream decoding matter. Built on embedded Linux, the ND9425P handles 4K video processing with H.265 compression—cutting storage consumption roughly in half compared to H.264—and integrates PoE+ power delivery to eliminate separate power infrastructure for connected cameras. This combination directly reduces installation labor and ongoing power management overhead.

Key Features

• 16-Channel 4K Decoding: Up to 3840×2160 @ 30 fps on a single channel, or 1920×1080 @ 120 fps across 4 channels, or 1280×720 @ 240 fps across 8 channels. This flexibility lets you prioritize live 4K playback on critical zones while maintaining high-frame-rate display on ancillary feeds without CPU throttling.
• H.265 Codec Support with Hardware Acceleration: Reduces bitrate 40–60% versus H.264 under typical surveillance conditions. On a 24/7 multi-camera system, this translates to measurable reductions in storage costs and network bandwidth strain—meaningful when scaling across dozens of cameras.
• Integrated PoE+ Power Management: Supplies both power and data through a single Gigabit Ethernet connection to compatible IP cameras. Eliminates the need for separate PoE injectors or power supplies at the camera mounting point, simplifying routing and reducing failure points in cable runs.
• Dual Internal 3.5-inch HDD Bays with RAID: Supports RAID 0 (striping for performance) or RAID 1 (mirroring for redundancy). S.M.A.R.T. monitoring alerts you to drive health degradation before failure occurs, critical for unattended deployments.
• Multi-Layout Display (13 Configurations): 1×1, 2×2, 3×3, 4×4, picture-in-picture, and custom layouts. Operators can switch views without restarting the system, reducing response time when monitoring multiple zones simultaneously.
• Fisheye Dewarp (Local & Web-Based): Processes panoramic camera feeds in real time, converting 360° input into rectilinear views for investigation. Eliminates the need for external video analytics software for this common task.
• 64 Mbps Recording Throughput with Watermark Support: Watermarking detects tampering at playback and adds legal evidentiary weight. Recycling policies protect against accidental overwrites of critical footage.
• Motion Detection & VCA Event Integration: Triggers recording based on motion or smart video content analysis (people counting, loitering, direction vectors). Reduces false-positive disk writes compared to continuous recording alone.
• PTZ Control & Preset Management: Operates pan-tilt-zoom cameras directly from the ND9425P interface. Patrol groups automate camera sweeps, reducing operator fatigue during long monitoring periods.
• Calendar & Alarm-Triggered Search: Locate footage by date/time ranges or by alarm events (motion, tampering, PoE error). Thumbnail storyboard for up to 2 channels speeds investigation of incidents.

Integration & Compatibility

Network video recorders using the ND9425P integrate with Vivotek IP cameras and third-party ONVIF Profile S compliant devices. The unit supports VIVOCloud for remote access and iViewer mobile apps (iOS/Android) for real-time monitoring and event alerts. Audio I/O (G.711 and G.726 codecs) enables two-way voice communication with compatible cameras or external speakers. Gigabit Ethernet (88 Mbps aggregate throughput) is sufficient for 16 channels of standard HD streams; ensure your network switch provides adequate bandwidth if mixing 4K live feeds with high frame-rate recording.

Cybersecurity features include Trend Micro IoT Security integration and detailed user/system logging. The ND9425P operates across 0–40°C and 0–95% humidity, making it suitable for climate-controlled server rooms or secure facilities. Certifications include CE, FCC, VCCI, UL, CB, BSMI, and BIS, confirming compliance with major regional safety standards.

Refer to NVR storage and retention planning to calculate disk requirements based on camera count, resolution, frame rate, and codec choice. A practical example: 16 cameras at 1080p/30fps using H.265 will consume roughly 2–4 TB per week depending on scene complexity and motion density.

The ND9425P measures 366 × 320.3 × 46 mm and weighs 2.5 kg, fitting standard rack or shelf mounting without special reinforcement. Dual USB 3.0 and USB 2.0 ports support rapid external backup for forensic export.

Frequently Asked Questions

Q: Does the ND9425P support live 4K playback on the local display?

A: Yes. The HDMI output supports up to 3840×2160 @ 30 fps on a single channel. VGA output is also available for legacy displays, though it maxes out at 1920×1080.

Q: What is the maximum power consumption, and what circuit should it be wired to?

A: The ND9425P draws a maximum of 255W from a 100–240V AC 50/60Hz supply. A standard 20A circuit is sufficient; confirm your facility's UPS capacity if planning redundant power.

Q: Can the ND9425P work with non-Vivotek IP cameras?

A: Yes. The ND9425P supports ONVIF Profile S, which covers most mainstream IP camera brands. Confirm the camera's ONVIF compliance before integrating; some legacy or proprietary models may require firmware updates or third-party video management software.

Q: How does H.265 compression affect video quality compared to H.264?

A: At equivalent bitrates, H.265 delivers visually similar or slightly superior quality to H.264. The practical benefit is bitrate reduction—allowing you to record more channels or longer retention windows on the same storage capacity.

Q: Is the ND9425P suitable for outdoor mounting?

A: No. The ND9425P is rated for indoor operation (0–40°C, 0–95% humidity) and lacks an IP weatherproofing rating. Mount it in a climate-controlled server room, closet, or secure facility. Use outdoor-rated IP cameras connected to the ND9425P via long Ethernet runs.

Q: What is the warranty period?

A: Warranty details are not specified in the technical documentation. Contact the manufacturer or your specialty distributor for warranty terms and support coverage.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The Vivotek ND9425P is a solid fit for retail, transportation, and mid-market warehouse environments where you need to record 16 cameras in HD or lower without breaking the storage budget. The integrated PoE+ eliminates a whole layer of power wiring—in a 16-camera installation, that's a meaningful simplification. H.265 codec support is the real lever here: on a 24/7 continuous recording baseline, you're looking at 40–60% storage savings versus H.264, and that compounds fast when you're running dual drives in RAID 1 for redundancy.

Technical Highlights:

• H.265 Hardware Decoding: Reduces bitrate 40–60% versus H.264 without sacrificing visual fidelity. On a system recording 16 channels continuously, this translates to adding 5–10 days of retention per TB of storage—measurable ROI on your HDD budget.
• 88 Mbps Aggregate Throughput: Sufficient for 16 channels of 1080p/30fps H.265 streaming. Don't expect to max out all 16 channels in 4K live view simultaneously—prioritize your critical zones for 4K and accept 1080p on secondary feeds. Your network switch bandwidth will thank you.
• Dual 3.5-inch HDD Bays with RAID 1 Option: Mirroring protects against single-drive failure. Critical for unattended deployments where a failed drive means zero recording until service arrives. S.M.A.R.T. monitoring alerts you to degradation before catastrophic loss.

Deployment Considerations:

• The ND9425P is indoor-only (0–40°C rated). Mount it in a secure server room or climate-controlled facility—not in a dock or unheated warehouse. Plan your camera Ethernet runs to the ND9425P accordingly.
• At 88 Mbps aggregate throughput, mixing 4K live decoding with high-frame-rate recording streams can bottleneck your system. Test your camera mix before final deployment. If you need multiple 4K live streams simultaneously, a higher-capacity recorder or split deployment is advisable.
• The ND9425P uses standard PoE+ (802.3at), not PoE++ (802.3bt). Cameras drawing more than 30W per port will require supplemental power. Verify your camera power specs before commitment.

Position the ND9425P in retail loss-prevention or warehouse entrance-monitoring roles where 16 HD cameras and event-triggered search cover your forensic needs. The fisheye dewarp is a nice add-on if you're deploying panoramic domes; it eliminates the need to license third-party video analytics for that task. For transportation hubs or critical infrastructure requiring 24/7 4K on every channel, step up to a higher-throughput model or split across multiple recorders.
