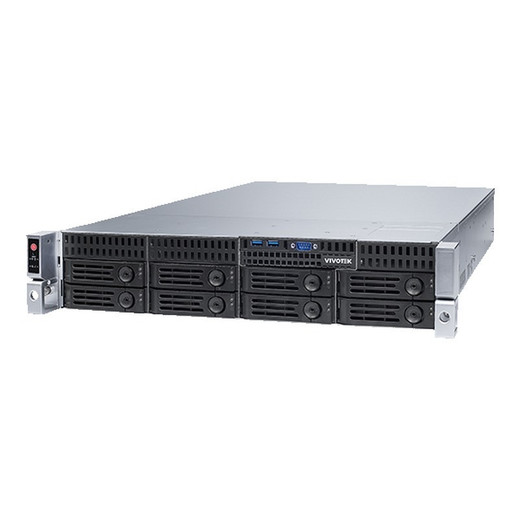

Model:
NR9581-V3
OS:
Embedded Windows 10
Watchdog:
Hardware + Software
Power Restoration:
System Restart Automatically after Power Recovery
LiveView Display:
32 Channels(up to 128CH by license purchasing); Equal: 1x1, 2x2, 3x3, 4x4, 5x5, 6x6, 7x7, 8x8; Panorama: 1P+6, 2P, 2P+3, 3P; Focus: 1+12, 1+16, 1+3, 1+5, 1+7, 1+9, 2+8; Vertical: 1V+6, 2V+2, 2V+3, 3V, 3V+4, 4V, 4V+4, 5V; Single Layout Display, full s
Video Output:
HDMI x1, Display Port x1, DVI x1, VGA x1
Display Resolution:
HDMI: 4096x2160; DP: 7680x4320; DVI: 1920x1200; VGA: 1920x1200
Dual Monitor:
Supported
Camera Position:
Change the view cell position on the Live View screens
Stream Application:
Stream selection & auto stream size
Monitor Enhancement:
E-Map Embedded; Drag & Drop; Remote I/O Control; PiP (Digital Zoom); Instant Playback; Video Display Mode (Aspect Ratio & Camera Information); Metadata Display (VCA, Data Magnet)
Fisheye Dewarp:
1O, 1P, 1R, 1O3R, 4R, 2P, 4R Pro, 1O8R
PTZ/ePTZ Operation:
Home, preset, patrol, auto pan, auto focus, manual focus, focus speed, zoom speed, tracking
Video Format:
MJPEG, MPEG4, H.264, H.265
Graphic Decoder:
Software decoding
Decoding Resolution:
Up to 7680x2560
Decoding Capability:
H.264: 1920x1080 @360 fps; H.265: 1920x1080 @180 fps
Audio Format:
G.711, G.726, AMR, MPEG-2 AAC-LC
2-way Audio:
Supported
Recording Time (sec:
Pre-Record: 3-15; Post-Record: 10-60
Recording Stream:
Single
Recording Throughput:
512 Mbps
Recording Mode:
Continuous, Event, Customized Schedule
Recording Setting:
Recycling time depends on the remaining; storage space or the set number of days
Watermark:
Supported
Recording Data Encryption:
Supported
Seamless Recording:
Supported
HDD Devices:
Hot-Swappable Tray x8; (HDD is purchased by separately)
HDD Max. Capacity:
Please refer to HDD supported list on VIVOTEK website
RAID:
RAID 0, 1, 5, 6, 10, 50, 60
Disk Management:
Create, Format and Remove Disk
Manual Backup:
USB Dongle (FAT Format); NAS (SMB & CIFS)
Schedule Backup:
NAS (SMB & CIFS)
Playback Display:
32 Channels(up to 128CH by license purchasing); Equal: 1x1, 2x2, 3x3, 4x4, 5x5, 6x6, 7x7, 8x8; Panorama: 1P+6, 2P, 2P+3, 3P; Focus: 1+12, 1+16, 1+3, 1+5, 1+7, 1+9, 2+8; Vertical: 1V+6, 2V+2, 2V+3, 3V, 3V+4, 4V, 4V+4, 5V; Single Layout Display, full s
Playback Control:
1/64X ~ 64X speed control, next/previous frame, pause, play, rewind, stop
Video Search:
Calendar, Event, Alarm, Bookmark, Thumbnail, Smart Search II, Data Magnet, Log, Deep Search
Snapshot:
JPEG, PNG
Video Clip Export:
3GP
Ethernet:
2.5 Gigabit LAN x2
Video Throughput for Remote Client:
650 Mbps
Protocols:
IPv4,TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, SMTP, FTP, DHCP, NTP, DNS, DDNS, iSCSI
Alarm Period (sec:
Max. 30
Alarm Filter:
Time, Trigger Type (Camera/Substation/System), Status, Name, Trigger Source
Alarm Setting:
Realtime System Notification; Alarm Result Display by List or Thumbnail
Schedule Type:
Continuous, schedule
Camera Event:
General: Audio detection, camera DI/DO, camera disconnected, IR (Infrared), Motion detection, PIR(Passive infrared), PPTZ (Panoramic PTZ), Recording error, SD card life expectancy detection, Shock detection, Stop recording, Tampering detection, Tempe
Substation:
NV Series NVR: Storage failure, Storage full, Network disconnected, Abnormal g-sensor motion, speeding, GPS disconnected; ND Series NVR: Storage failure, storage full, network disconnected, fan status, brute force attack, cyberattack, quarantine; NR
External Devices Event:
DI/O (with I/O Box), TCP Message
Action:
Start to record videos, Set DO status, Go to camera presets, Send HTTP requests, Send live streaming, Send email with snapshot of assigned camera(s), Go to E-Map, Sound the alarm and Add bookmark
Alarm State for Management:
New, In Progress, False Alarm and Close
Alarm Result Export:
.csv File
Source:
BMP, GIF, JPG, PNG, SVG
Device:
Camera, DI/DO (Camera, NVR, external) , regional map
Marked:
Add, Remove, Direction Control, PTZ Control, FOV Control, LiveView & Playback
Event Notification:
One or More Live Streaming
USB:
Front; USB2.0 x 2; ; Back; USB 2.0 x 2; USB 3.2 x 4
Audio In/ Out:
Microphone audio jack Input x1; 3.5 Line input audio jack x1; 3.5 Line output audio jack x1; SPDIF out x1; 7.1 HD support (surround out x 1, CEN/LFE x 1)
POS Integration:
ARCH
UPS Integration:
Supported
Camera Integration:
ONVIF Profile S
I/O Box Integration:
Advantech ADAM-6000 Series; CHIYU CYT-133SC; MOXA ioLogik E1210, E1211 and E1212
User Management:
Authentication: Basic Account / Windows AD Account; User-defined Role; User Account: 4096
Log:
Operation, system and event log
Date & Time:
Sync server
VCA Counting Solution:
Supported
LPR Solution:
Supported
VCA Event Search:
Smart VCA
Smart Search:
Smart Search I & Smart Search II
Deep Search:
Supported
Cybersecurity Management:
Supported
Failover:
Supported
Software AP:
Shepherd, VSS Pro
Mobile/Tablet App:
iViewer (iOS/Android)
Power Input:
Redundant power 100~220V AC
Power Consumption:
Max. 550 W
Redundant Power:
Supported
80 Plus Certified:
Platinum
Dimensions:
89 (H) x 437 (W) x 647 (D) mm
Weight:
15.8 kg (without HDD)
Operating Temperature:
5°C ~ 35°C (41°F ~ 95°F)
Humidity:
5% ~ 95%
Safety Certifications:
CE, FCC, VCCI, C-Tick, UL, CB, BSMI, BIS
