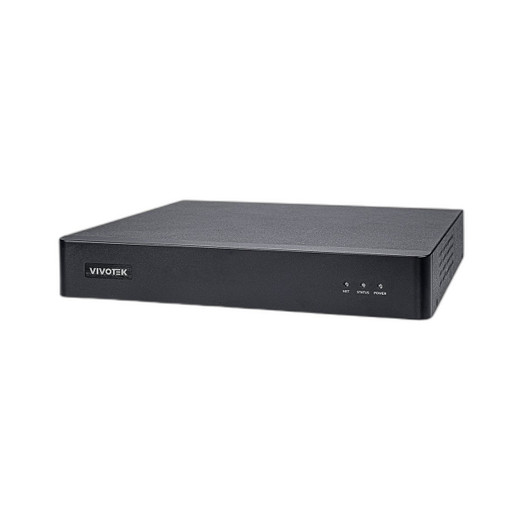

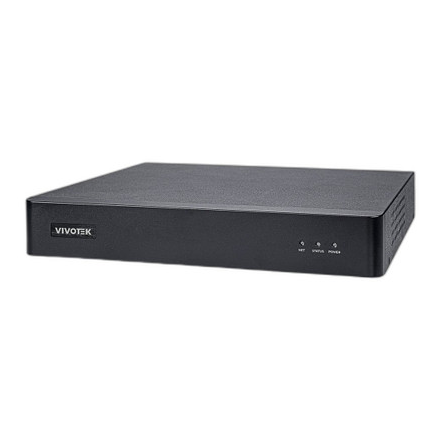

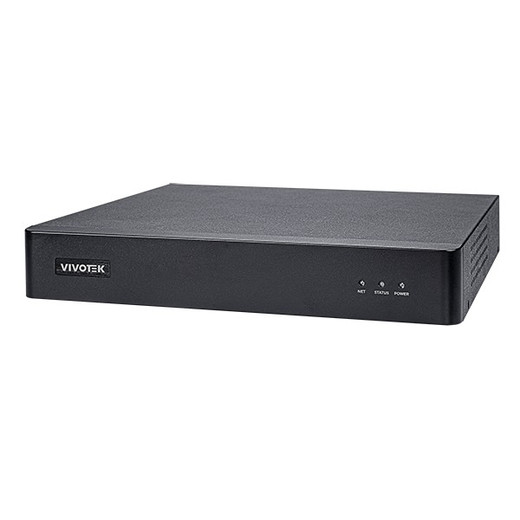

Vivotek ND9213P 4-Channel H.265 4K PoE NVR

Vivotek ND9213P 4-Channel H.265 4K PoE NVR

The Vivotek ND9213P is a compact 4-channel Network Video Recorder designed for professional surveillance deployments requiring high-resolution video management with simplified networking. Built on embedded Linux, this NVR supports 4K video decoding and real-time multi-channel display, making it ideal for organizations seeking enterprise-grade security without complex infrastructure. H.265 compression technology delivers superior image quality while significantly reducing storage requirements and bandwidth consumption, enabling longer recording retention on smaller storage footprints.

Key Features

• 4-Channel H.265/H.264/MJPEG Video Recording and Playback
• 4K Video Decoding: 3840x2160 @ 30 fps (single channel); 1920x1080 @ 120 fps (all 4 channels)
• Integrated PoE+ Power Supply for Direct IP Camera Connectivity
• 64 Mbps Recording Throughput with Multiple Recording Modes
• Hardware Decoding with Multi-Layout Display Options (1x1, 2x2, 1P+3, 3V)
• Dual Video Output: HDMI and VGA for Extended Display Flexibility
• Advanced Event Detection: Motion, VCA, PIR, Tampering, and Smart Counting
• ONVIF Profile S Compliance for Broad Camera Integration
• Cloud and Mobile Access via VIVOCloud and iViewer Applications

Technical Specifications

• Display Resolution: 3840x2160, 1920x1080, 1280x720
• Video Output: 1x HDMI, 1x VGA
• Audio: G.711, G.726 formats with 3.5mm jack input/output
• Recording Modes: Continuous, Schedule, Manual, Event with pre/post-record buffering (max 10/300 seconds)
• Disk Management: 1x 3.5" internal SATA bay with S.M.A.R.T. monitoring; USB 3.0 external storage support
• Network: 10/100 Mbps Ethernet; 88 Mbps total I/O throughput
• PoE Management: Supported with PoE+ power type (48V/2A)
• Protocols: IPv4, IPv6, TCP/IP, HTTP, HTTPS, RTSP/RTP/RTCP, SMTP, FTP, DHCP, NTP, DNS, DDNS
• I/O Connectivity: 4x Alarm In, 2x Alarm Out, 1x USB 3.0, 1x USB 2.0
• Dimensions: 263.6 x 247 x 43.3 mm; Weight: 2.35 kg (without HDD)
• Power Consumption: Max 96W
• Operating Conditions: 0–40°C; 0–95% humidity

Video Search and Playback

The ND9213P provides intuitive video search by calendar, date/time, and alarm events. Playback supports frame-by-frame navigation, speed control, and thumbnail storyboard preview (up to 2 channels). Watermark support ensures recording integrity for audit compliance.

Advanced Event Management

Comprehensive event detection includes motion analysis, VCA smart counting, PIR sensor integration, tampering alerts, camera disconnection warnings, and disk failure notifications. Automated actions trigger video recording, email alerts with snapshots, buzzer alarms, PTZ control, FTP uploads, and CMS notifications. VCA Event Search enables rapid incident investigation.

Enterprise Security and Management

Role-based user management (administrator/regular user) with multi-language support (13 languages) ensures flexible deployment across global operations. System, recording, user, and error logging provide complete operational transparency. Trend Micro IoT Security and cybersecurity management protect against network threats. Crowd Control Solution integration supports VCA-based occupancy monitoring.

Mobile and Remote Access

VIVOCloud service and iViewer mobile apps (iOS/Android) enable secure remote video viewing, live monitoring, and playback from any location. Browser-based access via Chrome (v68+) and Internet Explorer 10+ provides flexibility across platforms.

Jerry Tildsen

The ND9213P targets mid-size surveillance operations requiring reliable 4K-capable recording without enterprise server complexity. H.265 compression is particularly valuable for organizations managing extended retention periods or bandwidth-constrained networks. The integrated PoE+ supply simplifies installation—a single network cable powers each connected IP camera, reducing cabling labor and infrastructure costs.

Hardware decoding ensures smooth playback even under high-bitrate loads, while the compact 263mm width permits installation in space-constrained network closets or wall cabinets. ONVIF compliance guarantees compatibility with third-party cameras, preventing vendor lock-in. The dual-output capability (HDMI + VGA) accommodates legacy control room setups alongside modern displays.

Pre-record and post-record buffering (up to 10 and 300 seconds respectively) captures critical footage before motion detection triggers, minimizing missed incident details. However, the single Ethernet port (88 Mbps aggregate I/O) may become a bottleneck in high-density 4K deployments; network planning should verify sufficient bandwidth for simultaneous recording and remote viewing. Organizations deploying this NVR should confirm HDD compatibility with Vivotek's qualified list and budget for external storage if recording retention exceeds internal capacity.

Trend Micro integration adds security depth for IP-connected environments.
