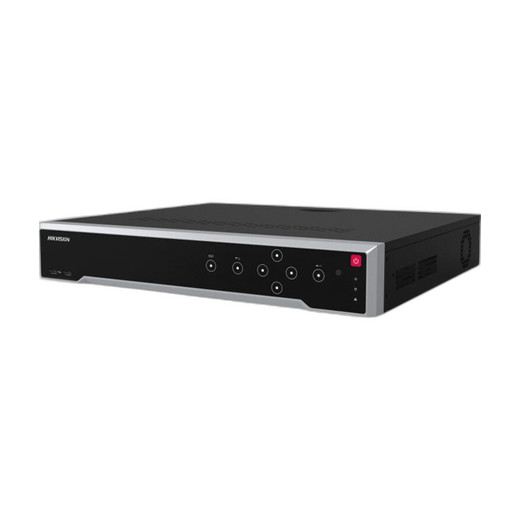

Hikvision M Series DS-7732NI-M4 32-Channel 32 MP NVR No HDD

Hikvision DS-7732NI-M4 32-Channel 32MP NVR

The Hikvision M Series DS-7732NI-M4 is a professional-grade 32-channel Network Video Recorder engineered for large-scale surveillance deployments requiring ultra-high resolution capture and flexible storage configuration. Sold without HDD, this NVR allows integrators and end-users to specify storage capacity and type based on retention requirements and budget constraints. With support for up to 32 MP resolution and dual-stream recording capability, the DS-7732NI-M4 delivers exceptional image fidelity while optimizing bandwidth utilization across enterprise networks.

Key Features

• 32-channel IP video input with up to 32 MP resolution per channel
• Ultra HD mode supports up to 8 channels at 32 MP or 24 MP
• Dual-stream recording for optimized bandwidth and storage efficiency
• H.265+/H.264+ compression for reduced file sizes without quality loss
• Supports 16-channel synchronized playback for multi-view investigation
• Advanced decoding: 2-ch@32MP + 2-ch@8MP, or 10-ch@8MP, or 20-ch@4MP, or 40-ch@1080p
• 4 SATA + 1 eSATA interface for flexible HDD expansion (up to 16 TB per drive)
• Dual HDMI + VGA outputs with independent/simultaneous configuration options
• 128 simultaneous remote connections for multi-user access
• Comprehensive network protocol support: TCP/IP, DHCP, IPv4/IPv6, RTSP, HTTPS, NFS, iSCSI
• 16 alarm inputs and 9 alarm outputs with controllable 12V power
• 19-inch rack-mounted 1.5U chassis for data center integration

Technical Specifications

Video Input & Processing: The NVR accepts 32 channels of IP video at resolutions up to 32 MP, with incoming bandwidth rated at 320 Mbps and outgoing at 400 Mbps. Recording resolution options span 32 MP down to QCIF, accommodating mixed-resolution deployments. H.265+, H.265, H.264+, and H.264 decoding formats ensure compatibility with modern and legacy camera ecosystems.

Display & Output: Dual HDMI outputs support up to 8K/30Hz (HDMI 1) and 4K/60Hz (HDMI 2), with independent or simultaneous configuration. VGA and CVBS outputs provide additional display flexibility for legacy environments. Audio input/output and two-way audio (RCA) support surveillance with communication capability.

Storage & Connectivity: Four SATA interfaces and one eSATA port enable rapid HDD capacity expansion. microSD card support adds portable backup capability. Gigabit Ethernet with PoE compatibility (IEEE 802.3 af/at, ≤200W) simplifies IP camera power delivery. Serial interfaces (2 × RS-485, 1 × RS-232) support PTZ and third-party device integration.

Physical & Environmental: Compact 19-inch rack form factor (445 × 400 × 75 mm) fits standard server racks. Operating temperature range of -10°C to 55°C and 10–90% humidity support diverse deployment environments. Power consumption of ≤15W (without HDD) ensures energy efficiency.

Eden Phillips

The DS-7732NI-M4 targets integrators building enterprise surveillance systems where camera count and resolution cannot be compromised. The ultra HD mode (8 × 32MP inputs) is critical for high-risk applications like airports, stadiums, and border security where facial recognition and license plate capture demand exceptional clarity. The configurable storage approach—no included HDD—appeals to organizations with existing storage infrastructure or those preferring tiered capacity scaling.

Dual-stream recording and H.265+ compression are essential for managing 32-channel bandwidth constraints. The 320 Mbps incoming limit requires careful camera bitrate planning; integrators should pair this with cameras set to moderate GOP and frame rates unless sites justify per-channel optimization. The 128 remote connection limit is adequate for mid-to-large SOC environments but may require load balancing for massive operations.

Alarm integration (16 in/9 out) and serial interfaces enable sophisticated automation workflows. The PoE budget of 200W is sufficient for a mixed environment of low-power cameras but will not sustain 32 high-powered PTZ units simultaneously. Deploy this NVR where recording density and resolution are strategic priorities over maximum concurrent encoding or where ultra-low-light multi-spectral cameras are not required.

Applications

• Transportation hubs, airports, and transit centers requiring comprehensive coverage
• Large retail complexes and distribution facilities with multiple warehouse sections
• Critical infrastructure and utility monitoring installations
• Government and law enforcement command centers with investigation-grade archives
• Educational and healthcare campuses with distributed camera networks
