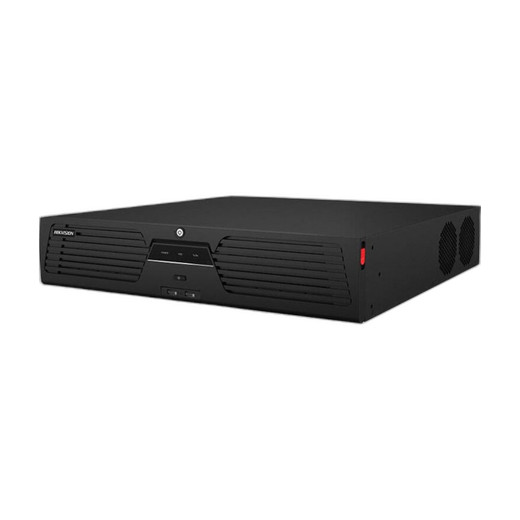

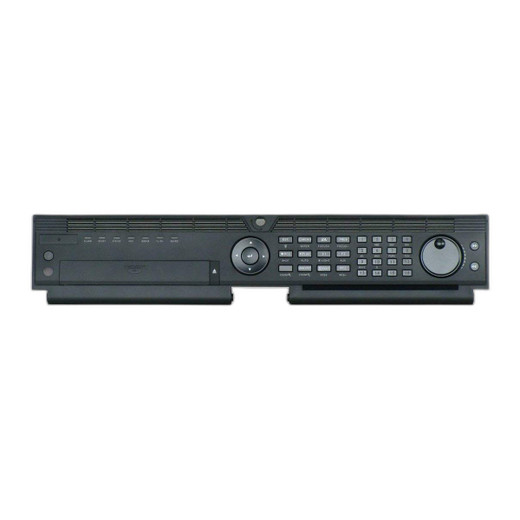

Hikvision DS-9664NI-M8 64-Channel 32MP Network Video Recorder

Hikvision DS-9664NI-M8 64-Channel Network Video Recorder

Overview

The Hikvision DS-9664NI-M8 is a 64-channel network video recorder engineered for large-scale surveillance deployments where simultaneous multi-camera recording and high-resolution decoding are non-negotiable. This unit handles up to 64 IP camera feeds and decodes video at resolutions up to 32MP—meaning you can display and review footage from ultra-high-definition sources without additional processing hardware or software licenses. The DS-9664NI-M8 (often searched as DS 9664NI M8) supports network video recorders workflows across enterprise, transportation, and industrial sectors where retention periods are measured in months and analytics integration is standard.

Key Features

• 64-channel simultaneous recording: Ingest video from up to 64 IP cameras at once. This removes the need to split your infrastructure across multiple appliances—one unit handles the load. Matters most in warehouse, campus, or facility-wide rollouts where you want centralized management.
• 32MP decoding capacity: Decode and display footage at resolutions up to 32MP. This is useful when you deploy ultra-high-resolution front-end cameras (8MP and above) and need playback and forensic review without degradation. You're not downsampling to 4K or 1080p on playback—full fidelity stays intact.
• H.265+ video compression: Cuts storage footprint and bandwidth consumption by up to 90% versus H.264, depending on scene complexity and motion. On 24/7 recording across 64 channels, that translates to either shorter retention on fixed storage or the ability to scale to longer retention windows without doubling your disk budget.
• 4K and 8K video output: Native support for high-resolution monitor output. Pairs well with large-format displays in control rooms where situational awareness depends on visual fidelity across dozens of simultaneous feeds.
• RAID storage support: Protects recorded data against single-drive failure. On appliances this size, RAID 5 or 6 configurations are standard practice—a failed drive doesn't wipe your entire archive.
• Advanced analytics support: Works with people counting, automatic number plate recognition (ANPR), and facial recognition features (analytics software typically licensed separately). The NVR's 64 channels give you the headroom to run intelligence on multiple feeds without performance penalty.
• ONVIF compatibility: Works with Hikvision IP cameras and any third-party camera that speaks ONVIF. This matters if your deployment is mixed-vendor or if you plan to upgrade cameras incrementally without forklift-replacing the recorder.
• AC/DC power input: Accepts both mains AC and DC input. Useful in environments where UPS or backup power is already in place and you want to tap into existing power infrastructure.

Integration and Compatibility

The DS-9664NI-M8 integrates with any ONVIF-compliant IP camera, so you are not locked into Hikvision optics. Wired network connectivity is required—no wireless backhaul. If you are planning storage and retention strategy, refer to NVR storage planning guidance to calculate drive counts and raid configurations based on your codec choice and frame rates. The recorder supports microSD expansion for auxiliary storage; however, primary recording uses internal or direct-attached SATA drives.

What's in the Box

• Hikvision DS-9664NI-M8 NVR unit
• Power adapter
• Mouse
• Quick start guide

When to Choose a Different Model

If you need fewer than 32 channels, a smaller M-series recorder will reduce idle power draw and heat output. If your cameras are 4MP or below and you do not need analytics headroom, a lower-capacity unit cuts cost. If you require specialized features such as video wall support or redundant recording, evaluate the Pro or Turbo lines within the Hikvision NVR family. Consult the datasheet for performance metrics under your specific compression and frame-rate load.

Frequently Asked Questions

Q: Does the DS-9664NI-M8 support remote access and mobile viewing?

A: Yes. ONVIF compliance means it integrates with standard VMS platforms and mobile clients that support ONVIF playback. Specific mobile app support depends on your VMS or the Hikvision Ezviz ecosystem integration.

Q: What is the maximum storage capacity?

A: The unit supports internal SATA drives and microSD expansion. Exact capacity depends on drive count and RAID configuration. Refer to the datasheet for supported drive counts and raid levels.

Q: Is the DS-9664NI-M8 suitable for outdoor installations?

A: No. This is a rack or control-room appliance, not an outdoor-rated recorder. Deploy it indoors in a climate-controlled cabinet or server room.

Q: Can I upgrade the firmware on the DS-9664NI-M8?

A: Yes. Hikvision publishes firmware updates periodically. Consult the manufacturer for current versions and release notes before upgrading production systems.

Q: What is the typical lifespan of the DS-9664NI-M8?

A: NVRs generally see 5-7 years of field life before component wear (disk controllers, capacitors, power supplies) drives replacement. Your exact timeline depends on operating temperature, fan condition, and power stability.

Q: Does this unit include any built-in video analytics, or do I need to license software separately?

A: The recorder is capable of interfacing with analytics engines, but people counting, ANPR, and facial recognition typically require licensed software plugins or external VMS integration. Check with your integrator or the vendor's software roadmap.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The DS-9664NI-M8 is purpose-built for environments where you need to record 64 simultaneous IP camera streams and later decode playback at resolutions up to 32MP without frame dropping or software lag. If you're deploying ultra-high-resolution front-end cameras (8MP, 16MP, or beyond) and need the NVR to handle forensic playback and analytics processing without external GPU cards, this unit has the horsepower to do it.

Technical Highlights:

• H.265+ compression: Achieves up to 90% bandwidth and storage savings versus H.264. On a 64-channel, 24/7 deployment with mixed resolution streams, this can mean the difference between needing 12 drives versus 24 drives for the same retention window. Real cost savings at scale.
• 32MP decode capacity: Most NVRs cap out at 4K or 8MP playback. Full 32MP decode means you are not downsampling high-resolution streams for review—critical in traffic enforcement, facility perimeter, or forensic scenarios where a license plate or facial detail must remain sharp on full-screen playback.
• RAID redundancy: Supports RAID 5 and 6 configurations. On a 64-channel appliance running 24/7, drive failure is not a matter of if, but when. RAID keeps your archive intact and gives you a graceful degradation curve rather than a cliff.

Deployment Considerations:

• Network bandwidth planning: 64 channels at high resolution and frame rates can easily consume 500 Mbps–1 Gbps aggregate. Confirm your switch uplink and core network can sustain that traffic during peak activity. This is not a device you drop onto a shared office network.
• Thermal and power design: AC/DC power input is flexible, but a 64-channel recorder under full load generates heat. Ensure rack ventilation and uninterruptible power supply headroom before installation. A failed power supply on this scale is a site-wide outage.
• Analytics overhead: People counting and ANPR are supported, but analytics compute offload depends on whether your front-end cameras handle edge processing or the NVR handles it. If everything flows to the NVR, you may hit CPU limits before you fill all 64 channels. Profile your analytics workload early.

Deploy the DS-9664NI-M8 in large-footprint facilities—warehouses, transportation hubs, multi-building campuses, or critical infrastructure sites—where centralized recording and long-term retention (months to years) are non-negotiable and you cannot afford to splinter the system across multiple appliances. Smaller or lighter-duty environments will overpay for unused capacity.
