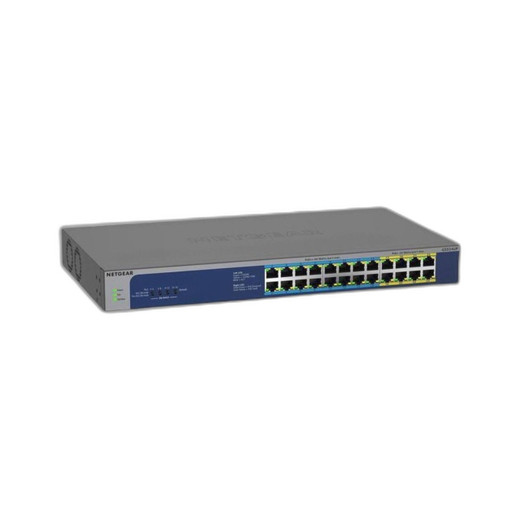

NETGEAR GS524UP-100NAS 24-Port PoE+ Gigabit Switch
Overview
The NETGEAR GS524UP-100NAS is a 24-port Gigabit managed switch purpose-built for deployments where PoE+ power delivery is the central requirement. Each of the 24 ports supports IEEE 802.3at PoE+, delivering up to 30W per port — enough to run mid-range IP cameras, access control readers, and wireless access points without dedicated power supplies. The GS524UP-100NAS (often searched as GS524UP 100NAS) consolidates power and data distribution in a single chassis, reducing cable runs and installation complexity in warehouse, retail, and enterprise security environments.
This is a managed switch, meaning you can configure VLANs, port mirroring, and QoS to isolate camera traffic from corporate data and prioritize video during network congestion — a practical requirement when video and IT infrastructure share the same wiring closet.
Key Features
- 24 Gigabit PoE+ Ports: All 24 ports supply up to 30W each via IEEE 802.3at. That's sufficient for compact fixed-dome and turret cameras drawing 15–25W, as well as access points, intercoms, and door controllers. No separate PoE injectors or midspan devices needed for these endpoints.
- 380W Total PoE Budget: Combined power capacity across all ports is 380W, distributed intelligently by the switch. If you're planning a 24-camera deployment with average draw of 15W per camera, you're well within budget. Planning higher-power PTZ units (40–60W each) requires prioritization — consult power budgeting guides during design phase.
- Managed Switching with VLAN Support: Segment camera streams, access control, and office traffic onto separate logical networks. Port mirroring lets you send camera feeds to a dedicated NVR or monitoring tap without duplicating cabling.
- 176 Gbps Switching Capacity: Adequate aggregate throughput for 24 simultaneous gigabit connections. Real-world throughput depends on the codec and resolution mix — a mix of 5MP cameras at H.265 will consume less bandwidth than 4K H.264 streams, but this switch handles both without packet loss under typical deployment scenarios.
- Compact 1U Rackmount Form Factor: Fits standard 19-inch racks or can be shelf-mounted in a cabinet. Dimensions keep cabling runs short in crowded security closets.
- Redundant Power Supply Options: Support for dual AC inputs minimizes downtime if one power feed fails — important for 24/7 surveillance deployments where switch downtime equals blind spots.
Integration & Compatibility
The GS524UP-100NAS pairs with any standard IP camera or PoE device using 10/100/1000 Ethernet. It integrates into both standalone NVR setups and software-based VMS platforms like network video recorders or Milestone XProtect. Port mirroring (SPAN) enables traffic capture for forensic analysis or live monitoring. CLI and web-based management interfaces support integration into existing IT monitoring and SNMP tools.
Deployment Context
Deploy the GS524UP-100NAS in any facility where you need to power and network 15–24 PoE devices from a single location. Warehouse dock cameras, retail loss-prevention systems, campus access control, and multi-building security architectures all benefit from centralized PoE delivery. The PoE switch category covers comparable managed and unmanaged models if you need fewer ports or lower power budgets; consult a PoE planning guide to validate port count and power allocation for your specific camera models and site layout.
Frequently Asked Questions
Q: Can I mix high-power devices (e.g., PTZ) with standard 30W cameras on the same switch?
A: Yes, but watch the total power draw. A PTZ consuming 50W and six standard cameras at 20W each = 170W total. The 380W budget accommodates this, but exceeding it forces the switch to deprioritize or disconnect lower-priority ports. Plan your deployment so the highest-power devices are connected first, and confirm cumulative draw with the camera manufacturer's power consumption specs.
Q: Does the GS524UP-100NAS support redundant network paths (Spanning Tree)?
A: Yes. The switch supports Spanning Tree Protocol (STP/RSTP), allowing you to create loop-free mesh topologies across multiple switches if you're building a multi-switch backbone for larger deployments.
Q: What's the warranty on the GS524UP-100NAS?
A: Consult the sales specification sheet or contact the distributor for warranty terms specific to your region and purchase channel.
Q: Can I manage the switch remotely via the web interface?
A: Yes. The GS524UP-100NAS includes a web-based GUI and CLI access via SSH. Assign a static IP to the switch management port and configure it within your IT network segment (separate from camera traffic if using VLANs) to enable remote monitoring and port configuration.
Q: How many VLANs can I create?
A: The GS524UP-100NAS supports up to 4094 VLANs, well beyond typical multi-tenant or multi-building security architectures. Practical deployments rarely exceed 10–20 VLANs; refer to your VMS or network management plan to determine how many you actually need.
The GS524UP-100NAS is the answer when you need to consolidate 15–24 PoE devices under a single managed switch without sprawling power supplies across a closet. I've deployed it in warehouse automation sites where every dock door, thermal camera, and access reader draws PoE, and the 380W budget handles the load without throttling. The key insight: this isn't a budget unmanaged switch — it's a managed platform, so VLAN segmentation and port mirroring actually work out of the box.
Technical Highlights:
- 380W PoE Budget across 24 ports: Delivers 15–16W average per camera if all ports are loaded. For a typical 24-camera warehouse setup at 15–18W draw per unit, you're in the green. PTZ or high-bitrate 4K setups demand power accounting — a 50W PTZ eats 13% of the budget alone.
- 176 Gbps Switching Capacity: Sufficient for 24 × 1 Gbps connections, but real-world throughput depends on codec selection. H.265 at 5MP runs ~4–6 Mbps per stream; H.264 at 4K can hit 15–20 Mbps. With 24 cameras in motion simultaneously, you're looking at ~100–300 Mbps aggregate — well within the switch's capacity, but monitor during live forensic playback or multi-device failover.
- Port Mirroring (SPAN) and 4094 VLAN slots: Isolate camera traffic onto a dedicated VLAN (say 192.168.100.x) separate from office IT. This prevents a rogue camera or compromised endpoint from flooding corporate bandwidth. Real integrators use this; it's not optional in regulated environments.
Deployment Considerations:
- Watch the power budget math early. If your camera list includes three PTZ units at 50W each, you've already committed 150W before the fixed domes. Use a spreadsheet to list actual camera power specs from the manufacturer — never assume 30W per camera.
- The switch is managed, so configuration requires someone with network basics (VLAN tagging, port assignment, SNMP if you're integrating with Nagios or Zabbix). Unmanaged is simpler; managed is more resilient and forensic-friendly.
- Redundant power supplies are optional but highly recommended for 24/7 sites. A single supply failure blacks out all ports until you physically swap it.
Deploy this in centralized security closets where you control the wiring and topology — warehouse hubs, retail loss-prevention cores, campus security rooms. If you're running sprawled outdoor cameras with individual power supplies already in place, the cost-benefit of swapping to the GS524UP-100NAS may not justify rework. But in new builds or consolidation projects, this switch pays for itself in reduced installation labor and power cable runs.
