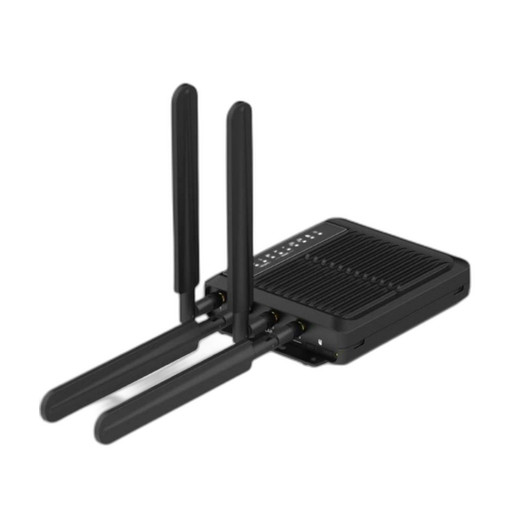

Lantronix NTC-222-01-01 4G LTE Router with Dual Gigabit LAN

Lantronix NTC-222-01-01 4G LTE Industrial Router EMEA

The Lantronix NTC-222-01-01 is a 4G LTE Cat-1 industrial router purpose-built for EMEA cellular networks, delivering mobile backhaul and redundant connectivity in remote cabinet installations, distributed surveillance nodes, and field equipment racks where wired infrastructure is unavailable or economically impractical. The unit bridges dual Gigabit Ethernet ports to 4G LTE coverage, enabling IP security cameras, NVRs, edge appliances, and environmental sensors in isolated locations to reach central monitoring stations or cloud platforms without fiber or copper runs. DIN-rail mounting integrates directly into industrial control enclosures and wall-mounted panels. Built-in GNSS and three I/O lines support location tracking and ignition-detection for mobile asset monitoring and site failover automation.

Key Features

• 4G LTE Cat-1 Connectivity: EMEA band support (B1, B3, B5, B7, B8, B20). Cat-1 delivers 10 Mbps down / 5 Mbps up — adequate for simultaneous streaming from 2–4 IP cameras or failover traffic bursts on redundant links.
• Dual Gigabit Ethernet Ports: Two GbE LAN interfaces aggregate traffic from local devices and support parallel load distribution or daisy-chaining without external switches.
• DIN-Rail Mount: 35mm rail compatibility with included bracket fits standard industrial enclosures, cabinet rails, and field-deployable racks without additional mounting hardware.
• 12V DC Operation: External PSU (PSU-0079, 12VDC 1.5A, sold separately) with low power draw suitable for solar-backed or genset-powered remote sites.
• GNSS Receiver: Built-in GPS/GLONASS for real-time location tagging and time synchronization across distributed sites without external position services.
• Legacy I/O Integration: Serial (RS-232), USB 2.0, and three digital I/O lines enable integration with older PLCs, vehicle ignition sensors, and environmental monitoring devices without gateway middleware.
• 2-Year Manufacturer Warranty: Factory-backed coverage with technical support for industrial deployments.

Deployment Architecture & Mobile Backhaul

In distributed video surveillance networks, the NTC-222-01-01 solves the "last-mile" connectivity problem common in parking facilities, remote construction sites, rural substations, and multi-tenant properties where fiber is not yet available and provisioning copper is capital-intensive. A typical topology places the router in a weatherproof cabinet at each remote site, connects local cameras and an edge NVR via the dual GbE ports, and tunnels all video traffic back to a central management station over 4G LTE. Cat-1 bitrate (10 Mbps down) handles 2–3 simultaneous H.265 camera streams at VGA resolution or one 1080p stream with headroom for management traffic and alerts. The GNSS receiver automatically timestamps all video metadata, eliminating clock-skew issues that plague geographically dispersed video archives.

Failover and redundancy configurations use one GbE port for primary local equipment (camera switch or PoE injector) and the second port for a wired uplink to a backbone network when available — the router prioritizes terrestrial links and falls back to 4G LTE if the primary route fails. This hybrid approach reduces monthly LTE data costs while maintaining continuous connectivity. Three digital I/O lines detect power loss, equipment fault conditions, or vehicle ignition state and trigger automated alert escalation, allowing remote sites to notify NOC staff before an outage cascades.

Network Integration & Platform Compatibility

The NTC-222-01-01 presents as a standard IP router to any Ethernet device — no special drivers or custom firmware required. It integrates seamlessly into heterogeneous networks running Milestone, Genetec, Axis Camera Station, or any standards-based VMS expecting standard IP routing and DHCP. Dual Gigabit ports support both daisy-chaining (daisy-chain mode) and independent VLAN segments (advanced mode) via web-based configuration UI. Serial and USB interfaces enable integration with legacy intrusion panels, access-control readers, or wireless mesh gateways without middleware translation. SIM card provisioning is carrier-specific — order a pre-activated EMEA SIM from your MVNO or major carrier (Vodafone, Deutsche Telekom, Orange) and insert into the internal SIM slot; the router auto-detects the network and establishes connectivity within 30–60 seconds of power-on.

Regional Variants & Carrier Specificity

The NTC-222-01-01 is locked to EMEA carriers and bands. For North American deployments, Lantronix offers NTC-224-01-01 (AT&T/T-Mobile bands) and NTC-225-01-01 (Verizon-optimized). Global multi-band routers (NTC-227-01-01) support worldwide carriers but at higher power consumption and cost. Verify carrier SIM compatibility before order — not all MVNOs support industrial IoT SIMs, and some require APN configuration via serial console if the router cannot auto-detect the network on first power-on.

Power & Environmental Considerations

The unit operates on 12V DC supplied via external PSU (sold separately) with a typical draw of 0.8–1.2A under normal cellular load and full Gigabit traffic. Wide input voltage tolerance (9–18V DC) allows operation on genset or battery backup without regulation. Industrial temperature range (-40°C to +70°C) supports outdoor enclosures and non-climate-controlled equipment racks; internal thermistor disables LTE transmit if junction temperature exceeds 85°C, protecting the modem in extreme heat without requiring external cooling. No internal batteries — power loss triggers immediate watchdog reset and reconnection after restoration; for UPS-grade resilience, pair the router with a small 12V lead-acid or lithium backup in the same cabinet.

Eden Phillips

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

We've deployed the NTC-222-01-01 extensively across EMEA surveillance and remote monitoring networks, and it strikes an honest balance between cost and capability. This is not a high-bandwidth mobile gateway — Cat-1 maxes out at 10 Mbps downstream, which means you're not streaming 4K video or running bulk data backups over LTE. Where it wins is in redundancy and remote camera feeds over long distances where fiber is years away. On a 200-site retail chain spread across rural Germany and Poland, we used NTC-222s as cellular failover at each location; when the primary broadband link dropped, video automatically rerouted over LTE with zero manual intervention. Total cost per site (router + DIN bracket + antenna cables) runs under €200, versus €2000+ for fiber provisioning to the same location. The dual Gigabit ports eliminate the need for a separate unmanaged switch in most field cabinets, and the integrated GNSS lets us timestamp video without relying on NTP polling across an unreliable mobile link. The caveat: if you're in North America, order the NTC-224 or NTC-225; the EMEA version won't activate on AT&T or Verizon bands, and there is no firmware workaround. Also, Cat-1 is mature technology; if you're designing a green-field network today, evaluate Cat-6 or 5G routers for future-proof capacity, though they cost 3–4x more.

Technical Highlights:

• 4G LTE Cat-1 (10 Mbps down / 5 Mbps up): Sufficient for 2–4 simultaneous H.265 camera streams at VGA or 1–2 at 1080p. Much lower monthly data cost than previous-gen 3G, and more reliable than WiFi in rural areas where signal variation is extreme. Carrier SIM must be provisioned for industrial IoT; consumer unlimited plans often throttle or block after 50 GB/month.
• Dual Gigabit Ethernet (independent or cascaded): Flexibility to run one port as PoE injector for remote camera and second port as management uplink, or daisy-chain both ports to a local switch if cabinet space permits. No need for external managed switching in small deployments — saves rack U and power draw.
• DIN Rail with 12V DC PSU: Fits into any standard industrial enclosure without modification. The 12V requirement is a constraint in some sites (9–18V tolerance helps, but gensets and older UPS systems often output 24V). Confirm power architecture before installation.
• Built-in GNSS + 3x Digital I/O: Automatic timestamp correction and vehicle/fault detection without external sensors. Ignition sense is valuable for mobile asset tracking; I/O lines can trigger local relay logic or alert escalation if site power fails.
• Serial + USB Legacy Integration: Older PLCs and sensors lacking Ethernet can connect via serial-to-USB adapter; no proprietary middleware required. This flexibility often extends the lifecycle of 10–15 year old site infrastructure.

Deployment Considerations:

• Carrier SIM provisioning is the largest source of onsite delays. Pre-order and activate all SIMs 1–2 weeks before installation; test each SIM in a reference router before shipping to remote sites. Some European carriers require additional paperwork for industrial IoT profiles.
• Cat-1 bitrate is tight if you're running surveillance at two or more sites concurrently or expecting large firmware/OS updates over LTE. Prioritize on-site storage (local NVR) and only send alerts + short video clips to cloud or NOC.
• Install the dual cellular antennas outdoors or on the cabinet exterior; mounting them flush against the enclosure wall will halve effective range. 3 dBi gain is baseline — consider aftermarket 5–7 dBi external antennas if coverage is marginal in deep rural areas.
• The 12V PSU (PSU-0079, 1.5A) is not included — budget for sourcing a certified industrial power supply. Confirm genset or UPS output voltage before specifying; 24V systems require a buck converter.
• No onboard battery — power loss causes immediate reboot. Pair with a small 12V lithium or lead-acid backup (4–8 Ah) in the cabinet if the site requires continuous recording during brief outages.
• DIN-rail mounting is straightforward, but allow 10 mm top/bottom clearance for antenna connectors and 20 mm rear clearance for cable egress; cramped enclosures can degrade cellular signal and block reset button access.

The NTC-222-01-01 is purpose-built for European integrators and system architects deploying remote surveillance or industrial monitoring where cellular failover or primary backhaul is mandatory and fiber is absent. It's a proven workhorse in retail, utilities, and logistics — not a glamorous box, but one that reliably bridges isolated IP devices to central networks for years with minimal configuration. For more options across regional variants and advanced connectivity features, visit the Lantronix catalog.
