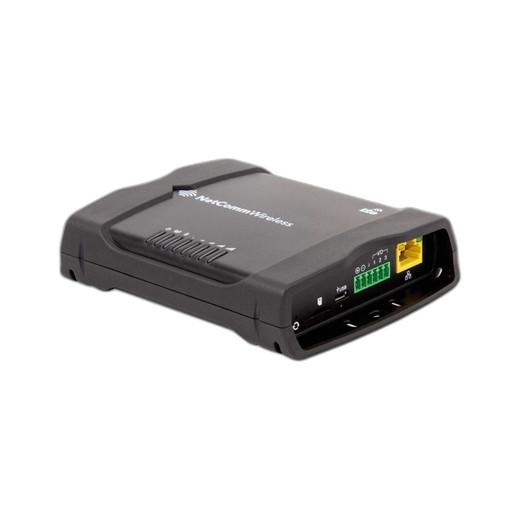

Lantronix NTC-221-01-01 4G LTE Router ANZ DIN Rail

Lantronix NTC-221-01-01 4G LTE Router ANZ DIN Rail

The Lantronix NTC-221-01-01 is a DIN rail-mounted 4G LTE Cat-1 router designed for remote monitoring, SCADA, and distributed industrial IoT deployments across Australia and New Zealand. It provides cellular backhaul (LTE bands B1, B2, B3, B4, B5, B7, B8, B28, B40) alongside Ethernet, RS serial, and discrete I/O connectivity, allowing field sites—traffic signals, utility substations, sensor arrays, distributed control nodes—to reach cloud platforms or central management systems without dedicated fiber or leased lines. The combination of multiple transport layers and industrial form factor makes it a go-to choice for integrators bridging legacy SCADA equipment to modern cellular infrastructure in remote or cost-constrained deployments.

Key Features

• 4G LTE Cat-1 Cellular: ANZ-certified bands (B1, B2, B3, B4, B5, B7, B8, B28, B40). Delivers mid-range throughput (10 Mbps downlink typical) suitable for SCADA telemetry, alarm notification, and remote configuration—not video, but adequate for sensor and control data.
• 1x Fast Ethernet Port: 100 Mbps LAN connection for local network integration. Allows the router to sit between industrial Ethernet devices (controllers, PLCs, managed switches) and cellular backhaul without intermediate converters.
• RS Serial + USB: Native RS-232/RS-485 support for legacy SCADA devices, modems, and field instruments. USB port accommodates configuration terminals or future peripheral expansion without external adapters.
• 3x Discrete I/O + Ignition Sense: Relay-grade I/O lines for discrete alarm or state signals (e.g., equipment shutdown notification, battery-backup activation). Ignition-sense input typical in automotive or backup-power scenarios.
• DIN Rail 35mm Mount: Fits standard industrial control cabinet enclosures. Horizontal or vertical orientation supported; included six-way terminal block accepts 0.5–2.5 mm² conductors (standard industrial wire gauge).
• GNSS (GPS/GLONASS): Built-in positioning and precise time synchronization. Essential for distributed SCADA networks requiring coordinated timestamps across remote nodes.
• Dual SMA Antenna Connectors: Two cellular antennas supplied; external mounting option minimizes multipath and signal loss in metal enclosures.
• 12 V DC Power via Terminal Block: Industrial power input; external PSU (PSU-0079, 12 V 1.5A, ordered separately) provides standard compliance and redundancy capability.

Regional Certification and Deployment Context

The NTC-221-01-01 carries Australia and New Zealand regional certification for LTE bands and electromagnetic compatibility. This eliminates the uncertainty and potential rework of generic global routers on ANZ carriers. Integrators specifying this unit for utility, transportation, or distributed sensor projects in the ANZ region can rely on carrier interoperability and compliance sign-off. The DIN rail form factor and industrial temperature operating range suit both indoor control cabinets and outdoor-rated enclosures (confirmation of exact environmental limits required in detailed datasheet).

Integration with Legacy and Modern Control Systems

The router bridges generational gaps in industrial deployments. RS serial connectivity allows it to front legacy SCADA devices, modems, or RTU (remote terminal unit) hardware that predate Ethernet standardization. Simultaneously, its Ethernet port and SDK support enable integration with modern industrial IoT platforms, Python-based edge logic, and cloud dashboards (AWS IoT Core, Azure IoT Hub, Lantronix Device Management). The discrete I/O lines provide hardwired alarm supervision—useful when cellular latency or cloud connectivity must not delay critical shutdown or alert signals.

Total Cost of Ownership and Lifecycle

Compared to dedicated fiber or MPLS leased lines, cellular backhaul (especially in sparsely populated utility or rural regions) often reduces capex and eliminates recurring carrier line costs. The NTC-221-01-01's compact DIN rail footprint and low power draw (confirmed in datasheet; typically under 8 W average) make it cost-effective to deploy at numerous field sites. A 2-Year Manufacturer Warranty provides baseline coverage; long-term support and firmware updates depend on Lantronix Device Management registration. Total cost for a typical small SCADA network (5–20 remote nodes) should factor in cellular data plans, which vary by ANZ carrier and traffic profile.

Installation and Antenna Placement Best Practices

Mount the router horizontally or vertically onto 35mm DIN rail using the included bracket. Secure the six-way terminal block for power, ground, and I/O wiring—terminal screws accept 0.5–2.5 mm² conductors. Connect Ethernet via the supplied 1.5 m yellow cable or integrate into the site network. Critical: position both supplied SMA cellular antennas away from metal enclosure walls and RF-absorbing materials (foam, insulation). If the control cabinet is metal, consider external antenna mounts on the enclosure roof or side to maintain signal margin. Verify LTE coverage at the deployment site before final commissioning; Lantronix Device Management can profile signal strength and carrier availability pre-deployment.

The Lantronix NTC-221-01-01 is a focused industrial cellular gateway for integrators and end-user teams managing distributed SCADA, remote monitoring, or IoT sensor fleets across Australia and New Zealand. Its ANZ regulatory compliance, native SCADA connectivity (Ethernet, RS serial, discrete I/O), and DIN rail packaging eliminate common deployment friction. For projects requiring cellular backhaul without the bulk or cost of external modems or gateway appliances, this unit delivers reliable connectivity at the edge. Explore the full Lantronix catalog for complementary routers, network infrastructure, and device management platforms.

Eden Phillips

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

We've deployed the Lantronix NTC-221-01-01 across regional utility and traffic management networks in Australia and New Zealand, and it's become a reliable workhorse for SCADA backhaul where fiber or dedicated lines aren't economically feasible. What sets this router apart from generic cellular gateways is its purpose-built industrial pedigree: DIN rail packaging, native RS-serial support, discrete I/O, and ANZ regulatory pre-approval mean integrators can avoid the integration tax and certification delays of importing generic global models. The LTE Cat-1 throughput (typically 10 Mbps downlink) is perfectly matched to SCADA telemetry and alarm notification traffic—it's not a bandwidth device, but it's reliable and predictable, which is what SCADA operators demand. On the downside, Cat-1 does not support high-definition video or large file transfers; if a site requires video surveillance or frequent large data pulls, you'll need a Cat-6 or Cat-12 router, which incurs higher capex and power draw. The discrete I/O lines and ignition-sense input also make it useful in automotive or backup-power scenarios where hardwired state signaling matters more than cloud latency. We recommend it for distributed sensor networks, utility substation monitoring, traffic signal controllers, and remote PLC sites where cellular is the only economical transport option and traffic is telemetry or small JSON payloads, not continuous streaming.

Technical Highlights:

• LTE Cat-1 (ANZ bands B1–B8, B28, B40): Certified for Australian and New Zealand carriers (Telstra, Optus, Vodafone AU; Spark, 2Degrees NZ). Mid-range throughput (~10 Mbps DL) adequate for SCADA and IoT telemetry; avoid if your application demands video or large file sync.
• Dual Cellular + Ethernet + RS-232/485 + Discrete I/O: Multi-protocol gateway—reduces the need for separate interface converters on SCADA networks. RS serial especially valuable for aging RTU or controller hardware that lacks native Ethernet.
• GNSS (GPS/GLONASS) + Precise Time Sync: Synchronized timestamps across distributed nodes—critical for time-correlating alarms and events in multi-site SCADA. Clock accuracy typically ±50 ms; check datasheet for certified limits if sub-second precision is required.
• 12 V DC Power, Low Average Draw: Typical power consumption under 8 W (confirm in datasheet). Easy to integrate into cabinet UPS or solar+battery systems common in remote utility deployments.
• DIN Rail 35mm Mount, Six-Way Terminal Block: Fits any standard industrial control enclosure. Accepts 0.5–2.5 mm² conductors—no proprietary connectors or adapters needed on-site.

Deployment Considerations:

• Antenna Placement Critical: LTE Cat-1 relies on strong signal margin. If the control cabinet is metal, external antenna mounts on the enclosure roof or pole are mandatory; internal mounting often yields 3–6 dB loss and poor failover behavior. Test signal strength at the site before final install.
• Cellular Data Plan Variability: ANZ carriers offer different plan structures and fair-use policies; SCADA traffic (low bitrate, continuous) may trigger throttling on consumer plans. Coordinate with carrier to confirm business/industrial SLA rates and traffic caps.
• Serial Configuration Required: Unlike cloud-based routers, the NTC-221-01-01 requires RS-232 terminal or USB configuration session for initial setup (APN, credentials, firewall rules). Plan for on-site commissioning time; remote configuration is possible post-setup via Telnet or SSH if enabled.
• Discrete I/O is Hardwired Logic Only: The three I/O lines and ignition-sense input support simple relay or contact closure signaling—not programmable logic or complex decision trees. If you need edge intelligence (conditional routing, threshold-triggered actions), you'll need to add a separate PLC or gateway with SDK firmware development.
• Cat-1 Throughput Ceiling: Peak downlink ~10 Mbps, uplink ~5 Mbps. Adequate for SCADA polling, alarm notification, and small file transfers. Not suitable for video, large database syncs, or continuous high-bitrate data streams—verify application telemetry profile before spec.

The NTC-221-01-01 is ideal for integrators building distributed SCADA, utility monitoring, or industrial IoT networks in Australia and New Zealand where cellular is the primary or only economical transport option. Its ANZ regulatory pre-approval, compact DIN rail form factor, and native SCADA connectivity eliminate common integration friction. If your project is regional, low-bandwidth, and requires bridging legacy RS-serial equipment to modern cloud platforms, this router deserves serious consideration. For high-bandwidth or video-capable deployments, evaluate higher-tier Lantronix models or multi-carrier gateways. Explore the full Lantronix catalog for complementary industrial networking and device management solutions.
