Zebra DS9308 vs Datalogic M3450-010310-21104: Specification Comparison

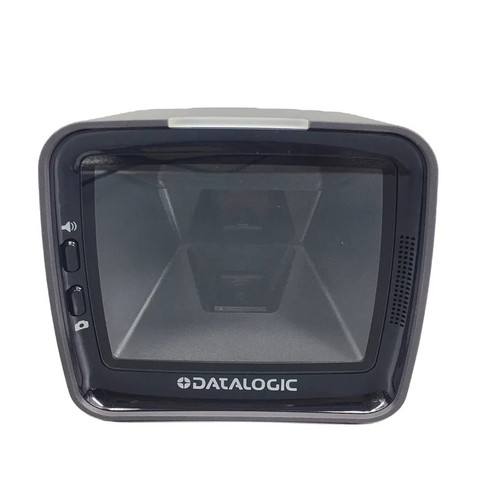

Both the Zebra DS9308 and Datalogic Magellan 3450VSi (M3450-010310-21104) are corded presentation-mode area imagers designed for fixed, hands-free scanning at a retail or hospitality point-of-sale counter. A buyer evaluating either unit is looking for an on-counter scanner that reads barcodes without picking up the device. The comparison below examines the three axes that drive most purchasing decisions for this product class: symbology breadth and imaging capability, physical and environmental durability, and connectivity and host integration flexibility.
In This Guide
- Which scanner reads a wider range of symbologies and what imaging specs back that up?
- How do the two scanners compare on physical durability and environmental tolerance?
- What host interfaces and integration options does each scanner support?
- Which should you choose: the DS9308 or the M3450-010310-21104?
- Side-by-Side Specs
- FAQ
Which scanner reads a wider range of symbologies and what imaging specs back that up?
The Datalogic M3450-010310-21104 supports both 1D and 2D symbologies — including QR Code, Data Matrix, PDF417, Aztec, and Maxicode — making it a full 1D/2D area imager by specification. This means it can natively read mobile coupons, digital loyalty cards, and dense 2D barcodes at the point of sale without an add-on module.
The Zebra DS9308 is specified as a 1D and OCR scanner. Its listed symbologies cover Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32, plus OCR-A, OCR-B, and MICR — a broad 1D set with document-reading capability. Zebra's spec sheet notes Digimarc availability on specific models only; 2D symbologies (QR, Data Matrix, PDF417) are not listed for this SKU.
On raw imaging, the DS9308 publishes its sensor resolution at 1280 x 800 pixels, a 52° H x 33° V field of view, a minimum element resolution of 3 mil (Code 39), and image quality of 109 PPI on an A6 document. The M3450-010310-21104 does not publish sensor resolution, field of view, minimum element width, or image PPI in the provided specifications.
How do the two scanners compare on physical durability and environmental tolerance?
The Zebra DS9308 provides the more detailed environmental profile. It is rated IP52 (dust-partially protected, protected against dripping water), carries drop specifications of multiple drops from 1.5 m to concrete, and is rated for 1,000 tumbles in a 0.5 m tumbler. Operating temperature is 0 °C to 50 °C; storage temperature is -40 °C to 70 °C. Humidity tolerance is 5 %–95 % RH non-condensing. ESD immunity is ±15 kV air discharge and ±8 kV indirect contact discharge. Ambient light tolerance reaches 107,700 lux.
The Datalogic M3450-010310-21104 does not list an IP rating, drop or tumble specification, operating or storage temperature range, humidity tolerance, or ESD immunity in the provided specifications. For buyers operating in environments with spills, dust, or temperature extremes, the DS9308 offers quantified assurances that the M3450-010310-21104 spec sheet does not.
What host interfaces and integration options does each scanner support?
The Zebra DS9308 supports USB, RS-232, Keyboard Wedge, and TGCS (IBM) 46xx over RS485 — four distinct host interface types. Keyboard Wedge coverage extends to over 90 international keyboard layouts, and IBM 46xx RS485 support is relevant to grocery and specialty retail environments still running legacy IBM POS infrastructure. Swipe speed is specified at up to 120 in. (305 cm) per second.
The Datalogic M3450-010310-21104 supports USB and RS-232. Keyboard Wedge and IBM 46xx RS485 are not listed. The M3450-010310-21104's vertical form factor — specified at 152 x 137 x 94 mm — is designed for on-counter upright deployment; the DS9308's horizontal presentation form factor measures 5.7 in. H x 3.4 in. W x 3.3 in. D. Neither unit lists wireless connectivity. Both carry a 3-year warranty, though the M3450-010310-21104's warranty detail appears corrupted in the source data (a long dot-leader string) and is confirmed only via the supplemental card data.
Which should you choose: the DS9308 or the M3450-010310-21104?
Our take: The DS9308 is the stronger choice when the deployment demands proven environmental durability, legacy IBM POS compatibility, or document/OCR scanning, while the M3450-010310-21104 is the stronger choice when 2D symbology support — QR Code, Data Matrix, PDF417, Aztec, Maxicode — is required at the point of sale. Three concrete spec deltas: (1) Symbology scope — the M3450-010310-21104 reads five 2D formats not listed for the DS9308 SKU; (2) Environmental rating — the DS9308 is rated IP52 with 1.5 m drop and 1,000-tumble specs; no equivalent data exists for the M3450-010310-21104; (3) Host interfaces — the DS9308 adds Keyboard Wedge and IBM 46xx RS485 to USB/RS-232, versus USB and RS-232 only on the M3450-010310-21104. Buyers on modern POS lanes that process mobile coupons or digital IDs should favor the Datalogic; buyers on IBM legacy lanes or needing OCR/MICR document reads should favor the Zebra.
Side-by-Side Comparison
Spec-for-spec, from manufacturer data.
| Specification | Zebra DS9308 | Datalogic M3450-010310-21104 |
|---|---|---|
| Product Class | Presentation Area Imager | Vertical Presentation Scanner |
| Scan Engine | 1D + OCR | 1D/2D Area Imager |
| 1D Symbologies | Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 | Code 128, Code 39, UPC, EAN, GS1 DataBar |
| 2D Symbologies | — (not listed for this SKU) | QR Code, Data Matrix, PDF417, Aztec, Maxicode |
| OCR / MICR | OCR-A, OCR-B, MICR | — |
| Host Interfaces | USB, RS-232, Keyboard Wedge, IBM 46xx RS485 | USB, RS-232 |
| International Keyboard Support | Over 90 layouts | — |
| Image Sensor Resolution | 1280 x 800 pixels | — |
| Field of View | 52° H x 33° V | — |
| Minimum Element Resolution | 3 mil (Code 39) | — |
| Swipe Speed | Up to 120 in. / 305 cm per second | — |
| Dimensions (H x W x D) | 5.7 x 3.4 x 3.3 in. | 6.0 x 5.4 x 3.7 in. (152 x 137 x 94 mm) |
| Weight | 11.2 oz / 318 g | 1.32 lb / 599 g |
| IP / Environmental Sealing | IP52 | — |
| Drop Specification | Multiple drops, 1.5 m to concrete | — |
| Operating Temperature | 0 °C to 50 °C (32 °F to 122 °F) | — |
| ESD Immunity | ±15 kV Air, ±8 kV Indirect | — |
| Warranty | 3 Years | 3-Year Limited |
Frequently Asked Questions
Which should you choose: the DS9308 or the M3450-010310-21104?
The DS9308 is the stronger choice when the deployment demands proven environmental durability, legacy IBM POS compatibility, or document/OCR scanning, while the M3450-010310-21104 is the stronger choice when 2D symbology support — QR Code, Data Matrix, PDF417, Aztec, Maxicode — is required at the point of sale. Three concrete spec deltas: (1) Symbology scope — the M3450-010310-21104 reads five 2D formats not listed for the DS9308 SKU; (2) Environmental rating — the DS9308 is rated IP52 with 1.5 m drop and 1,000-tumble specs; no equivalent data exists for the M3450-010310-21104; (3) Host interfaces — the DS9308 adds Keyboard Wedge and IBM 46xx RS485 to USB/RS-232, versus USB and RS-232 only on the M3450-010310-21104. Buyers on modern POS lanes that process mobile coupons or digital IDs should favor the Datalogic; buyers on IBM legacy lanes or needing OCR/MICR document reads should favor the Zebra.
Can the DS9308 or M3450-010310-21104 read QR codes from a phone screen?
Based on provided specifications, the Datalogic M3450-010310-21104 lists QR Code as a supported symbology, making it suitable for scanning mobile barcodes. The Zebra DS9308's listed symbologies for this SKU do not include QR Code or other 2D formats — Zebra notes 2D capability is model-dependent and this standard-range SKU does not list it. If mobile barcode scanning is required, the M3450-010310-21104 is the specified choice between these two units.
Which scanner is better suited for an IBM 46xx POS lane in a grocery environment?
The Zebra DS9308 explicitly lists TGCS (IBM) 46xx over RS485 as a supported host interface. The Datalogic M3450-010310-21104 lists only USB and RS-232 in the provided specifications. For legacy IBM grocery POS infrastructure, the DS9308 is the only unit of the two with a documented interface match.
Is the DS9308 or M3450-010310-21104 better sealed against spills and dust at a busy checkout?
The Zebra DS9308 carries an IP52 rating (partial dust ingress protection, drip-water protected) and is specified to survive multiple drops from 1.5 m and 1,000 tumbles in a 0.5 m tumbler. The Datalogic M3450-010310-21104 does not publish an IP rating, drop specification, or tumble rating in the provided specifications. On documented environmental robustness, the DS9308 provides quantified assurances that the M3450-010310-21104 spec sheet does not support.
