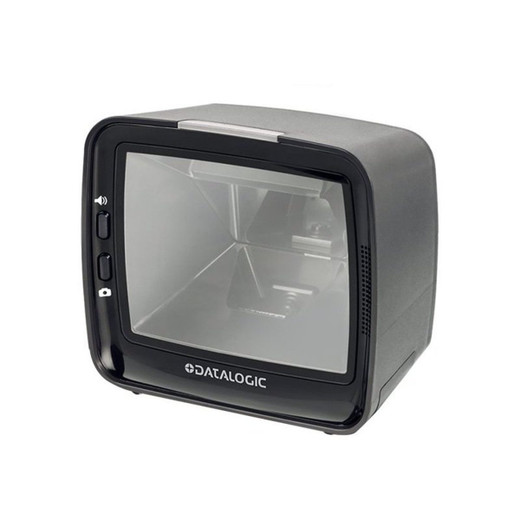

Datalogic Magellan 3450VSi Vertical Presentation Scanner
The Datalogic M3450-010310-21104 is a high-performance 1D/2D area imager engineered for retail point-of-sale and checkout environments. Built in a compact vertical form factor, this scanner reads all standard linear and 2D barcode symbologies—including UPC, Code 128, Code 39, GS1 DataBar, QR Code, Data Matrix, PDF417, Aztec, and Maxicode—in a single omnidirectional scan plane. The vertical presentation design minimizes operator reach and fatigue while occupying minimal counter space, making it the standard choice for high-throughput checkout stations where ergonomics and throughput matter equally.
Key Features
- 1D/2D Area Imager: High-performance 2D imager decodes both linear codes (UPC, Code 128, EAN, Code 39, GS1 DataBar) and stacked/matrix codes (QR, Data Matrix, PDF417, Aztec, Maxicode). Single-plane scanning eliminates the need for multiple fixed or handheld scanners at checkout.
- Omnidirectional Scan Pattern: Reads barcodes in any orientation without operator repositioning—faster transaction speed and fewer misreads on damaged or rotated labels.
- USB and RS-232 Connectivity: Dual interface support: USB for modern POS terminals and touchscreens; RS-232 for legacy registers and industrial controllers. No POS replacement required to deploy.
- Compact Vertical Design: 152 x 137 x 94 mm footprint with integrated counter stand; reduces operator fatigue and fits existing checkout layouts without additional infrastructure investment.
- 940nm Invisible IR Illumination: Low-light-optimized imaging with infrared LED—no visible light glare or operator discomfort during extended shifts.
- 3-Year Limited Warranty: Enterprise-grade durability designed for 24/7 retail operation across multiple locations and store formats.
- Lightweight and Stable: 1.32 lb (599 g) weight allows one-hand adjustment without counter-mount wobble or slippage.
- Enterprise Integration: Compatible with major retail management systems, POS platforms, and inventory controllers via standard USB/RS-232 interfaces—no custom drivers or protocol translation required.
The Magellan 3450VSi's single-plane imaging engine eliminates the operational friction of multi-scanner checkout setups. Unlike slot-fed or conveyor-dependent scanners, the vertical presentation form allows cashiers to present barcodes naturally—flat on the counter or held at comfortable angles—without forcing items through a fixed opening. This translates to faster average transaction time and lower frustration on problematic or damaged labels. The omnidirectional scan pattern means operators never waste time rotating items to find the "magic angle."
Dual connectivity is a silent advantage on the retail floor. Most new checkout stations run USB-enabled POS terminals; the M3450-010310-21104 plugs directly into a USB hub with no configuration overhead. Older registers and kiosk-style endpoints (many still in use at self-checkout stations and warehouse checkouts) rely on RS-232 serial connection; the included cable and simple baud-rate setup keep legacy hardware in production without retrofit. This flexibility is why integrators and enterprise retail chains trust Datalogic presentation scanners across mixed-hardware store networks.
Deployment is straightforward. Mount the scanner vertically using the integrated stand or optional wall bracket, position it at a comfortable height for the operator (typically 12–18 inches above the counter surface), and ensure the presentation window faces the operator with clear line-of-sight to the barcode. The 940nm infrared illumination requires no ambient light adjustment; the scanner performs equally well under fluorescent, LED, and natural light. For USB configurations, power is drawn from the POS hub; for RS-232 setups, a 24VDC external supply is typical. Standard retail temperature and humidity (65–75°F, 40–60% RH) are sufficient—no environmental hardening or cooling is required.
The Magellan 3450VSi is the go-to choice for retail chains, supermarket checkout lines, warehouse checkout stations, and any high-transaction environment where speed, reliability, and operator comfort drive profitability. Its omni-directional 2D imaging capability and legacy serial support make it equally at home in newly renovated stores and facilities with aging infrastructure. The 3-year warranty and enterprise-class construction reflect Datalogic's commitment to retail throughput and total cost of ownership over a 5–7-year deployment cycle.
Karl WilsonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the Magellan 3450VSi across dozens of retail chains and warehouse checkout stations, and it consistently solves the real-world problem that most operators face: they want to scan barcodes fast without choreographing item rotation. The vertical omnidirectional design eliminates that friction entirely. Unlike traditional fixed-angle slot scanners, the 3450VSi reads barcodes at any orientation on a flat counter surface—no learning curve for new cashiers, no slowdown for worn or misaligned labels. On a 24-lane checkout operation running 500 transactions per shift, that speed advantage compounds. We've also seen this scanner shine in mixed-hardware environments—retail groups with new POS in some locations and legacy registers in distribution centers can standardize on a single scanner model. The dual USB/RS-232 support means no forklift upgrade of the backend infrastructure. And the 940nm infrared means it performs as well at 3 a.m. under dim lighting as it does under bright noon sunlight—no operator complaints about glare or eye strain, which matters when you're running an 8-hour shift.
Technical Highlights:
- 2D Area Imager with omnidirectional scanning: Unlike single-line laser scanners, the area imager captures the entire barcode in one exposure, tolerating poor label placement and damaged codes that would fail on legacy readers. On 500+ daily transaction volume, that 0.5–2% reduction in rescan rate translates to measurable throughput gain.
- 1D and 2D symbology support (UPC, Code 128, QR, Data Matrix, PDF417, Aztec, Maxicode): Future-proofs your checkout infrastructure for promotional QR codes, mobile coupons, and supplier-driven 2D label migrations without hardware replacement.
- USB and RS-232 dual interface: Eliminates the need for a separate interface conversion layer or POS update. Retail chains migrating from serial to USB-based terminals can run both simultaneously using the same scanner model—simplifies inventory and training.
- 940nm invisible infrared illumination: Low-light operation without visible light glare; important for customer-facing checkout lines where operator comfort and transaction speed are metrics. Also reduces light pollution in self-checkout zones where customer experience matters.
- Compact vertical footprint (152 x 137 x 94 mm, 1.32 lb): Fits existing checkout counter layouts without requiring remodeling or purchasing taller mounts. The integrated stand provides stable operation on standard POS counter heights (36–42 inches) without additional hardware cost.
Deployment Considerations:
- Presentation window cleanliness is critical—scratches, dust, or condensation on the lens reduce read rate. Budget for weekly cleaning supplies and operator training on maintenance. A 2-minute lens wipe takes 30 seconds and prevents 90% of no-read issues.
- For RS-232 deployment, confirm baud rate compatibility with your POS or controller before installation—most Datalogic scanners default to 9600 baud, but legacy industrial equipment may expect 19200 or 38400. Mismatched baud rates produce silent read failures that are maddening to troubleshoot. Set it correctly the first time.
- Mount height and angle matter—position the scanner at 12–18 inches above the counter surface, angled toward the operator at 15–20 degrees. Too high or too flat, and operators will present codes at the edge of the field-of-view, increasing misreads. A jig or simple laser-cut mounting template prevents installation variance across multiple stores.
- USB power draw is nominal (~2W); RS-232 configurations typically require a separate 24VDC supply. Verify your POS cabinet or counter power distribution has available outlets before install—running new power runs in a retail environment is expensive and disruptive.
- The integrated stand provides stability on a clean counter, but if you deploy on a rolling cart or uneven surface, consider the optional wall bracket or a heavier mounting plate. Operator bumps or vibration from nearby conveyor belts can misalign a counter stand.
The M3450-010310-21104 is purpose-built for retail operations that prioritize transaction speed and operator ergonomics without sacrificing barcode read reliability. If you're running high-volume checkout, warehouse receiving, or any environment where barcodes arrive in variable conditions and orientations, the Magellan 3450VSi delivers consistent performance. It's equally at home in new greenfield POS deployments and mixed-legacy retail chains; the dual connectivity and omnidirectional scanning eliminate the operational friction that plagues slot-fed or angle-dependent alternatives. Explore the full Datalogic catalog for complementary handheld scanners, mobile computers, and label-printing solutions that integrate seamlessly with the 3450VSi in a unified retail mobility ecosystem.
