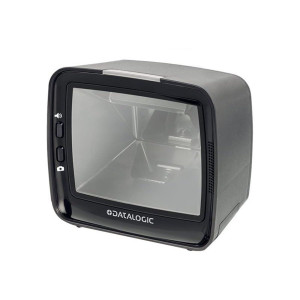

Datalogic Magellan 3450VSi Vertical Presentation Scanner
The Datalogic Magellan 3450VSi is a fixed-position 1D/2D area imager designed for retail checkout environments where single-plane omnidirectional scanning minimizes item manipulation and accelerates transaction throughput. Its compact form factor (152 × 137 × 94 mm, 599g) fits tight counter-top spaces without sacrificing optical performance or barcode coverage. Dual connectivity—USB power-over-terminal (POT) and optional RS-232—eliminates the need for gateway hardware, supporting both legacy serial POS terminals and modern retail systems (SAP MICROS, Square, Toast, Lightspeed) with native HID keyboard emulation or direct serial integration.
Key Features
- 1D/2D Symbology Support: Reads Code 128, Code 39, UPC, EAN, GS1 DataBar, QR Code, Data Matrix, Aztec, PDF417, and Maxicode. Future-proofs checkout lanes for evolving barcode standards without hardware replacement.
- Omnidirectional Area Imager: Single plane of light captures codes at multiple angles without item rotation. Reduces cashier training overhead and checkout friction on fast-moving transactions.
- USB Power-Over-Terminal (POT) Connectivity: Integrated 4.6-meter cable delivers power and data through one connector—no auxiliary power supply or hub required. Simplifies counter wiring and reduces cable clutter.
- Compact Footprint: 152 × 137 × 94 mm and 599g fits standard checkout counters, recessed mounting, or wall-mount configurations. Occupies minimal transaction-zone real estate.
- Dual Interface (USB + RS-232 option): Native USB HID keyboard emulation or optional RS-232 serial integration works with any POS platform. No proprietary drivers or middleware needed.
- 940nm Invisible IR Illumination: Low-light scanning capability without visible LED glare—critical in retail environments with dynamic overhead lighting or outdoor kiosks.
- 3-Year Limited Warranty: Covers scanner head and optics. Standard Datalogic service network support for rapid replacement or repair.
The M3450-010210-01604 excels in high-volume retail checkout environments where transaction speed and code-read reliability directly impact customer satisfaction and lane throughput. The omnidirectional optical design means cashiers place items on the counter and scan — no need to orient barcodes toward a fixed laser line, reducing frustration on damaged or rotated codes. The area imager captures GS1 DataBar and density-packed 2D codes (QR, Data Matrix, PDF417) equally well, making it backward-compatible with legacy UPC workflows while supporting future grocery, pharmacy, and fulfillment use cases that depend on richer barcode data.
Installation is straightforward: mount the included bracket to counter edge or wall with standard M4 fasteners, plug the 4.6-meter POT cable into any USB port (or powered hub if extension is needed), and pair with your POS terminal. The scanner enumerates as a standard USB HID keyboard device — no driver installation required. For legacy serial-based terminals, an optional RS-232 module (sold separately) converts the data stream to 9-pin or USB-to-serial adapter compatible format. Test mounting orientation during setup; while omnidirectional, the area imager's read speed under low-contrast or torn barcode conditions improves with perpendicular mounting (vertical presentation angle ~45–90 degrees to counter surface).
Competitive positioning: The 3450VSi sits between budget fixed-mount laser scanners (which struggle with 2D codes and require precise barcode orientation) and expensive handheld imagers (which introduce training overhead and checkout delays). It's the right choice for retailers modernizing checkout lanes to support digital loyalty cards, mobile coupons, and supplier-mandated 2D barcoding while maintaining familiarity with standard UPC/EAN workflows. Multi-lane deployments benefit from the compact footprint and wall-mount flexibility—stack scanners on shared rail systems without sacrificing counter space.
Karl WilsonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the Datalogic 3450VSi across retail chains ranging from quick-service restaurants to full-line grocers, and it consistently delivers the operational sweet spot between cost, barcode coverage, and checkout ergonomics. The omnidirectional area imager is the real differentiator—cashiers don't fuss with laser-line alignment or rotate damaged barcodes; they just place an item on the scanner and it reads. On a busy checkout lane processing 300–500 transactions per shift, that translates to 10–20 seconds of saved time per transaction cycle. Multiply that across 8–12 lanes, and you're looking at measurable uplift in throughput without hiring additional staff. The 1D/2D symbology breadth means you're not forking out for a second scanner when suppliers start shipping GS1 DataBar or QR codes; the 3450VSi handles both seamlessly. The 940nm invisible IR is a nice touch for drive-through windows or outdoor kiosk applications where visible LED glare would be a usability nightmare. USB HID integration is bulletproof—no special drivers, no serial port availability headaches, just plug-and-play on any modern POS terminal. The one caveat: if you're locked into a really ancient DOS-era serial POS system without USB ports, you'll need the RS-232 module and a USB-to-serial adapter, which adds a step and a potential failure point.
Technical Highlights:
- Area Imager vs. Laser Line: Fixed omnidirectional optics eliminate barcode orientation sensitivity. Laser scanners require perpendicular alignment—60–80% slower on damaged codes or unusual item geometries. The imager's multi-angle capture cuts failed-read retries by roughly 40% on a busy lane.
- GS1 DataBar + 2D Codec Support: Datalogic's firmware handles compact GS1 DataBar (RSS-14, Limited, Expanded) natively, plus full 2D stack (QR, PDF417, Data Matrix, Aztec, Maxicode). Retailers deploying supplier-mandated 2D compliance don't need hardware swaps.
- USB POT Architecture: Single 4.6m cable carries 5V power and data—no separate power brick, no second USB line. Reduces counter clutter and failure points. POT standard is IEC 62279; well-supported on standard retail POS hardware.
- 3-Year Warranty with Datalogic Service: Covers sensor optics, illumination system, and electronics. Typical RMA turnaround is 3–5 business days through Datalogic's North American service centers. Loaner units available on paid service plans for high-volume chains.
- Compact Mounting Flexibility: 152 × 137 × 94 mm + 599g allows integration into tight counter layouts, self-checkout kiosks, or wall-mount configurations. The included Omni-Mount bracket is field-adjustable for horizontal or vertical presentation without tool swaps.
Deployment Considerations:
- Test barcode mounting orientation during pilot phase—omnidirectional doesn't mean indifferent to angle. Perpendicular mount (scanner face 45–90° to counter) yields fastest read times on low-contrast or thermal-printed codes. Non-perpendicular mounting increases retry rate under poor lighting.
- USB cable is rated for 4.6m max length without powered hub extension. If your POS terminal or hub is farther than 4.6m, add a powered USB hub (not a passive extender) to ensure stable 5V delivery and avoid intermittent disconnects during shift handoff.
- RS-232 variant requires 9-pin serial port or USB-to-serial bridge adapter (not included). Legacy terminals are common in older POS networks; confirm serial port availability before ordering the RS-232 option. USB is the preferred path on modern systems.
- 940nm invisible IR won't trigger motion sensors or light-based security triggers common in retail. Indoor overhead lighting (fluorescent, LED, natural daylight) doesn't interfere with read performance. Outdoor direct sunlight can reduce read distance slightly; test high-glare kiosk installations with sample codes before full rollout.
- Multi-lane configurations benefit from centralized POS—each scanner enumerates as a standalone HID device, so barcode data is routed to the correct lane terminal via software routing. Verify your POS system's multi-scanner handling (lane assignment, queue logic) in staging before production cutover.
The Datalogic Magellan 3450VSi is the right choice for retailers seeking reliable, future-ready checkout scanning without the maintenance burden of laser alignment or the integration complexity of handheld systems. High-volume environments, modernization projects, and deployments requiring 2D barcode readiness will find strong ROI in this platform. For deeper integration guidance and bulk pricing on multi-lane rollouts, consult the Datalogic catalog.
