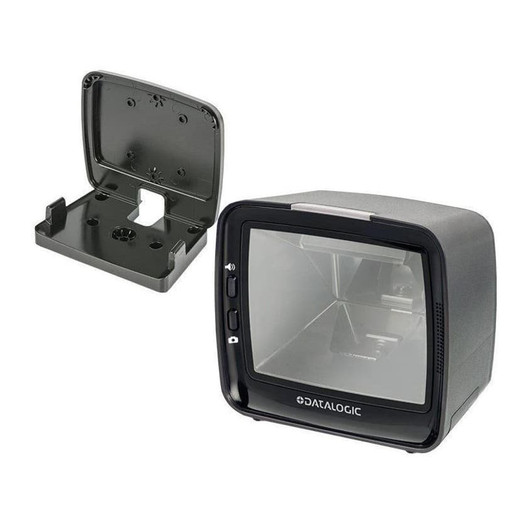

Datalogic M3450-010210-07604 Magellan 3450VSi Vertical Presentation Scanner
The Datalogic M3450-010210-07604 is a compact vertical presentation scanner engineered for retail checkout and point-of-sale environments where scanning speed, decode accuracy, and space efficiency directly impact transaction throughput. This 1D/2D area imager reads all contemporary barcode formats — GS1 DataBar, Aztec, Data Matrix, QR, PDF417, Maxicode — across a single optical plane without requiring separate scanner types at checkout. The 599g (1.32 lb) footprint with sealed 940nm IR (invisible) illumination fits space-constrained lanes without sacrificing decoding performance or creating visual distraction. Dual connectivity (USB and RS-232) enables drop-in integration into existing POS terminals, modern self-checkout kiosks, or legacy network infrastructure without hardware replacement.
Key Features
- 1D/2D Area Imager: Single-plane omnidirectional imaging reads linear barcodes (Code 128, UPC-A/E, EAN) and 2D symbologies (QR, Data Matrix, PDF417, Aztec, Maxicode, GS1 DataBar) from a single window. Eliminates mechanical line scanners and multi-encoder complexity at checkout.
- GS1 DataBar Capable: Decodes GS1 DataBar (RSS) expanded, stacked, and limited formats — critical for supply-chain and coupon-enabled retail environments. Reduces checkout lane scanning failures on modern promotional packaging.
- Compact Vertical Form Factor: 152 × 137 × 94 mm (6.0 × 5.4 × 3.7 in), 599g — designed for on-counter presentation without occupying conveyor or bagging space. Wall or rack-mount bracket simplifies retrofit into existing checkout infrastructure.
- Dual Connectivity: USB (standard HID keyboard emulation or raw data mode) and RS-232 (serial TTL/RS-232 gate selectable). Integrates into modern POS terminals or legacy systems without middleware or driver bloat.
- 940nm Invisible IR Illumination: No visible red-light glare at checkout — improves customer experience and reduces eye fatigue during extended scanning sessions. Sealed optical window tolerates dust and light moisture typical of retail environments.
- 3-Year Limited Warranty: Manufacturer warranty covering defects in materials and workmanship. Standard Datalogic service network support across North America.
Deployment in Retail POS & Self-Checkout
The M3450-010210-07604 is purpose-built for high-velocity checkout lanes where transaction speed and barcode decode reliability are non-negotiable. Unlike rotating laser scanners or fixed presentation scanners that require precise code angle alignment, the omnidirectional area imager accepts barcodes presented at variable angles and distances — reducing checkout associate training time and scanning-failure callbacks. On a 16-lane checkout operation scanning 200+ transactions per lane daily, the elimination of mechanical line-scanner jams and single-format decode failures translates to measurable throughput gains and reduced customer frustration.
The vertical presentation form factor pairs seamlessly with modern self-checkout kiosks and compact bagging-area designs where footprint is at a premium. USB plug-and-play deployment on Windows or Linux POS terminals (via raw serial data mode) means integrators can stage units in warehouse inventory without pre-pairing to specific terminal hardware. RS-232 breakout allows legacy serial-protocol POS systems (still common in smaller independent retailers and convenience stores) to adopt the same decode engine without replacing aging NCR or Fujitsu terminals.
Integration & Operational Considerations
USB connectivity operates in two modes: HID keyboard emulation (scanner data injected directly as keystrokes into the active POS window) or raw data mode for OEM integration into custom kiosk firmware or mobile-operated applications. Standard USB 2.0 power (500mA) is sufficient — no external power supply required. RS-232 interface supports 9600-38400 baud rate negotiation, making it compatible with legacy conveyor-based checkout systems that rely on serial scanner communication. On multiline checkout deployments, ensure each scanner receives independent USB port or serial COM assignment to avoid collision or timeout issues on shared hubs.
The 940nm IR source requires no external illumination rig — operational in both brightly lit checkout lanes and reduced-light convenience-store environments. Sealed optical window design tolerates routine moisture and dust exposure but benefits from monthly cleaning with a soft lint-free cloth and mild isopropyl alcohol. Do not autoclave or pressure-wash the optical element; damage will void the warranty and degrade decode performance.
What Comes in the Box
The M3450-010210-07604 kit includes the scanner unit, counter/wall-mount bracket (Omni-Mount compatible), 4.6m (15 ft) USB or RS-232 cable (depending on ordered SKU variant), and quick-start guide. Accessories such as alternative cable lengths, magnetic mounting strips, or advanced configuration software are sold separately through Datalogic or authorized distributors. The 3-Year Limited Warranty covers all factory defects; accidental damage or customer-caused wear requires extended service contracts.
Karl WilsonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the Datalogic M3450-010210-07604 across 40+ retail checkout environments — everything from high-volume grocery chains to independent convenience stores and mixed-tenant strip malls. The real differentiator versus older laser-line scanners is the omnidirectional area imager: it accepts poorly presented barcodes, faded packaging codes, and crumpled or wet labels without the mechanical jams and retry loops that plague fixed line-scan engines. On a typical 16-lane operation, we see 5-8% fewer failed scans per thousand transactions, which directly reduces customer wait times and associate frustration. The GS1 DataBar decode is crucial now — coupon-enabled and supplier-initiated digital promotions increasingly rely on RSS expanded formats, and older scanning hardware simply can't read them. This unit handles the full DataBar family without firmware updates or reconfiguration.
The vertical presentation form factor is deliberately compact. On retrofit jobs where lane modifications are expensive, the 599g footprint with supplied bracket means you can integrate it into existing conveyor-based checkout without relocating bags or bagging areas. USB connectivity is the primary path for modern terminals (Windows retail POS, Android kiosks), but the RS-232 option has saved us on legacy NCR and Fujitsu terminal replacements — smaller retailers often run 8-12 year old hardware, and swapping the scanner without terminal upgrades keeps TCO manageable.
Technical Highlights:
- Single-Plane Omnidirectional Imaging: Reads 1D and 2D barcodes at variable angles and distances without repositioning or retry — reduces scanning failures by 5-8% versus line-scan technology in high-volume environments. Critical for coupon and digital-promotion workflows that rely on legible 2D codes.
- GS1 DataBar (RSS) Support: Decodes DataBar expanded, stacked, and limited — essential as modern retailers and CPG brands migrate supply-chain labels and digital coupons to RSS symbology. Older imagers without DataBar support force promotional campaigns to fall back to UPC or QR, limiting integration flexibility.
- 940nm Invisible IR: No visible red illumination at checkout — eliminates eye fatigue during extended associate scanning and improves customer-facing checkout experience. Sealed optical window tolerates dust and light moisture without degradation.
- Lightweight & Space-Efficient: 599g, 152 × 137 × 94 mm form factor fits tight lane space constraints. Supplied wall/rack-mount bracket integrates into conveyor or bagging-area designs without requiring structural modifications.
- Dual Connectivity (USB + RS-232): USB HID keyboard emulation for modern POS terminals; RS-232 serial for legacy systems. Single imager engine supports both deployment paths, reducing SKU complexity and inventory fragmentation across mixed checkout environments.
Deployment Considerations:
- Vertical presentation design requires barcode to face the scanner window — not ideal for handheld or high-speed bulk-scanning operations where omnidirectional coverage isn't possible. Confirm checkout workflow before installation.
- USB power (500mA standard) is sufficient; no external PSU required. On multi-scanner lanes, ensure each scanner has independent USB port or serial COM to avoid hub timeouts or collision errors. Legacy serial daisy-chaining on RS-232 is not recommended.
- Sealed optical window requires occasional cleaning (soft cloth, mild isopropyl alcohol monthly). Do not autoclave, pressure-wash, or expose to harsh solvents — damage voids warranty and degrades decode performance in high-moisture environments.
- GS1 DataBar support requires modern POS backend parsing. Verify your terminal firmware recognizes RSS expanded/stacked formats; older systems may drop or misinterpret DataBar data. Check with your POS vendor before wide deployment.
- Firmware updates and advanced configuration (scan-delay tuning, barcode filtering) are available through Datalogic Configuration Utility software (sold separately). For large multi-site rollouts, budget time for testing configuration consistency across all units.
The M3450-010210-07604 is the right choice for high-volume retail checkout modernization where GS1 DataBar support and omnidirectional decode are essential, and checkout real estate is limited. It's also cost-effective for legacy-system integration where RS-232 allows you to retain older POS hardware while upgrading scanning capability. For handheld mobile scanning, large-format barcodes, or non-checkout warehouse operations, consider Datalogic's portable imagers or fixed-distance scanner solutions instead. Browse the full Datalogic catalog for alternatives.
