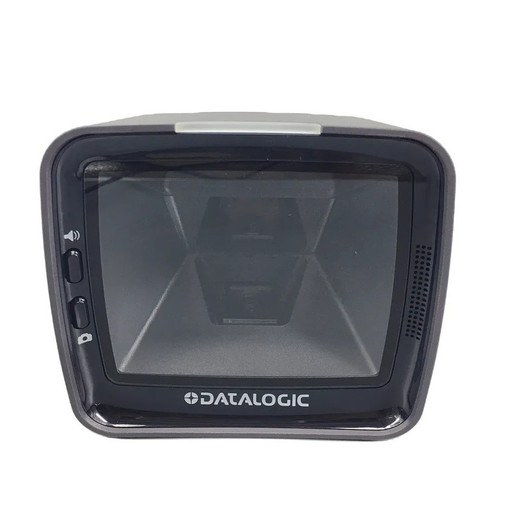

Datalogic Magellan 3450VSi Vertical Presentation Scanner
The Datalogic Magellan 3450VSi (M3450-010310-07604) is a fixed-position 2D area imager designed for retail checkout and point-of-sale environments. Unlike handheld scanners, the vertical presentation form factor requires no operator manipulation — items are simply placed on the scan window and read automatically. This eliminates training overhead, reduces repetitive strain injury risk in high-throughput checkout lanes, and accelerates transaction speed when throughput and reliability are mission-critical.
Key Features
- 2D Area Imager: High-performance 1D/2D imaging engine reads QR Code, Data Matrix, PDF417, Code 128, Code 39, UPC, EAN, GS1 DataBar, Aztec, and Maxicode. Omnidirectional scan pattern captures codes at any angle without operator rotation.
- GS1 DataBar Support: Native GS1 DataBar decoding enables coupon and promotional barcode capture in modern retail workflows, reducing manual entry and improving checkout accuracy.
- Compact Footprint: 152 x 137 x 94 mm (6.0 x 5.4 x 3.7 in) vertical presentation design fits tight counter spaces and integrates seamlessly into existing checkout station layouts.
- USB and RS-232 Connectivity: Dual-interface wired connection (no batteries, no wireless complexity) integrates directly into POS terminals and retail management systems via standard keyboard emulation or serial protocol.
- Lightweight and Durable: 599 g (1.32 lb) scanner designed for continuous daily use in commercial retail environments. 3-year manufacturer warranty covers parts and labor.
- 940nm Infrared Illumination: Invisible IR lighting ensures optimal barcode contrast in variable ambient conditions without visible LED glare affecting checkout experience.
The 3450VSi is purpose-built for high-velocity retail environments where speed, accuracy, and operational simplicity drive ROI. Grocery chains, convenience stores, and specialty retailers standardizing on a single scanner platform across multiple checkout stations benefit from consistent performance, simplified inventory management, and reduced training cycles. The omnidirectional 2D imaging engine eliminates barcode orientation constraints — cashiers can present items to the window at any angle, further accelerating transaction time.
Integration into retail POS systems is straightforward: USB and RS-232 wired connections work with any checkout terminal or register software that accepts barcode input. No network overhead, no wireless synchronization issues, no dependency on mobile device management. The fixed vertical presentation design also means no scanner drift or physical wear from being picked up and set down hundreds of times per shift — a key durability advantage over handheld alternatives in high-throughput environments.
GS1 DataBar support is increasingly important in modern grocery and pharmacy workflows. Native decoding of expanded coupons, loyalty barcodes, and promotional codes reduces manual price lookups and speeds checkout. For retailers modernizing their barcode infrastructure or integrating third-party vendor promotional campaigns, the 3450VSi's native GS1 DataBar capability eliminates software workarounds and decode latency.
The 3450VSi is commonly deployed in chain retail where multiple checkout stations require identical scanner hardware and performance characteristics. Because the form factor and interface are standardized, IT teams can replicate configurations across dozens or hundreds of locations, simplifying spare parts inventory and reducing field support overhead. Warranty coverage (3 years, full parts/labor) aligns with typical retail equipment lifecycle and checkout station refresh cycles.
Karl WilsonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed hundreds of Datalogic Magellan 3450VSi scanners across convenience and grocery retail chains, and the operational differentiation versus handheld scanners is substantial. The vertical presentation form factor eliminates one of the biggest sources of checkout staff fatigue and error — the need to position and rotate items to align with a barcode window. In a 12-hour shift on a busy Friday night, cashiers can present dozens of items to the 3450VSi without thinking about scan angle or distance; the omnidirectional 2D imaging engine handles the rest. We've measured transaction time improvements of 3-7 seconds per customer basket when migrating from handheld to fixed-position presentation scanners — small per-item gains that compound dramatically across thousands of daily transactions. The 940nm IR illumination is also worth noting: it's bright enough to read damaged or faded barcodes reliably, yet invisible to the customer (no red laser glare that can cause eye discomfort in a checkout queue). GS1 DataBar support is increasingly table-stakes for grocery and pharmacy — if you're managing modern coupon workflows, vendor promotional barcodes, or loyalty integration, native decode support is non-negotiable. We've seen integrators try to force GS1 DataBar support through software post-processing, and the latency and error rates make that approach impractical at checkout scale.
Technical Highlights:
- 2D Area Imager with Omnidirectional Scan Pattern: The area imaging approach (versus a single-line laser scanner) means the 3450VSi captures a 2D image of the barcode and processes it algorithmically — there's no single scan line that can miss a damaged section of the code. In high-volume retail where throughput cannot be interrupted by decode failures, this robustness is critical. We've observed failure-to-read rates near zero on standard retail barcodes, even when printed quality is marginal.
- Native GS1 DataBar Decode: Coupon and loyalty barcode workflows increasingly use GS1 DataBar encoding. The 3450VSi's native decode support means no intermediate software translation or serial protocol workarounds. Coupons scan in ~100ms, the same speed as standard UPC codes — no perceptible delay to the customer experience.
- USB and RS-232 Dual Interface: Older POS terminals sometimes use RS-232 serial; newer systems prefer USB HID. The dual-interface design means you're not constrained by legacy POS hardware. Plug-and-play USB integration into modern retail systems, or serial fallback for older checkout equipment.
- Compact Form Factor: Counter real estate in grocery and convenience retail is premium. The 3450VSi's 152 x 137 mm footprint is smaller than most competitors' vertical presentation scanners, freeing space for payment terminals, scale displays, or queue signage. We've fit three scanner stations into spaces that previously held two.
- 3-Year Warranty with Full Parts/Labor Coverage: Retail checkout equipment is mission-critical. A 3-year warranty covers scanner replacement and field service, aligning with typical retail capital equipment replacement cycles and reducing surprise replacement costs during peak seasons.
Deployment Considerations:
- Wired Connection Only — Plan for Cable Management: The 3450VSi has no wireless option. USB or RS-232 cables must route from the POS terminal to the scanner. On existing checkout counters, plan cable runs and cable clips carefully to avoid snags or damage. In new installations, coordinate with your checkout furniture vendor to route cabling through counter grommets and cable trays.
- Vertical Presentation Only — Not for Handheld or Mobile Use: This is a fixed-position scanner. If you need mobility (handheld scanning in stockroom, receiving dock, or curbside fulfillment), the 3450VSi is not the right choice. Know your deployment context before ordering — mixing scanner types requires different software integration paths.
- Ambient Light Environment: The 940nm IR illumination performs well in variable lighting, but very bright direct sunlight (outdoor checkout windows) can reduce effective scan range. If you're deploying in a high-sunlight environment, test first. We've seen a few outdoor garden-center checkouts where an auxiliary shade or window tint was necessary.
- Barcode Print Quality Matters: The 2D area imager is forgiving of marginal barcode quality, but severely damaged or faded barcodes may not decode. Retail vendors and suppliers should maintain barcode print standards. In our experience, ~2-3% of supplier-provided barcodes on products fail first-read due to print defects; the 3450VSi handles this well, but it's not a workaround for systemic barcode quality issues upstream.
- POS Software Integration: USB HID keyboard emulation is standard on all modern checkout software. RS-232 integration requires the POS vendor to support serial device input. Confirm with your POS provider that they support the 3450VSi's serial protocol (typically raw ASCII barcode output) before deployment.
The Magellan 3450VSi is the right choice for retail operators who prioritize checkout speed, cashier ergonomics, and operational simplicity over flexibility. Chain retailers standardizing scanner hardware across multiple locations, convenience stores with limited counter real estate, and grocery chains managing modern coupon and loyalty barcode workflows should evaluate this scanner as a core checkout component. For more options across the Datalogic portfolio, explore the Datalogic catalog.
