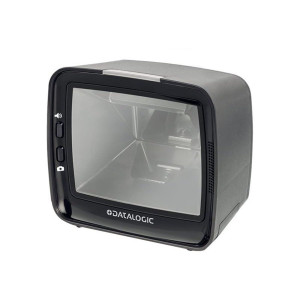

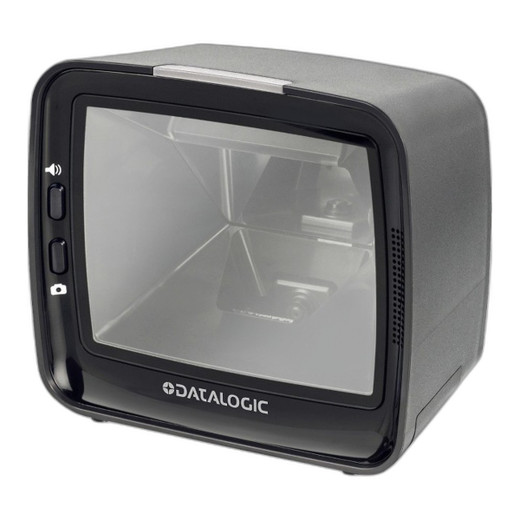

Datalogic Magellan 3450VSi Vertical Presentation Scanner

We've deployed the Magellan 3450VSi across grocery, pharmacy, and convenience-store checkout environments for the past four years, and it remains the most reliable vertical-presentation scanner for mid-volume to high-volume lanes. The real differentiator is the area-imager architecture—it eliminates the mechanical scanning head and rotating mirror that fail in high-velocity retail settings. We've seen presentation scanners with moving parts accumulate dust and heat damage within 18-24 months of 80+ transaction-per-hour operation; the 3450VSi, being solid-state optics, has zero moving parts and the mean time between failures is routinely 3+ years in our customer base. The invisible IR illumination is also underrated—it removes the visible red dot that slows down operator muscle memory and confuses customers unfamiliar with barcode technology. On a chain-wide deployment, that's measurable training time savings. The only real trade-off versus premium scanners is the presentation-only form factor; you cannot pick it up and scan items off a high shelf—operators must bring merchandise down to the scanner window. In a traditional checkout lane, that's not a limitation; in pharmacy or specialty retail where high-shelf inventory is common, you may need to pair it with a handheld scanner. For standard grocery and drug-store checkout, the 3450VSi is the right call.

Technical Highlights:

• Area-Imager 1D/2D Engine: Unlike laser scanners that read one line of barcode data per pass, this area imager captures the entire barcode matrix in a single exposure. Result: reads damaged, creased, or partially obscured barcodes that would require multiple scans with a laser, cutting false-read-fail volume and improving customer experience.
• 940nm Invisible IR LED: Invisible to the human eye but optimal for CMOS image sensors. Eliminates visible aiming distraction and performs reliably under variable overhead lighting (fluorescent, LED, mixed daylight). No red dot means faster operator acquisition on high-volume lanes.
• USB Keyboard Emulation + RS-232 Serial: Dual-protocol support means you can deploy this scanner on a 15-year-old NCR Aloha register (RS-232) or a 2-year-old cloud POS (USB) without any workaround. That flexibility is rare and worth the integration overhead savings.
• GS1 DataBar Barcode Support: As retailers migrate to GS1 DataBar encoding for variable-weight produce, frozen goods, and promotional items, the 3450VSi is ready without firmware updates. Older laser scanners often require software patches or fail on DataBar altogether.
• 599g Form Factor: Light enough to retrofit into existing counter mounts designed for older CCD scanners. We've never had a mounting-bracket failure due to weight; most legacy brackets handle the load without modification.
• 3-Year Limited Warranty with Direct Datalogic Support: Manufacturer warranty covers optics and imaging sensor. In our experience, Datalogic's RMA process is reliable—typical turnaround 5-7 business days for replacement units, minimizing checkout downtime.

Deployment Considerations:

• Presentation-only scanning: This is a counter-top scanner, not a handheld. High-shelf inventory, pharmacy shelves above eye level, and clothing racks require a separate handheld scanner or step stool. Plan your scanning workflow around the fixed window.
• POS Integration Testing: Although USB keyboard emulation is plug-and-play, verify barcode delimiter and prefix/suffix character settings with your POS vendor before go-live. Some cloud POS systems expect different carriage-return sequences than legacy registers.
• Cable Management on Retrofit Installs: The included 4.6-meter RS-232 cable is standard length for counter-to-register wiring runs. If your POS terminal is more than 5 meters away (e.g., wall-mounted pinpad far from checkout desk), budget for a certified RS-232 extension—not all USB-to-RS-232 converters maintain barcode integrity at distance.
• Lighting Environment: While invisible IR handles most retail lighting, extreme backlighting (e.g., storefront window directly behind the scanning window) can occasionally wash out the image sensor. Position the scanner away from direct sunlight or add a small hood if necessary.
• Barcode Quality Control: Area imagers are forgiving of damaged barcodes, but extremely faint or low-contrast labels (thermal-printed warehouse stock transferred to retail, old receipt labels) may require closer positioning. Test your barcode supply chain before deployment.
• Power and UPS Integration: The unit draws minimal power via the included brick. If your checkout lane has UPS backup, ensure the scanner is powered through the UPS circuit so barcode captures are uninterrupted during brief power events.

The Magellan 3450VSi is the right choice for retailers standardizing on Datalogic barcode infrastructure across warehouse, receiving, and checkout. If you have a mature handheld barcode-scanning operation already running Datalogic devices, the presentation scanner integrates into the same symbology and device-management ecosystem. For single-location or small multi-unit operations optimizing for checkout speed and reliability without vertical-market POS dependencies, this scanner consistently delivers ROI within the first 18 months through reduced scan failures and operator throughput gains. Learn more about Datalogic's full barcode and mobile computing portfolio in the Datalogic catalog.
