Zebra DS3608-SR vs Datalogic GD4590-HCK10-HDR-B: Specification Comparison
Both the Zebra DS3608-SR and the Datalogic Gryphon I GD4590-HCK10-HDR-B are corded, handheld 2D area imager barcode scanners supporting USB, RS-232, and Keyboard Wedge interfaces — products a buyer would legitimately cross-shop for warehouse, retail, or light industrial scanning deployments. The comparison evaluates scan performance and symbology coverage, physical ruggedness and environmental tolerance, and power, ergonomics, and connectivity — the three axes most likely to drive a purchasing decision in this scanner category.
In This Guide
- Which scanner offers broader symbology support and longer decode range?
- Which scanner is built for harsher operating conditions and physical abuse?
- How do the two scanners compare on battery, weight, and wireless connectivity?
- Which should you choose: the DS3608-SR or the GD4590-HCK10-HDR-B?
- Side-by-Side Specs
- FAQ
Which scanner offers broader symbology support and longer decode range?

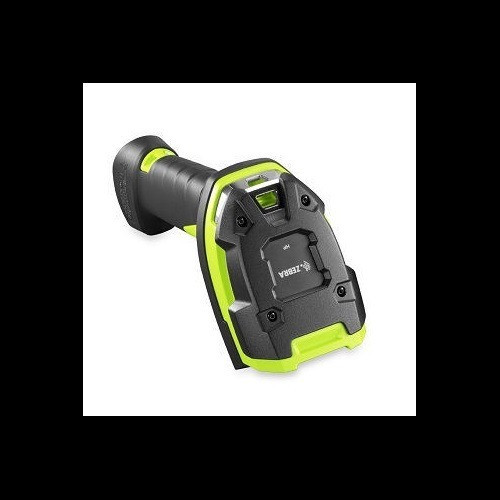

The Zebra DS3608-SR provides an explicitly documented decode range for Code 128: 1.3–6.7 in. at 5 mil, 2.8–28.0 in. at 20 mil, and 1.7–60 in. at 40 mil. It also covers Datamatrix at 1.9–6.0 in. (7.5 mil) and 1.4–8.6 in. (10.0 mil). Its image sensor is rated at 1,280 x 800 pixels with a 42° horizontal / 28° vertical field of view, ±60° skew and pitch tolerance, and ±360° roll. Symbologies include Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, and Base 32.
The Datalogic GD4590-HCK10-HDR-B's specs list QR Code, Data Matrix, PDF417, Code 39, UPC, and EAN. No decode range distances, image sensor resolution, field of view, or angular tolerance figures are provided in the available specifications. The Zebra therefore has documented depth-of-field data and a broader confirmed 1D symbology list; the Datalogic's full symbology support may be wider in practice but cannot be confirmed from the provided specs.
Which scanner is built for harsher operating conditions and physical abuse?
The Zebra DS3608-SR carries IP65 and IP67 sealing ratings on the scanner body and IP65 on the cradle, meaning it is fully dust-tight and rated for sustained water immersion (IP67) or directed water jets (IP65). It is drop-rated for multiple 8.0 ft. (2.4 m) drops to concrete, survives 5,000 tumbles at 1 m, and is rated for ESD of ±25 kV air discharge. Its corded operating temperature spans -30°C to 50°C, with storage to -40°C / 70°C.
The Datalogic GD4590-HCK10-HDR-B carries an IP52 rating — protected against dust ingress sufficient to prevent operation interference and against dripping water at a 15° tilt — a significantly lower ingress protection class than the Zebra. No drop specification, tumble rating, ESD rating, or operating/storage temperature range is provided in the available specifications. For demanding warehouse or outdoor environments, the Zebra's documented ruggedness credentials are substantially stronger.
How do the two scanners compare on battery, weight, and wireless connectivity?
The Zebra DS3608-SR (cordless configuration) carries a 3,100 mAh PowerPrecision+ Li-Ion battery rated for 70,000+ scans per charge, weighs 407 g cordless / 305 g corded, and supports Bluetooth Class 1 v4.0 (LE) with a range of up to 100 m (300 ft.) Class 1. Corded input voltage is 4.5–5.5 VDC (host) or 11.4–12.6 VDC (external), with 340 mA typical operating current.
The Datalogic GD4590-HCK10-HDR-B carries a 3,250 mAh Li-Ion battery — 150 mAh larger than the Zebra — but no scans-per-charge figure is provided. Weight is listed in two places in the provided specs: 161 g (structured spec field) and 222 g (tilde/card field); neither value can be reconciled from the available data, so buyers should verify with the manufacturer. Bluetooth 4.0 is listed as an interface, but no range specification is provided. The Datalogic is lighter than the Zebra on either weight figure, which may favor high-volume handheld use.
Which should you choose: the DS3608-SR or the GD4590-HCK10-HDR-B?
Our take: The DS3608-SR is the stronger choice when verified ruggedness, documented decode range, and broad 1D symbology coverage are required. It holds IP65/IP67 sealing versus the GD4590's IP52, a concrete 8.0 ft. / 2.4 m multi-drop rating versus no drop spec for the Datalogic, and an operating temperature floor of -30°C versus no stated cold-temperature rating for the Datalogic. Its 1,280 x 800 image sensor and documented Code 128 decode range out to 60 in. (40 mil) give integrators hard numbers to design around. The Datalogic offers a 150 mAh larger battery (3,250 vs. 3,100 mAh) and appears lighter, which may benefit all-day handheld retail use, and its 5-year warranty exceeds the Zebra's 3-year coverage. However, the Datalogic's spec sheet contains conflicting weight entries and lacks decode range, drop, temperature, and ESD data — buyers should obtain a full datasheet before specifying it in demanding environments. The DS3608-SR suits rugged warehouse, cold-storage, and industrial deployments; the GD4590 warrants further spec verification for lighter-duty retail use cases.
Side-by-Side Comparison
Spec-for-spec, from manufacturer data.
| Specification | Zebra DS3608-SR | Datalogic GD4590-HCK10-HDR-B |
|---|---|---|
| Scanner Series / Family | DS3608-SR / DS3678-SR | Gryphon I 4500 |
| Scan Type | 2D Area Imager | 2D Area Imager |
| Host Interfaces | USB, RS-232, Keyboard Wedge | USB, RS-232, Keyboard Wedge |
| Wireless | Bluetooth 4.0 (LE), Class 1, up to 100 m | Bluetooth 4.0 (no range specified) |
| Image Sensor | 1,280 x 800 pixels | — |
| Field of View | 42° H / 28° V | — |
| Decode Range Code 128 (20 mil) | 2.8–28.0 in. (7.1–71.1 cm) | — |
| IP Rating (Scanner) | IP65 and IP67 | IP52 |
| Drop Specification | Multiple drops, 8.0 ft. (2.4 m) to concrete | — |
| Tumble Specification | 5,000 tumbles @ 1 m | — |
| Operating Temperature (Corded) | -30°C to 50°C | — |
| Storage Temperature | -40°C to 70°C | — |
| Battery Capacity | 3,100 mAh Li-Ion | 3,250 mAh Li-Ion |
| Scans per Charge | 70,000+ | — |
| Weight (Corded) | 305 g | 161 g or 222 g (conflicting spec entries) |
| Warranty | 3 years | 5 years |
Frequently Asked Questions
Which should you choose: the DS3608-SR or the GD4590-HCK10-HDR-B?
The DS3608-SR is the stronger choice when verified ruggedness, documented decode range, and broad 1D symbology coverage are required. It holds IP65/IP67 sealing versus the GD4590's IP52, a concrete 8.0 ft. / 2.4 m multi-drop rating versus no drop spec for the Datalogic, and an operating temperature floor of -30°C versus no stated cold-temperature rating for the Datalogic. Its 1,280 x 800 image sensor and documented Code 128 decode range out to 60 in. (40 mil) give integrators hard numbers to design around. The Datalogic offers a 150 mAh larger battery (3,250 vs. 3,100 mAh) and appears lighter, which may benefit all-day handheld retail use, and its 5-year warranty exceeds the Zebra's 3-year coverage. However, the Datalogic's spec sheet contains conflicting weight entries and lacks decode range, drop, temperature, and ESD data — buyers should obtain a full datasheet before specifying it in demanding environments. The DS3608-SR suits rugged warehouse, cold-storage, and industrial deployments; the GD4590 warrants further spec verification for lighter-duty retail use cases.
Is the DS3608-SR or the GD4590-HCK10-HDR-B better suited for cold-storage or outdoor warehouse environments?
Based on available specifications, the DS3608-SR is the documented choice for cold environments: it carries a corded operating temperature rating of -30°C to 50°C and storage to -40°C. The GD4590-HCK10-HDR-B provides no operating or storage temperature range in its available specs, so its suitability for cold-storage or outdoor use cannot be confirmed from the data provided.
Which scanner has better water and dust protection for a food processing or wet environment?
The DS3608-SR is rated IP65 and IP67 — fully dust-tight and protected against water immersion — and its cradle is rated IP65. The GD4590-HCK10-HDR-B is rated IP52, which covers partial dust protection and drip resistance only. For wet or washdown environments, the DS3608-SR's IP67 rating is substantially more appropriate.
Does either scanner support wireless operation, and how do their wireless ranges compare?
Both scanners include Bluetooth 4.0. The DS3608-SR specifies a wireless range of up to 100 m (300 ft.) for Class 1 Bluetooth and 10 m (30 ft.) for Class 2. The GD4590-HCK10-HDR-B lists Bluetooth 4.0 as an interface but provides no range specification in the available specs. Buyers requiring a confirmed wireless range figure should request the full Datalogic datasheet.
