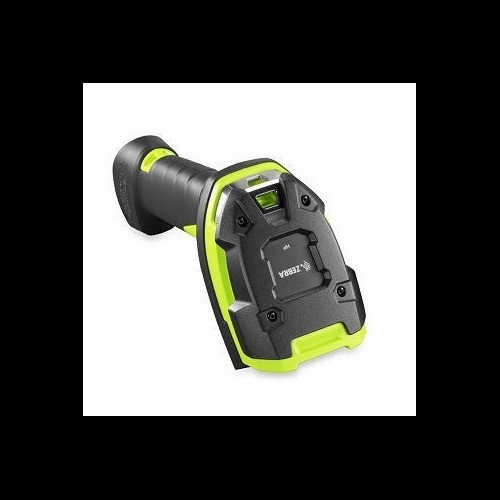

Zebra DS3608-SR TAA Compliant Rugged Area Imager Standard Range Corded - DS3608-SR00CC3VTNA

Product images are provided for reference and may not represent the exact model, configuration, or included components.

Questions about this product? Free pre-sales support from a senior specialist — product questions, compatibility checks, BOM quotes, price confirmation — typically answered within one business day. Need camera placement or system design work? Engineering time is $175 per hour (qty 1 = 1 hour). Hardware buyers get up to one hour ($175) credited back on their order.

Get Free Pre-Sales Support Buy Design Hours ($175/hr)

Description
Expert Analysis
Specifications
Product Video
Q&A
Reviews

Description

Zebra DS3608-SR00CC3VTNA Industrial Scanner

Overview

The Zebra DS3608-SR00CC3VTNA is a corded, standard-range 2D imager engineered for extreme durability in warehouse and manufacturing environments. It captures 1D and 2D barcodes from near contact up to 5 feet (1.5 meters), directly addressing the need for rapid, reliable data capture that drives workforce productivity and on-time order fulfillment. Its design prioritizes resilience in punishing conditions, ensuring uptime where other scanners fail.

Compatibility

This scanner is designed to integrate with host systems via its corded connection. While specific software or host system compatibility is not detailed in the provided evidence, its primary function is direct data input for inventory management, order picking, and quality control systems commonly found in industrial settings. It is intended for use with systems that accept standard USB or serial input from a barcode scanner.

Installation Notes

The DS3608-SR00CC3VTNA is built to withstand drops onto concrete from up to 8 feet (2.4 meters) and survive 5,000 tumbles. This extreme ruggedness means it can be deployed without concern for typical workplace accidents. It operates reliably after simulated real-world tumbling events, exceeding the durability of many comparable devices in its class.

What's in the Box

1x DS3608-SR Corded Standard Range Scanner
1x USB Cable (Type A, 7ft/2.1m, Straight)
1x Presentation Stand

Expert Analysis

Specifications

Scanner Series: DS3608-SR/DS3678-SR

Dimensions Corded: 18.5 cm H x 7.6 cm W x 13.2 cm D

Dimensions Cordless: 18.5 cm H x 7.6 cm W x 14.2 cm D

Weight Corded: 305 g

Weight Cordless: 407 g

Input Voltage Range Host: 4.5 VDC min., 5.5 VDC max.

Input Voltage Range External: 11.4 VDC min., 12.6 VDC max.

Operating Current Corded: 340 mA (typical)

Standby Current Corded: 100 mA (typical)

Supported Host Interfaces: USB, RS232, Keyboard Wedge

Bluetooth Radio: Class 1, Version 4.0 (LE), serial port and HID profiles

Bluetooth Data Rate: 3 Mbit/s (2.1 Mbit/s) for Classic Bluetooth, 1 Mbit/s (0.27 Mbit/s) for Low Energy

Bluetooth Radio Range: Up to 300 ft. (100.0 m) Class 1, Up to 30 ft. (10.0 m) Class 2

Battery Type: PowerPrecision+ 3100 mAh Li-Ion rechargeable battery

Scans per Full Charge: 70,000+

Illumination: One (1) Hyper Red 660nm LED

Imager Field of View: Horizontal: 42°, Vertical: 28°

Image Sensor: 1,280 x 800 pixels

Minimum Print Contrast: 15% minimum reflective difference

Skew: ± 60°

Pitch: ± 60°

Roll: ± 360°

1D Barcodes Supported: Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32

Operating Temperature Corded: -30° C to 50° C

Operating Temperature Cordless: -20° C to 50° C

Storage Temperature: -40° C to 70° C

Humidity: 5% to 95% condensing

Drop Specification: Withstands multiple 8.0 ft. / 2.4 m drops to concrete

Tumble Specification: 5,000 tumbles @ 3.3 ft. (1 m)

Sealing Scanner: IP65 and IP67

Sealing Cradle: IP65

ESD: ±25 KV air discharge, ±10 KV direct discharge, ±10 KV indirect discharge

Decode Range Code 128 (5 mil: 1.3-6.7 in./3.3-17 cm

Decode Range Code 128 (20 mil: 2.8-28.0 in./7.1-71.1 cm

Decode Range Code 128 (40 mil: 1.7-60 in./4.4-152.4 cm

Decode Range Datamatrix (7.5 mil: 1.9-6.0 in./4.8-15.2 cm

Decode Range Datamatrix (10.0 mil: 1.4-8.6 in./3.5-21.8 cm

Regulatory RoHS: EN 50581: 2012

Regulatory Electrical Safety: EN 60950-1, IEC 60950-1, UL 60950-1, CAN/CSA-C22.2 No. 60950-1-07

Regulatory LED Safety: IEC 62471: 2006, EN 62471: 2008

Regulatory EMI/RFI: EN 55022, EN 55024, EN 61000-6-2, EN 61000-3-2, EN 61000-3-3

Regulatory Medical Electrical Equipment: EN 60601-1-2, IEC 60601-1-2

Regulatory Radio Frequency Devices: 47 CFR Part 15, Subpart B, Class B

Regulatory Digital Apparatus: ICES-003 Issue 5, Class B

Warranty: 3 years

Q&A

Reviews

Product Video

Have Questions?

Write a Review 27% OFF

Zebra DS3608-SR TAA Compliant Rugged Area Imager Standard Range Corded - DS3608-SR00CC3VTNA

Corded, standard-range 2D imager engineered for extreme durability in warehouse and manufacturing environments

$985.90 $714.99 SAVE $271

Usually Ships in 2-3 Weeks

Current Stock:

Quantity:

Adding to cart… The item has been added

Compatibility guidance available for your deployment

Senior specialists for pre and post-sales support

Channel-direct sourcing and documentation support

Shipping and lead-time confirmation before install

Talk to Laura

200+ hrs training • U.S - based

Senior Specialist • 877-277-7147

Message Call

Scanner Series DS3608-SR/DS3678-SR
Dimensions Corded 18.5 cm H x 7.6 cm W x 13.2 cm D
Dimensions Cordless 18.5 cm H x 7.6 cm W x 14.2 cm D
Weight Corded 305 g
Weight Cordless 407 g
Input Voltage Range Host 4.5 VDC min., 5.5 VDC max.
Input Voltage Range External 11.4 VDC min., 12.6 VDC max.
Operating Current Corded 340 mA (typical)
Standby Current Corded 100 mA (typical)
Supported Host Interfaces USB, RS232, Keyboard Wedge
Bluetooth Radio Class 1, Version 4.0 (LE), serial port and HID profiles
Bluetooth Data Rate 3 Mbit/s (2.1 Mbit/s) for Classic Bluetooth, 1 Mbit/s (0.27 Mbit/s) for Low Energy
Bluetooth Radio Range Up to 300 ft. (100.0 m) Class 1, Up to 30 ft. (10.0 m) Class 2
Battery Type PowerPrecision+ 3100 mAh Li-Ion rechargeable battery
Scans per Full Charge 70,000+
Illumination One (1) Hyper Red 660nm LED
Imager Field of View Horizontal: 42°, Vertical: 28°
Image Sensor 1,280 x 800 pixels
Minimum Print Contrast 15% minimum reflective difference
Skew ± 60°
Pitch ± 60°
Roll ± 360°
1D Barcodes Supported Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32
Operating Temperature Corded -30° C to 50° C
Operating Temperature Cordless -20° C to 50° C
Storage Temperature -40° C to 70° C
Humidity 5% to 95% condensing
Drop Specification Withstands multiple 8.0 ft. / 2.4 m drops to concrete
Tumble Specification 5,000 tumbles @ 3.3 ft. (1 m)
Sealing Scanner IP65 and IP67
Sealing Cradle IP65
ESD ±25 KV air discharge, ±10 KV direct discharge, ±10 KV indirect discharge
Decode Range Code 128 (5 mil 1.3-6.7 in./3.3-17 cm
Decode Range Code 128 (20 mil 2.8-28.0 in./7.1-71.1 cm
Decode Range Code 128 (40 mil 1.7-60 in./4.4-152.4 cm
Decode Range Datamatrix (7.5 mil 1.9-6.0 in./4.8-15.2 cm
Decode Range Datamatrix (10.0 mil 1.4-8.6 in./3.5-21.8 cm
Regulatory RoHS EN 50581: 2012
Regulatory Electrical Safety EN 60950-1, IEC 60950-1, UL 60950-1, CAN/CSA-C22.2 No. 60950-1-07
Regulatory LED Safety IEC 62471: 2006, EN 62471: 2008
Regulatory EMI/RFI EN 55022, EN 55024, EN 61000-6-2, EN 61000-3-2, EN 61000-3-3
Regulatory Medical Electrical Equipment EN 60601-1-2, IEC 60601-1-2
Regulatory Radio Frequency Devices 47 CFR Part 15, Subpart B, Class B
Regulatory Digital Apparatus ICES-003 Issue 5, Class B
Warranty 3 years
