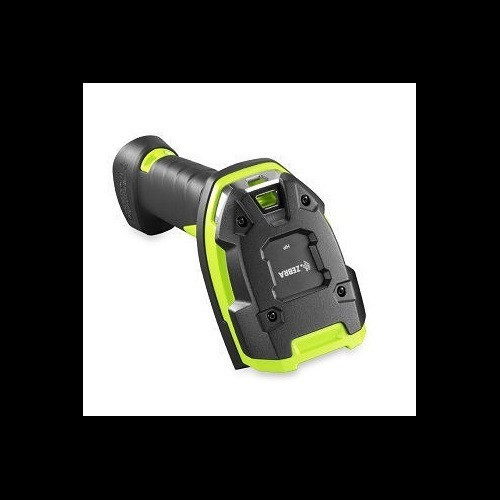

Scanner Series:
DS3608-SR/DS3678-SR
Dimensions Corded:
7.3 in. H x 3.0 in. W x 5.2 in. D
Dimensions Cordless:
7.3 in. H x 3.0 in. W x 5.6 in. D
Weight Corded:
10.8 oz./305 g
Weight Cordless:
14.4 oz./407 g
Input Voltage Range:
4.5 VDC min., 5.5 VDC max.
Operating Current:
340 mA (typical)
Standby Current:
100 mA (typical)
Supported Host Interfaces:
USB, RS232, Keyboard Wedge
Bluetooth Radio:
Class 1, Version 4.0 (LE), serial port and HID profiles
Bluetooth Data Rate:
3 Mbit/s (2.1 Mbit/s) for Classic Bluetooth, 1 Mbit/s (0.27 Mbit/s) for Low Energy
Bluetooth Radio Range:
Up to 300 ft. (100.0 m)
Battery Type:
PowerPrecision+ 3100 mAh Li-Ion rechargeable battery
Scans per Full Charge:
70,000+
Illumination:
One (1) Hyper Red 660nm LED
Imager Field of View:
Horizontal: 42°, Vertical: 28°
Image Sensor:
1,280 x 800 pixels
Minimum Print Contrast:
15% minimum reflective difference
Skew:
± 60°
Pitch:
± 60°
Roll:
± 360°
Operating Temperature Corded:
-22° F to 122° F/-30° C to 50° C
Operating Temperature Cordless:
-4° F to 122° F/-20° C to 50° C
Storage Temperature:
-40° F to 158° F/-40° C to 70° C
Humidity:
5% to 95% condensing
Drop Specification:
Withstands multiple 8.0 ft. / 2.4 m drops to concrete
Tumble Specification:
5,000 tumbles @ 3.3 ft. (1 m)
Sealing:
Scanner: IP65 and IP67; FLB cradle: IP65
ESD:
±25 KV air discharge, ±10 KV direct discharge, ±10 KV indirect discharge
Warranty:
Three (3) years
