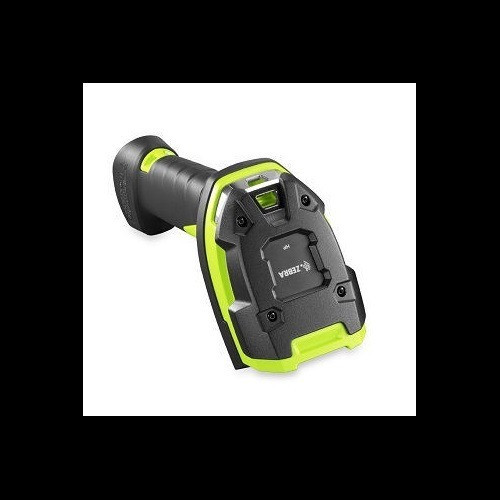

Zebra DS3608-ER TAA Compliant Rugged Area Imager Extended Range Corded - DS3608-ER20CC3VTNA

Product images are provided for reference and may not represent the exact model, configuration, or included components.

Questions about this product? Free pre-sales support from a senior specialist — product questions, compatibility checks, BOM quotes, price confirmation — typically answered within one business day. Need camera placement or system design work? Engineering time is $175 per hour (qty 1 = 1 hour). Hardware buyers get up to one hour ($175) credited back on their order.

Get Free Pre-Sales Support Buy Design Hours ($175/hr)

Description
Expert Analysis
Specifications
Product Video
Q&A
Reviews

Description

Zebra DS3608-ER20CC3VTNA Industrial Scanner

Overview

The Zebra DS3608-ER20CC3VTNA is a corded, ultra-rugged 1D/2D imager designed for extreme environments. It provides extended range scanning, capturing barcodes from near contact up to 6 feet (1.8 meters), making it suitable for warehouse operations, manufacturing floors, and logistics where rapid, reliable data capture is critical for productivity and order accuracy. Its construction is engineered to withstand drops, dust, and moisture, ensuring uptime in punishing conditions.

Compatibility

This scanner is designed to interface with host systems via its integrated corded connection. It is compatible with any system requiring standard USB HID (Human Interface Device) or COM port emulation, common in Warehouse Management Systems (WMS), Manufacturing Execution Systems (MES), and inventory management software. It functions as a keyboard wedge, entering scanned data directly into applications without requiring custom software.

Installation Notes

The DS3608-ER20CC3VTNA is built to survive 8 ft./2.4 m drops to concrete and 5,000 tumbles. It operates reliably in temperatures from -30°C to 50°C (-22°F to 122°F). Its IP67 sealing protects against dust and immersion in water up to 1 meter for 30 minutes. The integrated green vibration motor provides tactile feedback for scan confirmation.

What's in the Box

1x DS3608-ER20CC3VTNA Scanner
1x USB Cable

Expert Analysis

Specifications

Scanner Series: DS3608-SR/DS3678-SR

Dimensions Corded: 7.3 in. H x 3.0 in. W x 5.2 in. D

Dimensions Cordless: 7.3 in. H x 3.0 in. W x 5.6 in. D

Weight Corded: 10.8 oz./305 g

Weight Cordless: 14.4 oz./407 g

Input Voltage Range Host Powered: 4.5 VDC min., 5.5 VDC max.

Input Voltage Range External Power: 11.4 VDC min., 12.6 VDC max.

Operating Current: 340 mA (typical)

Standby Current: 100 mA (typical)

Supported Host Interfaces: USB, RS232, Keyboard Wedge

Bluetooth Radio: Class 1, Version 4.0 (LE), serial port and HID profiles

Bluetooth Data Rate: 3 Mbit/s (2.1 Mbit/s) for Classic Bluetooth, 1 Mbit/s (0.27 Mbit/s) for Low Energy

Bluetooth Radio Range: Class 1: Up to 300 ft. (100.0 m), Class 2: Up to 30 ft. (10.0 m)

Battery Type: PowerPrecision+ 3100 mAh Li-Ion rechargeable battery

Scans Per Full Charge: 70,000+

Illumination: One (1) Hyper Red 660nm LED

Imager Field of View: Horizontal: 42°, Vertical: 28°

Image Sensor: 1,280 x 800 pixels

Minimum Print Contrast: 15% minimum reflective difference

Skew Pitch Roll: Skew: ± 60°; Pitch: ± 60°; Roll: ± 360°

1D Decode Capabilities: Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32

Operating Temperature Corded: -22° F to 122° F/-30° C to 50° C

Operating Temperature Cordless: -4° F to 122° F/-20° C to 50° C

Storage Temperature: -40° F to 158° F/-40° C to 70° C

Humidity: 5% to 95% condensing

Drop Specification: Withstands multiple 8.0 ft. / 2.4 m drops to concrete

Tumble Specification: 5,000 tumbles @ 3.3 ft. (1 m)

Sealing: Scanner: IP65 and IP67; FLB cradle: IP65

ESD: Per EN61000-4-2, ±25 KV air discharge, ±10 KV direct discharge, ±10 KV indirect discharge

Decode Range Code 128 (5 mil: 1.3-6.7 in./3.3-17 cm

Decode Range Code 128 (20 mil: 2.8-28.0 in./7.1-71.1 cm

Decode Range Code 128 (40 mil: 1.7-60 in./4.4-152.4 cm

Decode Range Datamatrix (7.5 mil: 1.9-6.0 in./4.8-15.2 cm

Decode Range Datamatrix (10.0 mil: 1.4-8.6 in./3.5-21.8 cm

Warranty: Three (3) years

RoHS: EN 50581: 2012

Electrical Safety: EN 60950-1, IEC 60950-1, UL 60950-1, CAN/CSA-C22.2 No. 60950-1-07

LED Safety: IEC 62471: 2006, EN 62471: 2008

EMI/RFI: EN 55022 (Class B), EN 55024, EN 61000-6-2, EN 61000-3-2 (Class B), EN 61000-3-3

Medical Electrical Equipment: EN 60601-1-2, IEC 60601-1-2

Radio Frequency Devices: 47 CFR Part 15, Subpart B, Class B

Digital Apparatus: ICES-003 Issue 5, Class B
