Which unit delivers the output waveform and transfer characteristics your load actually requires?

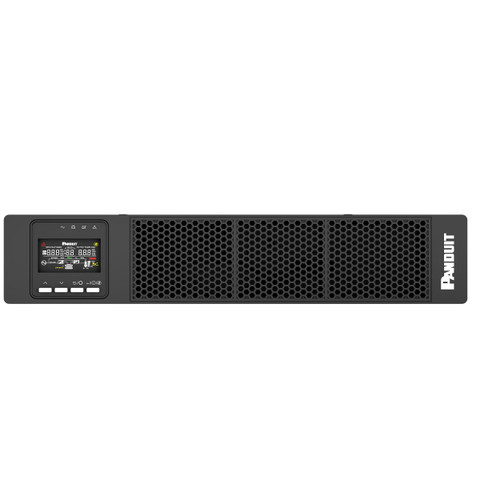

The U03S12V explicitly specifies a True Sine Wave output at 120V AC with a 4 ms typical transfer time. True sine wave output is required by active PFC power supplies found in most modern servers, medical-grade equipment, and high-end networking hardware; a simulated or stepped approximation can cause those loads to malfunction or trip.

The U03N11L's output waveform type is not stated in the provided specifications. Both units are described as Line-Interactive with AVR, meaning both regulate voltage without switching to battery for minor sags or surges. However, without a confirmed sine wave rating on the U03N11L, buyers powering active-PFC loads should treat the U03S12V as the lower-risk choice. The 4 ms transfer time on the U03S12V is a concrete, spec-listed figure; no transfer time is listed for the U03N11L.

Which unit offers deeper built-in management and monitoring without add-on cards?

The U03S12V ships with USB, 10/100 Ethernet, and SNMP as standard, built-in interfaces. This means it can be discovered and monitored on a network management platform out of the box, with no additional hardware purchase required. It also lists Cold Start capability, which allows the UPS to power up a load from battery alone—useful in remote or edge sites where utility power may be absent on initial startup.

The U03N11L provides an optional SNMP/HTTP card slot and a front-panel LCD showing voltage, load, runtime, and faults. Network management is therefore an add-on cost and procurement step, not included. For a single-site deployment where local LCD visibility is sufficient, this is adequate; for centralized data center management or multi-site monitoring, the U03S12V's onboard Ethernet and SNMP eliminate that gap without an extra card.

Which unit's receptacle layout and input connection type fits your rack wiring and load distribution needs?

The U03S12V specifies 8× NEMA 5-15R output receptacles, broken down as 6 battery-backed plus surge-protected and 2 surge-only. This gives installers a clear, documented outlet count and the ability to assign non-critical loads to surge-only circuits while reserving battery capacity for critical equipment.

The U03N11L lists IEC C13 output receptacles with quantity described as varying by model variant, and the input connection is listed as NEMA L5-30P or Hardwire (verify model variant). IEC C13 outputs are common in data center environments and pair natively with standard server and switch power cords, which may be an advantage in some rack configurations. However, the L5-30P input requires a twist-lock circuit—less common than standard 5-20 or 5-30 circuits—and the hardwire option adds installation complexity. Buyers must verify their facility's input wiring before selecting the U03N11L. The U03S12V's input is listed as 120V AC, 50/60 Hz auto-sensing, but the input connector type is not specified in the provided data.

Which should you choose: the U03N11L or the U03S12V?

Our take: The U03S12V is the stronger choice when the load includes active-PFC servers, the deployment requires out-of-box network management, or the site needs cold-start capability. It specifies a True Sine Wave output, a 4 ms transfer time, built-in USB/Ethernet/SNMP, Cold Start, and 8 clearly documented NEMA 5-15R outlets (6 battery-backed, 2 surge-only)—all concrete, listed specs the U03N11L either lacks or leaves as optional add-ons. The U03N11L's IEC C13 outputs may suit rack environments already wired for IEC loads, and its optional SNMP card slot keeps the base unit cost lower if management is not needed. However, without a stated output waveform, transfer time, or fixed outlet count, the U03N11L carries more specification ambiguity. Both units share the same 3000VA/2700W capacity, 2U form factor, and hot-swappable battery design.

Side-by-Side Comparison

Spec-for-spec, from manufacturer data.
