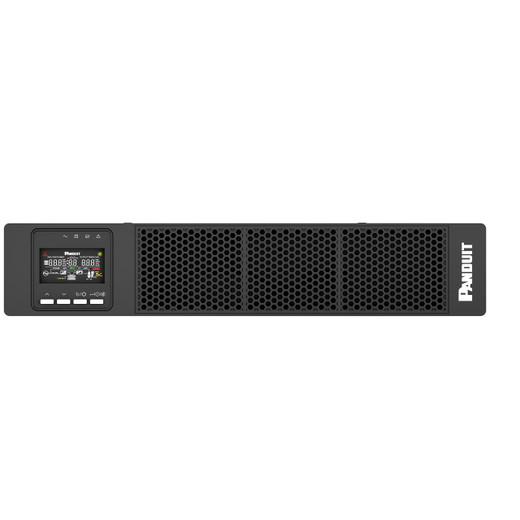

Panduit U03N11L SteadyPulse 3000VA 2U Rack UPS

Panduit U03N11L SteadyPulse 3000VA 2U Rack-Mount UPS

The Panduit U03N11L delivers enterprise-grade power protection in a 2U rack-mount form factor designed for network closets, server rooms, and security equipment racks. Part of Panduit's SteadyPulse™ line, this 3000VA UPS provides line-interactive topology with automatic voltage regulation to handle common power anomalies—sags, surges, and brownouts—without switching to battery, extending runtime during extended outages. The 2U chassis (3.4" H × 17.3" W) fits standard 19-inch racks and includes front-panel LCD diagnostics, making it ideal for integrators deploying PoE switches, NVRs, access control panels, and VoIP gateways where clean power and graceful shutdowns are non-negotiable.

Key Features

• 3000VA Capacity: Supports typical loads of 2400–2700W, sufficient for multiple PoE switches, a 64-channel NVR with spinning drives, and ancillary network gear in a single rack
• 2U Rack Form Factor: 3.4" height fits between patch panels and switches; tool-less rail kits (typically included or sold separately) enable single-installer deployment
• Line-Interactive AVR: Automatic voltage regulation corrects minor voltage fluctuations (±15%) without battery drain, preserving runtime for true outages
• Network Management Ready: SNMP/HTTP card slot (card typically sold separately) enables remote monitoring, scheduled shutdowns, and integration with DCIM platforms via Modbus TCP or SNMP traps
• Hot-Swappable Battery Design: Front-access battery cartridge replacement without shutting down connected loads or removing the UPS from the rack (verify model-specific serviceability in installation guide)
• Surge-Protected Outlets: Multiple IEC C13 receptacles with independent surge suppression ratings (typically 480–600 joules per bank) protect against transient voltage spikes on utility or generator feeds

Integrators face two recurring power challenges in commercial deployments: insufficient runtime calculations and lack of coordination with existing rack PDUs. The U03N11L addresses the first with user-replaceable battery modules—when a site audit reveals that the standard internal battery yields only 8 minutes at full 2700W load, you can field-install extended battery packs (Panduit offers external battery cabinets for the SteadyPulse line) to reach the 20–30 minute runtime required for NVR flush-to-disk cycles and orderly access-controller shutdowns. For the second issue, verify input plug type and output receptacle count during pre-sales: the U03N11L typically ships with a NEMA L5-30P input (30A 120V twist-lock) and eight to ten IEC C13 outputs, but some SKU variants offer hardwire input terminals for integration with building electrical or C19 high-current outlets for redundant PSU servers. Always cross-reference the installation manual's one-line diagram against your rack PDU's breaker capacity—a common mistake is daisy-chaining two 3000VA UPS units on a single 20A branch circuit, which trips the breaker during simultaneous battery recharge after an outage.

The SteadyPulse platform prioritizes serviceability in occupied spaces—critical for healthcare clinics, retail back-offices, and school server closets where after-hours access is restricted. The front-panel LCD displays input voltage, output load percentage, battery health, and estimated runtime in real time, eliminating the need for a connected PC during site surveys. When the unit detects a failing battery (via internal resistance测试 or voltage sag under load), it triggers an audible alarm and LCD fault code; the hot-swap battery tray slides out from the front bezel without disrupting the rack or removing power cables, and replacement cartridges ship in anti-static bags with pre-installed wire harnesses—typical swap time is under five minutes. For remote sites, the optional network management card (verify Panduit SKU compatibility—some cards are generation-specific) provides email alerts, SNMP traps to a central NMS, and an embedded web server for runtime graphs and event logs; integrators running Paxton Net2, Genetec Security Center, or Milestone XProtect can script automated camera-bitrate reduction when the UPS switches to battery, extending runtime by 30–40% during prolonged outages.

Deployment context: the U03N11L is purpose-built for mid-density network/security racks where a single UPS must protect heterogeneous loads—a Cisco Catalyst 9300 PoE switch drawing 800W, an i-PRO 64-channel NVR with four WD Purple drives pulling 600W, a Bosch B5512 fire-alarm control panel at 150W, and a Ubiquiti EdgeRouter consuming 25W. The line-interactive topology handles the 90% of power events (voltage sags from HVAC startup, brief sags from elevator motor inrush) without battery switching, reserving the internal battery bank for the 10% of events that are true blackouts or sustained voltage collapse. Runtime at half-load (1350W) typically runs 15–18 minutes with internal batteries, sufficient for most jurisdictions' fire-code requirement that access-control door strikes remain powered for 15 minutes post-outage (verify AHJ requirements—some West Coast municipalities mandate 30 minutes, necessitating external battery cabinets). The 17.3-inch width is EIA-310-D compliant, fitting all standard 19-inch racks; the 3.4-inch height leaves room for cable management fingers above and below, but integrators should account for the additional 1U–2U of vertical clearance required for the AC input cable's bend radius if using a top-of-rack PDU.

The U03N11L ships with Panduit's standard manufacturer warranty and qualifies for extended coverage when registered within 30 days of installation. The SteadyPulse line integrates seamlessly with Panduit's broader physical infrastructure ecosystem—rack systems, cable managers, and grounding bars—enabling single-vendor coordination for data-center and network-closet builds. For integrators managing dozens of remote sites, the network management card's SNMP MIB aligns with Panduit's structured-cabling MIBs, allowing a single NMS instance to monitor both powered devices and the UPS protecting them, surfacing correlated alarms when a PoE switch browned out due to UPS overload rather than a failed PSU. This is the rack UPS for integrators who need predictable runtime, front-access serviceability, and rack-density optimization without the complexity of double-conversion online topologies.
