Panduit U02N11L SteadyPulse 2U Rack UPS

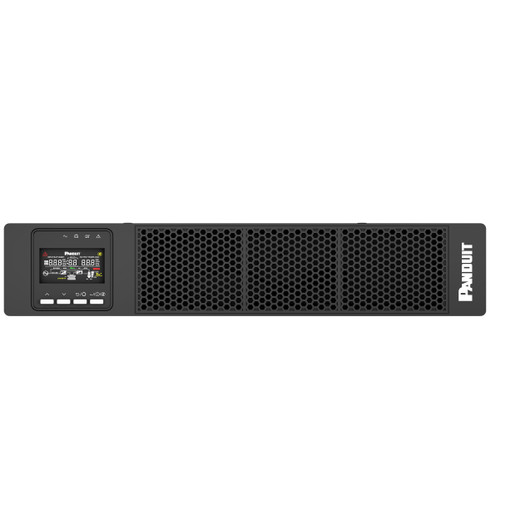

Panduit U02N11L SteadyPulse™ Rack-Mount UPS

The Panduit U02N11L delivers enterprise-grade uninterruptible power protection engineered for mission-critical network infrastructure, security systems, and telecommunications equipment. Built on Panduit's SteadyPulse™ platform, this 2U rack-mount UPS provides clean, conditioned power with automatic voltage regulation to shield sensitive electronics from sags, surges, and outages. The compact 3.4" height and standard 17.3" width allow deployment in dense rack environments where vertical space is at a premium—data centers, server rooms, network closets, and control rooms running 24/7 uptime requirements.

Key Features

• SteadyPulse™ architecture delivers double-conversion topology with zero transfer time for seamless protection
• 2U rack-mount form factor (3.4" H × 17.3" W) fits standard 19" racks and cabinets
• Automatic voltage regulation (AVR) corrects brownouts and overvoltages without draining battery
• Hot-swappable battery design enables maintenance without powering down protected equipment
• Front-panel LCD display provides real-time load, runtime, and status monitoring
• Network management card slot for SNMP monitoring and remote shutdown integration
• Output receptacles configured for server-grade C13/C19 equipment connections
• Extended runtime capability via external battery pack expansion (field-upgradable)
• Built-in surge suppression and EMI/RFI filtering protects against line noise and transients
• Audible alarms and LED indicators for on-battery, overload, and fault conditions

The U02N11L addresses the fundamental problem of power quality in converged IP infrastructure deployments. Unlike consumer-grade standby UPS units that introduce 4-8ms transfer gaps—enough to reboot PoE switches, NVRs, and access controllers—this unit employs double-conversion topology where incoming AC is continuously converted to DC, then regenerated as clean AC. The load never "transfers" to battery; it's already running on inverter output, so sags and interruptions are invisible to downstream equipment. For integrators managing security head-ends with 50+ cameras or access control systems spanning multiple buildings, this zero-break design eliminates nuisance reboots that corrupt NVR databases or drop access credentials mid-transaction.

Rack density matters in network closets and telecom rooms where every RU counts. At 3.4" tall, the U02N11L occupies two rack units while delivering runtime and capacity comparable to larger tower models. The standard 17.3" width mounts flush in 19" racks without adapters, and the front-to-back airflow design integrates with hot-aisle/cold-aisle cooling strategies in enclosed cabinets. Front-accessible controls and display eliminate the need to reach behind gear during commissioning or troubleshooting—critical in densely populated racks where rear access requires cable management disassembly. The hot-swappable battery cartridge slides out from the front, so battery replacement happens without unmounting the chassis or powering down protected loads. This matters during scheduled maintenance windows or emergency battery swaps when uptime SLAs don't permit full shutdowns.

The front-panel LCD goes beyond binary "on battery" indicators common in budget models. Real-time metrics include input voltage, output load percentage, estimated runtime remaining, and battery health status. Integrators can verify that a partially loaded UPS will sustain a 4-hour outage before committing to overnight maintenance, or identify an overload condition before it trips the inverter. The audible alarm differentiates between routine on-battery events (power blink) and critical faults (overload, battery end-of-life, overheat), so technicians aren't chasing false alarms at 2 a.m. when utility maintenance causes brief sags. For remote sites, the optional network management card (field-installable) provides SNMP integration with enterprise monitoring platforms—send graceful shutdown commands to NVRs and servers during extended outages, log power events for root-cause analysis after equipment failures, and receive email/SMS alerts when battery runtime drops below threshold.

Automatic voltage regulation extends battery life and reduces energy waste. When input voltage sags to 95V or swells to 135V—common in older buildings with marginal electrical infrastructure—the AVR circuit automatically compensates by tapping transformer windings, correcting the output to stable 120V without invoking the battery. This matters in strip-mall installations, industrial environments with heavy motor loads, or rural sites on long utility runs where voltage fluctuation is chronic. Without AVR, the UPS would drain its battery dozens of times daily, accelerating wear and shortening replacement intervals from 3-5 years down to 18-24 months. The U02N11L's AVR range handles ±15% input variation, so the battery reserves its cycles for actual outages rather than compensating for everyday grid instability.

Output receptacles are configured for server-class equipment with IEC C13 and C19 connections—no consumer NEMA 5-15R outlets that force you to use brick-and-adapter power supplies in a rack environment. This matches the power cords on enterprise switches, NVRs, servers, and fiber enclosures, eliminating the rat's nest of Edison-to-IEC adapters that add failure points and make cable management impossible. Receptacle groups can be individually monitored for load distribution, so you can verify that a 16-port PoE+ switch drawing 240W isn't sharing a circuit leg with a 12-bay NVR pulling 180W—overload one group and the entire UPS can fault. This visibility prevents the "everything was fine until we added one more camera" scenario that trips breakers during peak load.

Extended runtime is field-upgradable via external battery pack connection. The base unit provides sufficient runtime for typical shutdown sequences—5-10 minutes at full load, 20-30 minutes at half load—but edge deployments in utility-challenged regions often need 4-8 hour runtime to bridge afternoon thunderstorm outages or utility maintenance windows. External battery cabinets daisy-chain to the UPS without opening the chassis or adding controller cards; the inverter auto-detects additional capacity and recalculates runtime estimates on the display. This scalability lets you deploy a base unit today and expand runtime later as the client's uptime requirements mature, rather than over-provisioning (and over-paying) upfront for capacity that may never be needed.

Built-in surge suppression and EMI/RFI filtering address the hidden enemy in commercial power environments: line noise from variable-frequency drives, fluorescent ballasts, elevator motors, and welding equipment. These transients don't cause outages, but they introduce high-frequency noise that corrupts Ethernet signals, induces bit errors in PoE delivery, and degrades CCTV image quality. The U02N11L's input filter clamps surges at the service entrance before they reach sensitive electronics, and the output stage delivers clean sinusoidal AC free of harmonic distortion. For integrators troubleshooting intermittent camera dropouts or "ghost" access control events, line noise is often the culprit—and the UPS is the fix, not just backup power.

Thermal management in rack-mount UPS units is non-negotiable. The U02N11L employs front-to-back cooling with variable-speed fans that ramp up under load or high ambient conditions, then throttle back during light-load periods to reduce acoustic signature. Fan noise matters in conference rooms, office areas, and retail back-offices where the network closet shares a wall with occupied space. At idle or light load, the fans run near-silent; under sustained full load or in 35°C environments, they increase airflow to maintain safe component temperatures without triggering thermal shutdown. The front intake and rear exhaust align with enclosed rack cooling strategies, so the UPS doesn't fight against cabinet airflow or create hot spots that age adjacent equipment.

SteadyPulse™ represents Panduit's commitment to physical infrastructure systems that integrate with their Category 6A copper, fiber optic, and PoE portfolios. This isn't badge engineering over an OEM chassis—it's a purpose-built line designed for the same integrators deploying Panduit structured cabling, cable management, and grounding systems. The U02N11L shares design language, mounting standards, and support channels with the rest of the Panduit ecosystem, so you're working with a single vendor for power, connectivity, and physical layer—not juggling three manufacturers with conflicting warranty terms and incompatible mounting hardware. For large campus deployments standardizing on Panduit end-to-end, the U02N11L closes the loop on power protection without introducing a fourth brand into the BOM.

UL 1778 listing for uninterruptible power systems and FCC Part 15 Class A compliance confirm the unit meets North American safety and emissions standards for commercial environments. The Class A designation is appropriate for industrial, office, and light-commercial spaces (not residential), aligning with the target deployment profile. Panduit's standard manufacturer warranty covers defects in materials and workmanship; batteries are typically covered separately with prorated replacement terms reflecting their consumable nature. For mission-critical deployments, consider Panduit's extended service agreements that add advance replacement, on-site depot stocking, and 24/7 technical support—critical when a Saturday outage threatens to cost the client thousands per hour in downtime.
