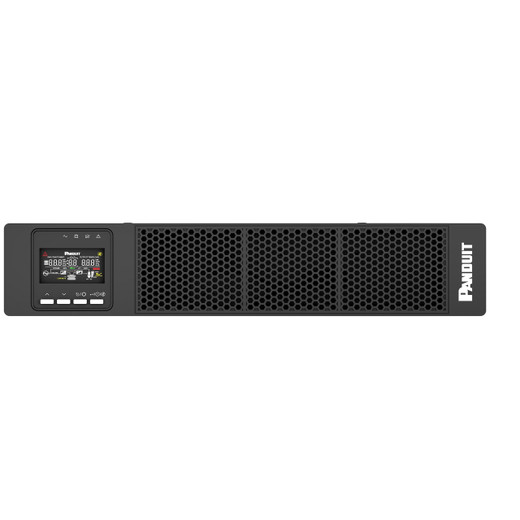

Panduit U02S12V SteadySine™ 2000VA 2U Rack-Mount UPS

The Panduit U02S12V delivers pure sine wave backup power for mission-critical IT infrastructure in data centers, edge deployments, and enterprise MTDC environments. Built on the SteadySine™ platform, this 2000VA rack-mount UPS provides clean, utility-grade power output that protects sensitive networking equipment, servers, and security appliances from outages, sags, surges, and harmonic distortion. Its 2U form factor integrates seamlessly into standard 19-inch racks alongside switches, routers, and storage systems, positioning battery backup exactly where integrators need it—adjacent to the PoE switches, NVRs, and access control panels that keep facilities secure and connected.

Key Features

• Pure sine wave output eliminates harmonic distortion that damages server power supplies and network equipment
• 2000VA capacity supports mixed loads of PoE switches, IP cameras, access control panels, and edge compute devices
• 2U rack-mount design (17.3" × 3.4") fits standard EIA-310 racks without occupying valuable cabinet space
• SteadySine™ platform delivers utility-grade power quality for voltage-sensitive security and IT hardware
• Data center and edge-optimized for installations requiring extended runtime during brief outages
• Compatible with enterprise MTDC (Modular/Tactical Data Center) deployments requiring reliable backup power
• Voltage regulation corrects sags and swells without draining battery, preserving runtime for actual outages
• Sub-4ms transfer time ensures zero disruption to active recording streams, VoIP calls, and network sessions
• EMI/RFI filtering protects Ethernet signaling and PoE delivery from high-frequency noise interference

Unlike modified sine wave or simulated sine wave UPS systems that produce stepped approximations of AC power, the U02S12V generates true sine wave output identical to utility power. This distinction matters for modern switching power supplies in PoE+ switches, NVRs, and IP camera infrastructure—modified sine wave causes excessive heat, reduced efficiency, audible noise from transformers, and premature failure of capacitors in power supply input stages. Integrators deploying Axis cameras, Hanwha recorders, or UniFi networking gear on backup power require sine wave UPS to maintain manufacturer warranties and avoid field failures. The SteadySine platform maintains less than 3% total harmonic distortion (THD) under nonlinear loads, preventing the voltage distortion that corrupts PoE negotiation, triggers nuisance reboots in managed switches, and shortens the service life of electrolytic capacitors in IP camera power circuits.

Power quality directly impacts system uptime. When utility voltage sags below nominal during high-demand periods or swells during light-load conditions, inferior UPS units either allow the disturbance through to connected equipment or unnecessarily switch to battery, wasting runtime on events that don't require backup power. The U02S12V's automatic voltage regulation (AVR) corrects input voltage variations without battery discharge, extending available runtime for the outages that matter. Surge suppression clamps transients from lightning strikes and utility switching operations before they reach sensitive electronics. Multi-stage EMI/RFI filtering blocks high-frequency noise from variable-frequency drives, LED lighting controllers, and other sources of electrical interference that degrade Ethernet signaling integrity and disrupt PoE power delivery to cameras and access readers. Frequency regulation maintains 60Hz ± 0.1Hz output even when utility frequency drifts, critical for timing-sensitive applications like NTP servers, access control panels with real-time event scheduling, and synchronized camera arrays requiring frame-accurate recording.

Rack density drives data center and telecommunications room design. At 2U height, the U02S12V provides 2000VA capacity without consuming the 3U-4U footprint typical of competing tower-converted rack-mount units or the floor space of traditional tower UPS. The 17.3-inch width mounts flush in standard 19-inch racks using included mounting hardware, positioning battery runtime in the same cabinet as the protected equipment. This eliminates the floor-standing tower UPS common in smaller deployments, which creates trip hazards in equipment rooms, occupies premium rack adjacency that could house additional switches or patch panels, and complicates structured cabling and cable management. For integrators building out edge sites, branch offices, security equipment rooms, or IDF closets, rack-mount UPS centralizes backup power with the protected load, shortening AC power runs, simplifying emergency shutdown sequencing, and reducing the number of devices requiring individual monitoring.

The 2000VA capacity supports typical security and IT edge loads: a 24-port PoE+ switch drawing 400W under full camera load, an 8-channel NVR with internal storage consuming 60W, a managed access control panel at 25W, and auxiliary devices like environmental sensors and door controllers. When sizing UPS for surveillance deployments, integrators must account for inrush current during simultaneous camera startups after power restoration—PoE devices can draw 2-3× their steady-state power for several seconds during boot, and undersized UPS units trip on overload before cameras finish initialization. The U02S12V's capacity headroom accommodates these transient demands while maintaining sufficient runtime for graceful NVR shutdown during extended outages, preserving recorded video and preventing filesystem corruption that occurs when storage systems lose power during active writes.

Battery runtime depends on connected load and environmental conditions. A typical security head-end drawing 500W receives approximately 10-12 minutes of runtime at 77°F ambient temperature—sufficient for brief utility interruptions and long enough to execute automated shutdown sequences that close recording databases, sync buffered writes to disk, and power down storage arrays without data loss. Installations in temperature-controlled equipment rooms achieve rated runtime; deployments in unconditioned spaces experience reduced capacity as battery chemistry efficiency decreases in heat or cold. Integrators specifying UPS for critical applications should calculate runtime at 80% of nameplate capacity to account for battery aging, as sealed lead-acid cells lose 20-30% of original capacity over their typical 3-5 year service life. Facilities requiring extended runtime beyond what a single 2U UPS provides should consider external battery cabinets or generator transfer switching rather than oversizing UPS capacity, as battery cost scales poorly compared to fuel-based backup for long-duration outages.

Installation in standard EIA-310 racks requires front-mount brackets and adequate weight support—the U02S12V with batteries installed weighs approximately 50-60 lbs, necessitating mounting in reinforced rack rails rather than relying solely on front-ear support. Rack positioning should account for heat dissipation; installing UPS units at the top of enclosed cabinets traps heat and accelerates battery degradation, while bottom-mounting positions the heaviest component low in the rack for stability but may complicate cable management if power distribution units occupy the bottom rail positions. Best practice places UPS in the middle third of the rack with 1U spacing above and below for airflow, input power cords routed through vertical cable managers to strain-relief connections, and output circuits clearly labeled to distinguish backed-up receptacles from surge-only outlets during troubleshooting.

The U02S12V transfers to battery backup in under 4 milliseconds during outages, faster than the hold-up time engineered into quality server and networking power supplies. Modern enterprise equipment includes input capacitors sized to maintain DC rail voltage for 8-16ms during AC interruptions, allowing seamless transitions that preserve active network sessions, ongoing recording streams, and VoIP calls without dropouts or reconnection delays. This sub-cycle transfer time proves critical in security applications where camera streams feed real-time monitoring stations—even brief video interruptions during power events trigger alarm center callbacks and dispatch responses that waste labor investigating non-events. Access control systems benefit similarly; door controllers losing power mid-transaction can leave doors in fail-safe or fail-secure states contrary to building codes, while losing communication with credential readers creates security gaps where valid credentials are rejected or, worse, where lack of online verification allows unauthorized access.

The Panduit U02S12V meets UL 1778 standards for uninterruptible power supplies, ensuring construction quality, electrical safety, and performance characteristics suitable for installation in commercial and institutional facilities. It carries cUL recognition for use in the United States and Canada, satisfying authority having jurisdiction (AHJ) requirements during electrical inspections and occupancy certifications. Compliance with UL 1778 verifies that the UPS will not create fire hazards during battery charging, fault conditions, or end-of-life scenarios, and that safety interlocks prevent user access to hazardous voltages during battery replacement or troubleshooting. For integrators working on projects requiring code compliance documentation—healthcare facilities, educational institutions, government buildings, or any installation where the electrical contractor pulls permits—UL-listed power protection equipment eliminates inspection failures and callback costs that occur when unapproved devices are discovered during final walkthroughs.

The SteadySine platform positions Panduit's UPS line as purpose-built for the converged IT and physical security infrastructure common in modern commercial deployments, where IP cameras, access readers, intercoms, and intrusion panels share network switches and VLAN segments with data traffic. Pure sine wave topology, automatic voltage regulation, rack-optimized packaging, and standards compliance converge to create backup power infrastructure that integrators can specify with confidence, knowing that power quality won't compromise equipment warranties, that physical installation follows datacenter best practices, and that the protection system itself meets the same commercial-grade standards as the security and networking equipment it safeguards.
