Middle Atlantic OL3000R-2 vs Middle Atlantic OL3000R-2: Specification Comparison

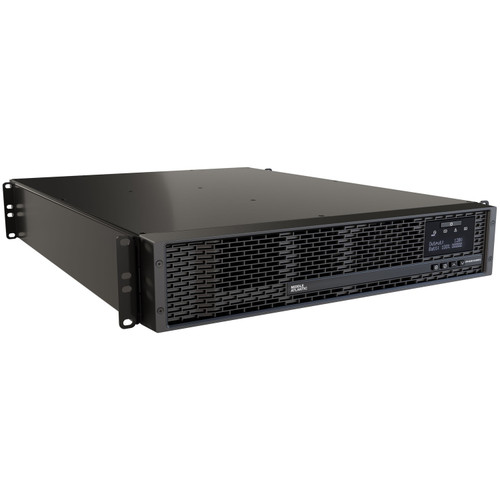

Both products are Middle Atlantic Nexsys-series 3000VA/2700W true online double-conversion rack UPS units sharing identical physical and electrical specifications: 2U chassis, 19-inch width, 22-inch depth, 30A NEMA L5-30P input, and seven-outlet output with one L5-30R and six NEMA 5-20R receptacles. The sole differentiator implied by their SKUs is outlet-control management: the UPX-OL3000R-2 offers local bank control, while the UPX-RLNK-OL3000R-2 adds network-linked (RLNK) remote management. Buyers cross-shopping these two are choosing a management tier, not a power tier.
In This Guide
- How does outlet-level control and remote management differ between the two units?
- Are the core power and electrical specifications identical across both units?
- Do the two units differ in physical dimensions, weight, or environmental ratings?
- Which should you choose: the OL3000R-2 or the OL3000R-2?
- Side-by-Side Specs
- FAQ
How does outlet-level control and remote management differ between the two units?
The UPX-OL3000R-2 specifies 'Bank' as its Outlet Control Type, consistent with local bank-level switching via front-panel or direct interface. The UPX-RLNK-OL3000R-2 carries the same 'Bank' Outlet Control Type in the provided specs, but its SKU suffix 'RLNK' indicates a network-linked management module. However, the supplied specification data for both units lists identical fields with no network management port, IP address capability, or remote-control spec explicitly called out in either record. Buyers requiring confirmed network remote outlet control should verify the RLNK feature against the product datasheet at /content/product-datasheets/UPX-RLNK-OL3000R-2.pdf, as the distinguishing network-management specification is not present in the data provided here.
Are the core power and electrical specifications identical across both units?
Yes. Both units share every electrical specification in the provided data: 3000VA/2700W capacity, 30A input current, NEMA L5-30P plug, 110–127 VAC output, one L5-30R receptacle plus six NEMA 5-20R outlets (seven total), and bank-type outlet control. Topology is listed as 'Online' (double-conversion) for both. Input cord length is 10 ft (3.1 m) on both units. There is no specification delta in the power or electrical layer between the two SKUs based on the data supplied.
Do the two units differ in physical dimensions, weight, or environmental ratings?
Physical dimensions are identical: 19 in W × 22 in D × 3.5 in H (48.3 × 55.9 × 8.9 cm), 2U form factor, four mounting points, and a mounting depth range of 28–36 in. Product weight is 64.2 lbs (29.1 kg) for both. The only physical difference in the provided specs is shipping weight: UPX-OL3000R-2 ships at 75.18 lbs (34.1 kg) versus UPX-RLNK-OL3000R-2 at 75.35 lbs (34.2 kg)—a delta of 0.17 lbs (0.1 kg), likely attributable to packaging or the network module hardware. Operating temperature range is 32°–104°F (0°–40°C) for both. Certifications are identical: cTUVus, Energy Star 2.0, TAA Compliant, REACH.
Which should you choose: the OL3000R-2 or the OL3000R-2?
Our take: The UPX-RLNK-OL3000R-2 is the stronger choice when remote network-level outlet management is required; the UPX-OL3000R-2 is appropriate where local bank control is sufficient and a simpler feature set is preferred. On every electrical and physical specification in the supplied data the two units are identical: 3000VA/2700W, 30A L5-30P input, 110–127 VAC output, seven outlets, 22-inch depth, 64.2 lb product weight, and 32°–104°F operating range. The only measurable delta in the provided specs is a 0.17 lb difference in shipping weight. The network-management distinction implied by the RLNK suffix—the actual decision axis—is not enumerated in the supplied spec records and must be confirmed via the respective datasheets. For AV/IT rack deployments requiring IP-based remote reboot or outlet scheduling, verify the RLNK unit's network port and software compatibility with the site's management platform before specifying.
Side-by-Side Comparison
Spec-for-spec, from manufacturer data.
| Specification | Middle Atlantic OL3000R-2 | Middle Atlantic OL3000R-2 |
|---|---|---|
| VA Rating | 3000VA | 3000VA |
| Watt Rating | 2700 W | 2700 W |
| Topology | Online (double-conversion) | Online (double-conversion) |
| Input Current | 30 A | 30 A |
| Plug Type | NEMA L5-30P | NEMA L5-30P |
| AC Voltage Output | 110–127 VAC | 110–127 VAC |
| Total Outlet Count | 7 | 7 |
| Receptacle Type (dedicated) | 1 × L5-30R | 1 × L5-30R |
| NEMA 5-20R Outlets | 6 | 6 |
| Outlet Control Type | Bank | Bank |
| Network Management | Not specified in provided data | Not specified in provided data (RLNK SKU — verify datasheet) |
| Cord Length | 10 ft (3.1 m) | 10 ft (3.1 m) |
| Dimensions (W × D × H) | 19 × 22 × 3.5 in | 19 × 22 × 3.5 in |
| Product Weight | 64.2 lbs (29.1 kg) | 64.2 lbs (29.1 kg) |
| Shipping Weight | 75.18 lbs (34.1 kg) | 75.35 lbs (34.2 kg) |
| Certifications | cTUVus, Energy Star 2.0, TAA, REACH | cTUVus, Energy Star 2.0, TAA, REACH |
Frequently Asked Questions
Which should you choose: the OL3000R-2 or the OL3000R-2?
The UPX-RLNK-OL3000R-2 is the stronger choice when remote network-level outlet management is required; the UPX-OL3000R-2 is appropriate where local bank control is sufficient and a simpler feature set is preferred. On every electrical and physical specification in the supplied data the two units are identical: 3000VA/2700W, 30A L5-30P input, 110–127 VAC output, seven outlets, 22-inch depth, 64.2 lb product weight, and 32°–104°F operating range. The only measurable delta in the provided specs is a 0.17 lb difference in shipping weight. The network-management distinction implied by the RLNK suffix—the actual decision axis—is not enumerated in the supplied spec records and must be confirmed via the respective datasheets. For AV/IT rack deployments requiring IP-based remote reboot or outlet scheduling, verify the RLNK unit's network port and software compatibility with the site's management platform before specifying.
Can I reboot individual outlets remotely on either of these units?
Based on the supplied specifications, both units list 'Bank' as the Outlet Control Type with no network management port or remote-access spec explicitly documented in the provided data. The UPX-RLNK-OL3000R-2 SKU suffix suggests a network-linked management capability, but that feature is not confirmed in the spec records provided here. Verify remote outlet reboot capability against the UPX-RLNK-OL3000R-2 datasheet before specifying for remote-reboot use cases.
Will either unit fit a standard 2U rack bay with a 30-inch usable depth?
Both units are 2U (3.5 in / 8.9 cm tall), 19 in wide, and 22 in deep, with a specified mounting depth range of 28–36 in. A rack with at least 28 in of usable mounting depth will accommodate either unit. The chassis depth of 22 in fits within that envelope on both models.
Are there any certification or compliance differences between the two SKUs?
No. Both units carry identical certifications and compliance markings in the provided specifications: cTUVus, Energy Star 2.0, TAA Compliant, REACH, and RoHS (listed as 'Patents' in both records). Neither unit shows a certification advantage over the other based on the supplied data.
