Datalogic M3410-010200-07104 vs Zebra DS9908: Specification Comparison
Both the Datalogic Magellan 3410VSi (M3410-010200-07104) and the Zebra DS9908-HD4000WZZWW are corded, countertop presentation area imagers designed for retail point-of-sale environments. Each reads 1D and 2D symbologies via an imaging engine and connects over USB or RS-232. A buyer evaluating either unit is choosing a fixed, hands-free scanning solution for a checkout lane or service counter, making direct cross-shopping appropriate despite differences in form factor orientation and feature depth.
In This Guide
- Which scanner covers more symbology types and delivers stronger scan-engine performance?
- How do the two units compare on physical durability, environmental sealing, and operating conditions?
- What connectivity options, power requirements, and host interface breadth does each scanner support?
- Which should you choose: the M3410-010200-07104 or the DS9908?
- Side-by-Side Specs
- FAQ
Which scanner covers more symbology types and delivers stronger scan-engine performance?
The Datalogic M3410-010200-07104 specifies a 2D area imager supporting QR Code, Data Matrix, PDF417, and standard 1D linear codes including Code 128, Code 39, UPC, and EAN. The scan pattern is described as omnidirectional. No swipe speed, field-of-view angle, image sensor resolution, or minimum element width is stated in the provided specifications.

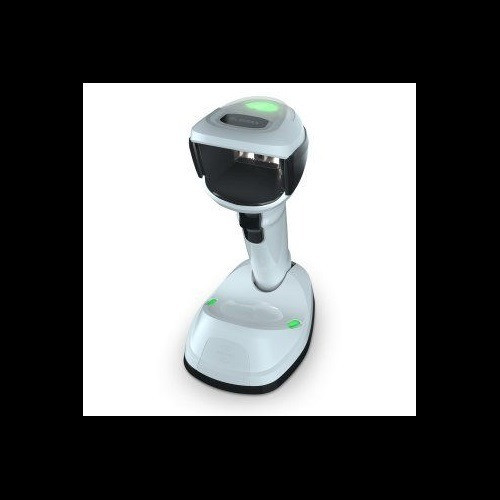

The Zebra DS9908 specifies a considerably broader symbology set: on the 1D side it adds Code 93, Codabar/NW7, Code 11, MSI Plessey, I 2 of 5, Korean 3 of 5, GS1 DataBar, and Base 32 beyond the basics. Its 2D coverage extends to Micro PDF417, Composite Codes, TLC-39, Aztec, MaxiCode, Micro QR, Han Xin, and Postal Codes. It also provides OCR-A, OCR-B, MICR, and US Currency OCR — capabilities entirely absent from the Datalogic spec sheet. Scan performance is quantified: swipe speed up to 240 in./610 cm per second, a 1280 × 800-pixel image sensor, 48° H × 30.6° V field of view, ±60° skew and pitch tolerance, 360° roll tolerance, and a 16% minimum print contrast. The DS9908R variant of this family also adds EPC Class 1 Gen2, EPC Gen2 V2, and ISO-18000-63 RFID across 902–928 MHz (US), 865–868 MHz (EU), and 916–923 MHz (Japan) — though the specific SKU here (DS9908-HD4000WZZWW) is the non-RFID model and RFID output specs apply to the DS9908R variant per the provided data.
How do the two units compare on physical durability, environmental sealing, and operating conditions?
The Datalogic M3410-010200-07104 is rated IP52 and weighs 350 g (approximately 12.3 oz) per the spec sheet, with dimensions of 152 × 137 × 94 mm (5.98 × 5.39 × 3.70 in). No drop specification, tumble specification, operating temperature range, storage temperature range, or humidity range is provided in the supplied specifications.
The Zebra DS9908 is also rated IP52 and weighs 330 g (11.6 oz), making it slightly lighter than the Datalogic unit. Its footprint is 8.0 in. H × 3.7 in. W × 5.2 in. D. Beyond the IP rating, Zebra provides a validated 5.0 ft./1.5 m drop-to-concrete specification and a 2,000-tumble rating at 0.5 m. Operating temperature is defined as 0° to 50° C (32° to 122° F), storage temperature as −40° to 70° C (−40° to 158° F), and humidity as 5%–95% RH non-condensing. Ambient light immunity is rated to 10,000 foot-candles/107,600 lux. Electrostatic discharge tolerance is specified at ±15 KV air and ±8 KV direct/indirect. None of these environmental envelope figures are available in the Datalogic spec sheet provided.
What connectivity options, power requirements, and host interface breadth does each scanner support?
The Datalogic M3410-010200-07104 lists USB and RS-232 as supported interfaces. No power input voltage, operating current draw, or additional host interface types are specified in the provided data. The product is described as oriented for retail POS integration, and the form factor is a vertical on-counter presentation design.
The Zebra DS9908 supports USB (USB Certified), RS-232, Keyboard Wedge, and TGCS (IBM) 46xx over RS485 — four distinct host interfaces versus two for the Datalogic. Power input is specified at 4.5 to 5.5 VDC, with a typical operating current of 356 mA and a standby current of 70 mA. The Datalogic warranty is listed as a 3-Year Factory/Limited Warranty; no warranty term is stated in the Zebra specification data provided. The Datalogic spec notes a mount type of 'Wall,' which is atypical for a countertop presentation scanner and may reflect a data-entry artifact rather than a verified installation mode — buyers should confirm with the datasheet.
Which should you choose: the M3410-010200-07104 or the DS9908?
Our take: The DS9908 is the stronger choice when symbology breadth, quantified scan performance, and documented environmental resilience are the primary decision criteria. Zebra's spec sheet provides a validated 5.0 ft. drop rating, 2,000-tumble durability, a 1280 × 800-pixel sensor, 240 in./sec swipe speed, ±60° skew/pitch tolerance, OCR support, and four host interfaces (adding Keyboard Wedge and IBM 46xx RS-485) — none of which appear in the Datalogic-provided specifications. Both units share IP52 sealing. The M3410-010200-07104 is the more appropriate choice for a buyer whose POS environment is already standardized on Datalogic Magellan infrastructure, whose symbology requirements are limited to core 1D plus QR/Data Matrix/PDF417, or whose integration path is strictly USB or RS-232 — particularly where the 3-year factory warranty and compact 152 × 137 × 94 mm vertical footprint are specifically required.
Side-by-Side Comparison
Spec-for-spec, from manufacturer data.
| Specification | Datalogic M3410-010200-07104 | Zebra DS9908 |
|---|---|---|
| Product Type | Vertical Presentation Scanner | Presentation Area Imager |
| Scan Engine | 2D Area Imager | 2D Area Imager (High Density) |
| Supported Interfaces | USB, RS-232 | USB (Certified), RS-232, Keyboard Wedge, IBM 46xx RS-485 |
| 1D Symbologies | Code 128, Code 39, UPC, EAN, other standard linear | Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 |
| 2D Symbologies | QR Code, Data Matrix, PDF417 | PDF417, Micro PDF417, Composite, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Han Xin, Postal Codes |
| OCR Support | — | OCR-A, OCR-B, MICR, US Currency |
| Image Sensor Resolution | — | 1280 x 800 pixels |
| Swipe Speed | — | Up to 240 in./610 cm per second |
| Field of View | — | 48° H x 30.6° V |
| Skew / Pitch / Roll Tolerance | — | ±60° / ±60° / 0°–360° |
| IP Rating | IP52 | IP52 |
| Drop Specification | — | 5.0 ft./1.5 m to concrete |
| Tumble Specification | — | 2,000 tumbles at 0.5 m |
| Weight | 350 g (approx. 12.3 oz) | 330 g (11.6 oz) |
| Dimensions | 152 x 137 x 94 mm (5.98 x 5.39 x 3.70 in.) | 8.0 in. H x 3.7 in. W x 5.2 in. D |
| Operating Temperature | — | 0° to 50° C (32° to 122° F) |
| Input Voltage | — | 4.5 to 5.5 VDC |
| Warranty | 3-Year Factory/Limited Warranty | — |
Frequently Asked Questions
Which should you choose: the M3410-010200-07104 or the DS9908?
The DS9908 is the stronger choice when symbology breadth, quantified scan performance, and documented environmental resilience are the primary decision criteria. Zebra's spec sheet provides a validated 5.0 ft. drop rating, 2,000-tumble durability, a 1280 × 800-pixel sensor, 240 in./sec swipe speed, ±60° skew/pitch tolerance, OCR support, and four host interfaces (adding Keyboard Wedge and IBM 46xx RS-485) — none of which appear in the Datalogic-provided specifications. Both units share IP52 sealing. The M3410-010200-07104 is the more appropriate choice for a buyer whose POS environment is already standardized on Datalogic Magellan infrastructure, whose symbology requirements are limited to core 1D plus QR/Data Matrix/PDF417, or whose integration path is strictly USB or RS-232 — particularly where the 3-year factory warranty and compact 152 × 137 × 94 mm vertical footprint are specifically required.
Does the Datalogic M3410-010200-07104 or the Zebra DS9908 support more barcode types?
Based on the provided specifications, the Zebra DS9908 covers a significantly broader symbology set. It adds Code 93, Codabar, Code 11, MSI Plessey, GS1 DataBar, Aztec, MaxiCode, Micro QR, Han Xin, Postal Codes, and OCR (OCR-A, OCR-B, MICR, US Currency) beyond what the Datalogic spec sheet lists. The Datalogic M3410-010200-07104 specifies QR Code, Data Matrix, PDF417, and standard 1D codes (Code 128, Code 39, UPC, EAN). If your environment involves non-standard, legacy, or specialty symbologies, the DS9908 is the documented choice.
Which scanner is better suited for a high-volume retail checkout lane?
The Zebra DS9908 provides more quantified throughput data: a swipe speed of up to 240 in./610 cm per second, a 1280 × 800-pixel sensor, and ±60° skew/pitch tolerance with 360° roll tolerance — all of which are relevant to high-speed, hands-free presentation scanning. The Datalogic M3410-010200-07104 does not include comparable throughput or tolerance figures in the provided specifications, so a direct performance comparison on those axes cannot be made from the data supplied.
Are both scanners rated for the same environmental protection?
Both carry an IP52 rating, meaning equivalent resistance to dust ingress and protection against vertically dripping water. However, the Zebra DS9908 additionally specifies a 5.0 ft./1.5 m drop-to-concrete rating, 2,000 tumbles at 0.5 m, an operating range of 0° to 50° C, storage down to −40° C, and ±15 KV ESD tolerance. None of these additional environmental envelope figures are present in the Datalogic M3410-010200-07104 specifications provided, so the Datalogic unit's durability beyond IP52 cannot be assessed from the available data.
