Aiphone IX-MV7-W vs Axis I5304: Specification Comparison
Both the Aiphone IX-MV7-W and the Axis I5304 are 7-inch indoor IP video answering/master stations—wall-mountable PoE-powered units designed to serve as the interior call-handling endpoint in an IP intercom or access-control system. Buyers evaluating reception desks, lobby installations, or multi-tenant entry systems would routinely cross-shop these two devices. The comparison covers display and audio capability, power and environmental specifications, and system integration breadth.
In This Guide
- How do the display quality and audio capabilities compare between the IX-MV7-W and the I5304?
- What are the power draw, mounting flexibility, and environmental ratings for each unit?
- Which unit offers broader system integration and protocol compatibility?
- Which should you choose: the IX-MV7-W or the I5304?
- Side-by-Side Specs
- FAQ
How do the display quality and audio capabilities compare between the IX-MV7-W and the I5304?
Both units ship with a 7-inch touchscreen, but the technologies differ. The Aiphone IX-MV7-W uses a TFT LCD panel at a specified resolution of 800×400, which is a non-standard, landscape-letterbox format. The Axis I5304 uses a capacitive touch screen; no pixel resolution figure is provided in the available specifications.
The IX-MV7-W also integrates a built-in 1/3-inch CMOS camera rated at 480p, adding a local video-monitoring function that the I5304 spec sheet does not list. For video codec support, the IX-MV7-W explicitly documents H.264/AVC and Motion JPEG on both the product label and the datasheet fields.
On audio, the Axis I5304 specifies full-duplex two-way audio with echo cancellation—a concrete differentiator for environments where acoustic feedback is a concern. The IX-MV7-W lists full-duplex hands-free communication and audio input support, and documents G.711 and G.722 audio codecs, but does not specify echo cancellation in the provided specs. G.722 support on the Aiphone unit enables wideband (HD) voice at 7 kHz bandwidth, a capability not confirmed for the I5304 in available specs.
What are the power draw, mounting flexibility, and environmental ratings for each unit?
Both units are powered over Ethernet. The IX-MV7-W is rated IEEE 802.3af Class 0 with a documented draw of 4.32W, well within the 15.4W 802.3af budget. The I5304 specifies IEEE PoE but does not state the PoE class or wattage draw in the provided specifications—installers sizing switch budgets cannot confirm the I5304's exact power consumption from these specs alone.
For mounting, the Axis I5304 explicitly lists three options: wall, recessed, and desk mount. The IX-MV7-W specifies wall mount; desk-mount and recessed-mount configurations are not confirmed in the provided specs.
Operating temperature is documented for the IX-MV7-W at 32°F to 104°F (0°C to 40°C). No operating temperature range is provided in the Axis I5304 specifications. Both units are rated for indoor environments only. The I5304 carries a 5-year warranty versus the IX-MV7-W's 2-year warranty.
Which unit offers broader system integration and protocol compatibility?
The Aiphone IX-MV7-W is ONVIF-compliant, which allows it to interoperate with third-party ONVIF-conformant IP systems beyond the Aiphone IX Series ecosystem. Its video codec documentation (H.264/AVC, MJPEG) and audio codec documentation (G.711, G.722) give integrators precise protocol targets.

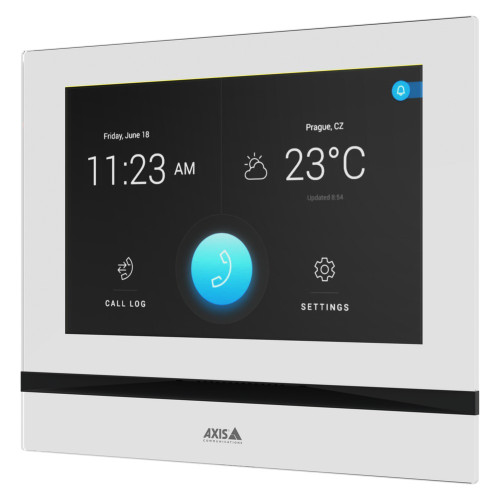

The Axis I5304 runs the 2N OS platform and lists native compatibility with Axis IP intercoms (AXIS TI5201, TI5601, TI5602) and SIP-based VoIP systems. SIP support is a meaningful integration point for facilities already running a VoIP PBX. ONVIF compliance is not stated in the provided I5304 specifications.
In practice, the IX-MV7-W is tightly optimized for the Aiphone IX Series while its ONVIF declaration provides some cross-ecosystem flexibility. The I5304 is purpose-built for the Axis/2N ecosystem and adds SIP as a second integration path, but its compatibility outside that ecosystem is not confirmed by the available spec data.
Which should you choose: the IX-MV7-W or the I5304?
Our take: The IX-MV7-W is the stronger choice when the installation demands a documented built-in camera, explicit codec transparency, and a confirmed low power draw within a budget-conscious PoE infrastructure. Three concrete spec deltas: the IX-MV7-W ships with an integrated 1/3-inch CMOS 480p camera (no equivalent confirmed for the I5304), documents a precise 4.32W PoE draw versus an unspecified draw for the I5304, and lists G.722 wideband audio codec support not confirmed on the I5304. Conversely, the I5304 holds advantages where they matter in Axis/2N or SIP-centric environments: it offers recessed and desk-mount options the IX-MV7-W does not confirm, specifies echo cancellation the IX-MV7-W does not, and carries a 5-year warranty versus 2 years. Platform lock-in is the primary qualifier—choose the IX-MV7-W for Aiphone IX deployments or ONVIF-mixed sites; choose the I5304 for Axis/2N or SIP-PBX environments where its native OS and longer warranty reduce total cost of ownership.
Side-by-Side Comparison
Spec-for-spec, from manufacturer data.
| Specification | Aiphone IX-MV7-W | Axis I5304 |
|---|---|---|
| Product Class | IP Video Master Station | Network Answering Unit |
| Display Size | 7 inch | 7 inch |
| Display Type | TFT LCD touchscreen | Capacitive touch screen |
| Display Resolution | 800×400 | — |
| Built-In Camera | 1/3" CMOS, 480p, privacy shutter | — |
| Video Codecs | H.264/AVC, Motion JPEG | — |
| Audio Mode | Full-duplex hands-free | Full-duplex two-way, echo cancellation |
| Audio Codecs | G.711, G.722 | — |
| Power Standard | IEEE 802.3af Class 0 | IEEE PoE (class not specified) |
| Power Draw | 4.32 W | — |
| Mount Options | Wall | Wall, recessed, desk |
| Operating Temp | 32°F–104°F (0°C–40°C) | — |
| ONVIF | Yes | — |
| SIP Support | — | Yes |
| Operating System | — | Axis 2N OS |
| Warranty | 2 years | 5 years |
Frequently Asked Questions
Which should you choose: the IX-MV7-W or the I5304?
The IX-MV7-W is the stronger choice when the installation demands a documented built-in camera, explicit codec transparency, and a confirmed low power draw within a budget-conscious PoE infrastructure. Three concrete spec deltas: the IX-MV7-W ships with an integrated 1/3-inch CMOS 480p camera (no equivalent confirmed for the I5304), documents a precise 4.32W PoE draw versus an unspecified draw for the I5304, and lists G.722 wideband audio codec support not confirmed on the I5304. Conversely, the I5304 holds advantages where they matter in Axis/2N or SIP-centric environments: it offers recessed and desk-mount options the IX-MV7-W does not confirm, specifies echo cancellation the IX-MV7-W does not, and carries a 5-year warranty versus 2 years. Platform lock-in is the primary qualifier—choose the IX-MV7-W for Aiphone IX deployments or ONVIF-mixed sites; choose the I5304 for Axis/2N or SIP-PBX environments where its native OS and longer warranty reduce total cost of ownership.
Does the IX-MV7-W or the I5304 work with a SIP phone system?
Based on the provided specifications, the Axis I5304 explicitly lists SIP connectivity as a supported protocol, making it compatible with SIP-based VoIP systems. SIP support is not stated in the Aiphone IX-MV7-W specifications provided. If your facility runs a SIP PBX, the I5304 is the confirmed choice from these specs.
Which unit is better for a reception desk that also needs a local camera view?
The Aiphone IX-MV7-W includes a built-in 1/3-inch CMOS camera rated at 480p with a manual privacy shutter, enabling local video monitoring from the master station. The Axis I5304 specifications do not list a built-in camera. For a reception desk requiring an integrated camera, the IX-MV7-W is the only confirmed option between these two.
Is the IX-MV7-W or the I5304 easier to install in a finished wall with a recessed back box?
The Axis I5304 explicitly lists recessed mount as a supported installation option alongside wall and desk mount. The Aiphone IX-MV7-W specifies wall mount only; recessed installation is not confirmed in the provided specifications. For a finished-wall recessed fit-out, the I5304 is the confirmed choice based on available spec data.
