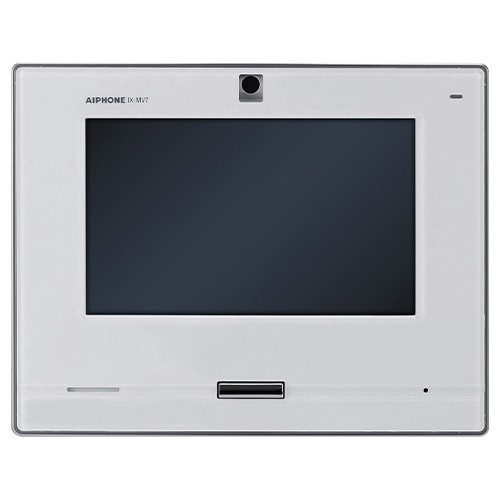

Aiphone IX-MV7-W IP Video Master Station
Overview
The Aiphone IX-MV7-W is a wall-mounted or desk-mounted IP video answering station designed as a central hub for Aiphone IP intercom deployments. This unit serves as the primary answering point for entrance stations, door stations, and other answering stations across networked IP-based security systems. The IX-MV7-W (often searched as IX MV7 W) connects via standard Cat-5e/6 cabling and draws power entirely from Power over Ethernet (PoE), eliminating the need for dedicated power runs to the wall location.
The 7-inch TFT LCD touchscreen with 800x400 resolution provides adequate clarity for call management, monitoring, and system control in indoor office, lobby, and reception environments. SIP compliance ensures interoperability with standard VoIP infrastructure, while ONVIF Profile S support enables integration with third-party IP cameras for extended monitoring beyond the intercom ecosystem.
Key Features
- 7-Inch Touchscreen Display (800x400 resolution): Sized appropriately for desk or wall mounting in reception areas and lobbies—large enough for one-handed operation without excessive reach, but compact enough to fit within standard electrical boxes or above door frames. The resolution trades pixel density for simplicity; you won't see blocky call indicators or text at typical viewing distances (3–6 feet).
- Built-In 720p Camera with Privacy Shutter: The integrated 1/3-inch CMOS sensor captures 480p video (per datasheet) from the master station's location. This is a secondary camera, not a primary entrance capture device—its purpose is verification of who's at the master station itself, or to provide a room view for the answering operator. The manual privacy shutter allows instant masking when the station is unattended, preventing continuous transmission of office activity.
- Picture-in-Picture (PIP) Monitoring: Run an ONVIF Profile S IP camera feed alongside the active Aiphone intercom call on the same 7-inch display. This lets you simultaneously view an entrance camera and speak to a visitor without toggling between sources—critical for credential verification workflows.
- Full-Duplex Hands-Free Audio: Two-way audio without a handset or push-to-talk button means staff can answer calls, listen, and speak naturally. Reduces friction in high-call-volume scenarios (visitor entry, delivery management, executive screening).
- SIP and ONVIF Profile S Compliance: Native SIP integration means this station works with any standards-based VoIP infrastructure—Cisco Call Manager, Avaya, or open-source FreeSWITCH deployments. ONVIF Profile S support allows you to pull live video from Hikvision, Uniview, Axis, or other ONVIF-compliant cameras, avoiding proprietary camera-to-intercom lock-in.
- Eight Programmable Speed Dial Buttons: Assign buttons to frequent contacts, departments, or paging groups. Pre-programmed buttons reduce call setup time in high-traffic visitor entry scenarios.
- 500-Station Directory: Scan, search, and call up to 500 addressable stations within the IX/IXG ecosystem. Practical for large multi-building campuses or office parks where operator lookup is unavoidable.
- Audio and Video Recording to microSD: Log active conversation audio and video to optional microSD card (not included) for compliance, training review, or incident documentation. Recording is active during calls only, not continuous surveillance.
- Two Relay Outputs and Four Trigger Inputs: Integrate door locks, gate operators, or external security devices via contact closure. Relay outputs can control electric strikes; trigger inputs can accept signals from motion sensors or access control systems to trigger paging or alerts at the master station.
- Bell Scheduling (Up to 50 Events): Program time-based rules—silence the station during lunch hours, redirect calls to a mobile operator, or trigger automatic announcements at shift change. Useful in manufacturing, hospitality, or campus deployments where call handling varies by time of day.
- PoE (IEEE 802.3af Class 0): Draws 4.32 watts—well under the 15.4W budget of a single 802.3af port. This means a standard unmanaged PoE switch or injector suffices; no need for PoE+ or dedicated power supplies. Low power draw is important in retrofit deployments where power budgets on legacy switches are tight.
- UL Listed (UL 62368-1 / cUL 62368-1): Meets North American electrical safety standards for telecommunications equipment, satisfying facility codes and procurement compliance requirements.
Integration and Compatibility
The IX-MV7-W is fully interoperable with all Aiphone IX and IXG series devices—the IXGS-TE telephone entry box, IXG-DM7-HIDA IP video entrance with HID reader, IXG-2C7 tenant stations, and IXG-MK guard station. Its SIP compliance enables integration with third-party VoIP systems and audio codecs (G.711 μ-law, A-law, and G.722) ensure compatibility across variable bandwidth networks. Video codecs—H.264/AVC and Motion JPEG—allow efficient streaming on congested or bandwidth-constrained links; H.264 is more efficient than Motion JPEG for continuous monitoring, but Motion JPEG is useful for single-frame snapshots in low-bandwidth remote office scenarios.
Operating temperature range is 32°F to 104°F (0°C to 40°C), suitable for climate-controlled indoor deployments only—not intended for outdoor mounting or unheated entry vestibules.
Physical Specifications and Mounting
The unit measures 6¾ inches (height) × 8¹¹⁄₁₆ inches (width) × 1¼ inches (depth). It ships with a multi-angle desk stand offering 30°, 45°, and 60° positioning for flexible sightline adjustment, or mounts directly to a wall using the included bracket. A 3.5mm stereo mini jack provides audio input for external microphones or line-level audio sources.
FAQ
Q: Is the IX-MV7-W compatible with non-Aiphone IP cameras?
A: Yes—it supports ONVIF Profile S compliant cameras from Hikvision, Uniview, Axis, and other manufacturers. You can display a live ONVIF camera feed in picture-in-picture alongside the active intercom call. This is useful for pulling entrance camera video into the master station display without proprietary integration.
Q: What is the power draw, and will a standard PoE switch support it?
A: The IX-MV7-W draws 4.32 watts and is classified as IEEE 802.3af Class 0. Any standard unmanaged PoE switch (delivering 15.4W per port) will support it. No PoE+ or external power supply is required.
Q: Can I record conversations to external storage?
A: The IX-MV7-W records audio and video during active calls to an optional microSD card (not included). For continuous archive or NVR integration, you would need to export recorded files or integrate the system with a separate network video recorder that accepts ONVIF streams.
Q: What temperature range is the IX-MV7-W rated for?
A: Operating temperature is 32°F to 104°F (0°C to 40°C). This unit is designed for climate-controlled indoor environments only. Do not mount in unheated vestibules, outdoor enclosures, or environments subject to temperature extremes.
Q: Can the IX-MV7-W integrate with a building access control system?
A: The unit includes two relay outputs and four trigger inputs for contact closure integration. Relay outputs can control electric door strikes or gate operators; trigger inputs can accept signals from motion sensors or access control readers to alert staff or trigger paging events at the master station.
Q: Does the IX-MV7-W work with standard SIP phones and VoIP systems?
A: Yes. The IX-MV7-W is SIP compliant and uses standard G.711 and G.722 audio codecs. It will interoperate with any standards-based SIP infrastructure (Cisco Unified Communications Manager, Avaya, FreeSWITCH, etc.).
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Aiphone IX-MV7-W is a pragmatic choice for visitor entry and intercom dispatch in office, campus, and light industrial settings where you need a visual verification point at a central answering desk. The 7-inch touchscreen and built-in camera make sense in reception-area deployments—you can see who's calling and answer without leaving your desk. However, this is not a standalone entrance security station; it's a slave unit that depends on external entrance cameras or Aiphone entrance devices to capture visitor credentials and entry behavior. If you need comprehensive entrance logging with face capture or LPR, you'll still need a dedicated IP camera at the door.
Technical Highlights:
- 4.32W PoE draw: This is a genuine low-power device. On a standard 802.3af switch with 15.4W per port, you can run 3–4 IX-MV7-W units before hitting power limits. No PoE+ infrastructure needed, which saves cost in retrofit scenarios.
- Picture-in-Picture with ONVIF Profile S: The ability to run an entrance camera feed alongside the active call on a single 7-inch display is the killer feature here. You're not toggling between apps or flipping between monitors—both video sources are live simultaneously. This directly reduces call-handling time and credential-verification errors.
- H.264 and Motion JPEG codecs: H.264 is more storage-efficient for continuous streaming; Motion JPEG is useful for bandwidth-constrained remotes or snapshot-only workflows. The codec flexibility is rare in entry-level intercom systems and worth leveraging if you have older network links or WAN connectivity constraints.
- Hands-free full-duplex audio without push-to-talk: Staff don't need to hold a button to speak. In a busy reception environment, this means fewer operational errors and faster visitor throughput. Voice-activated audio detection prevents feedback loops on longer calls.
Deployment Considerations:
- The built-in 480p camera is adequate for local verification (is someone standing at the master station?) but not for credential capture. Pair it with an external entrance camera for ID verification or badge reading workflows.
- The 32°F–104°F operating range is strict. Do not install this in an unheated entry vestibule or outdoor alcove. If you need outdoor capability, you'll need a separate outdoor-rated entrance station and use the IX-MV7-W as an indoor backup or secondary answering point.
- Recording to microSD is call-based only—not continuous video logging. If you need 24/7 entrance audit trail, that responsibility falls on the entrance camera system, not the IX-MV7-W.
- The 500-station directory is practical for multi-building campuses but requires pre-programming of all endpoints. If your site has frequent personnel changes or temporary contractor access, the address book will need regular maintenance.
The IX-MV7-W is best deployed as the primary answering station in a reception hub where staff need immediate visual confirmation of callers and control of door access. It's not a security camera system, and it shouldn't be mistaken for one. Pair it with a proper entrance station (IXG-DM7-HIDA with card reader, for instance) and a dedicated IP camera at the actual entry point, and you have a cohesive visitor-management workflow.
