Aiphone IX-MV7-HB-L IP Video Answering Station
Overview

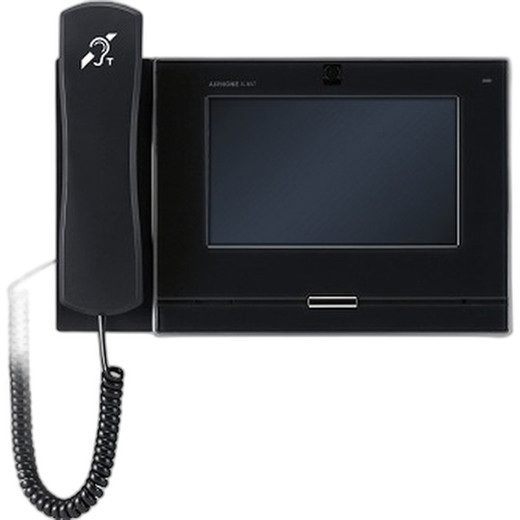

The IX-MV7-HB-L is an IP answering station purpose-built for the Aiphone IX and IXG series intercom systems. It handles incoming calls from entrance stations, door stations, and other answering stations across networked installations. The unit pairs a 7-inch TFT LCD touchscreen display (800x400 resolution) with a built-in 1MP fixed ⅓" CMOS camera and a T-coil hearing aid compatible handset. Video compresses via H.264/AVC and Motion JPEG; audio uses full-duplex G.711 and G.722 codecs in hands-free or push-to-talk modes.
Key Features
- 7-inch touchscreen with 800x400 resolution: Provides enough screen real estate to display video feeds and caller information clearly without cluttering a desk or wall-mounted installation. Larger than mobile phone displays but compact enough for reception areas and office lobbies.
- 1MP fixed camera with privacy shutter: Delivers video calls within the intercom network at 1 megapixel resolution (1280x720). The privacy shutter lets you disable the camera feed when the station is not in use, addressing privacy concerns in shared or sensitive environments.
- H.264 and Motion JPEG compression: H.264 keeps bandwidth and storage requirements modest for 24/7 recording on network video recorders; Motion JPEG offers a fallback if bandwidth is constrained. Both codecs reduce file sizes compared to uncompressed video.
- PoE (IEEE 802.3af) at 4.32W: Draws minimal power over standard Cat-5e or Cat-6 cabling — well under the 15.4W per-port limit of 802.3af PoE. This means the station won't require a separate DC power supply or demand additional infrastructure in most office or facility networks.
- Full-duplex audio with T-coil hearing aid support: Two-way audio works simultaneously (not half-duplex push-to-talk), and the T-coil handset integrates with hearing aids directly. Important for accessibility compliance in commercial or public facilities.
- SIP and ONVIF Profile S compliance: Interoperates with third-party VoIP and video management systems beyond the native Aiphone ecosystem. Supports picture-in-picture display of ONVIF Profile S cameras, so you can monitor exterior or adjacent spaces alongside intercom feeds.
- MicroSD card slot for local recording: Audio and video can be logged to a microSD card (card not included). Useful for audit trails or compliance logging without requiring a separate NVR.
- Supports up to 500 stations with 50 bell schedule events daily: Scales within medium to large facilities and can handle predictable call traffic (e.g., scheduled shift changes or delivery windows) without performance degradation.
- Multi-angle desk stand or wall bracket: Mounting flexibility — the included stand adjusts to 30°, 45°, or 60° angles for ergonomic desktop viewing, or use the wall bracket to free desk space in compact areas.
Integration & Compatibility
The IX-MV7-HB-L is fully compatible with all Aiphone IX and IXG series devices. Its SIP and ONVIF Profile S compliance means it can integrate into broader IP video management architectures beyond the Aiphone ecosystem. Picture-in-picture capability lets you display external ONVIF cameras on the same screen as intercom calls — useful in mixed-brand deployments where you want a single pane of glass for access control and visitor management.
Cat-5e or Cat-6 cabling carries both power and data, so installation does not require separate runs. The unit's low power draw means a standard PoE-capable network switch can supply the station without exhausting per-port power budgets.
What's in the Box
- 1x IX-MV7-HB-L answering station unit
- 1x multi-angled desk stand
- 1x wall-mount bracket
- 1x power cable
When to Choose a Different Model
If your facility requires higher video resolution or pan-tilt-zoom capability, consider stepping up within the Aiphone IX family to a model with an HD or multi-sensor camera option. If you need outdoor weather resistance (IP66 or IP67), this indoor-focused answering station is not suitable — look for Aiphone's outdoor entry station alternatives. For deployments requiring advanced video analytics or people counting, the IX-MV7-HB-L's fixed 1MP camera and basic video streaming will not support those workloads.
Frequently Asked Questions
Q: Does the IX-MV7-HB-L work with non-Aiphone intercom systems?
A: The unit is fully compatible with Aiphone IX and IXG series devices. It supports SIP and ONVIF Profile S for third-party integration, so it can display ONVIF-compliant camera feeds alongside Aiphone intercom calls. However, it is designed primarily for Aiphone ecosystems; deep integration with other vendors' intercom platforms is not guaranteed.
Q: Can I record video from the IX-MV7-HB-L to a network recorder?
A: Yes. The unit supports H.264 and Motion JPEG compression for streaming over the network. Video can also be logged locally to a microSD card. For centralized recording across multiple stations, deploy a compatible network video recorder that supports ONVIF Profile S feeds.
Q: What power supply do I need for the IX-MV7-HB-L?
A: The station draws 4.32W via IEEE 802.3af PoE over Cat-5e or Cat-6 cabling. No separate power supply is required if your network switch supports standard PoE. A dedicated PoE injector is an alternative if your switch lacks PoE ports.
Q: Is the privacy shutter mechanical or electronic?
A: The evidence indicates a privacy shutter on the built-in 1MP camera but does not specify the mechanism. For exact implementation details, consult the manufacturer datasheet or contact Aiphone directly.
Q: Can the IX-MV7-HB-L display multiple camera feeds simultaneously?
A: The station supports picture-in-picture display of ONVIF Profile S cameras. This allows you to show, for example, an entrance camera feed alongside an intercom call on the same 7-inch screen. The exact layout and number of simultaneous streams depend on the Aiphone system configuration.
Q: Does the IX-MV7-HB-L support hearing aid connectivity?
A: Yes. The included handset features T-coil support, which pairs with hearing aid T-coil receivers. This enables direct audio coupling without feedback and is important for ADA compliance in commercial facilities.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The IX-MV7-HB-L sits at the practical intersection of affordability and function for Aiphone intercom deployments. At 1MP resolution with H.264 compression, it's not a premium security camera — it's an answering station first, with video as a supporting feature. If your brief is "visitor identification and hands-free audio in a building lobby or office," this unit delivers that cleanly. The 4.32W power draw means almost zero impact on your switch infrastructure, and the ONVIF Profile S compliance gives you an off-ramp to third-party VMS if the Aiphone ecosystem ever feels limiting.
Technical Highlights:
- 4.32W PoE (802.3af): Minimal power signature. You can populate an entire building with these stations without upgrading your PoE switch, unlike higher-wattage PoE+ endpoints.
- H.264 + Motion JPEG dual compression: H.264 keeps storage lean; Motion JPEG is your fallback if bandwidth tightens. The 1MP stream is inherently small, so storage for weeks of 24/7 recording on a single SD card is realistic.
- SIP + ONVIF Profile S: The SIP layer means it can talk to other vendors' phone systems if you ever need to; ONVIF Profile S lets you pull in third-party camera feeds (entrances, parking) and display them picture-in-picture. Nice escape hatch for mixed-vendor shops.
- T-coil hearing aid support: Accessibility compliance is embedded, not bolted on. T-coil direct coupling beats speakerphone audio for users with hearing aids.
Deployment Considerations:
- The 1MP fixed camera is not adjustable — no pan, tilt, or zoom. If you need wide-angle lobby coverage, you're sizing the 2.8mm or 4mm fixed lens beforehand, or supplementing with a separate ONVIF entry camera for the picture-in-picture slot.
- Privacy shutter is present but the evidence doesn't specify whether it's mechanical or electronic. If you're planning to toggle it remotely as part of a morning/evening routine, confirm the mechanism with Aiphone first.
- The unit supports up to 500 stations — fine for medium campuses (office parks, light industrial) but borderline for large enterprise deployments with 1,000+ endpoints. Beyond 500 stations, segment into multiple Aiphone domains or step up to a scalable SIP backbone.
Deploy the IX-MV7-HB-L where you need proof-of-presence video and two-way audio in a tight footprint — reception desks, building access lobbies, and light manufacturing visitor stations. It's lean, interoperable, and doesn't demand special handling. Skip it if your brief includes facial recognition, PTZ, or outdoor-hardened entry monitoring; reach for a dedicated camera and a separate door phone in those cases.
