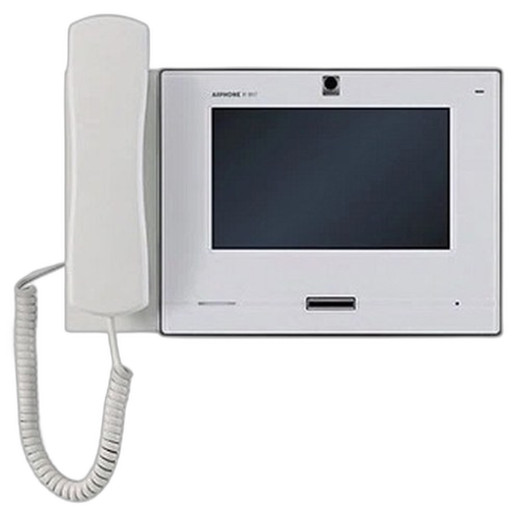

Aiphone IX-MV7-HW-JP IP Video Master Station
Overview
The Aiphone IX-MV7-HW-JP is a wall-mounted or desk-mounted IP video answering station engineered for the IX and IXG Series intercom systems. Built in Japan and TAA-compliant for federal procurement, this device integrates entrance stations, door stations, and other answering stations across networked IP infrastructure. The unit delivers full-duplex hands-free or push-to-talk communication with integrated 1MP video capture and playback, making it suitable for security integration in office buildings, medical facilities, government installations, and multi-tenant environments.
At the core of the IX-MV7-HW-JP is a 7-inch TFT LCD touchscreen (800×400 resolution) paired with a 1/3-inch CMOS 720p fixed camera. The station operates on standard PoE (IEEE 802.3af Class 0) with a maximum draw of 4.32 watts—low enough that it won't strain your switch's power budget and eliminates the need for dedicated wall power. SIP and ONVIF Profile S compliance ensures compatibility with third-party VMS platforms and IP camera ecosystems while maintaining native integration with Aiphone's IX and IXG series devices.
Key Features
- 7-inch 800×400 TFT LCD touchscreen: Sufficient resolution for call answering, directory navigation, and real-time video monitoring from a stationary desk or wall position. Higher pixel density than older CRT intercoms, so legibility improves in mixed lighting.
- 1MP (720p) video capture: A 1/3-inch CMOS sensor delivers adequate detail for facial recognition at typical entry-station distances (3–6 feet). H.264 and Motion JPEG compression options let you balance bandwidth and storage—H.264 is standard for network efficiency, while Motion JPEG is useful if legacy VMS platforms or third-party systems lack H.264 support.
- Physical privacy shutter: A mechanical lens cover prevents unauthorized recording and reassures users during inactive periods. Unlike software-only privacy masks, this is tamper-evident and does not rely on firmware.
- Full-duplex audio with hands-free or handset mode: Simultaneous two-way conversation eliminates the need to toggle between listening and speaking. 8Ω 0.5W speaker output is adequate for office and building-entry use but will not fill a large warehouse floor; push-to-talk mode is also supported for installations requiring simplex control.
- Audio codecs (G.711 μ-law, A-law, and G.722): G.711 ensures compatibility with legacy telephone systems and cloud VoIP services. G.722 is used in some modern IP PBX deployments, so the IX-MV7-HW-JP won't force a codec conversion that burns CPU or introduces latency.
- Picture-in-Picture (PIP) mode: Simultaneously display an ONVIF Profile S IP camera feed (e.g., a lobby or exterior camera) and the intercom video on a single screen. Reduces the need for a separate dedicated monitoring display when response time is critical.
- Audio and video recording to microSD card: Capture active conversations and visitor interactions for audit, compliance, or dispute resolution. Card is not included; typical capacities (64GB–256GB) store weeks of recording depending on compression and frame rate settings.
- 8 customizable speed-dial buttons: Direct shortcuts to frequently contacted stations reduce response time in high-traffic multi-tenant or multi-building deployments. Eliminates directory lookups during peak visitor traffic.
- 500-station address book: Directory management supports large campuses or multi-building office complexes. Manual or LDAP-sourced entries reduce configuration time for IT staff.
- 2 contact outputs and 4 trigger inputs: Integrate door strikes, electronic locks, gate operators, or lighting systems. Trigger inputs accept sensor feedback from entry points—useful for detecting forced-entry attempts or monitoring door-hold time.
- IEEE 802.1X port security: Network-level authentication prevents rogue intercom stations from connecting to your network. Required for healthcare, government, and high-security deployments where device proliferation must be audited.
- Multi-angle mounting: Desk stand with 30°, 45°, and 60° tilt angles accommodates user height and sightline preferences. Wall bracket included for permanent installation in lobbies or reception areas.
Integration & Compatibility
The IX-MV7-HW-JP is fully compatible with all Aiphone IX and IXG Series devices including entrance stations, door stations, and tenant stations. As an ONVIF Profile S-compliant device, it integrates with mainstream VMS platforms and third-party IP camera networks. SIP protocol support enables deployment in IP PBX and hosted VoIP environments. Network protocols include IPv4, IPv6, TCP, UDP, HTTP, HTTPS, RTSP, RTP, RTCP, IGMP, MLD, SMTP, SFTP, DHCP, NTP, and DNS.
Physical Specifications & Environmental
Dimensions are 8-1/16 inches (H) × 11 inches (W) × 2-3/16 inches (D). The unit operates within 32°F to 104°F (0°C to 40°C), making it suitable for climate-controlled office, medical, and government buildings but not outdoor or unheated industrial spaces. No fan or active cooling means silent operation in quiet reception areas and open offices.
Frequently Asked Questions
Q: Is the IX-MV7-HW-JP NDAA Section 889 compliant?
A: The unit is TAA-compliant and built in Japan. TAA compliance covers federal procurement restrictions; confirm NDAA applicability with your procurement officer if the product must meet Section 889 (covered telecommunications equipment) requirements.
Q: Can I integrate the IX-MV7-HW-JP with a third-party VMS like Milestone XProtect?
A: Yes. The IX-MV7-HW-JP supports ONVIF Profile S, which Milestone XProtect recognizes. You can add it as an ONVIF IP camera within your VMS. Confirm your specific XProtect version supports ONVIF Profile S if you are running an older release.
Q: What happens if the microSD card fills up during recording?
A: The device will begin overwriting the oldest recordings once the card is full, unless you configure an alert to notify operators. Configure retention policies based on your compliance requirements (e.g., 30-day retention for HIPAA-covered facilities).
Q: Does the IX-MV7-HW-JP require a separate power supply?
A: No. It draws 4.32 watts maximum via standard PoE (IEEE 802.3af), so a single Ethernet cable to a PoE-enabled switch provides both data and power. No auxiliary 12V supply is needed.
Q: Can I wall-mount the IX-MV7-HW-JP in a vertical or horizontal orientation?
A: Yes. The included wall bracket supports both landscape (horizontal) and portrait (vertical) mounting. Choose landscape for typical reception-desk height installations; portrait for eye-level mounting in narrow lobbies or hallways.
Q: What codec does the IX-MV7-HW-JP default to for video streaming?
A: H.264 is the default. Motion JPEG can be selected if your VMS or intercom backend does not support H.264 decoding, though H.264 is now standard on nearly all platforms.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Aiphone IX-MV7-HW-JP is a straightforward choice if you are standardizing on Aiphone intercom infrastructure and need a master station with integrated video. The 1MP camera and 720p resolution won't resolve fine facial detail at distance, but at typical 3–6 foot entry-station range, it is sufficient for visitor identification and dispute resolution. The low PoE footprint (4.32W) and TAA compliance make it a logical fit for federal buildings, healthcare, and government campuses where procurement constraints are tight.
Technical Highlights:
- H.264 + Motion JPEG dual compression: Ability to switch codecs on-the-fly without reboot means you can optimize for bandwidth (H.264 ~2–4 Mbps full motion) or for legacy VMS compatibility (Motion JPEG) without equipment swaps.
- IEEE 802.1X port-level authentication: Network-layer security prevents unauthorized intercom clones from spoofing real devices. Critical in healthcare (HIPAA) and government deployments where device inventory auditing is mandatory.
- Picture-in-Picture mode for ONVIF cameras: The ability to display a separate IP camera feed (e.g., building exterior or lobby camera) without a second display reduces real-estate costs and increases situational awareness during peak visitor traffic.
- Modular contact/trigger I/O (2 outputs, 4 inputs): Integrating door strikes, locks, and sensor feedback into a single touchscreen reduces wiring complexity compared to separate relay cabinets. Useful in retrofit projects where you need to minimize cable runs.
Deployment Considerations:
- The 7-inch 800×400 touchscreen is adequate for a stationary desk or wall position, but do not expect sharp detail on small UI elements if viewed from more than 6 feet. Reception areas and building lobbies are ideal; open bullpen seating or shared spaces may require a secondary monitor.
- The 1MP fixed 4mm lens is non-motorized and non-adjustable. You must ensure the mounting height and angle allow visitors to position their face in the frame naturally. Test the angle during pilot installation; poor framing will reduce usability and will not be correctable without physical repositioning.
- Recording to microSD card is local-only. If you require cloud backup or centralized retention, configure a separate NVR or VMS to pull the RTSP stream. Do not rely on the on-board card as your sole archive.
- The unit is 0°C to 40°C (32°F to 104°F). If installed in an unheated lobby, vestibule, or outdoor-adjacent space, monitor ambient temperature to prevent device shutdown during winter or startup delays in spring.
Deploy the IX-MV7-HW-JP when you are already committed to Aiphone IX/IXG infrastructure and your facility is climate-controlled with existing PoE switching. For buildings needing standalone entry-station video or those requiring high-resolution facial capture, consider a higher-megapixel IP camera paired with a separate SIP handset or tablet interface.
