Network Switches, PoE Injectors & Surveillance Infrastructure

Plan Your Deployment

Total PoE power budget and port density requirements
Switch throughput and uplink capacity planning
Redundancy and failover design considerations
Distance limitations and fiber conversion needs
Power conditioning and voltage compatibility

Sub categories

Showing Results for Infrastructure

Compare

Add to Cart The item has been added
Altronix

SKU: ACM8CBE

Altronix ACM8CBE 8-Output Access Power Controller

8-output access controller, 12–24V AC/DC, 2.5A per output with PTC
- Eight independent 2.5A outputs with auto-resetting thermal protection
- Accepts 12–24 VAC or VDC input; output matches input voltage
- Configurable fail-safe/fail-secure modes per output; FACP disconnect ready
In stock · Ships same business day

$192.99

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Altronix

SKU: ACM8E

Altronix ACM8E 8-Output Fused Relay Access Controller

8-output relay controller for multi-door access with independent fused channels
- Each output carries its own 3.5A/250V fuse; one door fault won't trip others
- Accepts 12–24 VAC or VDC input; dual power option isolates board from load
- UL Listed for access control; LED supervision shows relay and fire alarm status
In stock · Ships same business day

$189.99

Add to Cart
The item has been added
Compare

Out of stock
Altronix

SKU: ACM8RLED

Altronix ACM8RLED 16-Output Monitored LED Board

16-output monitored LED board for rack-mount security systems
- 16 independent LED channels with individual output monitoring
- Rack-mount form factor integrates into Altronix power systems
- Real-time status feedback across multiple zones or subsystems
Special Order · Ships in 2-3 weeks

$125.99

Add to Cart
The item has been added
Compare

Out of stock
Altronix

SKU: ACMS12

Altronix ACMS12 Dual-Input 12-Output Access Power Controller

12-output 24VDC access controller with dual-input redundancy and fire alarm disconnect
- 12 independent fused outputs isolate each access control circuit from overcurrent
- Dual-input architecture supports redundant power sources for continuous operation
- Board-form factor integrates directly into control panels with fire safety disconnect
Special Order · Ships in 2-3 weeks

$359.99

Add to Cart
The item has been added
Compare

Out of stock
Altronix

SKU: ACMS12CB

Altronix ACMS12CB 12-Output Access Power Controller

12-output access control power board with dual inputs and PTC protection
- 12 independently protected channels with PTC thermal protection per output
- 2 independent power inputs for redundancy and load balancing
- Board-level form factor mounts directly in control cabinets
Special Order · Ships in 2-3 weeks

$211.99

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Altronix

SKU: ACMS8

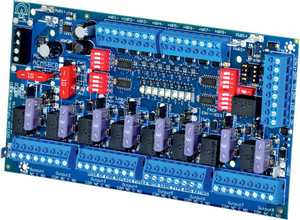

Altronix ACMS8 8-Output Access Power Controller

8-output access controller with dual 5–24VDC inputs and independent fuse protection
- Eight independently controlled outputs, each fused at 3A/32V to isolate door lock failures
- Dual isolated power inputs accept mixed voltages (e.g., 12VDC + 24VDC) for flexible wiring
- Eight trigger inputs support mag locks, strikes, and sensors in fail-safe or fail-secure modes
In stock · Ships same business day

$141.99

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Altronix

SKU: ACMS8CB

Altronix ACMS8CB 8-Channel PoE Access Power Controller

8-channel PoE power controller with supervised outputs for access control
- 8 independent PTC-protected outputs prevent faults from affecting adjacent channels
- Single PoE input eliminates separate power runs to multiple doors and readers
- Output supervision monitors each channel and reports faults to access system
In stock · Ships same business day

$141.99

Add to Cart
The item has been added
Compare

Out of stock
Altronix

SKU: ACMS8CBK1

Altronix ACMS8CBK1 Dual Input Access Controller Kit

Dual-input controller kit for VR6 access control expansion
- Dual input configuration manages multi-door entry points
- Direct integration with Altronix VR6 power supply systems
- Complete kit with controller and installation components
Special Order · Ships in 2-3 weeks

$196.99

Add to Cart
The item has been added
Compare

Out of stock
Altronix

SKU: ACMS8K1

Altronix ACMS8K1 Dual Input Access Power Controller Kit

Dual input voltage controller for access systems with power redundancy
- Manages primary and secondary power sources in single kit deployment
- Regulated output maintains consistent voltage across varying input conditions
- Complete kit includes ACMS8 controller and all supporting components
Special Order · Ships in 2-3 weeks

$196.99

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Altronix

SKU: AL1002ULADA

Altronix AL1002ULADA 24VDC 10A NAC Power Extender

24VDC 10A NAC extender expands fire alarm capacity via 120VAC input
- Four Class B, two Class A, or mixed output configs—choose only what you need
- 10A total at 24VDC with 2.5A per-output ceiling prevents circuit starvation
- Dual 8–30VDC dry-contact triggers sync with Potter/Amseco, Gentex, System Sensor
In stock · Ships same business day

$485.99

Add to Cart
The item has been added
Compare

Out of stock
Altronix

SKU: AL1002ULADAJ

Altronix AL1002ULADAJ NAC Power Extender - 24VDC @ 10 amp. 2

24VDC @ 10A NAC power extender with dual trigger inputs and loop supervision
- 2 Class A or 4 Class B configurable notification circuits with 2.5A per circuit max
- Syncs with Potter/Amseco, Gentex, System Sensor, CooperWheelock plus Temporal Code 3
- Programmable output loop supervision, trouble memory, and 1A auxiliary 24VDC output
Special Order · Ships in 2-3 weeks

$907.12 $512.99 Save $394.13

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Altronix

SKU: AL100UL

Altronix AL100UL 12VDC 0.75A Linear Power Supply

12VDC 0.75A regulated supply with battery backup for alarms
- 750mA continuous output with short-circuit and thermal protection
- Charges internal or external sealed lead-acid batteries up to 12AH
- Form C relay contacts monitor AC failure and battery status via LED
In stock · Ships same business day

$183.14 $99.99 Save $83.15

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Altronix

SKU: AL1012ACM220

Altronix AL1012ACM220 Multi-Output 12VDC Power Supply

220VAC to 12VDC supply with 8 isolated fused outputs for security systems
- 8 independently fused relay outputs prevent single-channel faults from affecting other zones
- 10A total capacity across all outputs with regulated 12VDC for stable sensor and control power
- Integrated battery charging support enables UPS functionality for backup power during mains loss
In stock · Ships same business day

$371.99

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Altronix

SKU: AL1012ACMCB220

Altronix AL1012ACMCB220 12VDC Power Supply with Battery Backup

12VDC 10A supply with 8 isolated outputs and battery backup
- Eight independent 12VDC outputs prevent single-load failures from affecting other circuits
- 10A total capacity across 8 isolated channels for multi-subsystem security deployments
- Integrated battery backup with automatic switchover for uninterrupted power to critical loads
In stock · Ships same business day

$371.99

Add to Cart
The item has been added
Compare

Out of stock
Altronix

SKU: AL1012M220

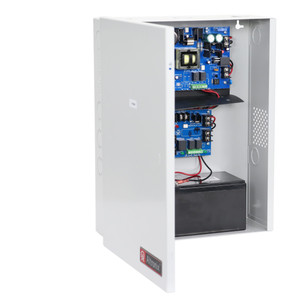

Altronix AL1012M220 12VDC 10A Power Supply Module

12VDC 10A compact power module for 220V AC security infrastructure
- 12VDC at 10A continuous output with MOM5 connector for field integration
- Compact module form factor fits space-constrained cabinet installations
- 220V AC input for global deployment in access control and surveillance systems
Special Order · Ships in 2-3 weeks

$559.57 $316.99 Save $242.58

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Altronix

SKU: AL1012ULACM

Altronix AL1012ULACM 12VDC 10A Power Controller

12VDC/24VDC power controller with 10A output & integrated battery charger
- 8 fused independent relay outputs isolate loads; short circuit on one won't affect others
- 10A @ 12VDC capacity runs 4–6 security devices simultaneously without voltage sag
- Built-in lead-acid/AGM charger eliminates need for separate backup conditioning module
In stock · Ships same business day

$657.68 $371.99 Save $285.69

Add to Cart
The item has been added

What to Look For When Buying

The six decisions that matter most before you spec.

PoE Power Budget Math

A 24-port PoE+ switch with 370W total budget can't actually run 24 outdoor cameras at peak 25W each. Simultaneous peak — not nameplate — is the limit. Always verify per-port PoE allocation and total budget against actual camera load. See PoE budget planning and why your PoE switch fails after 18 cameras.

328-Foot Ethernet Limit

Cat5e, Cat6, and Cat6A all top out at 100 meters (328ft) per TIA-568. Past that, you need a media converter to fiber, a PoE extender, or an intermediate switch. Common gotcha: in-wall patch + faceplate + drop + jumper all count against 328ft. Long runs to perimeter cameras frequently exceed the limit — plan for fiber or coax-PoE extension.

Managed vs Unmanaged Switches

Unmanaged switches work for small deployments but provide no VLAN segmentation, no QoS for video traffic, no monitoring, and no remote troubleshooting. Managed switches (Layer 2 or Layer 3) let you isolate cameras on a dedicated VLAN, prioritize video over office traffic, and diagnose link failures from a central SNMP platform. Spec managed for any deployment over 8 cameras.

UPS Sizing & Runtime

NVR + switches + cameras + access control have very different power profiles than office gear. Size UPS for actual wattage of all connected loads + 20% headroom, and calculate runtime with battery-life curves (runtime is non-linear — doubling load often cuts runtime 60%+). Surveillance UPS should provide 15-30 min to accommodate generator transfer or graceful shutdown.

Copper vs Fiber Uplinks

In-rack uplinks on 10G copper (Cat6A) work fine for short runs. Between-building and multi-floor uplinks should be fiber — single-mode for >300m, multimode for under. Fiber is also electrically isolated, which matters in lightning-prone environments. Axis, Hanwha, and Ubiquiti switches include SFP/SFP+ uplinks across most models.

Cooling & Airflow in Racks

Surveillance gear runs 24/7 — a closed rack at 90°F interior temperature will fail drives and switches faster than spec. Specify perforated doors, rack-mount fans, and leave 1U of airflow gap above/below heat-generating equipment. NVRs with internal fans need front-to-back airflow; network switches vary by vendor. Check thermal spec before sealing a wall-mount enclosure.

Technology Stack

The specs and acronyms that actually affect outdoor performance.

802.3af / at / bt PoE Standards

802.3af = 15.4W/port (entry cameras), 802.3at PoE+ = 25.5W/port (most outdoor cameras), 802.3bt PoE++ Type 3 = 60W, Type 4 = 90W (PTZ, heated, multi-sensor). Specify switch support for the highest standard your cameras need — future-proofing with PoE++ switches costs marginally more.

TIA-568 Cabling Standards

Cat5e rated to 1 Gbps at 100m. Cat6 rated to 10 Gbps at 55m, 1 Gbps at 100m. Cat6A rated to 10 Gbps at 100m with proper grounding. Use Cat6A for new surveillance cabling runs — marginal cost premium over Cat6, meaningful margin for long runs + high PoE.

SFP / SFP+ / QSFP+ Modules

Small Form-factor Pluggable optics for fiber uplinks. SFP = 1 Gbps, SFP+ = 10 Gbps, QSFP+ = 40 Gbps. Match module to switch vendor compatibility (some vendors lock to their own brand of optics). Multimode fiber with OM3/OM4 for ≤300m, single-mode for longer or future-proof runs.

VLAN Segmentation

Dedicated VLAN for surveillance isolates camera traffic from office network — improves security (camera-to-camera lateral movement blocked), performance (no contention with office traffic), and troubleshooting. Configure access-control and intercom VLANs separately. Managed switches required; unmanaged switches cannot segment.

Long-Reach PoE Extension

Ethernet-over-Coax (EoC) extends Ethernet + PoE to 1,500+ feet over existing RG59 coax — ideal for analog-to-IP retrofits. Ethernet-over-UTP extenders push runs to 4,000ft over CAT cable. NVT Phybridge CHARIoT, Altronix eBridge, and Veracity Highwire are the common product families. Rate-limited to 100 Mbps typically.

UPS Topology: Line-Interactive vs Double-Conversion

Line-interactive UPS switch to battery on power failure — sufficient for office gear. Double-conversion (online) UPS convert AC→DC→AC continuously, providing perfectly conditioned power — required for sensitive SCADA/security gear in dirty-power environments. Specify double-conversion for NVRs at critical sites.

Typical Deployment Scenarios

8-Camera Single-Site Retrofit

Existing network + 8 outdoor IP cameras. Add a 16-port managed PoE+ switch (Ubiquiti UniFi, Axis T85) on a dedicated VLAN. 1U rack UPS for the NVR + switch. 120-160 watts total PoE budget comfortably runs 8 outdoor cameras with heater + IR.

48-Camera Campus Upgrade

Four buildings, 48 cameras total, existing fiber backbone. Per-building 24-port PoE++ switch with SFP+ fiber uplink to core. Dedicated surveillance VLAN, QoS for video traffic, SNMP monitoring. 2-post relay rack in each IDF closet with dedicated surveillance UPS.

Perimeter Fence Line (1,200ft)

6 bullet cameras + 2 PTZs along perimeter fence, main NVR in building. Fiber media converter + outdoor-rated fiber to a PoE++ switch in a weatherproof enclosure at the fence line. Alternative: NVT Phybridge CHARIoT over existing coax for retrofit applications.

Multi-Floor Office Tower

Stacked IDFs on every floor, cameras + access control + intercom on dedicated VLANs. Cisco Catalyst or Ubiquiti UniFi Pro managed switches per floor with 10G fiber uplink to building core. Per-IDF 3U UPS. Integration with VMS and access control head-end at main BDF.

Frequently Asked Questions

How do I calculate PoE budget for a camera deployment?

Sum the peak wattage of every camera (not nameplate — check spec sheet for "PoE class" or "max consumption"). Add 15-20% headroom for inrush during cold-start. The result is your required simultaneous-peak PoE budget. A 24-port PoE+ switch advertised at 370W can only run about 18 outdoor cameras with heaters + IR — see PoE budget planning.

What's the maximum Ethernet cable run for an IP camera?

100 meters (328 feet) per TIA-568 — total distance from switch port to camera port. That includes in-rack patch cords, in-wall cabling, faceplate jack, and camera jumper. For longer runs, use fiber with a media converter or a long-reach PoE extender. Going past 328ft on copper causes intermittent packet loss that looks like camera problems.

Do I need managed or unmanaged PoE switches?

For more than 8 cameras or any mixed-use network (cameras sharing infrastructure with office traffic), specify managed. VLAN segmentation isolates camera traffic for security and performance; QoS ensures video gets bandwidth priority; SNMP monitoring surfaces failures before users call. Unmanaged switches are acceptable only for small standalone deployments.

What UPS runtime should I plan for an NVR + switch?

15-30 minutes of runtime at actual load is typical — enough to ride through brief outages or allow graceful shutdown before battery exhaustion. For sites with generator transfer, 5-10 minutes is sufficient. Size UPS wattage for actual connected load + 20%, and use the vendor's runtime-at-load curve (runtime is non-linear). Double-conversion UPS for sensitive or dirty-power sites.

How far can I extend PoE past 328 feet?

Ethernet-over-Coax extenders (NVT Phybridge CHARIoT, Altronix eBridge) push Ethernet + PoE to 1,500+ feet over existing RG59/RG6 coax — ideal for analog-to-IP retrofits. UTP-based extenders reach 2,000-4,000 feet on Cat cable at reduced bandwidth (typically 100 Mbps). For new runs over 328ft, fiber + PoE switch at the camera end is usually cleaner architecture.

Should I put cameras on a separate VLAN?

Yes — always. A dedicated camera VLAN isolates camera traffic from office network for security (blocks camera-to-camera lateral movement if one is compromised), performance (cameras don't contend with office bandwidth), and troubleshooting (camera traffic is cleanly separated for packet capture). Requires managed switches; takes 10 minutes to configure on Ubiquiti UniFi, Cisco Catalyst, or any enterprise switch.

Infrastructure

Plan Your Deployment

Sub categories

Showing Results for Infrastructure

Altronix ACM8CBE 8-Output Access Power Controller

Altronix ACM8E 8-Output Fused Relay Access Controller

Altronix ACM8RLED 16-Output Monitored LED Board

Altronix ACMS12 Dual-Input 12-Output Access Power Controller

Altronix ACMS12CB 12-Output Access Power Controller

Altronix ACMS8 8-Output Access Power Controller

Altronix ACMS8CB 8-Channel PoE Access Power Controller

Altronix ACMS8CBK1 Dual Input Access Controller Kit

Altronix ACMS8K1 Dual Input Access Power Controller Kit

Altronix AL1002ULADA 24VDC 10A NAC Power Extender

Altronix AL1002ULADAJ NAC Power Extender - 24VDC @ 10 amp. 2

Altronix AL100UL 12VDC 0.75A Linear Power Supply

Altronix AL1012ACM220 Multi-Output 12VDC Power Supply

Altronix AL1012ACMCB220 12VDC Power Supply with Battery Backup

Altronix AL1012M220 12VDC 10A Power Supply Module

Altronix AL1012ULACM 12VDC 10A Power Controller

Browse by Product Family

What to Look For When Buying

Technology Stack

Typical Deployment Scenarios

Top Brands for Outdoor Deployments

Frequently Asked Questions

Related Categories

Engineering Reading

Certified Experts

Manufacturer Authorized

Expert Access

Since 2014

Brands

Categories

IP Cameras

Ordering

Legal

Company

Sales & Expert Advice

Customer Service
