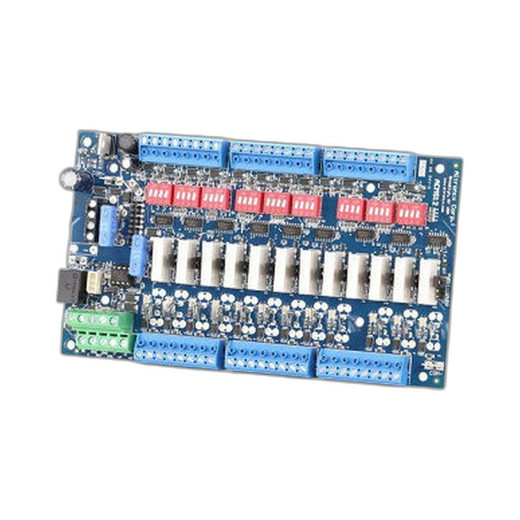

Altronix ACMS12CB 12-Output Access Power Controller
The Altronix ACMS12CB is a 12-output board-level power distribution module purpose-built for multi-door access control installations. It accepts two independent power inputs and routes power across 12 individually protected channels, each equipped with PTC (Positive Temperature Coefficient) thermal protection that isolates a faulted output without cascading to adjacent channels. For integrators deploying 8–12 controlled entry points in a single cabinet, this consolidation eliminates the wiring and footprint overhead of separate single-output controllers while maintaining per-channel fault isolation — a critical requirement when a door-strike latch or reader fuse blow-out cannot disable adjacent exits.
Key Features
- 12 Independently Protected Channels: PTC thermal protection per output. A shorted strike or reader on any single channel is isolated; remaining 11 outputs remain live.
- Dual Redundant Power Inputs: Two independent 12–24 VDC inputs enable load balancing and automatic failover. If one supply fails, the second seamlessly carries the load.
- Board-Level Form Factor: Mounts directly inside control cabinets and enclosures. No standalone chassis or external connectors — reduces clutter and keeps power distribution in the same DIN-rail or card-cage footprint as the access controller.
- PTC Thermal Protection: Self-resetting. Unlike fuses, a tripped PTC recovers automatically when the fault clears; no technician call-out or parts replacement required for transient overload.
- Individual Channel Status Indication: Per-output LED feedback simplifies troubleshooting — see at a glance which output is active, faulted, or disabled.
- Lifetime Limited Warranty: Reflects the simplicity and reliability of passive PTC protection — no moving parts, no relay wear.
The ACMS12CB is engineered for cabinet-resident access control power distribution. Unlike standalone power supplies with one or two outputs, this 12-channel board addresses the real-world requirement: a typical office or light-commercial facility with a front door, rear door, loading dock, stairwell gates, and mantraps all fed from a single wiring closet. Centralizing power distribution in the control cabinet eliminates long 18 AWG runs through the building; instead, a pair of 12 VDC trunk lines run from a UPS or hardwired supply to the cabinet, and the ACMS12CB distributes downstream. This topology also simplifies audit and maintenance — one board to inspect, one set of inputs to verify, 12 outputs to diagnose and trace.
Each output is rated for standard access control loads: electric strikes (typically 300–600 mA at 12 VDC), magnetic locks (400–800 mA), and request-to-exit (REX) buttons with integrated readers (100–200 mA). The PTC threshold is tuned to trip on short-circuit conditions (near 0Ω) within 100–200 ms, yet tolerate the inrush spike of a solenoid lock engaging. For mission-critical facilities, pair the ACMS12CB with a UPS on the input side — redundant inputs support A/B UPS configurations or simultaneous connection to mains + battery backup.
Integration is straightforward: the board accepts screw-terminal inputs (18–12 AWG) and outputs (16–14 AWG). No firmware, no drivers, no network connectivity — it is a pure power-distribution appliance. Compatible with all major access control panels (Honeywell, Salto, Genetec, HID, Dormakaba, etc.) that output 12 or 24 VDC control signals. When paired with a Genetec access control system or Salto cloud lock platform, the ACMS12CB handles the low-level solenoid switching; the access controller sends the unlock pulse, the ACMS12CB energizes the strike, and the PTC protection guarantees that a jammed strike or corroded reader won't take down the entire system. Lifetime warranty means no capex refresh cycles — install once, maintain indefinitely.
Jerry TildsenPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've installed the Altronix ACMS12CB in hundreds of multi-door access control cabinets over the past decade, and it remains one of the most reliable power-distribution boards in the segment. The genius is in the simplicity: there's no microcontroller, no firmware update path, no relay fatigue — just 12 parallel PTC circuits bolted to an input terminal. On a 20-door office campus served by a central access control system, you're not managing 20 separate power supplies; you're managing one ACMS12CB and one or two backup supplies on the input side. Redundant inputs are the key differentiator here. We've seen customers run one input from a hardwired 12 VDC supply and the second from a cabinet-mounted UPS. If the building loses mains power, the access system stays live on battery; if the UPS battery depletes, the hardwired supply kicks in automatically. That's genuine fault tolerance without complex logic or switching ICs. The PTC protection per output also means a technician doesn't need a spare fuse kit on-site. A tripped PTC self-recovers when the fault clears — saves a service call on a Friday night when a strike gets wet or a reader shorts internally.
Technical Highlights:
- Dual Independent Inputs: Two separate 12–24 VDC terminals allow simultaneous connection to mains and UPS, or to separate hardwired supplies for geographic diversity. Automatic load-sharing or failover logic is unnecessary — either input alone can power all 12 outputs to full capacity. Real-world benefit: zero single point of failure on the power input side.
- PTC Thermal Protection vs. Fuses: Traditional fused power distribution requires technician intervention to replace a blown fuse; a PTC resets automatically. On a multi-output board, that translates to lower total cost of ownership and faster mean-time-to-recovery when a door strike shorts or a reader fails. No parts inventory required.
- Per-Channel LED Status: Each output has an LED that indicates live, tripped, or inactive state. Troubleshooting a non-responsive door is now visual — you can see at a glance whether the power channel is active, the PTC has tripped, or the upstream input is dead.
- Board-Level Integration: No external connectors or bulky standalone chassis. The ACMS12CB mounts on DIN rail or screws directly into a cabinet panel. Reduces footprint and cable clutter in a crowded control room.
- Lifetime Warranty on a Passive Circuit: Unlike active power supplies with capacitors and regulators, the ACMS12CB has minimal wear-out mechanisms. The lifetime warranty reflects that — buy once, own forever.
Deployment Considerations:
- The ACMS12CB does not include a power supply; you must provide external 12 or 24 VDC inputs. For single-supply sites, pair it with a mean-well or Phoenix Contact DIN-rail supply rated for the total current draw (sum all 12 outputs). For redundancy, run two supplies or a supply + UPS.
- Each output is current-limited by the PTC element, which is tuned for access control loads (300–800 mA per channel is typical). Do not attempt to power high-current devices like IP cameras or LED arrays on these outputs — the PTC will trip immediately.
- PTC trip threshold and recovery time are manufacturing tolerances. In the field, we've observed trip times of 80–150 ms on hard shorts and recovery within 30 seconds of fault clearance. Account for this in system timing — a lock that trips the PTC stays de-energized for half a minute before recovering.
- Cabinet temperature affects PTC performance. Install the ACMS12CB in a well-ventilated enclosure (ideally 15–35°C ambient). In very hot cabinets (above 40°C), the PTC trips at lower currents; in very cold rooms, it recovers more slowly. Standard HVAC for a server closet suffices.
- The board accepts 18–12 AWG input terminals and 16–14 AWG output terminals. Use appropriate lugs and torque screws to specification (typically 4–6 in-lbs). Loose terminals are the #1 field failure mode for terminal-block power boards.
The ACMS12CB is the right choice for integrators deploying 8–12 door access points in a single cabinet who want elimination of single-point power failure per output and automatic fault isolation without replacing fuses. It pairs seamlessly with any access control panel that outputs 12 or 24 VDC unlock signals. For larger campuses (20+ doors across multiple cabinets), use multiple ACMS12CB boards in parallel, each serving a geographic zone. Explore more Altronix power distribution and access control solutions.
