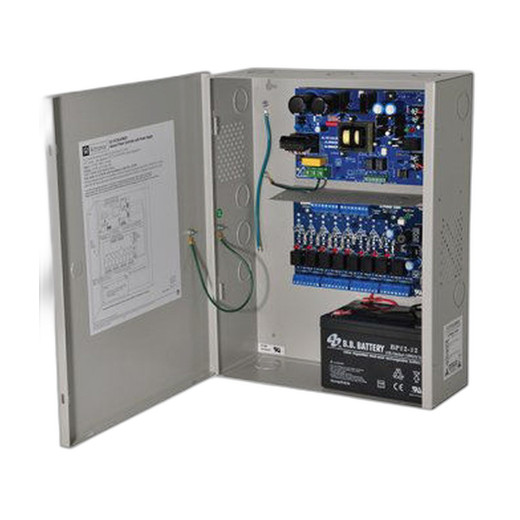

Altronix AL1012ULACMCB 8-Output Access Power Controller

Altronix AL1012ULACMCB 8-Output Access Power Controller

The Altronix AL1012ULACMCB is a dedicated power distribution controller designed to centralize and protect power feeds to multi-door access control infrastructure. In deployed systems, this unit eliminates single points of failure by isolating power to card readers, electric strikes, magnetic locks, and control nodes across separate channels — if one device faults or draws excessive current, the others stay live. That operational resilience matters when you're managing dozens of doors across a facility.

Key Features

• Eight independent output channels with individual PTC protection: PTC (Positive Temperature Coefficient) resettable protection on each output automatically shuts down an overloaded channel and restores itself when the fault clears — no manual fuse replacement, no service call overhead. Critical in 24/7 access control where downtime costs money.
• Dual-voltage output (12VDC or 24VDC selectable): Configure the entire unit for either voltage to match your installed base of readers, locks, and keypads. Eliminates the need for multiple PSUs when standardizing on one voltage across the building.
• Per-channel current capacity of 4A @ 12VDC or 3A @ 24VDC (10A @ 12VDC total available): Each channel can source up to 4 amps at 12VDC — enough for a card reader, solenoid strike, and indicator light on a single output. Total budget of 10A at 12VDC means you can load multiple channels simultaneously without bottlenecking. Calculate your strike + reader power draw upfront to avoid congestion.
• UL Listed safety certification: Meets commercial building code requirements and insurance policy language for power distribution in access control cabinets. Required in most jurisdictions for wall or rack installations in electrical closets.
• Compact wall-mount or rack-mount form factor: Fits into standard access control enclosures or mounts directly to DIN rail. Space-efficient compared to distributing power via multiple point-of-use supplies scattered across the building.
• Lifetime Limited Warranty: Manufacturer stands behind the unit for the entire lifecycle of the product — typical for industrial power infrastructure where replacement is inexpensive but downtime is costly.

Integration & Deployment Context

Deploy the AL1012ULACMCB as the central power hub in a multi-door access control system where you need galvanic isolation and fault protection per input. Pair it with a controller supporting multiple relay outputs or a networked access management platform to trigger door unlock commands. Typical installations include office buildings, warehouses, and data centers where access control spans 4–8 doors from a single cabinet.

Wire AC mains (24VAC or 12VAC input) to the power supply, then distribute the eight regulated 12VDC or 24VDC outputs to individual door hardware. The PTC protection handles minor short circuits and overcurrent events that would otherwise require field service. Each output is independently managed, so a shorted strike on one door won't kill power to the others.

Size your input power carefully: if running all eight channels at maximum load (10A total at 12VDC), you'll need a 24VAC or 12VAC input capable of supplying the corresponding watts plus margin for inefficiency. Check the input voltage spec in the datasheet to confirm your building's power distribution capacity.

When to Choose a Different Model

If you need more than eight outputs, or if your access control system requires galvanic isolation between outputs (common in higher-security deployments with independent backup power per door), investigate higher-capacity models in the Altronix power infrastructure line. If your door hardware is exclusively 24VDC and you have no 12VDC loads, a dedicated 24VDC-only unit may reduce cost and wiring complexity.

Frequently Asked Questions

Q: Can the AL1012ULACMCB run in a configuration where some outputs are 12VDC and others are 24VDC?

A: No. The unit is configured as either 12VDC or 24VDC across all eight channels. You select the voltage once during installation. If you need both voltage levels in the same cabinet, you will need two separate AL1012ULACMCB units or a controller that supports multiple voltage rails.

Q: What happens if a channel is shorted or overloaded?

A: The PTC protection on that channel will trip and disconnect it from the output. Once the short is removed or the overcurrent condition clears, the channel automatically restores power. No manual reset or fuse replacement is required — a significant advantage in 24/7 facilities.

Q: Is the AL1012ULACMCB suitable for outdoor or weatherproof installations?

A: No. This is an indoor power distribution unit designed for wall or cabinet mounting in climate-controlled spaces. For outdoor reader or lock installations, mount the AL1012ULACMCB indoors and run power-limited wiring to the outdoor hardware, or use a weatherproof enclosure rated for your local environment.

Q: What input voltage does the AL1012ULACMCB require?

A: The unit accepts 24VAC or 12VAC input, depending on your building's available power. Consult the datasheet or installation guide to confirm the specific input rating for your model variant.

Q: Can I daisy-chain multiple AL1012ULACMCB units for more than eight outputs?

A: Yes, you can install multiple units side-by-side in a cabinet, each fed from the same input supply and each controlling separate door circuits. However, ensure your total input power capacity can support the combined load of all units running at peak draw.

Q: Does the AL1012ULACMCB include battery backup capability?

A: No. This is an AC/DC regulated power supply for distribution only. If you require emergency or backup power for access control during a mains outage, add a separate UPS or battery-backed supply upstream of the AL1012ULACMCB input.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The AL1012ULACMCB is a no-nonsense power controller for multi-door access control deployments where you need reliable, isolated power distribution without the overhead of fuse maintenance. I appreciate the per-channel PTC protection — it's the difference between a single fault taking out your entire access infrastructure and isolating the problem to one door.

Technical Highlights:

• Individual PTC protection per channel: Each of the eight outputs is fused electronically, not mechanically. When an output sees overcurrent or thermal stress, the PTC automatically opens and closes when the condition clears. In a 24/7 access control cabinet, that cuts field service calls and keeps the other seven doors unlocked.
• Dual-voltage configuration (12VDC or 24VDC selectable): Set the entire unit to match your installed reader base. No need to stock multiple PSUs or wire adapters if the building standardizes on one voltage. One unit, one cable to the AC mains, clean DC distribution to eight separate circuits.
• Total 10A headroom at 12VDC, per-channel max 4A at 12VDC or 3A at 24VDC: A typical card reader draws 100–200mA; a solenoid strike can pull 1.5–2A. You can drive a reader plus a strike plus a status light on a single channel at 12VDC and still have margin. At 24VDC, budget slightly lower per channel, but locks and readers typically draw less current at higher voltage.

Deployment Considerations:

• Input voltage matters: verify your cabinet AC supply is 24VAC or 12VAC. If you're feeding the AL1012ULACMCB from a 110–240VAC building panel, you need a step-down transformer or a separate AC/DC PSU first.
• Watch total load: eight channels at 10A max means 120W total at 12VDC. If you're stacking two units in the same cabinet, your input transformer must handle 240W plus overhead. Easy to miss in the initial design.
• No battery backup: if the mains drops, power to all doors drops with it. For emergency unlock or failsafe operation, you need a UPS ahead of the AL1012ULACMCB or per-door battery backup on the lock hardware itself.

Best fit: office and warehouse access control where you have 4–8 doors fed from a single cabinet, each door needs independent power isolation, and you want to avoid field service for blown fuses. If you're architecting a 20-door system across a campus, you'd deploy multiple AL1012ULACMCB units, each protecting a zone. Not a single appliance for every site — but exactly right when your access topology calls for centralized, protected power distribution.
