Overview

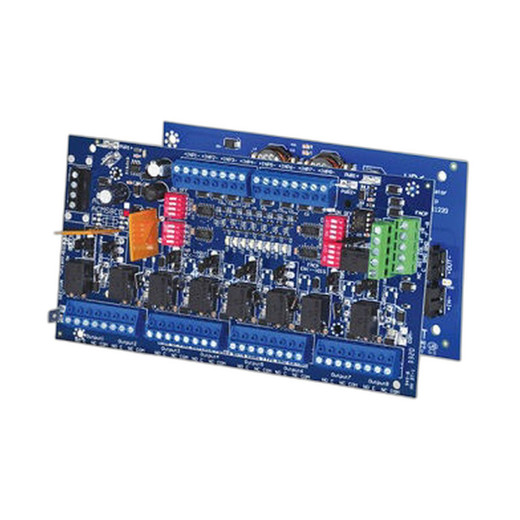

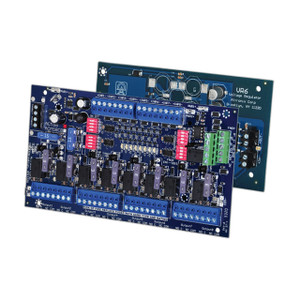

The Altronix ACMS8CBK1 is a dual-input access controller kit designed to manage and distribute power for access control systems. It integrates the VR6 voltage regulator and the ACMS8CB power distribution module to provide a consolidated power solution for up to eight devices. This kit is ideal for installations requiring reliable, distributed power for card readers, electric locks, and other access control peripherals, ensuring system uptime and operational integrity.

Compatibility

This kit is designed to work with a wide range of access control systems that require regulated power. The ACMS8CB module distributes power to up to eight devices, each fused individually, while the VR6 module provides a regulated 12VDC or 24VDC output from a main power source. It is compatible with systems utilizing standard electric locks, magnetic locks, and card readers that operate within the specified voltage and current limits.

Installation Notes

The ACMS8CBK1 requires a main power source (12VDC or 24VDC, 20A max) to operate. The VR6 module steps down or regulates the input voltage to a stable 12VDC or 24VDC output, depending on configuration. The ACMS8CB module then distributes this regulated power to up to eight outputs, each protected by a resettable PTC fuse. Proper wiring and adherence to local electrical codes are essential for safe and reliable operation. The unit is manufactured in the USA.

What's in the Box

• 1x VR6 Voltage Regulator
• 1x ACMS8CB Power Distribution Module
