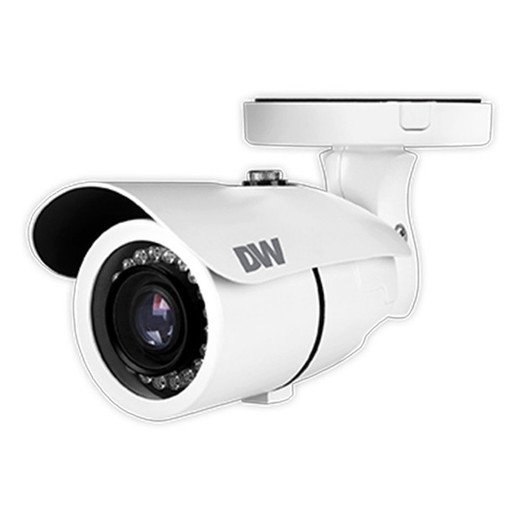

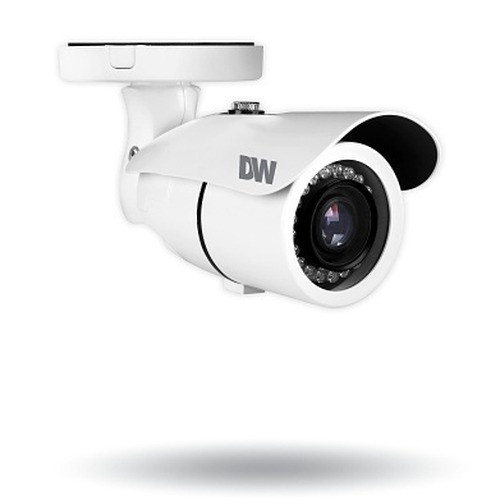

Digital Watchdog DWC-B6853WTIRW 8MP Star-Light IR Outdoor Bullet Camera
The DWC-B6853WTIRW is a fixed-lens outdoor bullet camera delivering 8MP (3864 x 2176) resolution in low-light and complete darkness. Built around a 1/1.8" CMOS sensor and Star-Light sense-up technology, it excels where conventional cameras fail—parking lots at dusk, perimeter fencing at night, loading docks with minimal ambient light. The combination of Star-Light amplification plus 100-foot Smart IR range means you capture usable detail in near-zero ambient conditions without relying on external lighting.
Key Features
- 8MP resolution (3864 x 2176 pixels) — captures sufficient detail for license plate and facial recognition at typical perimeter distances, reducing the need for multiple cameras to cover a single zone.
- Star-Light sense-up technology — boosts sensor sensitivity in low-light scenes while preserving contrast and reducing noise; minimum illumination of 0.0 lux in black-and-white mode and 0.10 lux in color means surveillance continues without supplemental lighting.
- 100-foot Smart IR range — infrared LEDs illuminate targets up to 30 meters in total darkness; Smart IR automatically scales intensity to prevent washout on near-field objects, avoiding the "blown-out" effect common with fixed-power IR.
- True WDR (wide dynamic range) 120dB — handles backlit scenes (sunrise/sunset on a perimeter fence, car headlights facing the camera) by compressing the luminance range; detail in both bright and dark areas of the same frame becomes recoverable instead of clipped.
- Fixed 2.8mm lens with 106.5° horizontal field of view — covers roughly 1.5× the width of a standard 4mm lens, reducing camera count for long hallways, loading docks, or parking lot sweeps; 59.1° vertical FOV suits pole-mounted or eave-mounted deployments.
- IP66 rating with aluminum die-cast housing — resists direct water spray and airborne dust; suitable for outdoor mounting without conduit or additional enclosure, though does not permit full submersion (IP67 required for that scenario).
- PoE power (802.3af) with 24V AC support option — draws power over the network cable; no separate 12VDC supply or power injector needed if your switch has adequate PoE budget; 24V AC fallback enables integration with existing analog infrastructure that may have spare pairs or isolated 24V AC lines.
- Auto day/night mode switching — transitions between color (day) and black-and-white (night) based on light level; reduces motion artifacts and improves detail in darkness compared to color operation under low illumination.
- 24 programmable privacy zones — masks sensitive areas (neighboring windows, street signs, parked vehicles) at the camera itself, reducing unnecessary data in recordings and respecting privacy boundaries without requiring VMS-level masking.
- Manual and auto shutter (1/30–1/30000 second) — auto mode adapts exposure to changing light; manual shutter control allows tuning for high-speed motion (e.g., vehicles on a ramp) or intentional motion blur to reduce bandwidth.
- Smart DNR 3D (digital noise reduction) — suppresses noise in low-light frames while preserving edge detail; reduces bitrate and storage footprint by 20–30% on typical 24/7 outdoor scenes compared to noise-heavy raw output.
- Universal HD over Coax (HD-CVI/HD-TVI/HD-Analog/CVBS) — integrates with existing analog coax infrastructure; if your site has a backbone of RG6 already installed, you can repurpose it for this camera without running new cable, lowering labor costs on retrofit projects.
Integration and Compatibility
The DWC-B6853WTIRW (often searched as DWC B6853WTIRW) outputs analog video signals over coax—HD-CVI, HD-TVI, and CVBS—making it a retrofit-friendly choice for sites transitioning from pure analog surveillance. CVBS test output supports field commissioning without a portable monitor. PoE operation simplifies installation in outdoor locations where 12VDC supplies would require conduit runs or terminal blocks exposed to weather. Verify coax cable run length; HD-CVI and HD-TVI typically degrade beyond 300–400 feet if the cable is already marginally terminated. Work with your NVR or hybrid DVR vendor to confirm input compatibility before ordering if you have an older recorder.
Environmental and Physical Specifications
Operating temperature range of -4°F to 122°F (-20°C to 50°C) and humidity tolerance of 10–90% non-condensing suit most climates except extreme freeze/thaw cycles in unheated enclosures. Compact dimensions (8.83" length × 3.8" diameter) and 1.65 lb weight enable discrete mounting on poles, eaves, or wall brackets without imposing load concerns. White housing blends with aluminum fascia and trim; black variants are not listed, so confirm aesthetics with your site prior to ordering.
Frequently Asked Questions
Q: What is the minimum light required for the DWC-B6853WTIRW to produce color video?
A: 0.10 lux in color mode. At levels below that, the camera switches to black-and-white and relies on Star-Light amplification and IR illumination. Typical outdoor scenes at dusk (street lighting) range 5–50 lux, so color operation is available most of the evening.
Q: Can I use the DWC-B6853WTIRW with a standard PoE switch?
A: Yes. The camera draws under 13W, well within IEEE 802.3af (15.4W max). A standard PoE switch with sufficient total budget will power it. Confirm your switch's per-port and aggregate power limits before deploying multiple cameras on the same switch.
Q: Is the 100-foot IR range measured at full pixel density or in B&W mode only?
A: The Smart IR range is specified at full 8MP resolution in black-and-white mode. Actual usable IR distance depends on target reflectivity, lens cleaning (dirt reduces range), and detector sensitivity in your NVR. Expect 70–85 feet on typical textured surfaces (pavement, chain-link fencing) and shorter distances on absorptive surfaces (asphalt, dark clothing).
Q: Does the DWC-B6853WTIRW support H.265 or H.264 compression over coax?
A: No. This is an analog HD-over-coax camera. Compression (if any) occurs in your NVR or DVR decoder, not on the camera itself. HD-CVI, HD-TVI, and CVBS signals are inherently limited to the bandwidth of coax and do not support modern codecs.
Q: What warranty period is included?
A: 5-year manufacturer warranty covers defects in materials and workmanship. Review your reseller's warranty extension and support options for on-site service coverage.
Q: Can I wall-mount the DWC-B6853WTIRW, or is it designed for pole mounting only?
A: The bullet form factor supports both wall-mount and pole-mount brackets. Confirm bracket compatibility with your integrator; the camera accepts standard 1/2" NPT and M16 threaded mounts.
When to Choose a Different Model
If your deployment requires IP networking (ONVIF, RTSP, multicast) rather than analog coax, evaluate IP cameras in the Digital Watchdog catalog or a comparable brand. If the 2.8mm fixed lens is too wide and you need more zoom reach, consider a varifocal HD-over-coax variant within the same family, or step to an outdoor IP camera with motorized lens options. For indoor-only applications, a compact dome or turret will integrate more seamlessly with interior aesthetics. If you need two-way audio, confirm that your NVR or hybrid recorder supports audio over the coax plant—most analog systems do not.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The DWC-B6853WTIRW targets integrators managing mixed-age surveillance ecosystems where coax backbone already exists and capital for IP migration isn't available this budget cycle. The Star-Light plus 100-foot Smart IR combination is genuinely strong—it outperforms conventional low-light bullets and will capture usable detail in parking lots and perimeters where other fixed-lens cameras produce silhouettes or noise. The true WDR 120dB addresses the real-world challenge of backlit perimeter scenes (sunrise through chain-link, car headlights, reflected sunlight off wet pavement) where loss of foreground or background detail kills forensic value.
Technical Highlights:
- Star-Light + 100ft IR: 0.0 lux B/W + 0.10 lux color performance eliminates false positives from noise amplification that plague cheaper low-light cameras. Particularly effective on loading docks and unlit parking areas.
- WDR 120dB dynamic range: Compresses 4,096:1 luminance ratios into recoverable video. In practice, this means detail on a parked car's license plate remains visible even if the sky behind it is blown white—a rarity at this price point.
- HD-CVI/HD-TVI/CVBS coax compatibility: Reuses existing analog infrastructure; labor cost savings of 40–60% on retrofit jobs compared to running fiber or new IP cabling through conduit.
- PoE 802.3af (under 13W): No power injector or separate 24VDC supply required. Simplifies outdoor pole mounts where routing power is otherwise a hassle.
Deployment Considerations:
- Analog output limits: HD-CVI and HD-TVI degrade beyond 300–400 feet of coax depending on cable quality. If your run approaches that limit, have your integrator test with a meter or oscilloscope before commit.
- No IP networking: This is a coax camera, not IP. You cannot deploy it in an IP-only infrastructure or expect RTSP streams to a VMS. If IP is a requirement, skip it.
- IR cleaning obligation: 100-foot IR range assumes a clean lens. Outdoor mounting means dust, pollen, and salt spray degrade the IR window; monthly lens cleaning (compressed air, microfiber cloth) is non-optional if you want that range.
Position this for perimeter security and loading dock monitoring on sites with coax already in place and no plans for IP migration in the next 5 years. It will outperform generic 2MP and 4MP bullets at the same price point and integrate cleanly with existing hybrid DVRs. Not a good fit for greenfield IP-native deployments or sites requiring analytics or edge intelligence.
