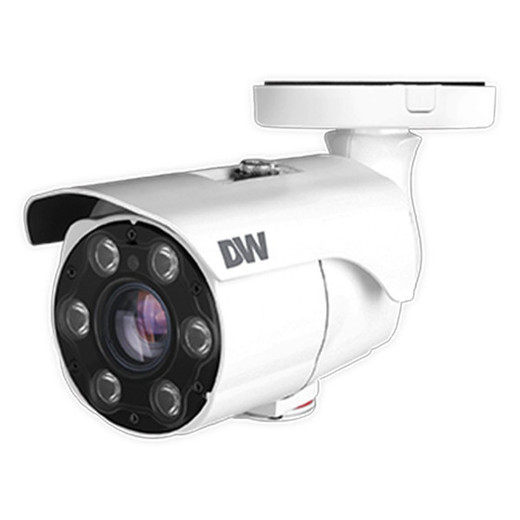

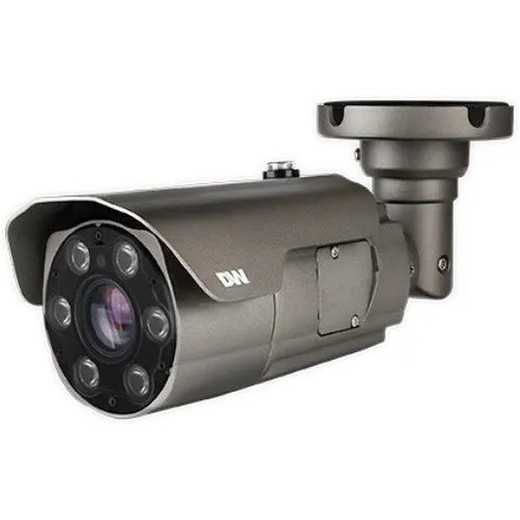

Digital Watchdog DWC-MB48WiATW 8MP 4K IR Outdoor Bullet Camera

Digital Watchdog DWC-MB48WiATW 8MP 4K IR Outdoor Bullet Camera

Overview

The DWC-MB48WiATW is a professional-grade 8MP outdoor bullet camera designed for large-area surveillance where resolution, low-light performance, and environmental durability are non-negotiable. This camera operates as a standalone unit with embedded analytics, meaning you get behavioral intelligence—intrusion detection, line crossing, object counting, loitering—without offloading processing to your NVR. That reduces computational load on your central recorder and keeps analytics responsive even if the network link degrades temporarily.

The core appeal: you get true 4K capture (3840 × 2160 pixels) from a single sensor, paired with a motorized vari-focal lens and 140-foot Smart IR range. For integrators deploying IP cameras across parking lots, perimeter fences, or industrial yards, this combination of reach and detail matters—you can zoom in on a vehicle plate or face without sacrificing overall scene context.

Key Features

• 8MP 4K resolution (3840 × 2160) — captures enough pixel density that you can digitally zoom or crop footage in post-deployment without losing investigative detail. At 30 fps, dual-stream encoding means your NVR can record high-quality archive while streaming lower-bitrate live feeds to mobile clients.
• Motorized vari-focal lens (2.7mm–13.5mm) with auto-focus and P-iris — field-adjustable zoom eliminates return trips to physically adjust the lens. The P-iris (programmable aperture) automatically closes down in bright sun, preventing iris flare and preserving dynamic range. You get 90.3° field of view at wide angle, down to 33.1° zoomed in.
• 140-foot Smart IR range — nighttime illumination out to 140 feet covers most warehouse entrances, truck staging areas, and large lot perimeters. Unlike fixed-focus IR domes, the adjustable lens lets you dial in the right balance between coverage distance and detail—wide and far, or narrow and sharp.
• Wide Dynamic Range (WDR) up to 120dB — handles the sun-facing wall next to a shaded loading dock in the same frame. 120dB is genuine forensic-grade WDR; you won't lose face detail under harsh backlighting or silhouette against bright sky.
• IP67/IK10 environmental rating — IP67 means the camera survives direct rain, garden hose spray, and temporary submersion. IK10 handles 20 joule impacts (equivalent to a 2kg weight dropped from 1 meter) without cracking the lens or housing. Industrial sites, transportation hubs, and rough-handling environments benefit most.
• PoE (IEEE 802.3af) powered — draws under 13W, so a standard 48V PoE switch can power dozens without branch power injectors. One cable (Ethernet) replaces two (network + 12VDC), cutting labor on exterior runs and reducing conduit complexity.
• H.265 + H.264 + MJPEG codec support — H.265 reduces bitrate (and thus storage/bandwidth costs) by 40–60% versus H.264 on similar quality settings. Useful on bandwidth-constrained sites or when recording 24/7 across 20+ cameras. Legacy VMS systems default to H.264; H.265 is an option if your recorder supports it.
• Embedded video analytics — intrusion, line crossing, loitering, object counting, directional detection, and tailgating detection run on-camera. No separate analytics appliance or GPU needed. Frame-rate and resolution are configurable (down to 3 fps) to balance analytics accuracy with bandwidth.
• 16 privacy masks — mask off neighbor windows, parking attendant booths, or private areas without losing video on the rest of the scene. Useful for GDPR/privacy-sensitive deployments.
• microSD slot (up to 1TB) — local backup recording if the network link fails. Helps you recover footage from temporary outages without relying on cloud or a backup path.
• Dual alarm I/O + audio I/O — wire door sensors, motion triggers, or sirens directly to the camera. Audio input enables perimeter microphone or two-way talk-down from the control room.
• ONVIF Profile S/T/G compliance — integrates with major VMS platforms (Milestone XProtect, Genetec, Hanwha, etc.). Not locked to a proprietary recorder or management suite.

Integration & Compatibility

The DWC-MB48WiATW supports 802.1X network authentication, HTTPS/TLS encryption, and IP filtering, meeting enterprise security baselines. Dual-stream output lets you configure separate profiles for local archival (high bitrate, H.265) and remote streaming (low bitrate, H.264) on the same sensor, minimizing encoder overhead. The camera operates reliably from −40°F to +122°F (−40°C to +50°C) and tolerates 90% non-condensing humidity, making it suitable for unheated warehouses, outdoor equipment sheds, and climate-controlled outdoor enclosures.

When deploying outdoor IP cameras in multi-site rollouts, consider your network infrastructure: Gigabit Ethernet (1000Base-T) is standard, but ensure your PoE switches are rated for the total connected load. A single 48-port managed PoE switch running a mix of cameras, each drawing 12–15W, can reach thermal limits; plan for adequate switch cooling or split across multiple units.

When to Choose a Different Model

If your deployment requires PTZ (pan-tilt-zoom) capability beyond a fixed motorized lens, or if you need higher than 8MP resolution (16MP or greater), explore higher-megapixel variants in the Digital Watchdog catalog. For indoor applications (hallways, offices, retail floors), a smaller form-factor indoor dome typically offers better aesthetics and easier flush mounting. If you need extreme low-light (sub-0.01 lux color sensitivity) without IR assist, specialized ultra-low-light cameras exist but trade away daytime detail and dynamic range.

Warranty & Support

Digital Watchdog backs this unit with a 5-year limited manufacturer warranty, covering defects in materials and workmanship. Typical warranty does not cover damage from installation error, environmental neglect, or physical impact beyond the IK10 rating—confirm terms with your distributor or vendor.

Frequently Asked Questions

Q: Does the DWC-MB48WiATW support ONVIF?

A: Yes. It is ONVIF Profile S, T, and G compliant, allowing integration with Milestone XProtect, Genetec, Hanwha, and other standards-based VMS platforms without vendor lock-in.

Q: What is the maximum IR range?

A: 140 feet (approximately 43 meters) with Smart IR technology. Actual visible range depends on scene reflectivity; very dark asphalt or gravel may reduce effective range by 10–20%.

Q: Can I adjust the lens after installation?

A: Yes. The motorized vari-focal lens (2.7–13.5mm) and auto-focus are adjustable via the web interface or your VMS client, so you can dial in zoom and focus without returning to the camera.

Q: Is the DWC-MB48WiATW weatherproof for direct rain?

A: Yes. IP67 rating means it withstands direct rain and garden hose spray. However, do not submerge it or aim a pressure washer directly at connectors; use a standard down-angle bracket to shed water naturally.

Q: What is the power consumption?

A: Approximately 12–13W via PoE (IEEE 802.3af). This is within the standard 15.4W limit, so no PoE+ switch upgrade is required, though a PoE+ switch (30W per port) offers headroom for future upgrades or longer cable runs.

Q: Does it include mounting hardware?

A: The camera ships with a bracket suitable for wall and corner mounting. Verify your specific mounting surface (wood, aluminum, concrete) and fasteners before installation; weatherproof silicone sealant is recommended for outdoor wood mounting.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The DWC-MB48WiATW is a solid pick for perimeter and parking lot surveillance where you need to cover large areas with high resolution and night vision. The combination of 8MP capture, 140-foot IR reach, and 120dB WDR means you're not making trade-offs between distance, detail, and lighting flexibility—all three work together. The motorized lens removes the field-adjustment headache, and embedded analytics let you trigger alerts on-camera without taxing your NVR. If your integrator base relies on PoE infrastructure and ONVIF-compatible management, this camera plugs in cleanly.

Technical Highlights:

• 140-foot Smart IR + 120dB WDR: You can cover a 200-foot perimeter fence with effective night vision and still capture facial detail in mixed-lighting scenes (e.g., vehicle under a parking lot lamp next to dark grass). Most fixed-lens cameras force you to choose between distance and dynamic range; this one doesn't.
• Motorized 2.7–13.5mm lens with auto-focus: Field-adjustable zoom and focus via web interface eliminates climbing a ladder or staging a bucket truck when the first install angle misses the target. P-iris control adapts aperture in real-time, so you don't lose iris flare in harsh sun.
• H.265 codec option: If you're recording 24/7 across a dozen or more cameras, H.265 cuts storage consumption roughly in half versus H.264 at equivalent quality. A 10TB NVR can hold 3–4 weeks of 8MP footage instead of 1–2 weeks, materially reducing storage churn and cost.
• Embedded intrusion, line-crossing, and loitering detection: Analytics run on the camera's processor, not your NVR. Useful if you're managing hundreds of cameras or if network latency is a concern—alerts fire locally before the footage even reaches the recorder.

Deployment Considerations:

• PoE power budget: At 12–13W, a single 48-port 802.3af PoE switch can handle up to 120 cameras before hitting thermal limits (assuming 15.4W per port and 70% utilization). However, outdoor runs (100+ feet) incur voltage drop; use CAT6 or heavier gauge cabling and validate actual power delivery at the camera port.
• IR night vision trade-off: 140-foot IR is exceptional, but it requires clear line of sight. If your site has trees, fog, or dust, effective range may drop to 80–100 feet. Always verify night visibility during site survey.
• WDR in extreme backlight: While 120dB WDR handles most mixed-light scenes, extremely bright backlighting (e.g., direct sun reflecting off a white building wall behind the subject) may still require privacy masking or manual exposure tuning to retain detail on the subject.
• Thermal operation: Operating range −40°F to +122°F is excellent for outdoor year-round use, but metal housings can absorb solar heat. Mount with sun-facing side shaded if possible, or ensure ventilation around the back of the unit.

Best-fit scenario: Mid-to-large outdoor surveillance where you need one camera to cover a wide area (parking lot, loading dock, perimeter fence) without daisy-chaining multiple lower-res units. The motorized zoom and embedded analytics pay off quickly if you're managing dozens of locations or dealing with staffing constraints on site surveys.
