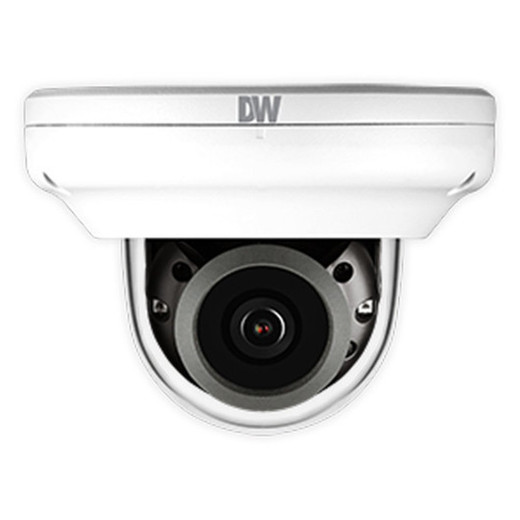

Digital Watchdog DWC-MVC8WiATW 8MP Outdoor IR Dome Camera

Digital Watchdog DWC-MVC8WiATW 8MP Outdoor IR Dome Camera

The DWC-MVC8WiATW is a purpose-built outdoor surveillance dome engineered for perimeter security, warehouse monitoring, and parking lot surveillance where resolution, low-light performance, and flexible field-of-view are non-negotiable. Built on a true 4K 1/2.8" CMOS sensor delivering 3840 x 2160 native pixels, this unit captures fine detail—facial features, license plates, merchandise identity—without interpolation or upscaling. The 8MP sensor combined with a motorized vari-focal lens (2.7–13.5mm) and auto-focus gives you coverage flexibility from 90.3° wide to 33.1° narrow without swapping hardware.

Key Features

• 8MP 4K Native Resolution: 3840 x 2160 active pixels eliminate the need for software scaling; every pixel is genuine sensor data. Matters when you need to zoom into recorded footage and still read a license plate or face without blurring.
• Motorized Vari-focal Lens (2.7–13.5mm): Zoom and focus adjustments made remotely via the camera's web interface—no physical adjustment at the pole needed once installed. Auto-focus and P-iris control maintain sharp focus and proper exposure across all zoom positions.
• Smart IR™ with 100-Foot Range: Infrared LEDs deliver reliable illumination to 100 feet in complete darkness, allowing the camera to maintain surveillance 24/7 without external lighting. Lower power consumption per unit compared to external IR fixtures; reduces overall site electrical load.
• Extreme Low-Light Sensitivity: Operates at 0.0 lux in black-and-white mode and 0.043 lux in color, so twilight and interior perimeter shots preserve color and detail longer than typical outdoor domes.
• 120dB Wide Dynamic Range (WDR): Simultaneously captures detail in bright sunlit areas and dark shadows—critical for bay doors opening into a warehouse, or parking lots with mixed direct sun and deep cover. Prevents blown-out or crushed areas that waste forensic value.
• IP67 & IK10 Rated: Aluminum die-cast housing withstands direct rain, dust, and vandal impact. IP67 means full dust protection and brief submersion; IK10 resists hammer blows and intentional impact. Reduces maintenance and replacement costs in high-traffic or hostile environments.
• PoE Powered (11.52W): Single Ethernet cable supplies power and data—no separate 12VDC runs, no wall-wart transformers to fail. Draws under 13W, so standard 802.3af switches support multiple units per port budget; simplifies infrastructure and reduces installation cost.
• Dual-Stream H.264/H.265/MJPEG Compression: H.265 reduces storage footprint by 40–60% compared to H.264 at equivalent quality—measurable savings on 24/7 retention across 4, 8, or 16-camera systems. Stream one resolution/codec to the NVR and another to mobile clients without the camera re-encoding.
• Built-in Video Analytics: On-camera intrusion detection, line-crossing, loitering, and tamper alarms execute locally—no need to license a separate analytics server. Reduces CPU load on your VMS and enables real-time edge alerts even if the network connection momentarily fails.
• Smart DNR™ 3D Noise Reduction: Low-light footage often shows grain or noise; 3D temporal filtering cleans motion-heavy scenes without ghosting or loss of detail. Makes security staff review faster and cleaner.
• Micro SD/SDHC/SDXC Onboard Storage (up to 1TB): Local backup on a failed network ensures you don't lose critical events. Useful for remote sites with unreliable ISP links or as a fail-safe for high-security incidents.

Integration & Compatibility

The DWC-MVC8WiATW adheres to ONVIF Profile S/T/G, making it compatible with virtually all major VMS platforms: DW Spectrum® IPVMS, Genetec Security Center, Milestone XProtect, and ExacqVision. Native REST/RTSP/HTTP/HTTPS APIs and digest authentication support custom integration workflows. Audio I/O (line-level) with G.711 compression enables two-way intercom setups. IPv4 with DHCP, DNS, NTP, DDNS, and 802.1X authentication integrates smoothly into enterprise network stacks. Chrome, Firefox, Safari, and Edge on Windows, macOS, and Linux all support the HTML5 web client—no plugin downloads or OS-specific viewers required.

When to Choose a Different Model

If your site demands a fixed field-of-view (no zoom requirement), a fixed-lens 8MP dome will cost less and eliminate motorized parts that could require maintenance. If you need PTZ (pan-tilt-zoom rotation), the DWC-MVC8WiATW is a dome turret fixed to one viewpoint—explore the Digital Watchdog IP camera family for PTZ turrets or speed domes if you need active tracking or multi-directional coverage. For indoor-only sites, an IP65-rated alternative will be more compact and lower-cost. If your NVR doesn't support ONVIF or you're locked into a proprietary system, verify compatibility before ordering.

Deployment Context

The DWC-MVC8WiATW excels in outdoor perimeter roles: warehouse loading docks, parking structures, retail exterior parking, gated facility entries, and rooftop/eave mounts. The motorized lens accommodates both wide overview (loading dock floor) and narrow detail (license plate at gate) from a single camera—saves money compared to installing two fixed-lens units. The combination of 8MP resolution, 100-foot IR, and IK10 impact rating makes it a sensible anchor for systems where you can't revisit the mount point frequently and where vandalism or weather exposure is realistic. Pair it with a PoE-enabled network video recorder for local storage and retrieval, or integrate into a corporate VMS for multi-site management. For budget-conscious deployments, the onboard micro SD slot provides offline backup—useful if your NVR is centralized and the site connection is unreliable.

Frequently Asked Questions

Q: What is the maximum IR range on the DWC-MVC8WiATW?

A: The DWC-MVC8WiATW delivers 100 feet of Smart IR illumination in complete darkness. This range assumes a typical outdoor scene with no intervening fog or dust; results will vary with atmospheric conditions and reflective surfaces.

Q: Can I adjust the zoom and focus remotely after installation?

A: Yes. The motorized vari-focal lens supports remote zoom (2.7–13.5mm) and auto-focus via the camera's web interface and any ONVIF-compatible VMS. No physical adjustment at the mount is required once deployed.

Q: Is the DWC-MVC8WiATW waterproof?

A: The DWC-MVC8WiATW carries an IP67 rating, which means full dust protection and temporary immersion in water (up to 1 meter for up to 30 minutes). It is not designed for permanent submersion or high-pressure wash jets. Direct rain, snow, and condensation are handled safely.

Q: How much power does the DWC-MVC8WiATW draw, and does it work with standard PoE switches?

A: The camera draws 11.52W maximum via standard 802.3af PoE (48V, up to 15.4W per port). Typical PoE switches support 4–8 units like this per port, depending on the switch's total power budget. Check your switch specifications before provisioning more than 4 units on a single port.

Q: What video formats and codecs does the DWC-MVC8WiATW support?

A: The camera supports H.264, H.265 (HEVC), and MJPEG in dual-stream mode at up to 30 fps. Multiple resolutions are available, including QFHD, 1080p, 720p, and VGA. H.265 reduces storage by 40–60% versus H.264, a significant savings for 24/7 recording systems.

Q: Will the DWC-MVC8WiATW integrate with my existing VMS?

A: If your VMS supports ONVIF Profile S, T, or G, the DWC-MVC8WiATW will integrate. Compatible platforms include Milestone XProtect, Genetec Security Center, ExacqVision, and DW Spectrum® IPVMS. Verify ONVIF support in your VMS documentation before purchase.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The DWC-MVC8WiATW is a solid middle-ground outdoor dome for integrators who need to justify 8MP resolution without jumping to PTZ cost or complexity. The motorized 2.7–13.5mm lens is the real value driver—one camera covers both wide warehouse entrance AND tight license-plate detail, which saves you from running dual fixed-lens units and simplifies VMS configuration.

Technical Highlights:

• 100-Foot Smart IR: Reliable night surveillance to the full 100-foot range means you're not buying external IR floods or LED arrays. At 11.52W draw, IR power is built-in and efficient—a material cost saving in infrastructure design.
• 120dB WDR: This isn't marketing speak—it directly addresses mixed lighting scenes (sun-facing bay door, deep shadows inside). Without WDR, you'd lose either the exterior detail or the interior floor; 120dB buys you both. Real operational win for facility compliance and forensics.
• H.265 Dual-Stream: Recording at H.265 to the NVR (40–60% storage savings) while streaming H.264 to mobile clients avoids transcoding overhead on the recorder. For 24/7 multi-camera systems, this cuts storage cost noticeably—$500–$2000 per year on recorder capacity, depending on retention policy.
• Motorized P-Iris + Auto-Focus: P-iris maintains depth-of-field across zoom ranges; auto-focus tracks focus as you adjust magnification remotely. On fixed-lens domes, you manually focus at installation and hope vibration doesn't drift it. This camera adjusts itself—fewer callback truck rolls.

Deployment Considerations:

• IP67 is not submersion-rated for underground or perpetually wet installation; if you're mounting it in a sump or below grade, verify the mounting height and drainage beforehand. IK10 is robust, but corner mounts or high-traffic perimeter fences sometimes invite impact that a back-of-lot pole wouldn't face.
• Motorized zoom draws peak power during lens movement—the 11.52W spec is steady-state once the lens is parked. If you're provisioning PoE switch capacity, test a live zoom adjustment to confirm your budget assumptions aren't too tight.
• ONVIF compliance is solid, but always request a compatibility test report from your VMS vendor if it's older than 2 years. Some legacy Milestone or Genetec installs may require firmware updates to negotiate dual-stream or analytics handshakes properly.

Best-fit scenario: outdoor perimeter sites (parking lot, gated entry, warehouse dock) where you need one flexible viewpoint instead of two fixed positions, and where 24/7 IR and 8MP detail capture justify the slight complexity versus a simpler fixed-lens dome. Pair it with a PoE-enabled NVR and PoE+ managed switch, and you've got a compact, maintainable surveillance spine.
