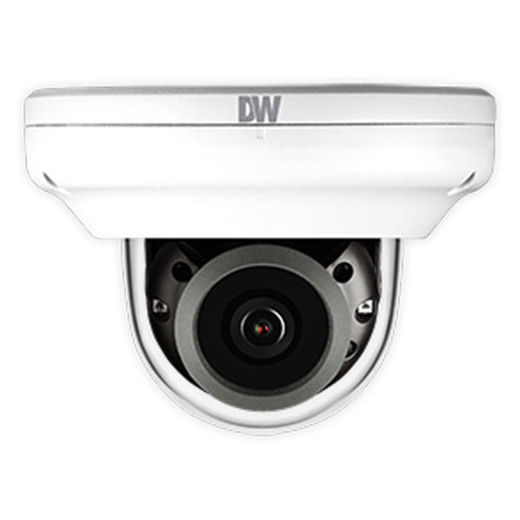

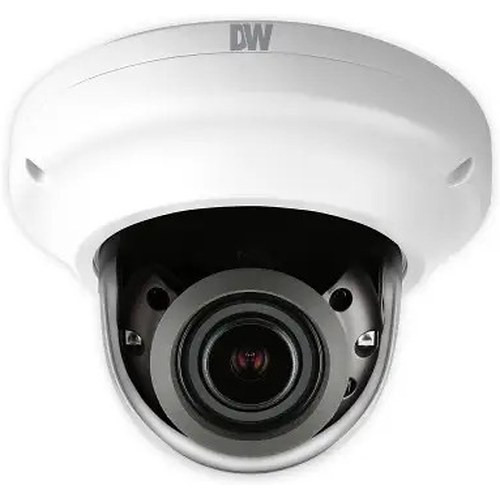

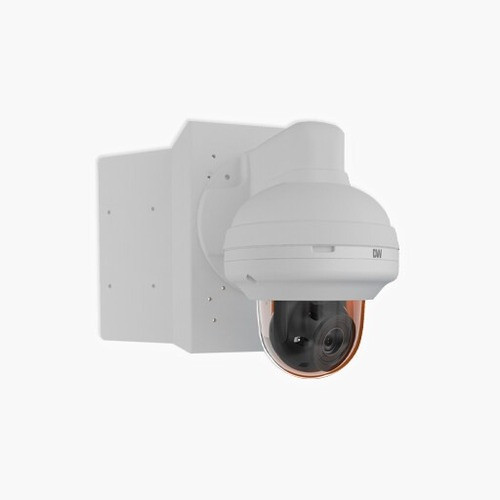

Digital Watchdog DWC-MPVC8WiATW 8MP Outdoor IR Dome IP Camera

Digital Watchdog DWC-MPVC8WiATW 8MP Outdoor IR Dome Camera

The Digital Watchdog DWC-MPVC8WiATW is a professional-grade 8MP outdoor IR dome camera engineered for demanding surveillance applications. Built on a 4K 1/2.8" CMOS sensor with 3840 x 2160 active pixels, this camera delivers exceptional image clarity and detail capture across lighting conditions. Its vandal-resistant dome housing with IK10 rating and IP67 weatherproof protection ensures reliable performance in harsh outdoor environments, from parking lots and perimeters to industrial facilities and commercial properties.

Key Features

• 8MP 4K resolution with 3840 x 2160 active pixels for exceptional detail clarity
• 100-foot Smart IR™ night vision with 0.0 lux B/W and 0.043 lux color capability
• 2.7mm–13.5mm motorized vari-focal lens with auto-focus and P-iris control for flexible field-of-view (90.3°–33.1° horizontal)
• True WDR 120dB wide dynamic range for balanced exposure in mixed lighting
• Power over Ethernet (PoE) for simplified installation and reduced wiring
• IP67 weatherproof rating with IK10 vandal resistance and aluminum die-cast housing
• Dual-stream capability with H.264, H.265, and MJPEG codec support
• Up to 30fps streaming at all resolutions with multi-rate CBR/VBR bitrate control
• Intelligent Video Analytics (IVA) license support for intrusion, line crossing, loitering, and tamper detection
• 16 programmable privacy masks and advanced motion detection

Technical Highlights

This camera features advanced image processing technologies including Smart DNR™ 3D digital noise reduction, auto day/night switching, and de-fog capability for consistent video quality in challenging conditions. The motorized zoom lens with P-iris delivers precise exposure control across zoom ranges, while the anti-flicker shutter mode accommodates various lighting frequencies. Video output includes local CVBS connectivity, and the camera supports dual-stream transmission at different rates and resolutions for flexible bandwidth management.

Network connectivity includes 1000Base-T Gigabit Ethernet with comprehensive protocol support (ONVIF, RTSP, HTTP/HTTPS, DDNS, DHCP, and more). Security features encompass 802.1x authentication, HTTPS/TLS encryption, IP filtering, and digest authentication. The camera integrates with industry-standard video management platforms including DW Spectrum® IPVMS, Genetec, Milestone, and ExacqVision, plus any ONVIF-compliant CMS. Onboard micro SD/SDHC/SDXC storage supports recording up to 1TB, with configurable SD card, email, FTP, and alarm notifications.

Environmental & Operational Specifications

Operating temperature range of -4°F to 122°F (-20°C to 50°C) and 10–90% humidity tolerance ensure year-round reliability. Power consumption is 11.52W via PoE, with compact dimensions of 4.92" × 3.62" and lightweight construction at 1.14 lbs. The camera includes audio I/O with G.711 compression for two-way communication. A 5-year warranty provides extended protection for this professional-grade surveillance solution.

Applications

Ideal for perimeter monitoring, parking facilities, commercial buildings, industrial sites, and transportation hubs requiring robust outdoor surveillance with superior night visibility and detailed image capture.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The DWC-MPVC8WiATW combines 8MP resolution with motorized optics and thermal Smart IR for versatile outdoor deployments. The True WDR 120dB and advanced noise reduction technologies address real-world challenges of mixed lighting and low-light environments. Native support for H.265 codec enables efficient bandwidth utilization without sacrificing frame rate, critical for bandwidth-constrained networks.

The IVA licensing framework provides scalable analytics from basic motion detection to advanced behavioral triggers like tailgating and object removal. IK10 vandal rating and IP67 sealing, paired with aluminum construction, justify deployment in exposed, high-risk locations. PoE power simplification and ONVIF compliance reduce integration overhead—this camera works seamlessly within established video management ecosystems rather than introducing proprietary dependencies.
